Abstract

本实用新型涉及卫生用具领域，特别涉及一种除臭垃圾桶。其包括桶体，所述桶体底部设置隔离网，隔离网与桶体底部之间形成隔层，隔层内放置除臭剂。本实用新型的有益效果在于：结构简单，制作工艺简单，成本低，除臭效果好，环保卫生。

Figure 201220097902

The utility model relates to the field of sanitary appliances, in particular to a deodorizing trash can. It includes a barrel body, an isolation net is arranged at the bottom of the barrel body, an interlayer is formed between the isolation net and the bottom of the barrel body, and a deodorant is placed in the interlayer. The beneficial effects of the utility model are: simple structure, simple manufacturing process, low cost, good deodorizing effect, environmental protection and sanitation.

Figure 201220097902

Description

除臭垃圾桶deodorant trash can

技术领域 technical field

本实用新型涉及卫生用具领域，特别涉及一种除臭垃圾桶。The utility model relates to the field of sanitary appliances, in particular to a deodorizing trash can.

背景技术 Background technique

生活中的垃圾桶因为存放各种各样的废弃物，往往散发出一股难闻的味道，尤其是在炎热的天气。不仅污染空气，也容易滋生细菌和蚊蝇。The trash cans in life often emit an unpleasant smell because of storing various wastes, especially in hot weather. It not only pollutes the air, but also easily breeds bacteria and mosquitoes.

实用新型内容 Utility model content

为解决上述技术问题，本实用新型提供了一种除臭垃圾桶。In order to solve the above technical problems, the utility model provides a deodorizing trash can.

本实用新型的技术方案为：一种除臭垃圾桶，包括桶体，所述桶体底部设置隔离网，隔离网与桶体底部之间形成隔层，隔层内放置除臭剂。The technical scheme of the utility model is: a deodorant trash can, comprising a barrel body, an isolation net is arranged at the bottom of the barrel body, an interlayer is formed between the isolation net and the bottom of the barrel body, and a deodorant is placed in the interlayer.

本实用新型的有益效果在于：结构简单，制作工艺简单，成本低，除臭效果好，环保卫生。The beneficial effects of the utility model are: simple structure, simple manufacturing process, low cost, good deodorizing effect, environmental protection and sanitation.

附图说明 Description of drawings

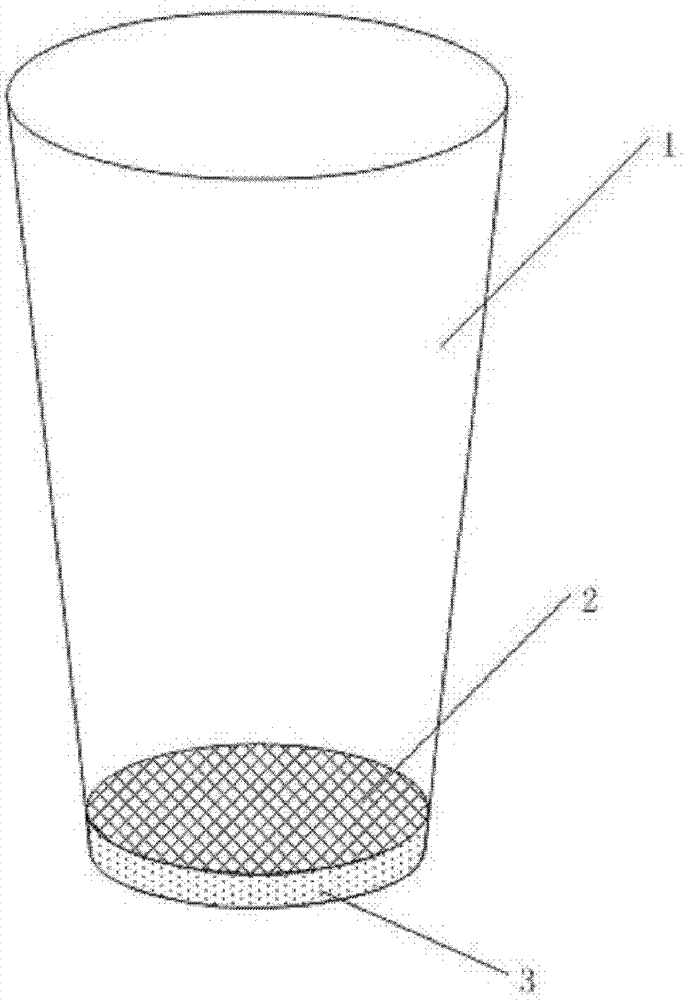

图1是本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.

其中，1、桶体，2、隔离网，3、隔层。Wherein, 1. barrel body, 2. isolation net, 3. interlayer.

具体实施方式 Detailed ways

以下结合附图具体说明本实用新型。The utility model is described in detail below in conjunction with the accompanying drawings.

参见图1，本实用新型包括桶体1，所述桶体1底部设置隔离网2，隔离网2与桶体1底部之间形成隔层3，隔层3内放置除臭剂。Referring to Fig. 1, the utility model comprises a staving 1, and the bottom of the staving 1 is provided with an isolation net 2, and an interlayer 3 is formed between the isolation net 2 and the bottom of the staving 1, and a deodorant is placed in the interlayer 3.

Claims (1)

1.一种除臭垃圾桶，包括桶体(1)，其特征在于，所述桶体(1)底部设置隔离网(2)，隔离网(2)与桶体(1)底部之间形成隔层(3)，隔层(3)内放置除臭剂。1. A deodorizing trash can, comprising a staving (1), characterized in that an isolation net (2) is arranged at the bottom of the staving (1), and an isolation net (2) is formed between the isolation net (2) and the bottom of the staving (1). Interlayer (3), deodorant is placed in the interlayer (3).
