Abstract

A medical specimen inspection box, including a box body with a handle, is characterized in that the box body is provided with two horizontal partitions that divide the box body into an upper cavity, a middle cavity and a lower cavity; the The upper, middle and lower storage chambers are respectively provided with an upper storage box, a middle storage box and a lower storage box which are pulled out through the rotating shaft, and a drawer type test sheet storage box is respectively provided; and the upper, middle The inside of the box body of the lower storage box is also provided with a numbering plate and a specimen placement hole respectively. The above-mentioned upper, middle and lower storage boxes and their specimen test sheet storage boxes are provided with locking devices respectively; outside the upper, middle and lower storage boxes are respectively provided with reminder label bags. The utility model has the advantages of simple structure, convenient operation, good use effect, economical durability, low cost, avoiding cross-infection, not only ensuring biological safety during specimen transfer, but also facilitating classification and collection of specimens.

Description

Medical Specimen Inspection Box

technical field

The utility model relates to a medical device, in particular to a medical specimen inspection box. the

Background technique

At present, the management of clinical laboratories is becoming more and more standardized, which requires that the specimens collected in the laboratory can be processed safely and standardizedly, and at the same time, they are also required to be moved safely. At present, open baskets are often used for the transfer of test specimens in hospitals, which poses a great biosafety risk. Because various specimens used by medical institutions may contain unknown viruses, bacteria and other infectious microorganisms, during the transfer process using open baskets, infectious microorganisms are likely to leak in the air, on the ground or on the body of the transferer. Clothes, causing the leakage of infectious microorganisms and even the internal infection of medical institutions, seriously endangering the environment and health. At present, there is no professional medical specimen box on the market, which can place various specimens in a standardized manner and realize safe and convenient movement. the

Contents of the invention

The purpose of the utility model is to provide a medical specimen inspection box to overcome the shortcomings of the existing open specimen inspection basket. the

In order to achieve the above object, the technical scheme of the utility model is as follows:

A medical specimen inspection box, comprising a box body with a handle, characterized in that the box body is provided with two horizontal partitions that divide the box body into an upper cavity, a middle cavity and a lower cavity; the The upper, middle and lower storage chambers are respectively provided with an upper storage box, a middle storage box and a lower storage box which are pulled out through the rotating shaft, and a drawer type test sheet storage box is respectively provided; and the upper, middle The inside of the box body of the lower storage box is also provided with a numbering plate and a specimen placement hole respectively. the

In order that the placing boxes will not move when moving, locking devices are respectively provided between the above-mentioned upper, middle and lower placing boxes and their specimen test sheet placing boxes and the box body. the

Considering the classification of convenient specimens, the outer sides of the above-mentioned upper, middle and lower storage boxes are respectively provided with prompt label bags. the

The utility model has the advantages of simple structure, convenient operation, good use effect, economical durability, low cost, avoiding cross-infection, not only ensuring biological safety during specimen transfer, but also facilitating classification and collection of specimens. the

Description of drawings

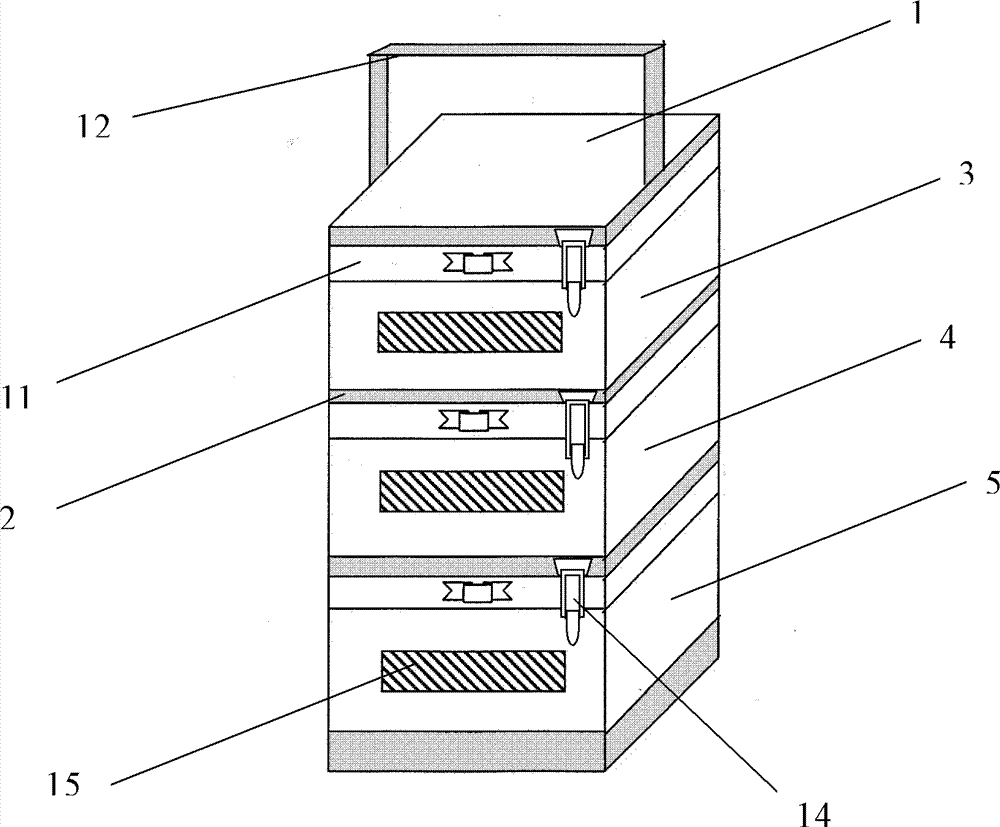

Fig. 1 is the overall structure schematic diagram of the present utility model. the

Fig. 2 is a schematic diagram of the overall structure of the utility model after deployment. the

Fig. 3 is a structural schematic diagram of the placement box of the present invention. the

Among them, 1. Box, 2. Partition, 3. Upper cavity, 4. Middle cavity, 5. Lower cavity, 6. Upper box, 7. Middle box, 8. Lower box, 9. Numbering plate, 10 specimen placement holes, 11, test sheet placement box, 12 handle, 13 rotating shaft, 14, locking device, 15 reminder label bag. the

Detailed ways

As shown in Figures 1 and 2, a medical specimen inspection box includes a box body 1 with a handle 12, and is characterized in that the box body 1 is provided with two chambers that divide the box body 1 into an upper cavity 3 and a middle cavity. Placement chamber 4 and the horizontal partition 2 of the lower placement chamber 5; the upper, middle and lower placement chambers 3, 4, and 5 are respectively provided with an upper placement box 6 and a middle placement box pulled out by rotating shaft 13 7 and the lower placement box 8, and the upper, middle and lower placement chambers 3, 4, and 5 are respectively provided with drawer-type test sheet placement boxes 11; and the box bodies of the upper, middle and lower placement boxes 6, 7, and 8 A numbering plate 9 and a sample placement hole 10 are also provided inside. the

The urine and urine specimens and sputum specimens can be placed in the above-mentioned upper, middle and lower three placement boxes, and the specimens are numbered 9 on the numbering board, and the test sheet is placed in the test sheet placement box 11 . the

As shown in Figure 1, in order to prevent the movement of the placement boxes when moving, locking devices are respectively provided between the above-mentioned upper, middle and lower placement boxes 6, 7, 8 and their respective specimen test sheet placement boxes 11 and the box body 1 14. the

As shown in FIG. 1 , considering the classification of convenient specimens, the outer sides of the above-mentioned upper, middle and lower storage boxes 6, 7 and 8 are provided with reminder label bags 15 respectively. the

When using the utility model, the upper, middle and lower placement chambers 3, 4, and 5 are respectively provided with the upper placement box 6, the middle placement box 7 and the lower placement box 8 pulled out by the rotating shaft 13, and the After the specimens that need to be tested are placed according to the prompts in the bag 15 provided with prompt labels on the outside of the upper, middle and lower storage boxes 6, 7 and 8, the specimens are numbered on the numbering plate 9, and the test list is placed in the test list storage box 11 Finally, push the upper storage box 6, the middle storage box 7 and the lower storage box 8 back into the upper, middle and lower storage chambers 3, 4 and 5, and the storage boxes and their specimen test sheets are locked by the locking device 14. The placement box 11 is fixed with the casing 1 . The utility model can be made of stainless steel plate, the overall structure is stable, strong and durable, can be cleaned and disinfected after daily use, and cross-contamination can be prevented. the

Claims (3)

1. A medical specimen inspection box, comprising a box (1) with a handle (12), characterized in that the box (1) is provided with two boxes (1) are divided into the upper chamber ( 3), the horizontal partitions (2) of the middle placement chamber (4) and the lower placement chamber (5); the upper, middle and lower placement chambers (3, 4, 5) are respectively provided with rotating shafts (13) Turn the upper placement box (6), the middle placement box (7) and the lower placement box (8) drawn out, and the upper, middle and lower placement chambers (3, 4, 5) are respectively provided with drawer type test sheet placement boxes ( 11); and the inside of the upper, middle and lower storage boxes (6, 7, 8) are respectively provided with numbering plates (9) and specimen placement holes (10). 2. The medical specimen inspection box according to claim 1, characterized in that the above-mentioned upper, middle and lower placement boxes (6, 7, 8) and their specimen test sheet placement boxes (11) and the box body (1) There are locking devices (14) respectively. 3. The medical specimen inspection box according to claim 1 or 2, characterized in that the outer sides of the upper, middle and lower storage boxes (6, 7, 8) are respectively provided with reminder label bags (15).
