Abstract
本实用新型属于体育用品技术领域，特别公开了一种爬梯。一种爬梯，包括两个独立的爬梯，其特征在于：所述的两个爬梯之间设有横梁，横梁上设有若干可以活动的吊环；横梁下方及两侧设有防护网。本实用新型的优点在于：结构简单，使用方便，集多种功能为一体，占地面积小，可以帮助人们得到臂力和腿力同时训练，且装置安全可靠。
The utility model belongs to the technical field of sporting goods, and particularly discloses a climbing ladder. A climbing ladder, comprising two independent climbing ladders, is characterized in that: a beam is arranged between the two ladders, and a number of movable rings are arranged on the beam; protective nets are arranged under and on both sides of the beam. The utility model has the advantages of simple structure, convenient use, integration of multiple functions, small floor space, and can help people to obtain arm strength and leg strength training at the same time, and the device is safe and reliable.
Description
技术领域 technical field
本实用新型属于体育用品技术领域，特别公开了一种爬梯。The utility model belongs to the technical field of sporting goods, and particularly discloses a climbing ladder.
背景技术 Background technique
目前学校的操场上都设有爬梯这种锻炼设施，但是其结构过于单一，只能上下攀爬，不能得到全方位的锻炼，还要通过其他设施来实现；而且设施多了就会占用很大的面积，造成浪费。At present, there are exercise facilities such as climbing ladders on the playground of the school, but the structure is too single, and it can only be climbed up and down, and it cannot be exercised in all directions, and it must be realized through other facilities; moreover, it will take up a lot of facilities. area, resulting in waste.
实用新型内容 Utility model content
本实用新型的目的在于，克服现有技术的不足之处，提供一种爬梯，集多种功能为一体，占地面积小，可以帮助人们得到臂力和腿力同时训练，且装置安全可靠。The purpose of the utility model is to overcome the deficiencies of the prior art and provide a climbing ladder which integrates multiple functions and occupies a small area. It can help people to train their arm strength and leg strength at the same time, and the device is safe and reliable.
本实用新型解决上述技术问题所采用的技术方案如下面所描述：The technical solution adopted by the utility model to solve the problems of the technologies described above is as follows:
一种爬梯，包括两个独立的爬梯，其特征在于：所述的两个爬梯之间设有横梁，横梁上设有若干可以活动的吊环；横梁下方及两侧设有防护网。A climbing ladder, comprising two independent climbing ladders, is characterized in that: a beam is arranged between the two ladders, and a number of movable rings are arranged on the beam; protective nets are arranged under and on both sides of the beam.
本实用新型具有以下有益效果：结构简单，使用方便，在原来爬梯的基础上增加了吊环装置，集多种功能为一体，占地面积小，可以帮助人们得到臂力和腿力同时训练，而且装置上设有防护网，安全可靠。The utility model has the following beneficial effects: the structure is simple, the use is convenient, the ring device is added on the basis of the original climbing ladder, multiple functions are integrated, the floor space is small, and it can help people to train their arm strength and leg strength at the same time, and the device There is a protective net on the top, which is safe and reliable.
附图说明 Description of drawings

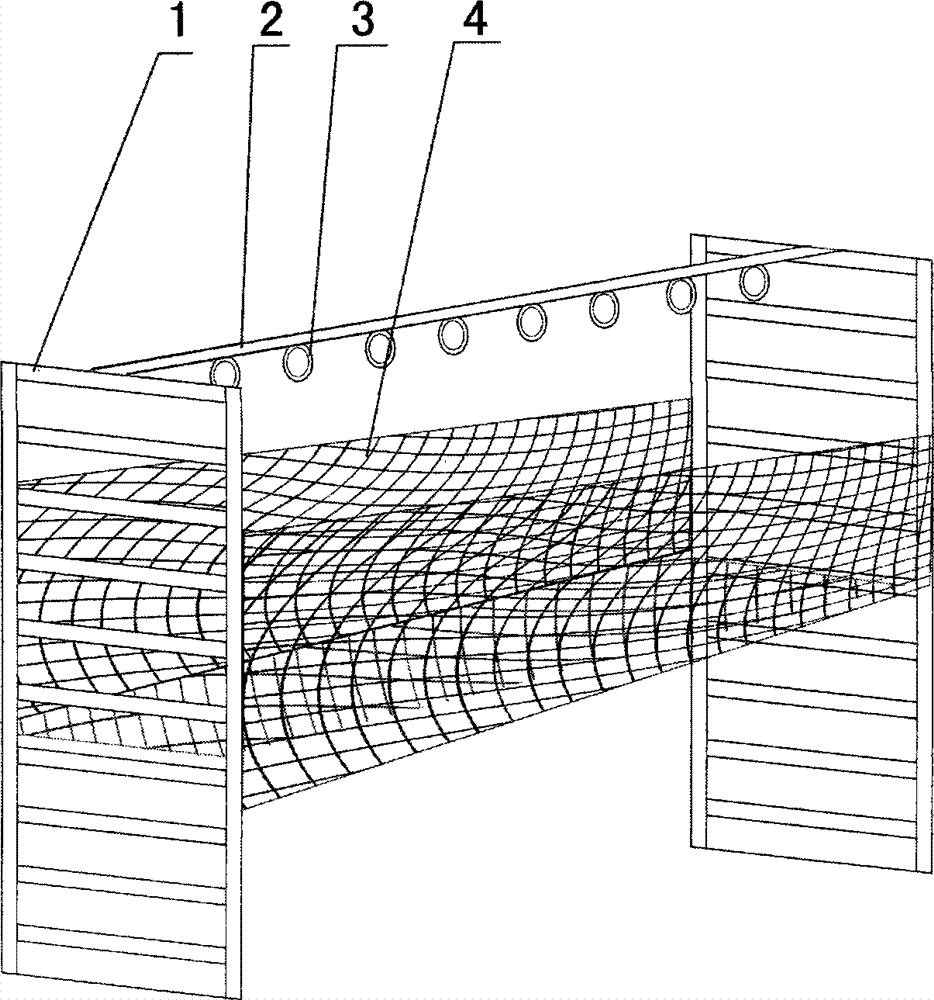

图1为本实用新型一种爬梯的结构示意图。Fig. 1 is a structural schematic diagram of a climbing ladder of the present invention.
图中，1爬梯，2横梁，3吊环，4防护网。In the figure, 1 ladder, 2 beams, 3 rings, 4 protective nets.
具体实施方式 Detailed ways
下面结合附图1对本实用新型进行详细的描述。Below in conjunction with accompanying
其中，该装置包括爬梯1，横梁2，吊环3，防护网4。Wherein, the device includes a
一种爬梯，包括两个独立的爬梯1，两个爬梯1之间设有横梁2，横梁2上设有若干可以活动的吊环3；横梁2下方及两侧设有防护网4，通过该装置，人们既能做到全面的锻炼，又可以保证安全。A climbing ladder, comprising two
需要注意的是，上述具体实施例是示例性的，在本实用新型的上述教导下，本领域技术人员可以在上述实施例的基础上进行各种改进和变形，而这些改进或者变形落在本实用新型的保护范围内。It should be noted that the above-mentioned specific embodiments are exemplary, and under the above-mentioned teaching of the utility model, those skilled in the art can make various improvements and modifications on the basis of the above-mentioned embodiments, and these improvements or modifications fall within the scope of this invention. within the scope of protection of utility models.
本领域技术人员应该明白，上面的具体描述只是为了解释本实用新型的目的，并非用于限制本实用新型。本实用新型的保护范围由权利要求及其等同物限定。Those skilled in the art should understand that the above specific description is only for the purpose of explaining the utility model, and is not intended to limit the utility model. The protection scope of the present utility model is defined by the claims and their equivalents.
