本实用新型公开了一种多功能医用杯，包括有正方体形的杯体，杯体下部设有隔板，隔板将杯体内腔分为上部的盛水腔和下部的盛物腔，杯体上对应所述盛物腔部位安装有抽屉。本实用新型结构简单，设计合理，可以作为病人外出时的急救杯，方便携带，功能更加多样化。
The utility model discloses a multifunctional medical cup, which comprises a cube-shaped cup body. The lower part of the cup body is provided with a baffle. A drawer is installed on the part corresponding to the storage cavity. The utility model has the advantages of simple structure and reasonable design, and can be used as a first-aid cup for patients when they go out. The utility model is convenient to carry and has more diversified functions.
Description
Technical field:
The utility model relates generally to the medical appliance field, relates in particular to a kind of multifunctional medical cup.
Background technology:
Medica cup in the prior art only possesses the single-layer cup body, and heat insulation effect is bad.And medica cup can only the splendid attire boiling water, and function ratio is more single, has satisfied not clinical demand.
The utility model content:
The utility model purpose is exactly in order to remedy the defective of prior art, a kind of multifunctional medical cup of reasonable in design to be provided.
The utility model is realized through following technical scheme:
A kind of multifunctional medical cup is characterized in that: include the cup of the square bodily form, the cup bottom is provided with dividing plate, and dividing plate is divided into the water chamber on top and the storage chamber of bottom with the cup inner chamber, and position, corresponding said storage chamber is equipped with drawer on the cup.
A kind of multifunctional medical cup is characterized in that: said cup is a double-decker.
The utility model adopts square body structure, and stability is high.
The utility model adopts the Double layer cup body, can play insulation effect.Said water chamber is used for the splendid attire boiling water, and said drawer can be placed article such as medicine, tealeaves.
The utility model has the advantages that:
The utility model is simple in structure, and is reasonable in design, can be used as the first aid cup of patient when going out, and is convenient for carrying, and function is variation more.
Description of drawings:

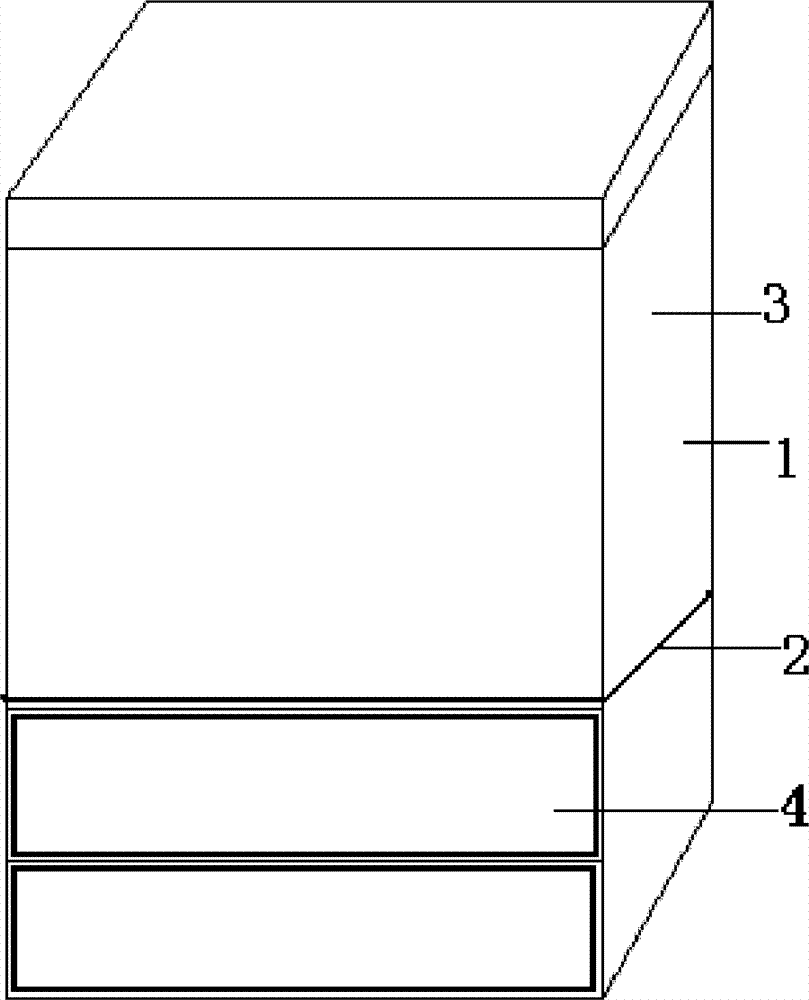

Fig. 1 is the structural representation of the utility model.
The specific embodiment:
Referring to accompanying drawing.
A kind of multifunctional medical cup includes the cup 1 of the square bodily form, and cup 1 bottom is provided with dividing plate 2, and dividing plate 2 is divided into the water chamber 3 on top and the storage chamber of bottom with the cup inner chamber, and position, corresponding said storage chamber is equipped with drawer 4 on the cup 1.
Cup 1 is a double-decker.
