Abstract
本实用新型涉及箱包领域，特别涉及一种旅行箱。其包括箱体和拉杆，所述箱体顶部设置为平画，箱体顶部外侧设有绑带、内侧设有固定扣，所述绑带上设有连接扣，绑带通过连接扣与固定扣连接。使用时，将随身包放在箱体顶部平画上，通过绑带将随身包固紧，并将连接扣扣紧在固定扣上。本实用新型的有益效果在于：结构简单、制作成本较低，可以方便的紧固随身包，很好地解决了随身包容易从旅行箱上掉落的问题。
The utility model relates to the field of bags, in particular to a suitcase. It includes a box body and a pull rod. The top of the box body is set as a flat drawing. There are straps on the outside of the top of the box body and fixed buckles on the inside. connect. When in use, put the carry-on bag on the flat frame on the top of the box body, fasten the carry-on bag through the strap, and fasten the connecting buckle on the fixed buckle. The beneficial effect of the utility model is that the structure is simple, the production cost is low, and the carry-on bag can be fastened conveniently, which well solves the problem that the carry-on bag is easy to fall from the suitcase.
Description
技术领域 technical field
本实用新型涉及箱包领域，特别涉及一种旅行箱。The utility model relates to the field of bags, in particular to a suitcase.
背景技术 Background technique
当学生开学、放假或人们出差时，往往携带旅行箱之外再携带一个随身包，拖动旅行箱时，习惯把随身包放在行李箱上一同拉着走。但是，旅行箱的上端不平整，再加上道路的不平整，随身包总是从旅行箱上滑下来，很是不方便。When students start school, have a holiday or when people are on a business trip, they often carry a carry-on bag in addition to the suitcase. When dragging the suitcase, they are used to putting the carry-on bag on the suitcase and pulling it together. However, the upper end of the suitcase is uneven, and the road is uneven, and the carry-on bag always slides off from the suitcase, which is very inconvenient.
实用新型内容 Utility model content
为解决上述技术问题，本实用新型提供了可以防止随身包掉落的旅行箱。In order to solve the above technical problems, the utility model provides a suitcase which can prevent the carry-on bag from falling.
本实用新型的技术方案为：一种旅行箱，包括箱体和拉杆，所述箱体顶部设置为平画，箱体顶部外侧设有绑带、内侧设有固定扣，所述绑带上设有连接扣，绑带通过连接扣与固定扣连接。The technical scheme of the utility model is: a suitcase, including a box body and a pull rod, the top of the box body is set to be flat, the top of the box body is provided with a strap on the outside, and a fixed buckle on the inside, and the strap is provided with a There is a connecting buckle, and the strap is connected with the fixed buckle through the connecting buckle.
使用时，将随身包放在箱体顶部平画上，通过绑带将随身包固紧，并将连接扣扣紧在固定扣上。When in use, put the carry-on bag on the flat frame on the top of the box body, fasten the carry-on bag through the strap, and fasten the connecting buckle on the fixed buckle.
本实用新型的有益效果在于：结构简单、制作成本较低，可以方便的紧固随身包，很好地解决了随身包容易从旅行箱上掉落的问题。The utility model has the beneficial effects that: the structure is simple, the production cost is low, and the carry-on bag can be fastened conveniently, which well solves the problem that the carry-on bag is easy to fall from the suitcase.
附图说明 Description of drawings

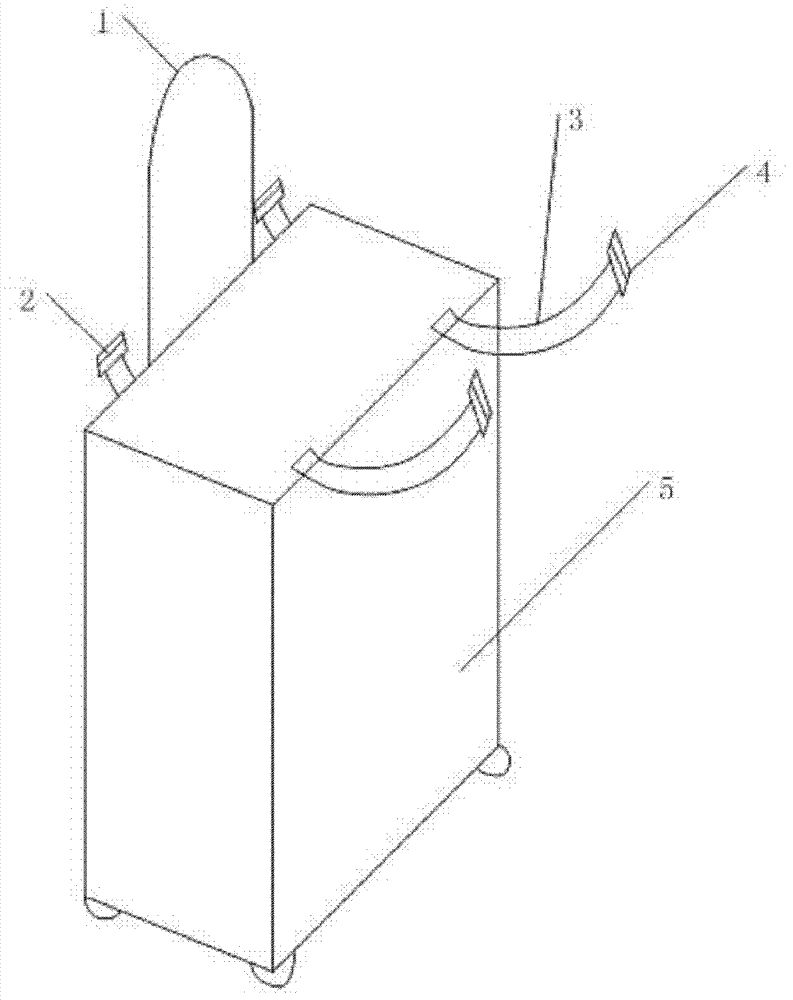

图1是本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.
其中，1、拉杆，2、固定扣，3、绑带，4、连接扣，5、箱体。Among them, 1. pull rod, 2. fixed buckle, 3. strap, 4. connecting buckle, 5. box body.
具体实施方式 Detailed ways
以下结合附图具体说明本实用新型。The utility model is described in detail below in conjunction with the accompanying drawings.
参见图1，本实用新型包括箱体5和拉杆1，箱体5顶部设置为平画，箱体5顶部外侧设有绑带3、内侧设有固定扣2，绑带3上设有连接扣4，绑带3通过连接扣4与固定扣2连接。Referring to Fig. 1, the utility model includes a box body 5 and a pull rod 1, the top of the box body 5 is set as a flat drawing, the outside of the top of the box body 5 is provided with a strap 3, the inside is provided with a fixed buckle 2, and the strap 3 is provided with a connecting buckle 4. The strap 3 is connected to the fixed buckle 2 through the connecting buckle 4 .
使用时，将随身包放在箱体5顶部平画上，通过绑带3将随身包固紧，并将连接扣4扣紧在固定扣2上。When in use, the carry-on bag is placed on the flat frame at the top of the box body 5, the carry-on bag is fastened by the strap 3, and the connecting buckle 4 is fastened on the fixed buckle 2.
