CN202455624U - Intelligent lighting energy saver - Google Patents
Intelligent lighting energy saver Download PDFInfo
- Publication number
- CN202455624U CN202455624U CN2012200522506U CN201220052250U CN202455624U CN 202455624 U CN202455624 U CN 202455624U CN 2012200522506 U CN2012200522506 U CN 2012200522506U CN 201220052250 U CN201220052250 U CN 201220052250U CN 202455624 U CN202455624 U CN 202455624U
- Authority
- CN
- China
- Prior art keywords
- power
- contactor
- transformer
- plc controller
- voltage
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B20/00—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps
- Y02B20/40—Control techniques providing energy savings, e.g. smart controller or presence detection
Landscapes
- Circuit Arrangement For Electric Light Sources In General (AREA)
Abstract
智能灯光节电器，它涉及节电器技术领域。它包含文本显示器(1)、PLC控制器(2)、接触器(3)、变压器(4)、电源输入端(5)和电源输出端(6)，文本显示器(1)与PLC控制器(2)连接，PLC控制器(2)与接触器(3)连接，接触器(3)与变压器(4)连接，变压器(4)分别与电源输入端(5)和电源输出端(6)连接。它将照明设备上的电压和电流控制在最佳使用功率上，自动调整照明设备的耗电功率，从而达到最佳节电的目的，节电效果十分明显且直观，有效地改善和提高整个用电系统的用电效率。
The utility model relates to an intelligent lighting power saver, which relates to the technical field of power saver. It contains text display (1), PLC controller (2), contactor (3), transformer (4), power input (5) and power output (6), text display (1) and PLC controller ( 2) connection, the PLC controller (2) is connected to the contactor (3), the contactor (3) is connected to the transformer (4), and the transformer (4) is connected to the power input terminal (5) and the power output terminal (6) respectively . It controls the voltage and current on the lighting equipment to the optimal power, automatically adjusts the power consumption of the lighting equipment, so as to achieve the best power saving purpose, the power saving effect is very obvious and intuitive, and effectively improves and enhances the overall usage. power efficiency of the electrical system.
Description
技术领域 technical field
本实用新型涉及节电器技术领域，具体涉及一种智能灯光节电器。 The utility model relates to the technical field of power savers, in particular to an intelligent lighting power saver.
背景技术 Background technique
在电力供应部门的电能输送过程中，为避免电压损耗和用电高峰时造成电压过低，一般都采用提高电压输送，因此用户实际上承受的电压往往会高于设备的额定电压，这些超额的电压不仅不能让负载更有效率的运作，反而导致电能过量浪费，增加设备损坏率，增大成本费用等负面影响。 In the power transmission process of the power supply department, in order to avoid voltage loss and low voltage caused by peak power consumption, the voltage is generally increased, so the actual voltage that users bear is often higher than the rated voltage of the equipment. These excess Not only can the voltage not make the load operate more efficiently, but it will lead to excessive waste of electric energy, increase the damage rate of equipment, and increase the negative impact such as cost. the
照明智能节电器是以电磁感应方式将供电系统的输入电压予以优化，采用AC-AC直接变换技术调整电压，输给灯光负载的电压为最适宜值，达到既节电又保证照明标准要求的双重目的。但是目前的节电器还存在一定的缺陷：1、会因节电器系统故障或输入电压过低而影响灯具正常工作；2、电压检测不方便，负载不稳定；3、在节电转换及市电切换过程中，灯具会闪烁、熄灭；4、安装、调试、测试不方便；5、节电率较低。 Lighting smart power saver optimizes the input voltage of the power supply system by means of electromagnetic induction, and uses AC-AC direct conversion technology to adjust the voltage, so that the voltage output to the lighting load is the most suitable value, achieving the dual requirements of saving electricity and ensuring lighting standards Purpose. However, the current power saver still has certain defects: 1. It will affect the normal operation of the lamps due to the failure of the power saver system or the input voltage is too low; 2. The voltage detection is inconvenient and the load is unstable; During the switching process, the lamps will flicker and go out; 4. It is inconvenient to install, debug and test; 5. The power saving rate is low.
发明内容 Contents of the invention
本实用新型的目的是提供一种智能灯光节电器，它通过检测电网电压和用户用电情况，来自动选择最佳工况点进行调压稳压工作，将照明设备上的电压和电流控制在最佳使用功率上，自动调整照明设备的耗电功率，从而达到最佳节电的目的，节电效果十分明显且直观，有效地改善和提高整个用电系统的用电效率。 The purpose of this utility model is to provide an intelligent light saver, which automatically selects the best working point for voltage regulation and voltage stabilization by detecting the grid voltage and the user's power consumption, and controls the voltage and current of the lighting equipment at In terms of optimal use power, it automatically adjusts the power consumption of lighting equipment to achieve the purpose of optimal power saving. The power saving effect is very obvious and intuitive, and effectively improves and enhances the power consumption efficiency of the entire power consumption system.
为了解决背景技术所存在的问题，本实用新型是采用以下技术方案：它包含文本显示器1、PLC控制器2、接触器3、变压器4、电源输入端5和电源输出端6，文本显示器1与PLC控制器2连接，PLC控制器2与接触器3连接，接触器3与变压器4连接，变压器4分别与电源输入端5和电源输出端6连接。 In order to solve the existing problems of the background technology, the utility model adopts the following technical solutions: it includes a text display 1, a PLC controller 2, a contactor 3, a transformer 4, a power input 5 and a power output 6, and the text display 1 and The PLC controller 2 is connected, the PLC controller 2 is connected with the contactor 3, the contactor 3 is connected with the transformer 4, and the transformer 4 is connected with the power input terminal 5 and the power output terminal 6 respectively.
本实用新型智能节电器控制端子的左边三节端子可用于选择控制电压，A2、B2、C2的最小一相电压接至200V线；右边两节端子出厂时短接。若智能节电器用于路灯时，将短接线拆除，并将原路灯控制柜内的长夜灯接触器的常开触点NO接上，以保证路灯正常工作。 The three terminals on the left of the control terminal of the intelligent power saver of the utility model can be used to select the control voltage, and the minimum phase voltage of A2, B2, and C2 is connected to the 200V line; the two terminals on the right are shorted when leaving the factory. If the smart power saver is used for street lamps, remove the short wire and connect the normally open contact NO of the long night lamp contactor in the original street lamp control cabinet to ensure the normal operation of the street lamp.
本实用新型智能节电器配备有控制面板，其左侧为 LCD操作系统，用于节电器参数设定和运行状态信息显示；右上为工作状态指示灯，用于指示节电器在旁路、自动或手动一档至五档工作状态；右下为工作模式选择旋钮，用于选择节电器在旁路、自动或手动一档至五档工作。 The smart power saver of the utility model is equipped with a control panel, the left side of which is an LCD operating system, which is used for parameter setting of the power saver and the display of operating status information; Manual 1st to 5th gear working status; the lower right is the working mode selection knob, which is used to select the power saver to work in bypass, automatic or manual 1st to 5th gear.
本实用新型具有以下有益效果： The utility model has the following beneficial effects:
1、采用全固态电子元件制成，其不同的防护等级，可适用户外、户内及不同程度的恶劣环境。它与其它类的节电装置完全不同，它是由特制的节能线圈组成主回路，输出的电感是连续的，对电网无谐波干扰，可靠性高，耐浪涌电压冲击及瞬时大负载冲击能力强。 1. It is made of all solid-state electronic components, and its different protection levels can be applied to outdoor, indoor and different degrees of harsh environments. It is completely different from other types of energy-saving devices. It is composed of a special energy-saving coil as the main circuit. The output inductance is continuous and has no harmonic interference to the power grid. It has high reliability and is resistant to surge voltage shocks and instantaneous large load shocks. strong ability.
2、不含可控硅和保险丝等易损器件，可靠性和稳定性极高，故可降低维护费用，减少维修工作量，并且安装简单，无需更改用户照明系统原有线路，可直串连在灯具电度表后和灯具开关之前。 2. It does not contain vulnerable components such as silicon controlled rectifiers and fuses, and has high reliability and stability, so it can reduce maintenance costs and maintenance workload, and it is easy to install, without changing the original circuit of the user's lighting system, and can be directly connected in series After the light meter and before the light switch.
3、使用安全、可靠。它具有低压保护、过载保护、故障旁通自动回入市电保护等功能，不会给用户带来任何的用电影响。 3. It is safe and reliable to use. It has functions such as low-voltage protection, overload protection, fault bypass and automatic return to mains protection, and will not bring any impact on power consumption to users.
附图说明： Description of drawings:

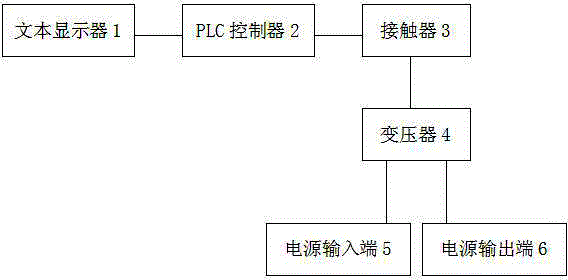

图1为本实用新型的结构示意图， Fig. 1 is the structural representation of the utility model,
图2为本实用新型的接线图。 Fig. 2 is the wiring diagram of the present utility model.
具体实施方式： Detailed ways:
参照图1-图2，本具体实施方式采用以下技术方案：它包含文本显示器1、PLC控制器2、接触器3、变压器4、电源输入端5和电源输出端6，文本显示器1与PLC控制器2连接，PLC控制器2与接触器3连接，接触器3与变压器4连接，变压器4分别与电源输入端5和电源输出端6连接。 With reference to Fig. 1-Fig. 2, present embodiment adopts following technical scheme: it comprises text display 1, PLC controller 2, contactor 3, transformer 4, power supply input 5 and power output 6, text display 1 and PLC control The PLC controller 2 is connected to the contactor 3, the contactor 3 is connected to the transformer 4, and the transformer 4 is connected to the power input terminal 5 and the power output terminal 6 respectively.
本具体实施方式控制端子的左边三节端子可用于选择控制电压，A2、B2、C2的最小一相电压接至200V线；右边两节端子出厂时短接。若智能节电器用于路灯时，将短接线拆除，并将原路灯控制柜内的长夜灯接触器的常开触点NO接上，以保证路灯正常工作。 The left three sections of the control terminal in this specific embodiment can be used to select the control voltage, and the minimum one-phase voltage of A2, B2, and C2 is connected to the 200V line; the two sections on the right are shorted when leaving the factory. If the smart power saver is used for street lamps, remove the short wiring and connect the normally open contact NO of the long night lamp contactor in the original street lamp control cabinet to ensure the normal operation of the street lamp.
本具体实施方式配备有控制面板，其左侧为 LCD操作系统，用于节电器参数设定和运行状态信息显示；右上为工作状态指示灯，用于指示节电器在旁路、自动或手动一档至五档工作状态；右下为工作模式选择旋钮，用于选择节电器在旁路、自动或手动一档至五档工作。 This specific embodiment is equipped with a control panel, the left side of which is an LCD operating system, which is used for power saver parameter setting and operating status information display; Gear to 5 working status; the lower right is the working mode selection knob, which is used to select the power saver to work in bypass, automatic or manual gear 1 to 5.
本具体实施方式通过检测电网电压和用户用电情况，来自动选择最佳工况点进行调压稳压工作，将照明设备上的电压和电流控制在最佳使用功率上，自动调整照明设备的耗电功率，从而达到最佳节电的目的，节电效果十分明显且直观，有效地改善和提高整个用电系统的用电效率。 This specific implementation mode automatically selects the best working condition point for voltage regulation and voltage stabilization by detecting the grid voltage and the user's power consumption, controls the voltage and current on the lighting equipment to the optimal power, and automatically adjusts the lighting equipment. Power consumption, so as to achieve the purpose of the best power saving, the power saving effect is very obvious and intuitive, effectively improving and enhancing the power consumption efficiency of the entire power consumption system.
