CN202433761U - Remote monitoring, warning and fault diagnosis system of anode protecting device based on Internet of things - Google Patents

Abstract

A remote monitoring, early warning and fault diagnosis system for anode protection equipment based on the Internet of Things, including sensor devices, signal recognition devices, GPRS/CDMA networks, Internet, database servers and monitoring terminals; sensor devices and signal recognition devices are wired connected, signal recognition devices and GPRS/CDMA network wireless signal connection; monitoring terminal includes equipment manufacturer monitoring terminal, customer monitoring terminal, equipment manufacturer engineer and customer engineer mobile phone monitoring terminal; GPRS/CDMA network is connected with equipment manufacturer and customer engineer mobile phone monitoring terminal wireless signal connection, The GPRS/CDMA network is connected to the Internet by wireless signal, the Internet is connected to the database server, the Internet is connected to the equipment manufacturer and customer monitoring terminal, and the equipment manufacturer and customer monitoring terminal are connected to the database server through the Internet. It can remotely monitor and evaluate the status of anode protection equipment in different places and all-weather, and timely and accurately warn equipment abnormalities.

Description

Remote Monitoring, Early Warning and Fault Diagnosis System for Anode Protection Equipment Based on Internet of Things

technical field

The utility model relates to the technical field of the Internet of Things and the field of anode protection equipment in the sulfuric acid industry, in particular to a remote monitoring, early warning and fault diagnosis system for anode protection equipment based on the Internet of Things technology, and the utility model also relates to the anode protection equipment based on the Internet of Things technology Remote monitoring, early warning and fault diagnosis methods.

Background technique

Anode protection equipment is the key equipment in the dry suction section of the sulfuric acid industry. It has the characteristics of corrosion resistance, energy saving, and environmental protection. Sold to Iran, North Korea, Zambia and other countries. However, anode protection equipment is a new type of corrosion-resistant equipment that combines anodic protection technology with stainless steel concentrated sulfuric acid equipment, and has extremely high requirements for maintenance and management. Changes in production process parameters, changes in anode protection parameters, and the level of the liquid level of the anode protection acid divider (one of the anode protection equipment) will all affect the corrosion resistance of the equipment. With the widespread application of anode protection equipment, some problems in its maintenance and management have become increasingly prominent, mainly as follows: first, there are "blind spots" in on-site equipment maintenance and management; Third, it is difficult to analyze the cause of equipment failure; fourth, it is difficult to maintain and manage export equipment, etc. These problems directly affect the performance of anode protection equipment. It can be seen that the key to achieving safe and high-quality operation of anode protection equipment is to improve the maintenance and management level of anode protection equipment. There are usually two methods: one is that sulfuric acid production enterprises are equipped with a professional equipment maintenance team, but due to the constraints of personnel and funds, many sulfuric acid production enterprises have "blind spots" in this regard; However, due to the constraints of timeliness and economy, it is also difficult to meet the needs of sulfuric acid production enterprises.

In order to strengthen the maintenance and management of anode protection equipment, most sulfuric acid production enterprises currently use the method of connecting the potentiostat, that is, the anode protection parameter control device of the anode protection equipment, to the DCS control system of the enterprise to monitor the changes in the anode protection parameters of the anode protection equipment. Equipment maintenance personnel in sulfuric acid enterprises can centrally monitor the changes of anode protection parameters of the anode protection equipment in the enterprise through the DCS control system, realizing the centralized management of the anode protection equipment in the enterprise. However, the operating status of the anode protection equipment is not limited to the anode protection parameters, and the changes in the production process parameters and liquid level parameters greatly affect the operation status of the anode protection equipment. In addition, as a highly dangerous chemical, sulfuric acid is extremely corrosive and oxidizing, so that once anode protection equipment leaks, it will cause great harm to equipment, the environment and personnel. It can be seen that real-time monitoring of the corrosion status of anodic protection equipment is also particularly necessary. Obviously, the monitoring of anode protection equipment by DCS control system is limited to anode protection parameters, the monitoring parameters are too single, and there is no fault diagnosis function.

Utility model content

The purpose of the utility model is to provide a remote monitoring, early warning and fault diagnosis system for anode protection equipment based on the Internet of Things; it aims to solve the current situation of low maintenance and management level of the existing anode protection equipment, improve the maintenance and management level of the anode protection equipment, and make the anode protection Devices are smarter. Another purpose of the utility model is to provide an implementation method of a remote monitoring, early warning and fault diagnosis system for anode protection equipment based on the Internet of Things.

In order to achieve the above object, the utility model provides such technical scheme:

A remote monitoring, early warning and fault diagnosis system for anode protection equipment based on the Internet of Things, including a sensor device, a signal recognition device, a GPRS/CDMA network, an Internet, a database server and a monitoring terminal; The identification device is connected to the wireless signal of the GPRS/CDMA network; the monitoring terminal includes equipment manufacturer monitoring terminal, customer monitoring terminal, equipment manufacturer engineer mobile phone monitoring terminal and customer engineer mobile phone monitoring terminal; GPRS/CDMA network and equipment manufacturer engineer mobile phone monitoring terminal , Customer engineer mobile phone monitoring terminal wireless signal connection, GPRS/CDMA network and Internet wireless signal connection, Internet network and database server connection, Internet network and equipment manufacturer monitoring terminal, customer monitoring terminal connection, equipment manufacturer monitoring terminal, customer monitoring The terminal is connected to the database server through the Internet.

The sensor device is located in the anode protection equipment; the sensor device includes an anode protection sensor, a production process sensor, a corrosion sensor and a liquid level sensor. The signal recognition device is composed of a signal receiving/analyzing module, a signal converting module and a wireless network transceiver module; the signal receiving/analyzing module is connected with the anode protection sensor, the production process sensor, the corrosion sensor and the liquid level sensor, and the signal receiving/analyzing module is connected with the signal converting module Module connection, the signal conversion module is connected with the wireless network transceiver module; the wireless network transceiver module is connected with the GPRS/CDMA network wireless signal.

The sensor device located in the anode protection equipment is used to collect the operation status information of the anode protection equipment; the signal recognition device is used to read the operation status information of the anode protection equipment collected by the sensor, and analyze and judge the read related information according to the predetermined procedure, And convert the relevant information into the predetermined Internet of Things data format, bridge to the Internet through the GPRS/CDMA network, and store it in the database server in the form of POST through the Internet; in addition, the signal recognition device also converts the information that the program determines to be abnormal into SMS The format is sent to the mobile phone monitoring terminal of the equipment manufacturer and customer engineer through the GPRS/CDMA network. The equipment manufacturer's monitoring terminal and the customer's monitoring terminal access the database server through the Wbe page of the Internet, obtain the operating status information of the anode protection equipment stored in the database server, and analyze the operating status of the anode protection equipment according to the preset early warning and fault diagnosis procedures. Carry out monitoring, prediction and evaluation, alarm the abnormal operation status of anode protection equipment, and analyze and diagnose the cause of equipment failure. In addition, the equipment manufacturer's monitoring terminal and the customer's monitoring terminal also have the function of sending remote control instructions; the remote control instructions of the anode protection equipment input by the monitoring engineers at the equipment manufacturer's or customer's monitoring terminal are sent to the database server via the Internet; the signal The identification device obtains the remote control instructions stored in the database server through the GPRS/CDMA wireless network, and executes the remote control instructions on the signal identification device.

Anodic protection equipment is the equipment that uses anodic protection technology to improve its own corrosion resistance. In this utility model, it specifically refers to anodic protection concentrated sulfuric acid equipment in the dry suction section of sulfuric acid production, but this utility model is not limited to the field of sulfuric acid industry.

The monitoring of the anode protection equipment in the utility model includes not only the parameters of the anode protection, but also the monitoring of the production process parameters, liquid level parameters and corrosiveness of the anode protection equipment.

The utility model utilizes the Internet of Things technology to build a remote monitoring, early warning and fault diagnosis system for anode protection equipment, and conduct remote, remote, all-weather monitoring, prediction and evaluation of the operating status of the anode protection equipment in service, so as to realize the intelligence of the anode protection equipment , Efficient maintenance and management. Collect the operating status information of the anode protection equipment through the signal sensor, send the real-time operating status data and obtain the remote control command through the signal recognition device and the database server, and the monitoring terminal can acquire the operating status information only by visiting the WEB page , monitoring and evaluation, and the sending of remote control instructions, realize remote control of equipment, greatly improve the maintenance and management level of anode protection equipment, through the utility model, not only can directly set parameters through the signal identification device at the equipment site to anode protection signal For adjustment and control, it can also transmit the operating status of the equipment to the mobile phone of the customer monitoring terminal monitoring engineer in real time; it can also enable equipment manufacturers to monitor and evaluate the operating status of in-service anode protection equipment in a remote, all-weather, timely and accurate manner. Early warning equipment abnormalities, eliminate hidden dangers of equipment at the first time, ensure high-quality operation of equipment and "zero" safety failures.

The utility model has been tested and applied to practice by the applicant, Tianhua Chemical Machinery and Automation Research and Design Institute, Tianhua Chemical Machinery and Automation Research and Design Institute as the equipment manufacturer, and Baiyin Nonferrous Group Co., Ltd. as the client.

Description of drawings

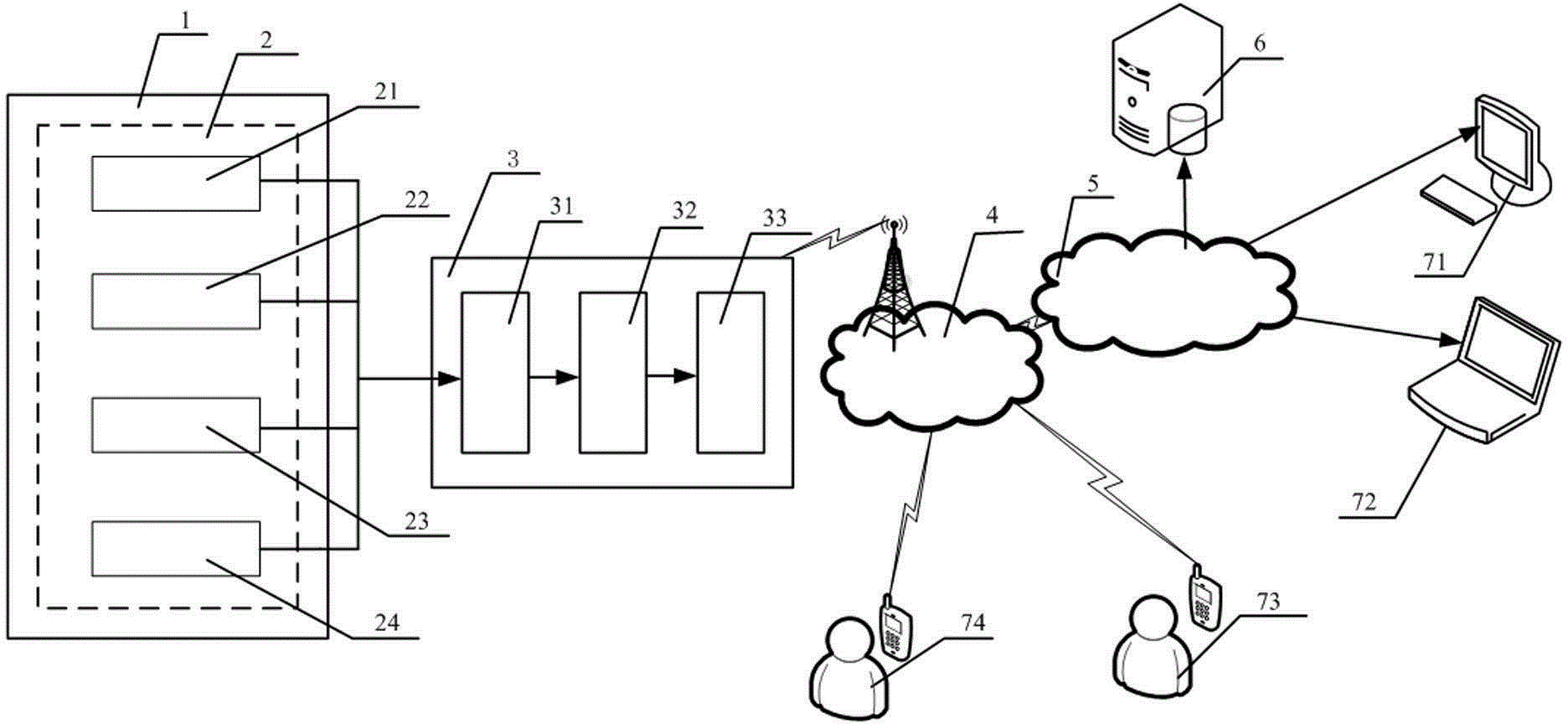

Fig. 1 is a structural representation of the utility model,

Fig. 2 is the flow chart of data transmission of the utility model.

In the figure: 1—anode protection equipment, 2—sensor device, 21—anode protection sensor, 22—production process sensor, 23—corrosion sensor, 24—liquid level sensor, 3—signal identification device, 31—signal receiving/analysis module , 32—signal conversion module, 33—wireless network transceiver module, 4—GPRS/CDMA network, 5—Internet network, 6—database server, 7—monitoring terminal, 71—equipment manufacturer monitoring terminal, 72—customer monitoring terminal, 73—Equipment manufacturer engineer's mobile phone monitoring terminal, 74—Customer engineer's mobile phone monitoring terminal. the

Detailed ways

Referring to the accompanying drawings, the embodiments of the present utility model will be described in detail below.

As shown in Figure 1 and Figure 2: a remote monitoring, early warning and fault diagnosis system for anode protection equipment based on the Internet of Things, including a sensor device 2, a signal recognition device 3, a GPRS/CDMA network 4, an Internet network 5, and a database server 6 And monitoring terminal 7; Sensor device 2 is wired with signal identification device 3, and signal identification device 3 is connected with GPRS/CDMA network 4 wireless signals; Monitoring terminal 7 comprises equipment manufacturer monitoring terminal 71, customer monitoring terminal 72, equipment manufacturer engineer Mobile phone monitoring terminal 73 and customer engineer mobile phone monitoring terminal 74; GPRS/CDMA network 4 is connected with equipment manufacturer engineer mobile phone monitoring terminal 73, customer engineer mobile phone monitoring terminal 74 wireless signal connection, GPRS/CDMA network 4 is connected with Internet network 5 wireless signal, The Internet 5 is connected to the database server 6 , the Internet 5 is connected to the equipment manufacturer monitoring terminal 71 and the customer monitoring terminal 72 , and the equipment manufacturer monitoring terminal 71 and the customer monitoring terminal 72 are connected to the database server 6 through the Internet 5 .

The sensor device 2 is located in the anode protection equipment 1 ; the sensor device 2 includes an anode protection sensor 21 , a production process sensor 22 , a corrosion sensor 23 and a liquid level sensor 24 . The signal identification device 3 is made up of a signal receiving/analyzing module 31, a signal conversion module 32 and a wireless network transceiver module 33; the signal receiving/analyzing module 31 is connected with the anode protection sensor 21, the production process sensor 22, the corrosion sensor 23 and the liquid level sensor 24 , the signal receiving/analyzing module 31 is connected with the signal conversion module 32, and the signal conversion module 32 is connected with the wireless network transceiver module 33; the wireless network transceiver module 33 is connected with the GPRS/CDMA network 4 wireless signals.

The signal recognition device is also equipped with a data display screen, an abnormal state sound and light alarm and equipment operation parameter adjustment buttons (not shown in the figure), so that the signal recognition device has the functions of data display, alarm and parameter adjustment, and the on-site staff can directly pass the signal The identification device parameter setting button adjusts and controls the anode protection signal.

The sensor 2 is used to collect the operating status information of the anode protection equipment 1, and is the source of information transmission of the Internet of Things. The performance of the anode protection equipment 1 is mainly related to the anode protection parameters, production process parameters, corrosion parameters and liquid level parameters, so the four types of information need to be monitored and collected. Among them, the anode protection sensor 21 is used to collect anode protection information, such as: monitoring potential, control potential, output current and output voltage, etc.; the production process sensor 22 is used to collect production process information, such as acid temperature, acid concentration, etc.; the corrosion sensor 23 is used The liquid level sensor 24 is used to collect information on the corrosion status of the anode protection equipment; the liquid level sensor 24 is used to collect information on the change of the sulfuric acid liquid level in the anode protection acid separator.

The signal reading/analyzing device 31 , the signal conversion module 32 and the wireless network transceiver module 33 are sequentially connected in series to form the signal identification device 3 to complete the overall function of the signal identification device 3 . The signal reading/analyzing device 31 can regularly read the operating status information of the anode protection equipment 1 collected by the sensor 2 by itself, and analyze and judge the read operating status data of the anode protection equipment 1 according to a predetermined procedure, and form when an abnormality is found Abnormal status information, the signal conversion module 32 converts the relevant information according to the Internet of Things protocol format, and converts it into a radio frequency signal in the Internet of Things format, and sends it to the GPRS/CDMA network 4 by the wireless network transceiver module 33 . In addition, the signal conversion module 32 simultaneously converts the abnormal state information, that is, the abnormal alarm signal, into the short message format of SMS, and sends it to the GPRS/CDMA network 4.

After the anode protection equipment operating status information from the signal identification device 3 is sent to the GPRS/CDMA network 4, the equipment operating status information is transmitted in two ways in the next step. Wherein the Internet of Things format device operation status information is sent to the Internet 5 in the form of bridging; the device abnormality information in the SMS format is sent to the mobile phone monitoring terminal 73 of the equipment manufacturer engineer and the mobile phone monitoring terminal 74 of the customer engineer in the form of a text message.

The equipment running status information transmitted to the Internet 5 is stored in the database server 6 in the form of POST. The equipment manufacturer monitoring terminal 71 and the customer monitoring terminal 72 access the database server 6 through the WEB page of the Internet, read the operation status information of the anode protection equipment 1 stored in the database server 6, and perform an operation status information on the anode protection equipment 1 Monitoring, prediction and evaluation, and early warning of abnormal equipment operation according to pre-set procedures, diagnosis of equipment failure operation, and formulation of equipment failure maintenance plans.

The monitoring engineer of the equipment manufacturer's monitoring terminal/the monitoring engineer of the customer's monitoring terminal can respectively input the remote control instructions of the anode protection equipment 1 through the equipment manufacturer's monitoring terminal 71 and the customer's monitoring terminal 72, and store them in the database server 6 through the Internet . The signal recognition device 3 judges the data in the database server 6. If the data contains remote control instructions, the signal recognition device 3 will convert the data format of the operation control instructions, and execute the corresponding remote control on the signal recognition device 3. instruction.

The customer monitoring terminal 72 is provided with a local fault diagnosis database, and the customer monitoring engineer can find a corresponding solution in the local fault diagnosis database according to the fault diagnosis result. At the same time, the local fault diagnosis database also contains detailed installation, operation, commissioning, maintenance data and other non-confidential technical data for specific equipment.

As shown in Figure 2: the steps of the data acquisition and data transmission method of the present utility model are roughly as follows:

In step S101, four types of sensors arranged in the anode protection equipment collect the operation status information of the anode protection equipment;

In step S102, the signal receiving/analyzing module 31 reads the operating status information of the anode protection equipment collected by the sensor, analyzes and judges the acquired operating status information according to a predetermined procedure, and generates an abnormal alarm signal when the information is determined to be abnormal;

In step S103, the signal conversion module 32 converts the relevant information from the signal receiving/analysis module 31 into the agreed radio frequency format of the Internet of Things; in addition, the signal conversion module 32 converts the abnormal alarm signal into the short message format of SMS again simultaneously;

In step S104, the wireless network transceiver module 33 receives the device status information from the signal conversion module 32;

In step S105, the wireless network transceiver module 33 transmits the received device status information to the GPRS/CDMA network 4;

In step S106, the Internet 5 is connected to the GPRS/CDMA network 4 through bridging, and the device operation status information in the Internet of Things protocol format is transmitted to the Internet 5 by the GPRS/CDMA network 4;

In step S107, the abnormal information of the anode protection equipment in SMS short message format is directly sent to the mobile phone monitoring terminal 73 of the equipment manufacturer's engineer and the mobile phone monitoring terminal 74 of the customer engineer through the GPRS/CDMA network 4, so that the equipment manufacturer's engineer and the customer's engineer can Abnormal monitoring equipment;

In step S108, the database server 6 receives the device operation status information delivered by the Internet 5, and stores the data in the database server 6 in a POST manner;

In step S109, the equipment manufacturer/customer monitoring terminal can access the database server 6 through the WEB page of the Internet, and perform round-the-clock monitoring, forecasting and evaluation of the anode protection equipment operation status information stored in the database server 6, timely and accurately Early warning of equipment abnormalities and diagnosis of equipment failure causes to quickly and accurately eliminate equipment failures;

In step S110, the equipment manufacturer/customer monitoring terminal receives the remote control command of the anode protection equipment input by the respective monitoring engineer, and sends it to the Internet 5;

In step S111, the database server 6 receives the remote control instruction of the anode protection equipment sent by the monitoring terminal, and stores it therein;

In step S112, the anode protection remote control command is sent to the GPRS/CDMA network 4 by the Internet 5;

In step S113, the wireless network transceiver module 33 obtains the remote control instruction of the anode protection equipment in the GPRS/CDMA network 4;

In step S114, the signal conversion module 32 converts the data format of the anode protection equipment remote control instruction received by the wireless network transceiver module 33 into a format executable by the signal receiving/analyzing module of the signal identification device;

In step S115, the signal receiving/analyzing module 31 receives the remote control instruction of the anode protection equipment whose format is converted via the signal converting module 32;

In step S116, the remote control command of the anode protection equipment is implemented to the anode protection equipment 1, and the anode protection equipment 1 is given control.

Claims (4)

1. early warning of anodic protection equipment remote monitoring and fault diagnosis system based on an Internet of Things, it is characterized in that: this system comprises sensor device (2), signal identification device (3), GPRS/CDMA network (4), internet (5), database server (6) and monitor terminal (7); Said sensor device (2) and said signal identification device (3) wired connection, said signal identification device (3) is connected with said GPRS/CDMA network (4) wireless signal; Said monitor terminal (7) comprises client's monitor terminal (72) and customer engineer's monitoring mobile phone terminal (74); Said GPRS/CDMA network (4) is connected with said customer engineer's monitoring mobile phone terminal (74) wireless signal; Said GPRS/CDMA network (4) is connected with said internet (5) wireless signal; Said internet (5) is connected with said database server (6); Said internet (5) is connected with said client's monitor terminal (72), and said client's monitor terminal (72) is connected with said database server (6) through internet (5).

2. a kind of early warning of anodic protection equipment remote monitoring and fault diagnosis system based on Internet of Things as claimed in claim 1 is characterized in that: said monitor terminal (7) also comprises equipment manufacturers' monitor terminal (71) and equipment manufacturers slip-stick artist's monitoring mobile phone terminal (73); Said internet (5) is connected with said equipment manufacturers monitor terminals (71), and said equipment manufacturers monitor terminals (71) are connected with said database server (6) through internet (5); Said GPRS/CDMA network (4) is connected with the said slip-stick artist of equipment manufacturers monitoring mobile phone terminal (73) wireless signal.

3. according to claim 1 or claim 2 a kind of early warning of anodic protection equipment remote monitoring and fault diagnosis system based on Internet of Things, it is characterized in that: said sensor device (2) is arranged in anodic protection equipment (1); Said sensor device (2) comprises anodic protection sensor (21), production technology sensor (22), corrosion sensor (23) and liquid level sensor (24); Said signal identification device (3) is made up of signal reception/analysis module (31), signal conversion module (32) and wireless network transceiver module (33); Said signal reception/analysis module (31) is connected with said anodic protection sensor (21), said production technology sensor (22), said corrosion sensor (23) and said liquid level sensor (24); Said signal reception/analysis module (31) is connected with said signal conversion module (32), and said conversion of signals mould (32) is connected with said wireless network transceiver module (33); Said wireless network transceiver module (33) is connected with said GPRS/CDMA network (4) wireless signal.

4. according to claim 1 or claim 2 a kind of early warning of anodic protection equipment remote monitoring and fault diagnosis system based on Internet of Things, it is characterized in that: said signal identification device (2) also is provided with data display screen, ERST sound and light alarm and equipment operation parameter regulation button.
