Abstract

The utility model discloses a timing foot bathtub, which comprises a basin body, a control panel and a base. The basin body is provided with a minimum water level line, and also includes a circulating water pump and a surfing hole arranged in the basin body. The inner bottom surface of the basin body is equipped with A massage roller and a medicine storage box, the medicine storage box is provided with a liquid medicine circulation hole, the top surface of the basin body is provided with a magnifying mirror, the basin body is provided with a placement groove and a storage tank, and the basin body The side of the body is provided with a towel hanging rod and a drain pipe; the control panel is provided with a timer and a display screen, and the base is provided with universal wheels, fixed pads and telescopic pull rods. The utility model has the advantages that: the control panel is provided with a timer, and the time for bathing the feet can be set in advance according to the user's living habits. When the predetermined time comes, a bell will sound to remind the user to bathe the feet on time. There is a drainage pipe on the side of the basin, which can be directly lowered to discharge water without bending over to dump, so as to prevent the elderly from slipping and falling due to dumping the water in the basin.

Description

Timing foot bath

technical field

The utility model belongs to the technical field of foot care, in particular to a timing foot bath.

Background technique

Foot bath is a simple and effective self-care method. There are many organs in the human body that have corresponding reflection areas on the feet. Frequent scalding and massaging the feet is of great significance for promoting blood circulation and stimulating the nerves of the whole body.

However, it is not easy for users to develop the habit of bathing their feet every day. As time goes by, the foot bath will lose its meaning. At present, there is no foot bath that regularly reminds the time of soaking. After the elderly have used the foot bath, they need to drain the water in the foot bath. When pouring the water in the foot bath, they are prone to slipping and causing fractures.

Utility model content

The technical problem to be solved by the utility model is to provide a timing foot bathtub, which is convenient to remind users to bathe feet regularly.

In order to solve the above-mentioned technical problems, the utility model provides the following technical solutions: a timing foot bath tub, including a basin body, a control panel and a base, the minimum water level line is set in the basin body, and a circulating water pump arranged in the basin body, the basin body The inner wall of the basin is provided with a surfing hole connected with the circulating water pump. The position of the surfing hole is lower than the lowest water level. The inner bottom of the basin is equipped with a massage roller and a medicine storage box. hole, the top surface of the basin is provided with a magnifying mirror inclined to the horizontal plane, the basin is also provided with a storage tank for storing disinfectant and a storage tank for storing foot cream, and the side of the basin is provided with There are towel hanging rods and drain pipes connected to the basin; the control panel is provided with a start switch, a surfing adjustment button, a timer and a display screen, and a set of universal wheels and a set of fixed pads are provided on the base. The base adjacent to the side of the universal wheel is provided with a convenient hand-held telescopic pull rod.

Compared with the prior art, the utility model has the following advantages: 1. There is a timer on the control panel, which can set the foot bath time in advance according to the user's living habits. When the predetermined time comes, it will sound to remind the user to take a bath on time 2. There is a drainage pipe on the side of the basin, which can be directly put down the drainage pipe to discharge water without bending over and dumping, preventing the elderly from slipping and falling due to pouring water in the basin .

Further, in order to adjust the drain pipe to a suitable length conveniently, the drain pipe is a telescopic structure.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the technical scheme of the utility model is further described:

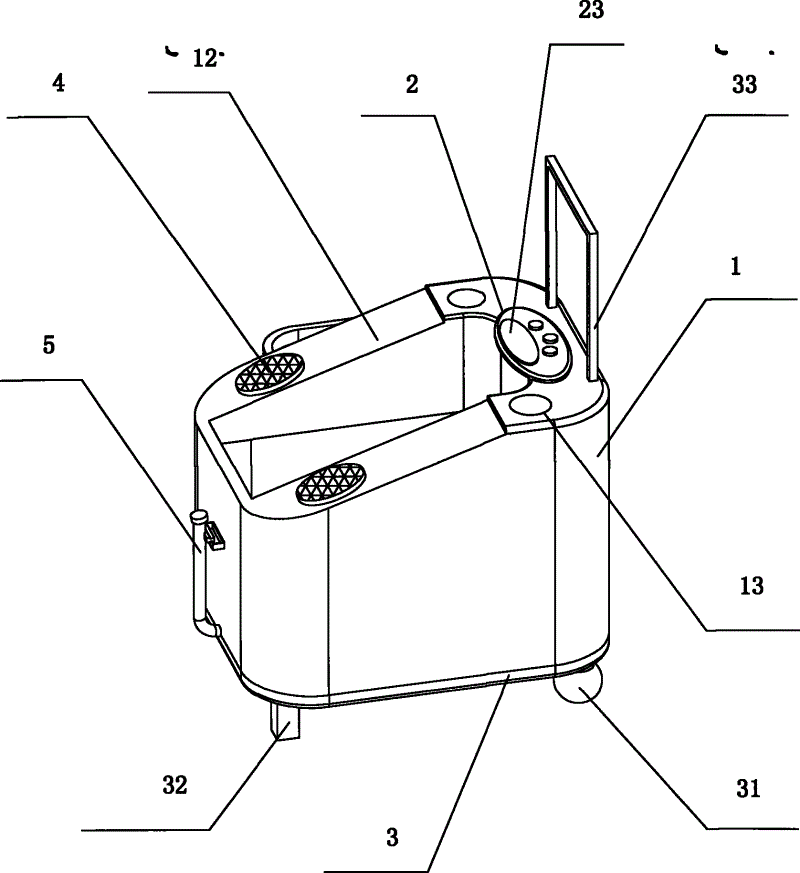

Fig. 1 is the structural representation of a kind of embodiment of timing footbath tub of the present utility model;

Fig. 2 is a top view of an embodiment of the utility model timing foot bath;

Fig. 3 is a structural schematic diagram of an embodiment of the timing footbath body of the utility model.

Detailed ways

As shown in Fig. 1, Fig. 2 and Fig. 3, a kind of timed foot bathtub of the utility model comprises a basin body 1, a control panel 2 and a base 3, the lowest water level line 5 is arranged in the described basin body 1, and a The circulating water pump 11 in the basin body 1 has a surfing hole 16 communicating with the circulating water pump 11 on the inner wall of the basin body 1. The position of the surfing hole 16 is lower than the lowest water level line 5, and a massage roller is installed on the inner bottom surface of the basin body 1. 17 and medicine storage box 18, described medicine storage box 18 is provided with liquid medicine circulation hole 19, and the top surface of described basin body 1 is provided with a magnifying reflector 12 inclined with horizontal plane, and basin body 1 is also provided with convenient A storage tank 13 for storing the disinfectant and a storage tank 14 for storing the foot cream, the side of the basin body 1 is provided with a towel hanging rod 15 and a drain pipe 5 communicating with the basin body 1; There are start switch 21, surfing adjustment button 22, timer 24 and display screen 23. The base 3 is provided with a group of universal wheels 31 and a group of fixed pads 32, and the base 3 adjacent to the universal wheel 31 is provided with The telescopic pull rod 33 that is convenient to hold.

The utility model has the advantages that: the control panel 2 is provided with a timer, which can set the time for bathing the feet in advance according to the user's living habits. Forget about bathing your feet; there is a drainpipe 5 on the side of the basin body 1, which can be directly lowered to release water without bending over to dump it, so as to prevent the elderly from slipping and falling due to dumping the water in the basin body 1.

In order to adjust the drain pipe 5 to a suitable length conveniently, the drain pipe 5 is a telescopic structure. The height of the highest part of the basin body 1 is 45 centimeters, the height of the lowest part is 25 centimeters, the length of the basin body 1 is 45-50 centimeters, and the width is 45-50 centimeters.

The utility model is suitable for all patients who have not developed diabetic foot. Diabetic peripheral neuropathy can cause numbness and sensory disturbance in the extremities, making the skin of the feet extremely insensitive to temperature and pain, and easily causing burns. The time of the timer 24 and the music played can be set to remind the patient to bathe the feet on time. When in use, after the start switch 21 is turned on, the water temperature in the basin is constant at 35-37°C, and the surf hole 16 sprays light surfing massage , to prevent the patient’s foot from being festered due to burns or strong impact. After the patient’s foot bath is finished and the foot is dried, the heel is placed on the non-slip mat 4 to check the skin of the foot through the magnifying mirror 12. After the inspection, apply foot cream , Finally, the water in the basin body 1 can be discharged by using the drain pipe 5 .

For those skilled in the art, under the premise of not departing from the structure of the utility model, some deformations and improvements can also be made, which should also be regarded as the protection scope of the utility model, and these will not affect the implementation of the utility model Effects and utility of patents.

Claims (2)

1. a timing foot bath comprises basin body, control panel and base, is provided with the lowest water level line in the said basin body; It is characterized in that: also comprise the water circulating pump that is located in the basin body; Have the surfing hole that communicates with water circulating pump on the inwall of basin body, the position in this surfing hole is lower than the lowest water level line, and the inner bottom surface of basin body is equipped with Massage roller and storage medicine box; Said storage medicine box is provided with the soup circulation port; The end face of said basin body is provided with the magnifying reflecting mirror that tilts with horizontal plane, also is provided with the putting groove of conveniently depositing disinfectant and the storage thing groove of depositing foot cream on the basin body, and said basin body side is provided with the drainpipe that towel hangs up bar and is communicated with basin body; Said control panel is provided with starting switch, button, timer and display screen are regulated in surfing, and said base is provided with one group of universal wheel and one group of fixed bolster, and the base of contiguous universal wheel one side is provided with the telescopic lever of conveniently holding.

2. timing foot bath as claimed in claim 1 is characterized in that: said drainpipe is a Collapsible structure.
