Abstract

The utility model discloses a multifunctional cigarette case. The shell of the cigarette case is divided into a cigarette bin (4), a lighter bin (7) and an ash bin (5). One side of the rotating shaft (2) is fixed on the cigarette case cover (1 ), the other side is hinged to the cigarette bin (4); the lighter bin (7) is open at the top and is located on the same side as the cigarette bin (4); the ash bin (5) is located at the bottom of the shell, with a The cigarette ash compartment cover (8); the cigarette case is easy to carry, is beneficial to collecting the cigarette ash and cigarette butts, the cigarette case can be used repeatedly, and can be recycled.

Description

A multifunctional cigarette case

technical field

The utility model relates to a cigarette case, especially a cigarette case having the functions of a cigarette case, a lighter and an ashtray. the

Background technique

Cigarette cases, lighters, and ashtrays used by current smokers are three relatively independent items. When the smoker smokes, he will first take out the cigarette from the cigarette case, then put down the cigarette case, light the cigarette with a lighter, and put the ashes after the cigarette burning into the ashtray. If one of the cigarette case, lighter, and ashtray is not carried with you, it will be very inconvenient to smoke, especially smokers generally do not carry ashtrays with them. When smoking, they generally throw ash and cigarette butts everywhere, causing environmental pollution. Ordinary cigarette cases are mostly paper materials, and their recycling rate is very low, resulting in a waste of resources. Paper cigarette cases are afraid of pressure, humidity, and collision. In particular, try not to remove the packaging film in advance. However, many people are used to putting cigarettes in their trouser pockets. Due to frequent exercise, such as sitting or bending over, it is easy to lose the cigarette case. Bending will not only damage the cigarette case, but also damage the cigarettes. In addition, although there are many utility model patents for "cigarette case lighters" (Patent No. 90205127.X; 200920004836.3), they only have the functions of cigarette case and lighter, and do not have the function of containing ash and cigarette butts. It cannot be replaced, and once the lighter fails, it will cause great inconvenience to the smoker. the

Contents of the invention

The purpose of this utility model is to provide a multifunctional cigarette case which integrates three functions of ordinary cigarette case, lighter and ashtray and is easy to carry. the

The technical scheme adopted by the utility model to solve the technical problem is: a multi-functional cigarette case, the inside of the shell is divided into a cigarette bin, a lighter bin and an ash bin, one side of the rotating shaft is fixed on the cigarette case cover, and the other side is hinged in the cigarette bin; the top of the lighter bin is open and located on the same side as the cigarette bin; the ash bin is located at the bottom of the housing with a movable ash bin cover on it. the

Further, the inner wall of the ash bin is provided with slide rails, and the ash bin cover is movably installed on the slide rails. the

Further, the lighter compartment is equipped with a lighter. the

The beneficial effect of the utility model is that while providing convenience for smokers, it is convenient to collect cigarette ash and cigarette butts,

Helps to protect the environment, the cigarette case can be used many times, and can be recycled to save resources.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the utility model is further described. the

Figure 1 is a schematic diagram of the product. the

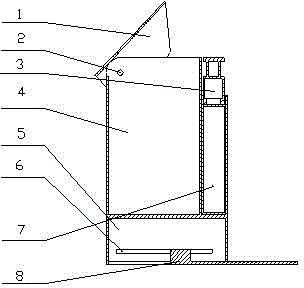

Fig. 2 is a longitudinal sectional structural diagram of accompanying drawing 1. the

In the figure 1. Cigarette box cover, 2. Rotating shaft, 3. Lighter, 4. Cigarette bin, 5. Ash bin, 6. Slide rail, 7. Lighter bin, 8. Ash bin cover. the

Detailed ways

This kind of cigarette case is divided into three parts, one side is the cigarette bin, which is used to hold cigarettes, the other side is the lighter bin, which is equipped with a lighter, and the bottom is an ash bin, which is used to hold soot and cigarette butts, and the cigarette case cover is riveted by a rotating shaft On the ash bin, the ash bin cover slides left and right at the opening of the ash bin through the slide rail to switch the ash bin. The lighter installed on the cigarette box is detachable and replaceable, and can be recharged.

For example, as shown in Figures 1 and 2, the rotating shaft 2 is fixed on the cigarette case cover 1, and the rotating shaft 2 is hinged with the cigarette compartment 4, and the cigarette case cover 1 rotates and switches the cigarette compartment 4 along the rotating shaft 2, and the cigarette compartment 4 contains cigarettes and lighters. 3 is embedded in the lighter compartment 7 on one side of the cigarette compartment 4, the lighter 3 is detachable, can be pulled out from the lighter compartment 7, and inserted again, the slide rail 6 is a horizontal shallow groove on the inner wall of the ash compartment 5, and the length of the slide rail 6 is less than The width of the inner wall of the soot bin 5, the soot bin cover 8 can move along the slide rail 6, and is used for switching the soot bin 5.

When a person smokes, open the cigarette case cover 1 by hand, take out a cigarette from the cigarette compartment 4, close the cigarette compartment cover 1, light the cigarette with the lighter 3 on one side of the cigarette compartment, turn the multifunctional cigarette case upside down, and put the ash compartment cover 8 is pulled out outwards, and the ash butt after the cigarette burns is put into the ash bin 5. After the cigarettes in the cigarette bin 4 are smoked, the bulk cigarettes can be packed into the cigarette bin 4, and the cigarette case can be used many times. the

The lighter 3 is embedded in the lighter compartment 7. After the fuel in the lighter 3 is exhausted, the lighter 3 only needs to be pulled out from the lighter compartment 7, and then inserted into the lighter compartment 7 after inflating or replacing with a new lighter to continue to use. the

Claims (3)

1. multi-functional cigarette case able, its enclosure interior are divided into tabacco barn (4), sparking cabin (7) and cigarette ash storehouse (5), and it is characterized in that: rotating shaft (2) one sides are fixed on the cigarette case cover (1), and opposite side is articulated in tabacco barn (4); Said sparking cabin (7) top end opening is positioned at tabacco barn (4) homonymy; Said cigarette ash storehouse (5) is positioned at housing bottom, has movable cigarette ash Cang Gai (8) on it.

2. a kind of multi-functional cigarette case able according to claim 1 is characterized in that: said cigarette ash storehouse (5) inwall is provided with slide rail (6), and said cigarette ash Cang Gai (8) is movably installed on the slide rail (6).

3. a kind of multi-functional cigarette case able according to claim 1 is characterized in that: said sparking cabin (7) is equiped with lighter (3).
