CN202398954U - Assembly welding device for container door plate structure - Google Patents

Assembly welding device for container door plate structure Download PDF

Info

Publication number
CN202398954U
CN202398954U CN2012200163486U CN201220016348U CN202398954U CN 202398954 U CN202398954 U CN 202398954U CN 2012200163486 U CN2012200163486 U CN 2012200163486U CN 201220016348 U CN201220016348 U CN 201220016348U CN 202398954 U CN202398954 U CN 202398954U
Authority
CN
China
Prior art keywords
door
welding
plate
vertical
container
Prior art date
Application number
CN2012200163486U
Other languages
Chinese (zh)
Inventor
姜卫东
王本利
Original Assignee
中国国际海运集装箱(集团)股份有限公司
青岛中集集装箱制造有限公司
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by 中国国际海运集装箱(集团)股份有限公司, 青岛中集集装箱制造有限公司 filed Critical 中国国际海运集装箱(集团)股份有限公司
Priority to CN2012200163486U priority Critical patent/CN202398954U/en
Application granted granted Critical
Publication of CN202398954U publication Critical patent/CN202398954U/en

Links

Abstract

An assembly welding device for a container door plate structure comprises a welding platform, a two-door vertical beam pushing mechanism, a two-door transverse beam pushing device and a door plate upper beam device, wherein the two-door vertical beam pushing mechanism is arranged at one end of the welding platform and used for pushing two door vertical beams onto the welding platform, the two-door transverse beam pushing device is arranged on one side of the welding platform and used for pushing two door transverse beams onto the welding platform, and the door plate upper beam device is arranged above the other side of the welding platform and used for sucking a door plate and sending the door plate onto the welding platform. The assembly welding device for the container door is simple in structure. By means of automatic feeding positioning of each part and automatic welding of a robot, labor number of a production line is reduced, and simultaneously, labor strength of workers is reduced.

Description

The erection welding device of container door plate structure
Technical field
The utility model relates to the container production field, especially relates to a kind of erection welding device of container door plate structure.
Background technology
Container is meant the large-scale loading container that turnover is used of specializing in certain intensity, rigidity and specification.It has obtained application more and more widely as storage and transportation apparatus commonly used in the modern logistics.The container door plate structure generally is welded by two door crossbeams, two door vertical beams, a door-plate.In assembling process; The door assembling station of most container plants is that each parts of a dead lift are located to assembly or fitting table, after compressing, carries out spot welding, after each parts point installs to together; Clamping device unclamps, and the door-plate that then point is welded is transported to next station and welds.Welding post generally includes upset welding, horizontal vertical weldering and repair welding etc. automatically, and these steps all need manually-operated, and are existing in following problem: 1, personnel selection quantity is big, has both caused artificial waste, has increased production cost again.2, operating procedure is complicated, and manually-operated production efficiency is lower.
The utility model content
The technical problem that the utility model will solve is to overcome the deficiency of above-mentioned prior art; And a kind of erection welding device with container door plate structure of automatic charging, location and welding function is proposed; When reducing labor strength, improved production efficiency.
For solving the problems of the technologies described above; The technical scheme that the utility model adopts is: a kind of erection welding device of container door plate structure; Said container door plate structure comprises two door crossbeams, two door vertical beams and a door-plate; Said erection welding device comprises: a welding bench comprises an assembling table top; Two vertical beam delivery devices are arranged at an end of said welding bench, are used for said two door vertical beams are pushed to the relevant position of said welding bench assembling table top; Two crossbeam delivery devices are arranged at a side of said welding bench, are used for said two crossbeams are pushed to the relevant position of said welding bench assembling table top; And a door-plate upper beam mechanism is arranged at the top of said welding bench opposite side, comprises the sucker that is used to draw said door-plate or electromagnet etc., is used for said door-plate is inhaled the relevant position of delivering to said welding bench assembling table top.
In the erection welding device of described container door plate structure, said erection welding device also comprises and is used for door vertical beam detent mechanism that the said door vertical beam that is positioned on the said assembling table top is positioned.
In the erection welding device of described container door plate structure, said erection welding device also comprises and is used for door crossbeam detent mechanism that the said door crossbeam that is positioned on the said assembling table top is positioned.
In the erection welding device of described container door plate structure, said erection welding device also comprises and is used for the automatic welding machine people that welds automatically behind said two door crossbeams, two door vertical beams and the door-plate location.
In the erection welding device of described container door plate structure; Also be provided with two groups of roller machines that are used to carry said door-plate corresponding to said two vertical beam positions on the said assembling table top, the below of said roller is provided with and is used to control the cylinder that said roller goes up and down.
In the erection welding device of described container door plate structure, the every row of each said door vertical beam delivery device can place eight described door vertical beams.
In the erection welding device of described container door plate structure, the every row of each said door crossbeam delivery device can place 12 described door crossbeams.
Compared with prior art; The erection welding apparatus structure of the container door plate structure of the utility model is simple; Through each parts automatic charging location, utilize robot to accomplish the welding of the horizontal longitudinal joint of door-plate automatically simultaneously, reduced production line personnel selection quantity; Reduce labor strength, greatly shortened the length and the time of container door plate structure production line.And weld in the front that just can accomplish door panel structure at a welding bench, has saved the space in workshop.
Description of drawings

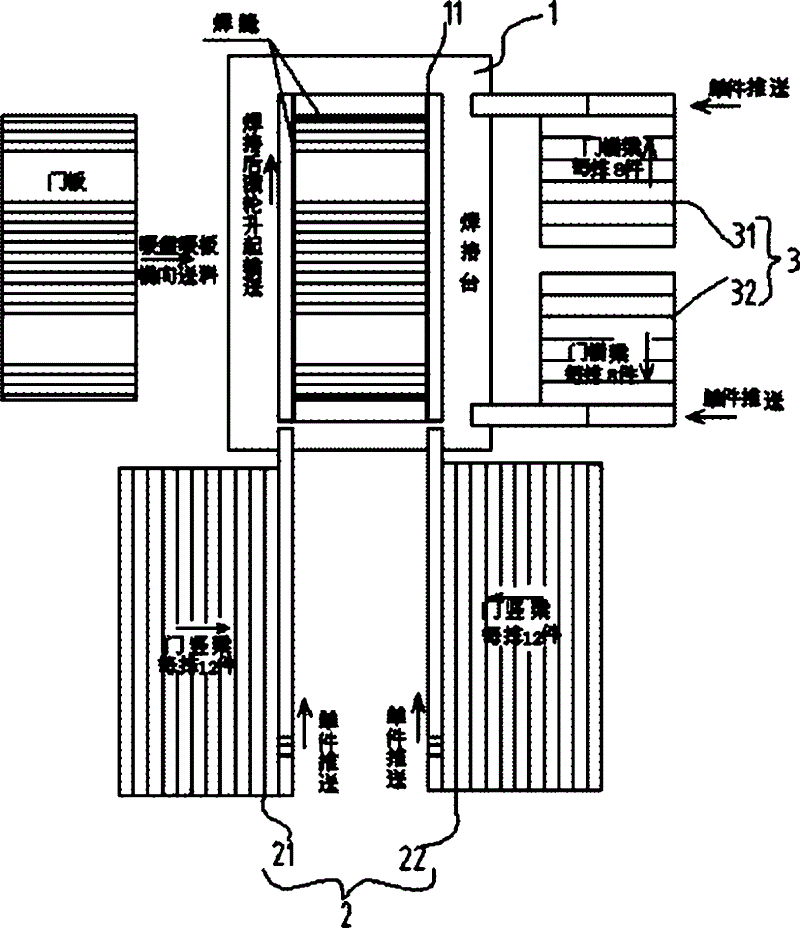

Fig. 1 is the erection welding device operating procedure schematic flow sheet of the container door plate structure of the utility model.
Fig. 2 is the erection welding device front view of the container door plate structure of the utility model.
The specific embodiment
Below in conjunction with accompanying drawing and embodiment, the utility model is given elaboration further.
The container door plate structure is generally formed by two door crossbeams, two door vertical beams and a door-plate erection welding.According to the design feature of container door plate structure, like Fig. 1, shown in Figure 2, the erection welding device of the utility model comprises: a welding bench 1, door vertical beam delivery device 2, door crossbeam delivery device 3 and door-plate upper beam mechanism 4.
Wherein, welding bench 1 comprises an assembling table top 11; Door vertical beam delivery device 2 is arranged at welding bench 1 one ends, comprises first vertical beam delivery device 21 and second vertical beam delivery device 22, is used for two door vertical beams of container door are pushed to the relevant position of the assembling table top 11 of welding bench 1; Door crossbeam delivery device 3 is arranged at a side of welding bench 1, comprises first crossbeam delivery device 31 and second crossbeam delivery device 32, is used for two door crossbeams of container door are pushed to the relevant position of the assembling table top 11 of welding bench 1; Door-plate upper beam mechanism 4 is arranged at the top of welding bench 1 opposite side, comprises the sucker or the electromagnet 41,42 that are used to draw door-plate, is used for door-plate is inhaled the relevant position of the assembling table top 11 of delivering to welding bench 1.
In addition, the erection welding device also comprises door vertical beam detent mechanism (not shown) and the door crossbeam detent mechanism (not shown) that is positioned on the assembling table top 11.Wherein, door vertical beam detent mechanism is used for the opposite house vertical beam and positions, and door crossbeam detent mechanism is used for the opposite house crossbeam and positions.
Further, the erection welding device also is provided with automatic welding machine people (not shown), is used for welding automatically behind two door crossbeams, two door vertical beams and a door-plate location.
Again further, the below that also is provided with 111,112, two groups of roller 111,112 rollers of two groups of rollers that are used to carry door panel structure corresponding to two vertical beam positions on the assembling table top 11 also is respectively arranged with and is used to control the cylinder 1111 and 1121 that roller goes up and down.
Need to prove that in the present embodiment, first vertical beam delivery device 21 and second vertical beam delivery device 22 every row can place eight door vertical beams respectively, first crossbeam delivery device 31 and second crossbeam delivery device 32 every row can place 12 door crossbeams.And the door vertical beam that the every discharging of delivery device is put can be adjusted with the quantity of door crossbeam as required.
With reference to Fig. 1, shown in Figure 2, the erection welding device operating procedure in the face of the utility model describes down.
(1) place first crossbeam to wait to expect that lifting platform (not shown) and second crossbeam wait to expect on the lifting platform 6 on a door crossbeam for use; Place first vertical beam to wait to expect that lifting platform (not shown) and second vertical beam wait to expect on the lifting platform (not shown) that the door-plate that door-plate for use is positioned over welding bench 1 opposite side is waited to expect on the platform lifting platform 5 respectively a door vertical beam for use.
(2) when door panel structure assembles, two door vertical beams are located (shown in the direction of arrow among the figure) by first and second vertical beam delivery devices, 21,22 single being pushed on the welding bench 1 respectively at the welding bench two ends; Two door crossbeams are located (shown in the direction of arrow among the figure) by first and second crossbeam delivery devices, 31,32 single being pushed on the welding bench 1 respectively at the welding bench two ends; Door-plate is drawn by sucker or electromagnet 41,42, waits to expect that from door-plate lifting platform 5 is transplanted on welding bench 1 location (shown in the direction of arrow the figure).
When (3) welding after each positioning parts, four weld seams that form between two door vertical beams, two door crossbeams and door-plate weld with the automatic welding machine people automatically.
(4) after welding was accomplished, two groups of rollers 111,112 of assembling table top 11 belows can be transported to next workbench (shown in the direction of arrow among the figure) with door panel structure respectively by cylinder 1111,1121 jack-up (shown in the direction of arrow among the figure).
Need to prove that each parts feeding order and welding sequence can be changed arbitrarily.
Foregoing; Be merely the preferred embodiment of the utility model; It is not the embodiment that is used to limit the utility model; Those of ordinary skills can carry out corresponding flexible or modification, so the protection domain of the utility model should be as the criterion with the desired protection domain of claims very easily according to the main design and the spirit of the utility model.

Claims (7)

1. the erection welding device of a container door plate structure, said container door plate structure comprises two door crossbeams, two door vertical beams and a door-plate, it is characterized in that, said erection welding device comprises:
One welding bench comprises an assembling table top;
Two vertical beam delivery devices are arranged at an end of said welding bench, are used for said two door vertical beams are pushed to the relevant position of said welding bench assembling table top;
Two crossbeam delivery devices are arranged at a side of said welding bench, are used for said two crossbeams are pushed to the relevant position of said welding bench assembling table top; And,
One door-plate upper beam mechanism is arranged at the top of said welding bench opposite side, comprises the sucker or the electromagnet that are used to draw said door-plate, is used for said door-plate is inhaled the relevant position of delivering to said welding bench assembling table top.
2. the erection welding device of container door plate structure according to claim 1 is characterized in that, said erection welding device also comprises and is used for door vertical beam detent mechanism that the said door vertical beam that is positioned on the said assembling table top is positioned.
3. the erection welding device of container door plate structure according to claim 1 is characterized in that, said erection welding device also comprises and is used for door crossbeam detent mechanism that the said door crossbeam that is positioned on the said assembling table top is positioned.
4. according to the erection welding device of claim 2 or 3 described container door plate structures; It is characterized in that said erection welding device also comprises and is used for the automatic welding machine people that welds automatically behind said two door crossbeams, two door vertical beams and the door-plate location.
5. the erection welding device of container door plate structure according to claim 4; It is characterized in that; Also be provided with two groups of rollers that are used to carry said door-plate corresponding to said two vertical beam positions on the said assembling table top, the below of said roller is provided with and is used to control the cylinder that said roller goes up and down.
6. the erection welding device of container door plate structure according to claim 5 is characterized in that, the every row of each said door vertical beam delivery device can place eight described door vertical beams.
7. the erection welding device of container door plate structure according to claim 6 is characterized in that, the every row of each said door crossbeam delivery device can place 12 described door crossbeams.
