Abstract

A travel bag for a scooter, comprising a package body provided with a telescopic handle at one end, a rolling wheel is provided at one end of the package body without a telescopic handle, and a skateboard is hinged at the end, and a pulley is provided at the bottom of the skateboard, and the skateboard is provided with a useful The hook for hooking the bag body. The utility model has the advantages of simple structure, convenient use, practicality and labor saving.

Description

A travel bag for a scooter

technical field

The utility model relates to daily necessities, in particular to a travel bag for a scooter.

Background technique

Travel bag is an important tool for people to travel, but the traditional travel bag is relatively large in size. Although it can hold more items, it is very inconvenient to carry. The long-distance bag will make people feel very tired. Further improvements.

Utility model content

The technical problem solved by the utility model is to provide a travel bag for a scooter, which has a simple structure, is convenient to use and saves labor, thereby solving the problems in the above-mentioned background technology.

The technical problem solved by the utility model adopts the following technical solutions to realize:

A travel bag for a scooter, comprising a bag body with a telescopic handle at one end, a roller at one end of the bag body without a telescopic handle, and a skateboard hinged at the end, and a pulley at the bottom of the skateboard.

As an improvement, the sliding board is provided with a hook for hooking the bag body, and by using the hook, the sliding board can be connected with the back of the bag body for easy storage.

Due to the adoption of the above structure, the utility model has the following beneficial effects:

In the travel bag for a scooter provided by the utility model, the end of the bag body is provided with rollers and is hinged with a skateboard. When the skateboard is stretched, the user can step on the skateboard to drag the travel bag, which not only makes the travel journey of the user more interesting, but also improves the The efficiency of walking can also help them reduce their burden, and they will not feel too tired when placing heavy items in the bag, which kills two birds with one stone; moreover, a hook is set to facilitate the storage of the skateboard, which is simple in structure and easy to use.

Description of drawings

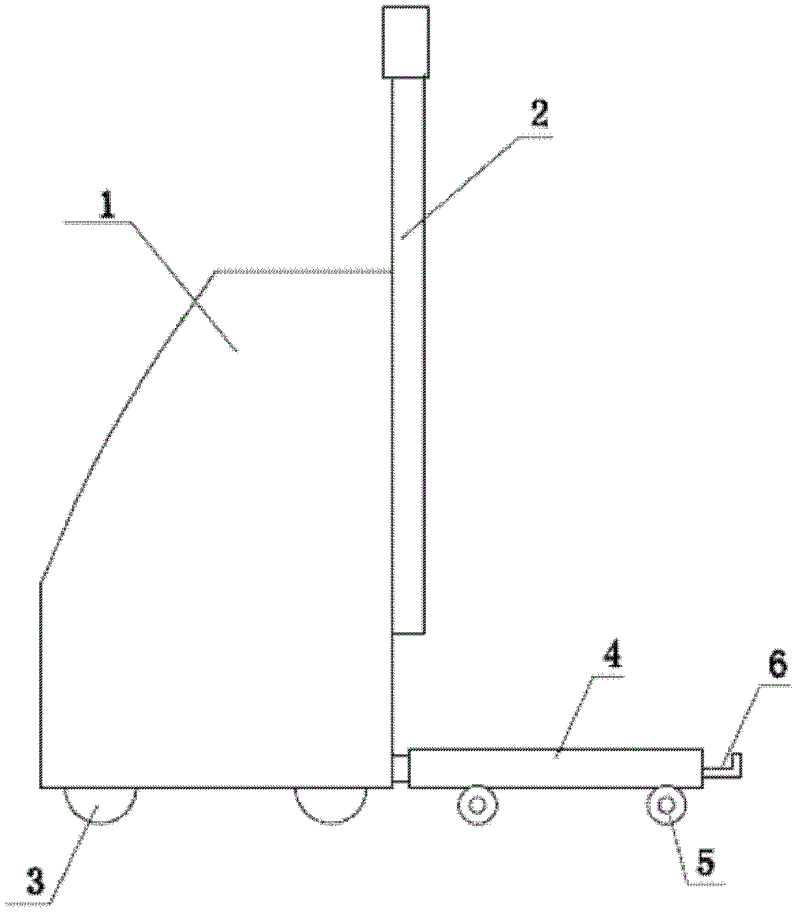

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a schematic diagram of the state of the utility model when the skateboard is retracted;

In the figure: 1. Bag body, 2. Telescopic handle, 3. Roller, 4. Skateboard, 5. Pulley, 6. Hook.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific illustrations.

As shown in Figures 1 and 2, a travel bag for a scooter includes a bag body 1 provided with a telescopic handle 2 at one end. This end is hinged with a skateboard 4, and the bottom of the skateboard 4 is provided with a pulley 5, and the user can step on the skateboard 4 to drag a travel bag, which not only makes the user's travel more interesting, improves walking efficiency, but also helps them reduce their burden. Putting heavier items in the bag will not feel too tiring, killing two birds with one stone. In this embodiment, the sliding board 4 is provided with a hook 6 for hooking the bag body 1 , with the hook 6 , the sliding board 4 can be connected with the back of the bag body 1 for easy storage.

Of course, the above description is not a limitation of the present utility model, and the present utility model is not limited to the above-mentioned examples, and changes, modifications, additions or replacements made by those skilled in the art within the essential scope of the present utility model are also acceptable. Should belong to the protection scope of the present utility model.

Claims (2)

1. A travel bag for a scooter, comprising a bag body provided with a telescopic handle at one end, characterized in that: one end of the bag body without a telescopic handle is provided with a roller, and the end is hinged with a skateboard, and the bottom of the skateboard is provided with a pulley . 2 . The travel bag for a scooter according to claim 1 , wherein the skateboard is provided with a hook for hooking the bag body. 3 .
