Abstract
本实用新型公开了一种耳麦，包括头带、耳罩、喇叭、插线组成，头带里设有插线，头带分为上卡夹、下挂带，上卡夹上设有卡脚，卡脚隐藏在上卡夹内，可拿出来与上卡夹成90度固定，上卡夹和下挂带通过卡槽卡和连接，下挂带底端设有耳罩，耳罩内设有喇叭。本实用新型解决了头戴耳麦夹紧疼痛的问题，设计简单，结构合理，耳麦在耳朵上戴着舒服。
The utility model discloses a headset, which comprises a headband, an earmuff, a speaker and a plug-in line. The headband is provided with a plug-in line. The headband is divided into an upper clip and a lower strap. The upper clip is provided with clip feet , the clamp feet are hidden in the upper clip, which can be taken out and fixed at 90 degrees with the upper clip. The upper clip and the lower strap are connected through the slot. There is an earmuff at the bottom of the lower strap, and a There are horns. The utility model solves the problem of the clamping pain of the headset worn on the head, has a simple design and a reasonable structure, and the headset is comfortable to wear on the ear.
Description
技术领域 technical field
本实用新型涉及音响技术领域，具体属于一种耳麦。The utility model relates to the field of audio technology, in particular to a headset.
背景技术 Background technique
现有网吧、个人用的耳麦都是一个头带的整体结构，不戴眼镜的人带时间长了就会感到耳朵被夹的很痛，戴眼镜的人当眼镜被夹在头带下就更痛苦了。The existing headsets for Internet cafes and personal use are the overall structure of a headband. People who don’t wear glasses will feel pain when they wear them for a long time. Painful.
实用新型内容 Utility model content
本实用新型的目的是提供一种耳麦，解决了头戴耳麦夹紧疼痛的问题，设计简单，结构合理，耳麦在耳朵上戴着舒服。The purpose of the utility model is to provide a headset, which solves the problem of the clamping pain of the headset, has a simple design and a reasonable structure, and the headset is comfortable to wear on the ear.
本实用新型采用的技术方案如下：The technical scheme that the utility model adopts is as follows:
一种耳麦，包括头带、耳罩、喇叭、插线组成，头带里设有插线，所述的头带分为上卡夹、下挂带，上卡夹上设有卡脚，卡脚隐藏在上卡夹内，可拿出来与上卡夹成90度固定，上卡夹和下挂带通过卡槽卡和连接，下挂带底端设有耳罩，耳罩内设有喇叭。A headset, comprising a headband, earmuffs, speakers, and plug-in wires. The headband is equipped with plug-in wires. The headband is divided into an upper clip and a lower strap. The feet are hidden in the upper clip, which can be taken out and fixed at 90 degrees with the upper clip. The upper clip and the lower strap are connected by a slot. There is an earmuff at the bottom of the lower strap, and a horn is installed inside the earmuff. .
所述的上卡夹内设有与下挂带上端卡环卡和的卡槽。The upper clip is provided with a slot that engages with the snap ring at the upper end of the lower strap.
与已有技术相比，本实用新型的有益效果如下：Compared with the prior art, the beneficial effects of the utility model are as follows:
本实用新型的将头带设计为两节上卡夹和下挂带，上卡夹主要固定于头上，下挂带可以从上卡夹里拔出，挂在耳边，这样对与戴眼镜的人来说就可以不被耳麦夹着眼镜架，而把眼镜架夹坏耳朵夹疼的问题，这样戴着耳麦舒服自然，眼镜架也不会变形夹伤，如果要专心听音乐就可将下挂带插入上卡夹里固定，这样就可专心听音乐。In the utility model, the headband is designed as two upper clips and a lower hanging strap, the upper clip is mainly fixed on the head, and the lower hanging strap can be pulled out from the upper clip and hung on the ear, so that it is suitable for wearing glasses. For those who don’t need to be clamped by the earphones on the glasses frame, the problem of clipping the glasses frame to damage the ears and hurting the ear can be avoided. This way, wearing the headset is comfortable and natural, and the glasses frame will not be deformed and pinched. If you want to concentrate on listening to music, you can The lower strap slides into the upper clip to secure it so you can focus on your music.
附图说明 Description of drawings

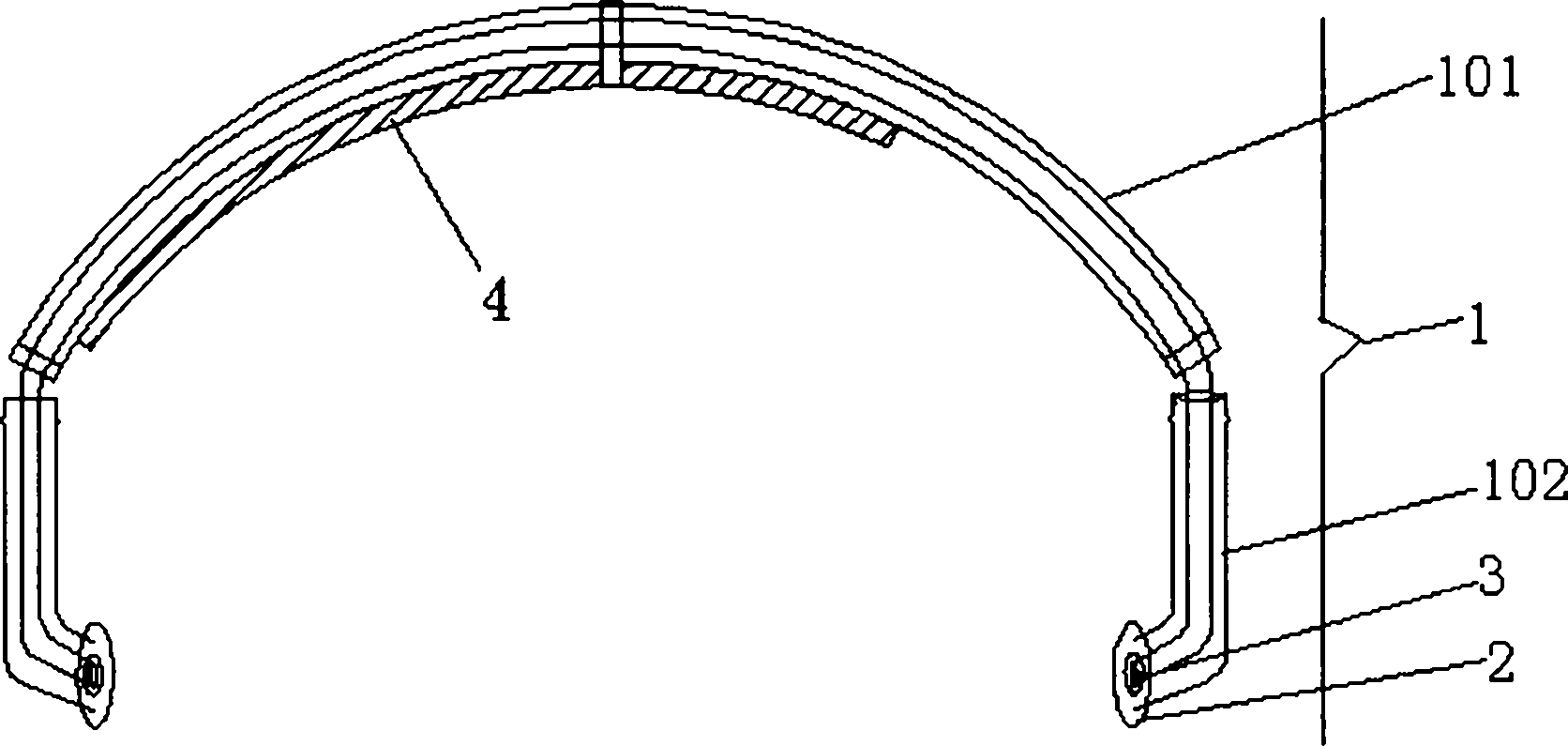

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.
具体实施方式 Detailed ways
参见附图，一种耳麦，包括头带1、耳罩2、喇叭3、插线组成，头带1里设有插线，头带分为上卡夹101、下挂带102，上卡夹1上设有卡脚4，卡脚4隐藏在上卡夹内101，可拿出来与上卡夹成90度固定，下挂带底端设有耳罩，耳罩内设有喇叭，上卡夹内设有于下挂带上端卡环卡和的卡槽，上卡夹和下挂带通过卡槽卡和连接。Referring to the accompanying drawings, a headset is composed of a headband 1, an earmuff 2, a speaker 3, and a plug-in wire. The headband 1 is provided with a plug-in wire. 1 is provided with clip feet 4, and clip feet 4 are hidden in the upper clip 101, which can be taken out and fixed at 90 degrees with the upper clip. The clamp is provided with a card slot which is engaged with the snap ring at the upper end of the lower hanging strap, and the upper clip and the lower hanging strap are connected through the card slot.
