Abstract
砂浆搅拌机，包括安全网、电机、减速器、输送单元、搅拌单元、搅拌轴和出料单元，所述的搅拌轴为三段式结构，第一段上安装有第一螺旋叶片，第二段上安装有多个搅拌臂，第三段安装有第二螺旋叶片，所述的搅拌臂为十字形结构，所述的搅拌单元的内腔为大圆角过渡的正方形，搅拌轴的第一段位于输送单元内部，第二段位于搅拌单元内部，第三段位于出料单元内部。本实用新型能准确地根据砂浆需求量控制水泥、沙、水的投入搅拌量，减少浪费。能连续搅拌砂浆，生产砂浆的速度快，清洁、环保。
Mortar mixer, including safety net, motor, reducer, conveying unit, stirring unit, stirring shaft and discharge unit, the stirring shaft is a three-section structure, the first section is equipped with a first helical blade, the second section A plurality of stirring arms are installed on the top, and the third section is equipped with a second helical blade. The stirring arm is a cross-shaped structure, and the inner cavity of the stirring unit is a square with large rounded transitions. Inside the conveying unit, the second section is located inside the mixing unit, and the third section is located inside the discharge unit. The utility model can accurately control the amount of input and mixing of cement, sand and water according to the demand of the mortar, thereby reducing waste. It can continuously stir mortar, and the production speed of mortar is fast, clean and environmentally friendly.
Description
技术领域 technical field
本实用新型涉及土木工程领域，具体涉及一种砂浆搅拌机。The utility model relates to the field of civil engineering, in particular to a mortar mixer.
背景技术 Background technique
如今建筑行业采用成品干混砂浆，但现场搅拌也同时仍有需要。现有砂浆搅拌机的搅拌容腔都是采用料斗式的，使用时以料斗为容器，根据料斗的体积加入水泥、沙、水等原材料，经过一定时间的搅拌混和，搅拌完成后将料斗内的砂浆倒出、清空，然后再进行第二个流程的搅拌生产。上述搅拌机存在以下缺点：不能连续搅拌砂浆，不能准确地根据砂浆需求量控制水泥、沙、水等搅拌原料的投入量，往往造成浪费，特别当临时需要少量砂浆时更难处理；搅拌刀片的作用半径大，转动时受到砂浆阻力的力矩也大，搅拌速度慢；料斗体积大，整个料斗内的砂浆不易搅拌均匀，往往料斗中心区域的砂浆搅拌均匀后，料斗边缘区域仍有部分材料未均匀混和，于是不得不继续搅拌直至所有砂浆搅拌均匀，进一步延长整体搅拌的所需时间。Today the construction industry uses ready-made dry-mix mortars, but at the same time there is still a need for on-site mixing. The mixing chamber of the existing mortar mixer is all in the hopper type. When using the hopper as a container, add cement, sand, water and other raw materials according to the volume of the hopper. After a certain period of time, the mortar in the hopper is mixed. Pour out, empty, and then go on to the second process of stirring production. The above-mentioned mixer has the following disadvantages: the mortar cannot be continuously stirred, and the input amount of mixing materials such as cement, sand, and water cannot be accurately controlled according to the demand for the mortar, which often causes waste, especially when a small amount of mortar is temporarily needed; it is more difficult to handle; the role of the mixing blade The radius is large, and the moment of mortar resistance during rotation is also large, and the stirring speed is slow; the volume of the hopper is large, and the mortar in the entire hopper is not easy to mix evenly. Often after the mortar in the central area of the hopper is evenly stirred, some materials in the edge area of the hopper are still not evenly mixed. , so we have to continue stirring until all the mortar is evenly mixed, further prolonging the time required for the overall mixing.
发明内容 Contents of the invention
本实用新型的目的在于克服上述缺点而提供一种连续式砂浆搅拌机，该砂浆搅拌机，能准确地根据砂浆需求量控制水泥、沙、水的投入搅拌量，减少浪费，生产砂浆的速度快，有利于清洁、环保，生产出来砂浆的水灰比恒定、准确，体积小巧，使用方便。The purpose of the utility model is to overcome the above disadvantages and provide a continuous mortar mixer, which can accurately control the amount of cement, sand, and water input and mixing according to the demand for mortar, reduce waste, and produce mortar with a high speed. It is beneficial to cleaning and environmental protection, and the water-cement ratio of the produced mortar is constant and accurate, small in size and easy to use.
本实用新型所采用的技术方案如下：砂浆搅拌机，包括安全网、电机、减速器、输送单元、搅拌单元、搅拌轴和出料单元，电机与减速器连接，减速器与搅拌轴连接，输送单元和搅拌单元通过法兰连接，输送单元开有进料口和第一排污口，安全网套在进料口上，搅拌单元开有进水口，出料单元通过法兰与搅拌单元连接，出料单元开有第二排污口，所述的搅拌轴为三段式结构，第一段上安装有第一螺旋叶片，第二段上安装有多个搅拌臂，第三段安装有第二螺旋叶片，所述的搅拌臂为十字形结构，所述的搅拌单元的内腔为大圆角过渡的正方形，搅拌轴的第一段位于输送单元内部，第二段位于搅拌单元内部，第三段位于出料单元内部。The technical scheme adopted by the utility model is as follows: mortar mixer, including safety net, motor, reducer, conveying unit, stirring unit, stirring shaft and discharging unit, motor is connected with reducer, reducer is connected with stirring shaft, conveying unit It is connected with the mixing unit through a flange. The conveying unit has a material inlet and a first sewage outlet. The safety net is set on the material inlet. The mixing unit has a water inlet. There is a second sewage outlet, the stirring shaft is a three-section structure, the first section is equipped with a first helical blade, the second section is equipped with a plurality of stirring arms, and the third section is equipped with a second helical blade. The stirring arm is a cross-shaped structure, the inner cavity of the stirring unit is a square with large round corner transition, the first section of the stirring shaft is located inside the conveying unit, the second section is located inside the stirring unit, and the third section is located at the discharge unit. inside the unit.
本实用新型还具有如下技术特征：The utility model also has the following technical characteristics:
1、所述的搅拌单元为中间分体式结构。1. The stirring unit is a middle split structure.
2、所述的搅拌单元内部安装有撞板。2. A strike plate is installed inside the stirring unit.
3、所述的输送单元、搅拌单元和出料单元外部套有保温套。3. The outside of the conveying unit, stirring unit and discharging unit is covered with a thermal insulation cover.
本实用新型具有以下优点和效果：能准确地根据砂浆需求量控制水泥、沙、水的投入搅拌量，减少浪费。能连续搅拌砂浆，生产砂浆的速度快，清洁、环保。混和料的推进速度由电机控制，可根据搅拌螺杆的转速对干粉进行计量，而水流的流入速度可由水流控制装置进行控制，因此能保持生产出来砂浆的水灰比恒定、准确。The utility model has the following advantages and effects: the mixing amount of cement, sand and water can be accurately controlled according to the demand for mortar, and the waste can be reduced. It can continuously stir mortar, and the production speed of mortar is fast, clean and environmentally friendly. The propulsion speed of the mixture is controlled by the motor, and the dry powder can be measured according to the rotation speed of the stirring screw, and the inflow speed of the water flow can be controlled by the water flow control device, so the water-cement ratio of the produced mortar can be kept constant and accurate.
附图说明 Description of drawings

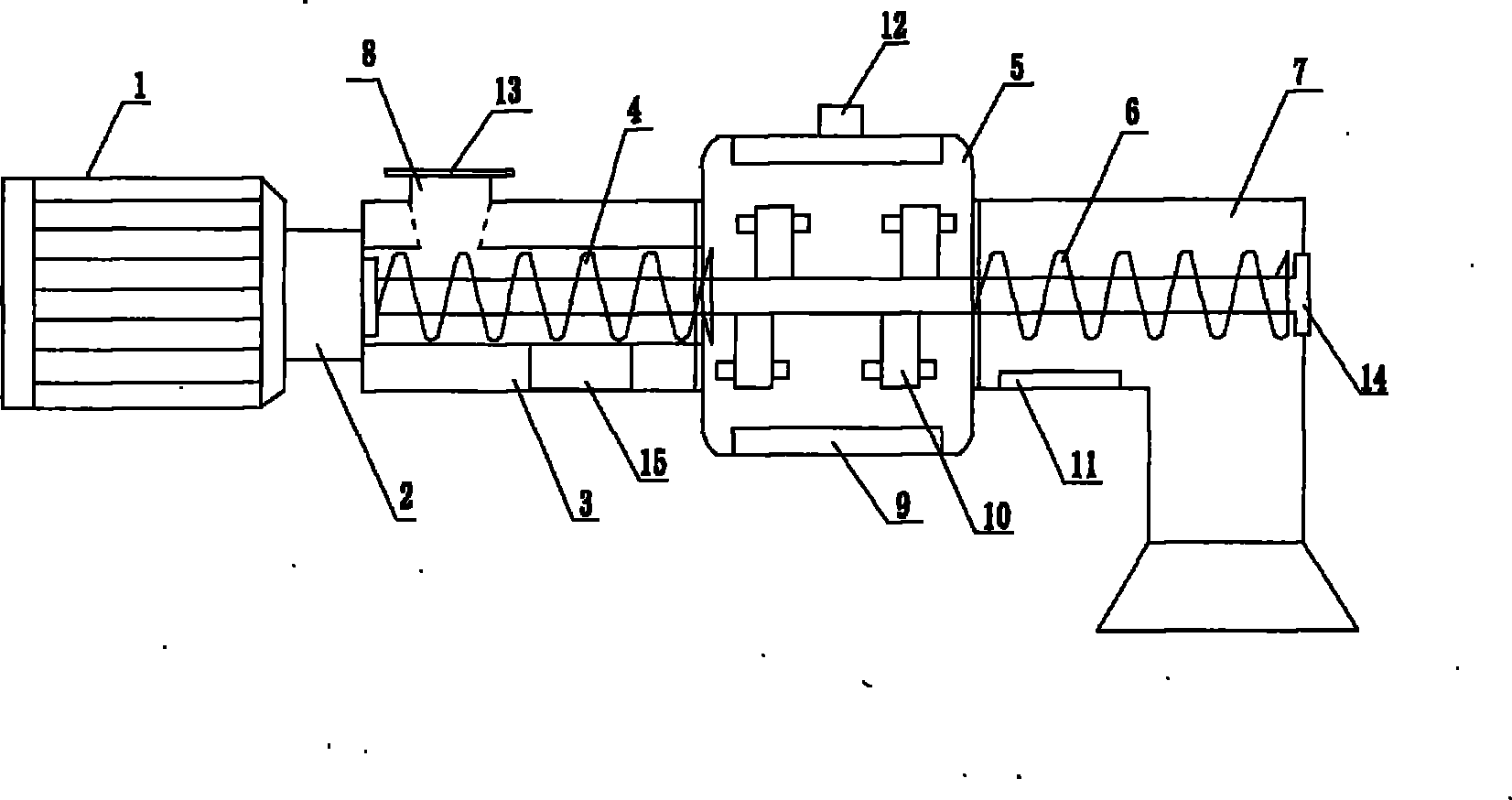

图1为本实用新型的结构示意图，其中1、电机，2、减速器，3、输送单元，4、第一螺旋叶片，5、搅拌单元，6、第二螺旋叶片，7、出料单元，8、进料口，9、撞板，10、搅拌臂，11、第二排污口，12、进水口，13、安全网，14、搅拌轴，15、第一排污口。Fig. 1 is the structural representation of the utility model, wherein 1, motor, 2, speed reducer, 3, conveying unit, 4, the first helical blade, 5, mixing unit, 6, the second helical blade, 7, discharging unit, 8. Feed inlet, 9. Striking plate, 10. Stirring arm, 11. Second sewage outlet, 12. Water inlet, 13. Safety net, 14. Stirring shaft, 15. First sewage outlet.
具体实施方式 Detailed ways
根据说明书附图进一步说明：Further explanation according to the accompanying drawings of the description:
砂浆搅拌机，包括安全网、电机、减速器、输送单元、搅拌单元、搅拌轴和出料单元，电机与减速器连接，减速器与搅拌轴连接，输送单元和搅拌单元通过法兰连接，输送单元开有进料口和第一排污口，安全网套在进料口上，搅拌单元开有进水口，出料单元通过法兰与搅拌单元连接，出料单元开有第二排污口，所述的搅拌轴为三段式结构，第一段上安装有第一螺旋叶片，第二段上安装有多个搅拌臂，第三段安装有第二螺旋叶片，所述的搅拌臂为十字形结构，所述的搅拌单元的内腔为大圆角过渡的正方形，搅拌轴的第一段位于输送单元内部，第二段位于搅拌单元内部，第三段位于出料单元内部。所述的搅拌单元为中间分体式结构，便于拆开清洗搅拌单元内部。所述的搅拌单元内部安装有撞板。所述的输送单元、搅拌单元和出料单元外部套有保温套。Mortar mixer, including safety net, motor, reducer, conveying unit, stirring unit, stirring shaft and discharge unit, the motor is connected with the reducer, the reducer is connected with the stirring shaft, the conveying unit and the stirring unit are connected by flanges, the conveying unit There is a feed inlet and a first sewage outlet, the safety net is set on the feed inlet, the mixing unit has a water inlet, the discharge unit is connected to the stirring unit through a flange, and the discharge unit has a second sewage outlet. The stirring shaft has a three-section structure, the first section is equipped with a first helical blade, the second section is equipped with a plurality of stirring arms, and the third section is equipped with a second helical blade. The agitating arm is a cross-shaped structure, The inner cavity of the stirring unit is a square with large rounded transitions, the first section of the stirring shaft is located inside the conveying unit, the second section is located inside the stirring unit, and the third section is located inside the discharge unit. The stirring unit is a middle split structure, which is convenient to disassemble and clean the inside of the stirring unit. A strike plate is installed inside the stirring unit. The outside of the conveying unit, stirring unit and discharging unit is covered with a thermal insulation cover.
