Abstract
一种医用痰液标本采集车，是涉及可使采痰器具、痰液标本、消毒药品、无菌器械、无菌用品、清洁用品等按卫生要求，分门别类、有序放置的一种医用痰液标本采集车。其特征在于：车框架上面固定有上隔板，上隔板上面设有消毒液格、棉棒格、备用收集瓶格、检验单格以及一边无边框板的吸痰器格；上隔板下面设有采集器具抽屉、痰液收集瓶抽屉，痰液收集瓶抽屉内有方格架，底板下面的车框架下面有万向轮。本实用新型使痰液标本采集的护理工作更方便、灵活、清洁、无菌、有序，对消除医疗安全隐患有积极作用。其结构新颖，实用性强，可提高工作效率和医护质量，能快速采集痰液标本；适用于二甲以上医院的现代医疗护理的需要，特别是结核病医院的病房使用。
A medical sputum sample collection vehicle, which is a kind of medical sputum that can make sputum collection equipment, sputum samples, disinfection drugs, sterile instruments, sterile products, cleaning products, etc., be classified and placed in an orderly manner according to hygienic requirements Specimen collection vehicle. It is characterized in that: an upper partition is fixed on the vehicle frame, and above the upper partition there are compartments for disinfectant, cotton swabs, spare collection bottles, inspection sheets and a sputum suction device without a frame on one side; There are collecting utensil drawers and sputum collection bottle drawers, a grid frame is arranged in the sputum collection bottle drawer, and universal wheels are arranged under the car frame below the bottom plate. The utility model makes the nursing work of collecting sputum samples more convenient, flexible, clean, sterile and orderly, and has positive effects on eliminating medical safety hidden dangers. It has a novel structure and strong practicability, can improve work efficiency and quality of medical care, and can quickly collect sputum samples; it is suitable for the needs of modern medical care in hospitals above the second grade, especially in wards of tuberculosis hospitals.
Description
Technical field
This utility model relates to a kind of medical sputum sample and gathers car; Particularly relate to making and adopt expectorant utensil, sputum sample, disinfection drug, aseptic apparatus, aseptic articles for use, cleaning supplies etc. by hygienic requirements, a kind of medical sputum sample of putting into different categories, placing is in order gathered car.
Background technology
At present, when hospital clinical carries out the sputum sample collection for the patient, generally adopt general duty nursing to place above that and adopt expectorant utensil, sputum sample, disinfection drug, aseptic apparatus, aseptic articles for use, cleaning supplies etc. with car; Like this, article are placed unordered, and are both unstable, also unhygienic, and it is chaotic to be prone to cause different types of article to place again, and processing ease goes wrong; Also there are certain medical safety hidden danger in efficient and quality that it is related to medical and nursing work.
Summary of the invention
In view of the above problems, this utility model proposes a kind of medical sputum sample and gathers car; Its purpose is to overcome above-mentioned deficiency; Provide to make and adopt expectorant utensil, sputum sample, disinfection drug, aseptic apparatus, aseptic articles for use, cleaning supplies etc. by hygienic requirements; Put into different categories, place in order, can gather a kind of medical sputum sample of sputum sample fast and gather car.
This utility model solves the technical scheme that its technical problem adopted: medical sputum sample is gathered car; Frame, universal wheel are arranged; It is characterized in that: be fixed with upper spacer above the frame, Yi Bian the sputum aspirator lattice that are provided with disinfectant solution lattice, cotton excellent lattice, subsequent use receiving flask lattice, checklist lattice above the upper spacer and do not have lateral frame board; Wherein, the sputum aspirator lattice are put sputum aspirator, and the disinfectant solution lattice are put bottled disinfectant solution, and cotton excellent lattice are put aseptic cotton rod, and subsequent use receiving flask lattice are put the subsequent use packed aseptic receiving flask of sputum, and the checklist lattice are put checklist; Be provided with collection equipment drawer, sputum receiving flask drawer below the upper spacer, the collection equipment drawer is put to gather and is used utensil; In the sputum receiving flask drawer grid frame is arranged, in order to put the sputum receiving flask; Be fixed with base plate below the frame, base plate has riser above the centre, and refuse receptacle, sanitary ware can be put in the riser both sides; Below the frame below the base plate universal wheel is arranged.
This medical sputum sample is gathered car, in order to hold medical waste, makes things convenient for access; Can also on the base plate of riser one side, establish the supporting plate axle, the supporting plate axle connects supporting plate, and the opposite side of supporting plate is fixed with the holder cover, in the holder cover refuse receptacle is housed, with fixing refuse receptacle.Like this, can when abandoning medical waste, produce refuse receptacle outside the car body at any time, put rubbish after, go back to refuse receptacle in the car body again.
This medical sputum sample is gathered car, can also establish handle in the both sides of frame, to make things convenient for medical personnel's push-and-pull.
The beneficial effect that this medical sputum sample is gathered car is, can make and adopt expectorant utensil, sputum sample, disinfection drug, aseptic apparatus, aseptic articles for use, cleaning supplies etc. by hygienic requirements, puts into different categories, places in order, also is provided with rotating waste pail.More convenient, flexible, the cleaning, aseptic, orderly of nursery work that this utility model is gathered sputum sample has positive role to eliminating medical safety hidden danger.Its novel structure, practical, can increase work efficiency and medical and nursing quality, can gather sputum sample fast; Be applicable to that diformazan uses with the ward of the needs, particularly tuberculosis hospital of the modern medical service of going to the hospital nursing.
Description of drawings
Below in conjunction with accompanying drawing and embodiment this utility model is further specified.
Figure of description is the overall structure figure of this utility model embodiment.

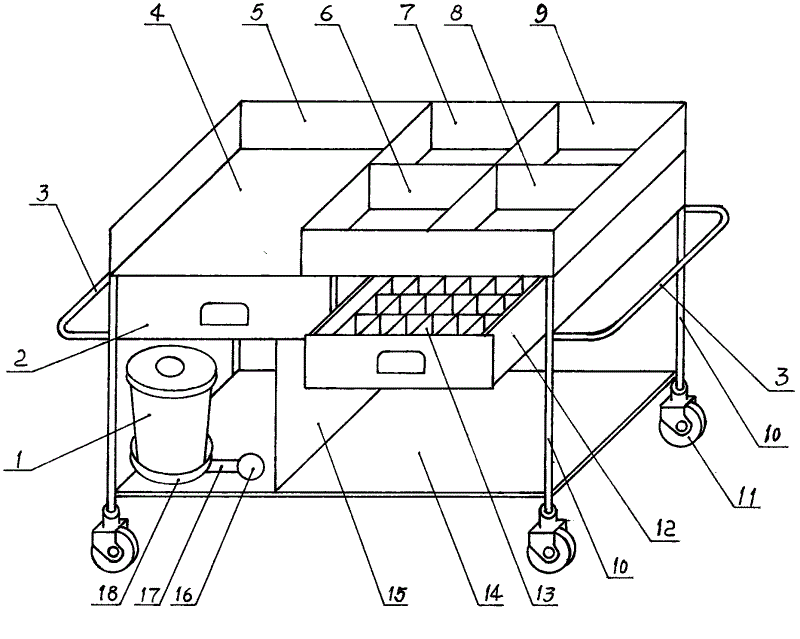

Among the figure: 1. refuse receptacle, 2. collection equipment drawer, 3. handle, 4. upper spacer, 5. sputum aspirator lattice; 6. disinfectant solution lattice, 7. cotton excellent lattice, 8. subsequent use receiving flask lattice, 9. checklist lattice, 10. frame; 11. universal wheel, 12. sputum receiving flask drawers, 13. grid framves, 14. base plates, 15. risers; 16. the supporting plate axle, 17. supporting plates, 18. holder covers
The specific embodiment
Figure of description is the overall structure figure of this utility model embodiment; Among the figure; This medical sputum sample is gathered car; Frame (10), universal wheel (11) are arranged, it is characterized in that: be fixed with upper spacer (4) above the frame (10), be provided with disinfectant solution lattice (6), cotton excellent lattice (7), subsequent use receiving flask lattice (8), checklist lattice (9) above the upper spacer (4) Yi Bian and the sputum aspirator lattice (5) that do not have lateral frame board; Wherein, sputum aspirator lattice (5) are put sputum aspirator, and disinfectant solution lattice (6) are put bottled disinfectant solution, and cotton excellent lattice (7) are put aseptic cotton rod, and subsequent use receiving flask lattice (8) are put the subsequent use packed aseptic receiving flask of sputum, and checklist lattice (9) are put checklist; Be provided with collection equipment drawer (2), sputum receiving flask drawer (12) below the upper spacer (4), collection equipment drawer (2) is put to gather and is used utensil; Grid frame (13) is arranged, in order to put the sputum receiving flask in the sputum receiving flask drawer (12); Be fixed with base plate (14) below the frame (10), base plate (14) has riser (15) above the centre, and refuse receptacle, sanitary ware can be put in riser (15) both sides; Below the frame (10) below the base plate (14) universal wheel (11) is arranged.
Among the figure, this medical sputum sample is gathered car, in order to hold medical waste, makes things convenient for access; Can also on the base plate (14) of riser (15) one sides, establish supporting plate axle (16), supporting plate axle (16) connects supporting plate (17), and the opposite side of supporting plate (17) is fixed with holder cover (18), in the holder cover (18) refuse receptacle (1) is housed, with fixing refuse receptacle (1).Like this, can when abandoning medical waste, produce refuse receptacle outside the car body at any time, put rubbish after, go back to refuse receptacle in the car body again.
Among the figure, this medical sputum sample is gathered car, can also establish handle (3) in the both sides of frame (10), to make things convenient for medical personnel's push-and-pull.
Claims (3)
1. a medical sputum sample is gathered car; Frame, universal wheel are arranged; It is characterized in that: be fixed with upper spacer (4) above the frame (10), be provided with disinfectant solution lattice (6), cotton excellent lattice (7), subsequent use receiving flask lattice (8), checklist lattice (9) above the upper spacer (4) Yi Bian and the sputum aspirator lattice (5) that do not have lateral frame board; Be provided with collection equipment drawer (2), sputum receiving flask drawer (12) below the upper spacer (4), grid frame (13) is arranged in the sputum receiving flask drawer (12); Be fixed with base plate (14) below the frame (10), base plate (14) has riser (15) above the centre; Below the frame (10) below the base plate (14) universal wheel (11) is arranged.
2. medical sputum sample according to claim 1 is gathered car; It is characterized in that: on the base plate (14) of riser (15) one sides, establish supporting plate axle (16); Supporting plate axle (16) connects supporting plate (17), and the opposite side of supporting plate (17) is fixed with holder cover (18), in the holder cover (18) refuse receptacle (1) is housed.
3. medical sputum sample according to claim 1 is gathered car, it is characterized in that: establish handle (3) in the both sides of frame (10).
