CN202378490U - Forked marker pen - Google Patents
Forked marker pen Download PDFInfo
- Publication number
- CN202378490U CN202378490U CN2011205202181U CN201120520218U CN202378490U CN 202378490 U CN202378490 U CN 202378490U CN 2011205202181 U CN2011205202181 U CN 2011205202181U CN 201120520218 U CN201120520218 U CN 201120520218U CN 202378490 U CN202378490 U CN 202378490U
- Authority
- CN
- China
- Prior art keywords
- nib
- narrow
- pen
- wide
- mark
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000003550 marker Substances 0.000 title abstract 4
- NIXOWILDQLNWCW-UHFFFAOYSA-N acrylic acid group Chemical group C(C=C)(=O)O NIXOWILDQLNWCW-UHFFFAOYSA-N 0.000 claims abstract description 5
- 239000000463 material Substances 0.000 claims abstract description 5
- 230000009286 beneficial effect Effects 0.000 abstract description 3
- 238000002372 labelling Methods 0.000 description 2
- 239000011248 coating agent Substances 0.000 description 1
- 238000000576 coating method Methods 0.000 description 1
- 208000002173 dizziness Diseases 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A40/00—Adaptation technologies in agriculture, forestry, livestock or agroalimentary production
- Y02A40/80—Adaptation technologies in agriculture, forestry, livestock or agroalimentary production in fisheries management
- Y02A40/81—Aquaculture, e.g. of fish
Landscapes
- Pens And Brushes (AREA)
- Mechanical Pencils And Projecting And Retracting Systems Therefor, And Multi-System Writing Instruments (AREA)
Abstract
枝杈马克笔，其特征是：亚克力料马克笔头雕刻出宽笔头和窄笔头。其有益效果是：使用用枝杈马克笔划重点，宽笔头和窄笔头同时落在纸面上时可以将文字露出来，形成上下双线的标注形式，这样就可以清晰的做标记，还可以分别使用窄笔头和宽笔头写广告字。
The branch marker pen is characterized by: the acrylic material marker pen head is carved with a wide nib and a narrow nib. Its beneficial effect is: using branch marker pens to draw key points, when the wide pen tip and narrow pen tip fall on the paper at the same time, the text can be exposed, forming a label form of upper and lower double lines, so that it can be marked clearly, and can be used separately Narrow nib and wide nib to write advertising words.
Description
Technical field
The utility model relates to a kind of mark's pen, and particularly a kind of nib is divided mark's pen of branch
Background technology
More mark's pen is used for making marks or writes the advertisement word; Mostly the mode that makes marks is to coat the emphasis on the book with the color lump of mark's pen; But it is unclear to find after coating that emphasis thickens, and it is dizzy that whole page seems, too thick again at words mark's pen of emphasis underscoring; How influence next line, can convenient clearly making marks be problem demanding prompt solution on book.
Summary of the invention
The purpose of the utility model is exactly to solve the problem of mentioning in the above-mentioned background technology, and a kind of branch mark pen is provided.
The technical scheme that the utility model adopts is: branch mark pen is characterized in that: acrylic material mark nib is carved out wide nib and narrow nib.
The beneficial effect of the utility model is: use with branch mark stroke emphasis; When dropping on the paper simultaneously, wide nib and narrow nib can literal be exposed; Form the labeling form of two-wire up and down, so just can make marks clearly, can also use narrow nib and wide nib to write the advertisement word respectively.
Description of drawings
Below in conjunction with accompanying drawing and instance the utility model is done further explain.

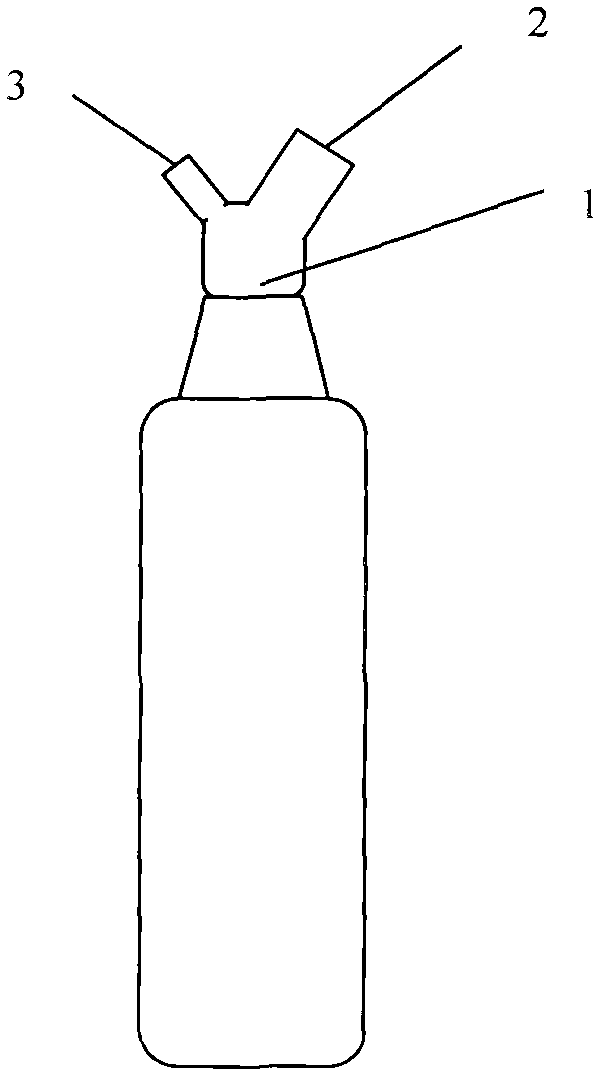

Figure is the structural representation of the utility model.
Among the figure: 1, acrylic material mark nib, 2, wide nib, 3, narrow nib.
The specific embodiment
Like figure, branch mark pen is characterized in that: 1 in acrylic material mark pen carves out wide written 2 with narrow by written 3.Its beneficial effect is: use with branch mark stroke emphasis; When dropping on the paper simultaneously, wide nib and narrow nib can literal be exposed; Form the labeling form of two-wire up and down, so just can make marks clearly, can also use narrow nib and wide nib to write the advertisement word respectively.
Claims (1)
1. branch mark pen, it is characterized in that: acrylic material mark nib is carved out wide nib and narrow nib.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2011205202181U CN202378490U (en) | 2011-12-12 | 2011-12-12 | Forked marker pen |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2011205202181U CN202378490U (en) | 2011-12-12 | 2011-12-12 | Forked marker pen |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN202378490U true CN202378490U (en) | 2012-08-15 |
Family
ID=46627011
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN2011205202181U Expired - Fee Related CN202378490U (en) | 2011-12-12 | 2011-12-12 | Forked marker pen |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN202378490U (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US10589561B2 (en) | 2015-06-24 | 2020-03-17 | Societe Bic | Writing instrument having a multi-use tip |
-
