Abstract
The utility model provides a building template system which comprises a plurality of unit templates, back edges, location rod members with adjustable lengths, and a supporting mechanism, wherein the supporting mechanism is used for preventing a horizontal template set from directly falling on the ground in a template dismantling process; the unit templates are assembled into a vertical template set and the horizontal template set; the back of the vertical template set is fixedly provided with at least two back edges positioned in different horizontal planes, wherein the two back edges are respectively connected with the location rod members; and end parts of the two location rod members are connected and are connected with fixing members fixedly arranged on the ground so that the vertical template set and the two location rod members form a triangle in a vertical surface and form a triangle together with the ground, therefore, the structure of the building template system is more stable and firm. The vertical template set is supported by adopting the two location rod members, and the vertical template set can be vertically located and horizontally located through regulating the lengths of the two location rod members. The back surfaces of the unit templates are provided with transverse reinforcing ribs and vertical reinforcing ribs, which are mutually vertical, thus the building template system is more stable and uniform in stress and has higher strength.
Description
Technical field
The utility model relates to construction formwork, more particularly, relates to a kind of construction formwork system.
Background technology
In the prior art, the unit template of horizontal shuttering group is directly landed in unloading process, can cause damage to the unit template.Be combined into after the vertical template group by the unit template group, to guarantee vertical template group surfacing, simultaneously, utilize rod member that back cord is connected with ground fixture at back cord of its back fixation, vertical template group is regulated and supported to rod member capable of using.This structure can not be with vertical template group perpendicular positioning and horizontal location, and the steadiness of structure is relatively poor simultaneously.The unit template only is provided with horizontal reinforcing rib, and it is stressed to only depend on vertical frame to contact with back cord, unit template easy deformation after use.
The utility model content
The technical problem that the utility model will solve is, provides that a kind of unit template that prevents the horizontal shuttering group is directly landed, the unit template is not yielding in unloading process, can be to the construction formwork system that vertical template group positions, steadiness is good.
The utility model solves the technical scheme that its technical problem adopted: construct a kind of construction formwork system; Comprise by a plurality of unit template, back cord and length-adjustable location rod member; A plurality of unit template group pieces together into vertical template group and horizontal shuttering group, and said construction formwork system also comprises and prevents that the horizontal shuttering group from directly dropping into the supporting mechanism on ground in the form removal process; The back side of said unit template is provided with orthogonal horizontal reinforcing rib and vertical strengthening ribs; The back side of said vertical template group is fixed with at least two said back cords that are in different level; Wherein two said back cords are connected with the location rod member respectively; Connect between the end of two said location rod members and be installed in ground fixture and be connected, make said vertical template group, two said location rod member threes constitute triangle at vertical plane; Said supporting mechanism is positioned at the below of said horizontal shuttering group.
In the described construction formwork system of the utility model, leave the slit between the square rod member that secured in parallel connected about said back cord comprised two and two said square rod members.
In the described construction formwork system of the utility model, said unit template comprises that the cross section is section bar of " mountain " shape and the frame that is fixed on said section bar two ends; The free end of three support arms of said section bar is positioned on the same plane, the middle support arm of said section bar be said vertical strengthening ribs and and two support arms on both sides between be provided with said horizontal reinforcing rib.
In the described construction formwork system of the utility model, said unit template comprises main body, a plurality of horizontal reinforcing rib and a plurality of fixed connecting piece;
Said main body is a section bar; Comprise square panel, two frames and vertical strengthening ribs; Two said frames are provided with respectively on back side of panel two relative edges, and said vertical strengthening ribs is set in parallel between two said frames and perpendicular to said horizontal reinforcing rib;
Said horizontal reinforcing rib is provided with connecting hole; Be equipped with the through hole with the corresponding connection of said connecting hole on said frame, the said vertical strengthening ribs, said fixed connecting piece passes said connecting hole, said through hole is fixedly connected on said horizontal reinforcing rib between said frame and the said vertical strengthening ribs.
In the described construction formwork system of the utility model, said vertical strengthening ribs cross section is the end edge of two support arm retainings of " T " shape, its symmetry at said horizontal reinforcing rib.
In the described construction formwork system of the utility model, be fixedly connected with stator on the said back cord, said back cord is fixedly connected with said location rod member through said stator.
In the described construction formwork system of the utility model, two said location rod members are respectively location rod member and following position level rod member, and are fixedly connected with two back cords up and down respectively; Said upper end of going up the location rod member is fixedly connected with the back cord that is in the top, the lower end is fixedly connected with said fixture, and the front end of said location rod member down is fixedly connected with the back cord that is in the below, the lower end is fixedly connected with said lower end of going up the location rod member.
In the described construction formwork system of the utility model, said lower end of going up the location rod member is provided with brace, and the said lower end of location rod member down is connected on the said brace.
In the described construction formwork system of the utility model, the back side of said vertical template group is fixed with three back cords that are in different level, wherein is in the back cord of the top and is in that the back cord of below is connected with the location rod member respectively.
In the described construction formwork system of the utility model, said construction formwork system also comprises fixed mount, and said fixed mount is the back side that triangle shaped as frame, its base are fixed on vertical template group, is provided with fixed bar between the center of said fixed mount and its drift angle.
Implement the construction formwork system of the utility model; Has following beneficial effect: after the installation; Vertical template group, two location rod member threes constitute triangle; Vertical template group, ground and each location rod member three also constitute triangle, thereby make the structure of construction formwork system more firm.Adopt two location rod members to support vertical template group; Because the equal scalable of length of location rod member; Regulate the length of two location rod members and can carry out perpendicular positioning and horizontal location vertical template group; Adopt at least two back cords can be firmly vertical template group stressed, make vertical template group more stable, and do not make the unit template yielding etc.The unit template not only has horizontal reinforcing rib, has also added vertical strengthening ribs, and stressed more stable more even, intensity is bigger.
Description of drawings
To combine accompanying drawing and embodiment that the utility model is described further below, in the accompanying drawing:
Fig. 1 is the structural representation of the utility model construction formwork system preference embodiment;
Fig. 2 is the structural representation of unit template among the utility model construction formwork system preference embodiment;
Fig. 3 is the structural representation of the utility model construction formwork system preference embodiment medium section;
Vertical template group structure sketch map when constituting construction wall among Fig. 4 the utility model construction formwork system preference embodiment;
Fig. 5 is the structural representation when constituting the building cylinder among the utility model construction formwork system preference embodiment.

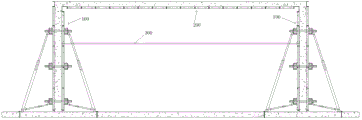

Fig. 6 is the overall structure sketch map of the utility model construction formwork system preference embodiment;
The structural representation of the another kind of embodiment of unit template in Fig. 7 to Figure 12 the utility model construction formwork system.
The specific embodiment
Understand for technical characterictic, purpose and effect to the utility model have more clearly, contrast the specific embodiment that accompanying drawing specifies the utility model at present.
In the construction formwork system preference embodiment of the utility model, comprise by a plurality of unit template 10, back cord and length-adjustable location rod member.A plurality of unit template 10 spellings become to constitute vertical template group 100 and horizontal shuttering group 200; The construction formwork system also comprises and prevents that horizontal shuttering group 200 from dropping into the supporting mechanism 300 on ground in the form removal process; As shown in Figure 6; Supporting mechanism 300 is positioned at the below of horizontal shuttering group 200, and supporting mechanism 300 can be connecting rod, steel cable etc., and its two ends are fixedly connected with vertical template group 100 respectively; Supporting mechanism 300 also can cooperating for joist and support bar; They sup-port is in the bottom of joist, and when dismounting horizontal shuttering group 200, the unit template can drop on the supporting mechanism 300 earlier; Take off from supporting mechanism 300 again, cause damage to avoid the unit template to fall.
The back side of vertical template group 100 is fixed with at least two back cords that are in different level, and wherein two back cords are connected with the location rod member respectively.In the present embodiment; The back side of vertical template group 100 is fixed with three back cords that are in different level respectively; For the ease of describing; With three back cords back cord 21 on the called after, middle back cord 22, back cord 23 down successively from top to bottom; To be connected with the location rod member respectively be the back cord of the top and be in that the back cord of below is connected with the location rod member respectively wherein to go up back cord 21 and following back cord 23, will go up location rod member that back cord 21 is connected with following back cord 23 simultaneously and locate rod member 31 respectively on the called after, locate rod member 32 down.Middle back cord 22 plays the effect that structural strength is consolidated in further reinforcement in the construction formwork system, back cord 22 in the practical implementation process, also can not being provided with.
Connect between the end of two location rod members and be connected with fixture 4 on being installed in ground 8; In the present embodiment; Particularly; Last location rod member 31 and following location rod member 32 are fixedly connected with two back cords up and down respectively, on locate rod member 31 the upper end be fixedly connected with the last back cord 21 that is in the top, the lower end is fixedly connected with fixture 4, locatees that the upper end of rod member 32 is fixedly connected with following back cord 23 below being in, the lower end is fixedly connected with the lower end of last location rod member 31 down.Preferably, on locate rod member 31 the lower end be provided with brace, the lower end of following location rod member 32 is connected on the brace, and the lower end of going up location rod member 31 directly is connected with fixture 4.Connection between the each several part all can adopt modes such as bolt, connecting pin to be fixedly connected.After the installation; Vertical template group 100, on locate rod member 31, locate rod member 32 threes down and constitute triangle at vertical plane; Simultaneously; Vertical template group 100, on locate rod member 31, ground 8 threes also constitute triangle, and vertical template group 100, locate rod member 32 down, ground 8 threes also constitute triangle, thereby make the structure of construction formwork system more firm.Herein, also can be down location rod member 32 the lower end, on locate rod member 31 the lower end all is connected with fixture 4, perhaps goes up location rod member 31 and be fixedly connected, and following lower end of locating rod member 32 is connected with fixture 4 with following lower end of locating rod member 32.
As shown in Figure 4, can adopt location rod member 31 and the cooperation of location rod member 32 down on many groups at the back of vertical template group 100, make overall structure more firm.
In conjunction with Fig. 1, shown in Figure 4, last back cord 21, middle back cord 22, the structure of 23 3 back cords of back cord is identical down, the structure of back cord 21 in this description.Leave the slit between the square rod member 20 that secured in parallel connected about last back cord 21 comprised two and two square rod members 20; Can weld together through iron bar or iron plate etc. between the square rod member 20; Interspersed tightening latch through walls can be convenient in space between the square rod member 20; Facilitate the use tightening latch through walls and will go up the back side that back cord 21 is fixed on vertical template group 100, can vertical template group 100 be fixed on body of wall 9 both sides simultaneously.Herein, also can utilize back cord clamp mechanism or other mechanism back cord to be fixed on the back side of vertical template group 100.Also be fixedly connected with stator 25 on last back cord 21 and the following back cord 23, can be connected with following location rod member 32 with last location rod member 31 respectively with following back cord 23 through back cord 21 on the stator 25.Stator 25 can be fixed on back cord 21 and the following back cord 23 through modes such as welding, bolts, also can utilize tightening latch through walls or back cord clamp mechanism to be fixed on back cord 21 and the following back cord 23.
The back side of unit template 10 is provided with orthogonal horizontal reinforcing rib 12 and vertical strengthening ribs 11; Have only horizontal reinforcing rib 12 to compare than conventional template, this unit template 10 not only has horizontal reinforcing rib 12, has also added vertical strengthening ribs 11, and stressed more stable more even, intensity is bigger; The vertical strengthening ribs 11 that the centre adds can directly contact with back cord, can in the process of building, power be delivered to back cord and get on.
In this preferred embodiment, as shown in Figure 5, the construction formwork system also comprises fixed mount 7, and fixed mount 7 is the back side that triangle shaped as frame, its base are fixed on vertical template group 100, is provided with fixed bar 71 between the center of fixed mount 7 and its drift angle.A plurality of vertical templates 10 surround square column, so that build the cylinder of building; Be respectively equipped with a fixed mount on four limits of square column, and fixed mount is horizontally fixed on the back side of vertical template group 100, can strengthens the structural strength of vertical template group 100.Connect through fixed connecting pieces such as bolts each other between the base of fixed mount 7, further the agents enhance overall structural strength.
Unit template in the utility model construction formwork system is not limited to the foregoing description, and other a kind of embodiment of unit template below is provided.As shown in Figure 7, the unit template comprises main body 201, a plurality of horizontal reinforcing rib and a plurality of fixed connecting piece (not shown).

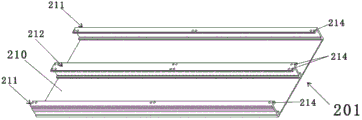

Like Fig. 8, shown in Figure 9; Main body 201 is a section bar; Comprise square panel 210, two frames 211 and vertical strengthening ribs 212; Two frames 211 are provided with respectively on two relative edges of panel 210 back sides, and vertical strengthening ribs 212 is set in parallel between two frames 211 and perpendicular to horizontal reinforcing rib.
Laterally reinforcing rib is provided with connecting hole 214; Be equipped with the through hole 221 with connecting hole 214 corresponding connections on frame 211, the vertical strengthening ribs 212, fixed connecting piece passes connecting hole 214, through hole 221 is fixedly connected on horizontal reinforcing rib between frame 211 and the vertical strengthening ribs 212.In the present embodiment, preferably as shown in Figure 7, laterally reinforcing rib is six, four two ends that are positioned at main body 201 in twos wherein, and two other is fixed on the middle part of main body 201.It will be appreciated that laterally the number of reinforcing rib, the position that is fixed on main body 201 are not limited to present embodiment.
Like Figure 10, Figure 11, shown in Figure 12, laterally reinforcing rib comprises that connecting hole 214 is arranged on the reinforced bulkhead 202 perpendicular to axial stiffener 203 of main body 201 and the reinforced bulkhead 202 that is fixed on stiffener 203 edges.Herein, stiffener 203 is in order to consolidate and strengthen the structure of frame 202, need understanding be that laterally reinforcing rib also can only be a reinforced bulkhead 202.
The free end of vertical strengthening ribs 212 is that T shape, its two support arms are provided with through hole 221; Frame 211 is L shaped, and the end of an one of which support arm is connected with panel 210, another support arm is provided with through hole 221.Can utilize fixed connecting piece to install, be convenient to operation at the back side of construction formwork.

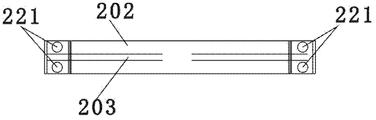

Reinforced bulkhead 202 is that stairstepping, its cascaded surface are provided with connecting hole 214 away from two frame angles of panel 210.So that laterally reinforcing rib, frame 211 are connected with reinforced bulkhead 202, be beneficial to the whole smooth of the construction formwork back side.
Reinforced bulkhead 202 is equipped with groove 222 respectively with on vertical strengthening ribs 212, frame 211 corresponding two edges; Be equipped with the location division 213 suitable on vertical strengthening ribs 212, the frame 211, can further strengthen being connected of reinforced bulkhead 202 and main body 201 with groove 222.
In the present embodiment, fixed connecting piece is a rivet, also can be other fixed connecting pieces such as bolt or screw simultaneously.Connection through fixed connecting piece; Make main body 201 convenient with the attended operation of horizontal reinforcing rib; Assembling process does not have noise, and cost is low, avoid the big cost of welding manner power consumption noise high, that produce big, be not easy to the defectives such as location, assembling inconvenience between the each several part.
Combine accompanying drawing that the embodiment of the utility model is described above; But the utility model is not limited to the above-mentioned specific embodiment, and the above-mentioned specific embodiment only is schematically, rather than restrictive; Those of ordinary skill in the art is under the enlightenment of the utility model; Not breaking away under the scope situation that the utility model aim and claim protect, also can make a lot of forms, these all belong within the protection of the utility model.
Claims (10)
1. construction formwork system; Comprise by a plurality of unit template, back cord and length-adjustable location rod member; A plurality of unit template group pieces together into vertical template group and horizontal shuttering group; It is characterized in that said construction formwork system also comprises and prevents that the horizontal shuttering group from directly dropping into the supporting mechanism on ground in the form removal process; The back side of said unit template is provided with orthogonal horizontal reinforcing rib and vertical strengthening ribs; The back side of said vertical template group is fixed with at least two said back cords that are in different level; Wherein two said back cords are connected with the location rod member respectively; Connect between the end of two said location rod members and be installed in ground fixture and be connected, make said vertical template group, two said location rod member threes constitute triangle at vertical plane; Said supporting mechanism is positioned at the below of said horizontal shuttering group.
2. construction formwork system according to claim 1 is characterized in that, leaves the slit between the square rod member that secured in parallel connected about said back cord comprised two and two said square rod members.
3. construction formwork system according to claim 1 is characterized in that, said unit template comprises that the cross section is section bar of " mountain " shape and the frame that is fixed on said section bar two ends; The free end of three support arms of said section bar is positioned on the same plane, the middle support arm of said section bar be said vertical strengthening ribs and and two support arms on both sides between be provided with said horizontal reinforcing rib.
4. construction formwork system according to claim 1 is characterized in that, said unit template comprises main body, a plurality of horizontal reinforcing rib and a plurality of fixed connecting piece;
Said main body is a section bar; Comprise square panel, two frames and vertical strengthening ribs; Two said frames are provided with respectively on back side of panel two relative edges, and said vertical strengthening ribs is set in parallel between two said frames and perpendicular to said horizontal reinforcing rib;
Said horizontal reinforcing rib is provided with connecting hole; Be equipped with the through hole with the corresponding connection of said connecting hole on said frame, the said vertical strengthening ribs, said fixed connecting piece passes said connecting hole, said through hole is fixedly connected on said horizontal reinforcing rib between said frame and the said vertical strengthening ribs.
5. construction formwork system according to claim 3 is characterized in that, said vertical strengthening ribs cross section is the end edge of two support arm retainings of " T " shape, its symmetry at said horizontal reinforcing rib.
6. construction formwork system according to claim 1 is characterized in that, is fixedly connected with stator on the said back cord, and said back cord is fixedly connected with said location rod member through said stator.
7. construction formwork system according to claim 1 is characterized in that, two said location rod members are respectively location rod member and following position level rod member, and is fixedly connected with two back cords up and down respectively; Said upper end of going up the location rod member is fixedly connected with the back cord that is in the top, the lower end is fixedly connected with said fixture, and the front end of said location rod member down is fixedly connected with the back cord that is in the below, the lower end is fixedly connected with said lower end of going up the location rod member.
8. construction formwork system according to claim 7 is characterized in that, said lower end of going up the location rod member is provided with brace, and the said lower end of location rod member down is connected on the said brace.
9. construction formwork system according to claim 1 is characterized in that, the back side of said vertical template group is fixed with three back cords that are in different level, wherein is in the back cord of the top and is in that the back cord of below is connected with the location rod member respectively.
10. construction formwork system according to claim 1; It is characterized in that; Said construction formwork system also comprises fixed mount, and said fixed mount is the back side that triangle shaped as frame, its base are fixed on vertical template group, is provided with fixed bar between the center of said fixed mount and its drift angle.
