一种分体式垃圾箱，属于公共设施，主要解决固、液体垃圾混装垃圾清理困难的问题。其结构包括固体垃圾箱和液体垃圾箱，所述的固体垃圾箱和液体垃圾箱均为圆柱桶，所述的固体垃圾箱底端与液体垃圾箱活动卡接；所述的液体垃圾箱的底部设置有一滤网，滤网底部连接有一漏斗；所述的固体垃圾箱一侧设置有一出液口，所述的出液口与固定垃圾箱内腔相通。该分体式垃圾箱内将固体垃圾与液一垃圾分离存放，清理垃圾时更加方便卫生。
A split garbage bin belongs to public facilities and mainly solves the problem of difficult cleaning of mixed solid and liquid garbage. Its structure includes a solid trash can and a liquid trash can, both of which are cylindrical barrels, and the bottom of the solid trash can is movably engaged with the liquid trash can; the bottom of the liquid trash can is set There is a filter screen, and a funnel is connected to the bottom of the filter screen; a liquid outlet is arranged on one side of the solid waste bin, and the liquid outlet communicates with the inner cavity of the fixed waste bin. In the split-type dustbin, solid waste and liquid waste are stored separately, which is more convenient and hygienic when cleaning up waste.
Description
技术领域 technical field
本实用新型涉及一种公共设施，具体地说是一种分体式垃圾箱。The utility model relates to a public facility, in particular to a split garbage bin.
背景技术 Background technique
垃圾箱是城市公共卫生设施中的重要组成部分，传统的垃圾箱都是一体的，固体、液体垃圾混放，加大了环卫工人清理垃圾箱时的难度。Garbage bins are an important part of urban public health facilities. Traditional trash bins are integrated, and solid and liquid garbage are mixed, which increases the difficulty for sanitation workers to clean up trash bins.
实用新型内容 Utility model content
本实用新型的目的在于提供一种分体式垃圾箱，环卫工人可将分离好的固体垃圾与液体垃圾分别装入垃圾清理车上的固体垃圾桶和液体垃圾桶内。The purpose of the utility model is to provide a split type garbage bin, sanitation workers can respectively load the separated solid garbage and liquid garbage into the solid garbage can and the liquid garbage can on the garbage cleaning vehicle.
本实用新型解决其技术问题所采取的技术方案是：一种分体式垃圾箱，其结构包括固体垃圾箱和液体垃圾箱，所述的固体垃圾箱和液体垃圾箱均为圆柱桶，所述的固体垃圾箱底端与液体垃圾箱活动卡接；所述的液体垃圾箱的底部设置有一滤网，滤网底部连接有一漏斗；所述的固体垃圾箱一侧设置有一出液口，所述的出液口与固定垃圾箱内腔相通。The technical solution adopted by the utility model to solve the technical problems is: a split type garbage bin, the structure of which includes a solid garbage bin and a liquid garbage bin, both of the solid garbage bin and the liquid garbage bin are cylindrical barrels, and the The bottom of the solid waste bin is snapped to the liquid waste bin; the bottom of the liquid waste bin is provided with a filter, and the bottom of the filter is connected with a funnel; one side of the solid waste bin is provided with a liquid outlet, and the outlet The liquid port communicates with the inner cavity of the fixed dustbin.
本实用新型的有益效果是：由于液体垃圾箱与固定垃圾箱活动卡接，液体垃圾箱底面为滤网，使液体垃圾圾和固体垃圾能分离开，方便清理，更加方便卫生。The beneficial effects of the utility model are: since the liquid trash can and the fixed trash can are movably clamped, the bottom of the liquid trash can is a filter screen, so that the liquid garbage and the solid garbage can be separated, which is convenient for cleaning and more convenient and hygienic.
附图说明 Description of drawings

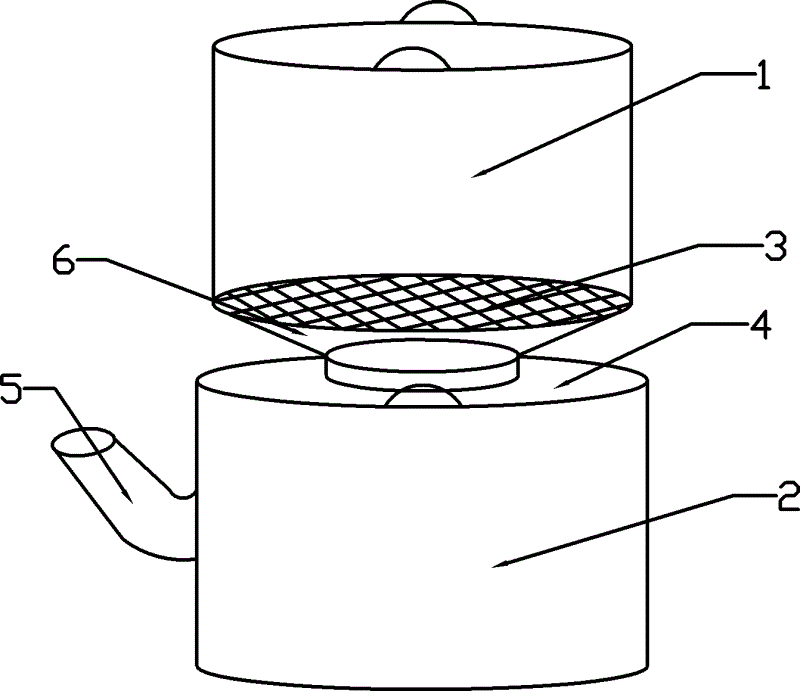

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.
图中：1固体垃圾箱，2液体垃圾箱，3滤网，4液体垃圾箱开口，5出液口，6漏斗。In the figure: 1 solid trash bin, 2 liquid trash bin, 3 filter screen, 4 liquid trash bin opening, 5 liquid outlet, 6 funnel.
具体实施方式 Detailed ways
如图1所示。一种分体式垃圾箱，其结构包括固体垃圾箱1和液体垃圾箱2，所述的固体垃圾箱1和液体垃圾箱2均为圆柱桶，所述的固体垃圾箱1底端与液体垃圾箱2活动卡接；所述的液体垃圾箱2的底部设置有一滤网3，滤网3底部连接有一漏斗6，漏斗6能方便的将液体垃圾引流到液体垃圾箱2内腔中；所述的固体垃圾箱1一侧设置有一出液口5，所述的出液口5与固定垃圾箱1内腔相通。As shown in Figure 1. A split garbage bin, its structure includes a solid garbage bin 1 and a liquid garbage bin 2, the solid garbage bin 1 and the liquid garbage bin 2 are cylindrical barrels, the bottom of the solid garbage bin 1 is connected to the liquid garbage bin 2 movable clamping connection; the bottom of the liquid waste bin 2 is provided with a filter screen 3, and the bottom of the filter screen 3 is connected with a funnel 6, and the funnel 6 can easily drain the liquid waste into the inner cavity of the liquid waste bin 2; One side of the solid waste bin 1 is provided with a liquid outlet 5 , and the liquid outlet 5 communicates with the inner cavity of the fixed waste bin 1 .
垃圾清理车内设有单独的固体桶和液体桶，当清理垃圾时，将固体垃圾箱1内的固体垃圾倒入车上的固体桶内，垃圾清理车上的液体桶连接抽水管，抽水管的另一端插入出液口5内，可直接将液体垃圾箱内腔的液体垃圾抽出，非常方便。There are separate solid buckets and liquid buckets in the garbage cleaning vehicle. When cleaning garbage, pour the solid garbage in the solid garbage bin 1 into the solid bucket on the vehicle, and the liquid bucket on the garbage cleaning vehicle is connected to the suction pipe. The other end of the other end is inserted in the liquid outlet 5, and the liquid garbage in the inner chamber of the liquid dustbin can be directly extracted out, which is very convenient.
