Abstract

The utility model relates to a drilling template for a back wall panel on a speed increasing frame of wind power equipment. The drilling template comprises a template body and is characterized in that the template body is provided with a positioning part positioned with a long hole on a back wall panel; six through holes are symmetrically arranged on the two sides of the positioning part; a positioning sleeve is fixedly installed in each through hole; the lower end faces of the positioning sleeves and the lower surface of the template body are in the same plane; conical through holes are arranged in the positioning sleeves; and the small ends of the conical holes are arranged below the template. The drilling template has the following advantages and positive effects: by utilizing the drilling template and utilizing a transfer punch for marking and then carrying out drilling, the scribing procedure is omitted and the influence from the scribing tools and the human factors during scribing are avoided, thus greatly improving the drilling accuracy and simultaneously greatly improving the efficiency.

Description

A kind of wind power equipment speedup frame back of the body wallboard bore template
Technical field
The utility model belongs to the machining technique field, particularly relates to a kind of wind power equipment speedup frame back of the body wallboard bore template.
Background technology
In the middle of wind power equipment, the speedup frame is the bigger series products of quantity.A back of the body wallboard is arranged on this structural member, a slotted hole is arranged on it, the silk hole of 6 M8 that are symmetrically distributed around the slotted hole.These several holes all are the position that the thread Pilot hole center is confirmed in line earlier in the preboring thread Pilot hole, and then boring.Because what the workman used when ruling is slate pencil; Lines are thicker; Add artificial once in a while behaviour and do error, the position at thread Pilot hole center is inaccurate when being easy to cause line, can't install because the position in silk hole is inaccurate with the working of plastics of its installation behind the drilling and tapping; Line is simultaneously lost time, and efficient is also low.
Summary of the invention
The utility model for solve the technical problem that exists in the known technology provide a kind of simple in structure, easy to install, increase work efficiency, the wind power equipment speedup frame back of the body wallboard bore template of accurate positioning.
The technical scheme that the utility model is taked for the technical problem that exists in the solution known technology is:
A kind of wind power equipment speedup frame back of the body wallboard bore template; Comprise the template body, it is characterized in that: said template body is provided with and carries on the back the positioning element of wallboard slotted hole location, and the bilateral symmetry of said positioning element is provided with 6 through holes; Be installed with positioning sleeve in each through hole; The lower surface of the lower surface of said positioning sleeve and template body is provided with conical through-hole in the said positioning sleeve on same plane, the small end of said taper hole is positioned at the below of template.
The utility model can also adopt following technical measures:
Positioning element on the said template body is a slotted hole, and said this slotted hole is consistent with the slotted hole size dimension on the back of the body wallboard.
Positioning element on the said template body is a boss, and said boss is consistent with the slotted hole size dimension on the back of the body wallboard.
Advantage and the good effect that the utlity model has are: because the utility model adopts technique scheme; Utilize above-mentioned bore template, and utilize the ocean, boring again towards making marks; Saved crossed process; Artificial factor when having avoided scoring tool and line, therefore the accuracy rate of boring improves greatly, has also greatly improved efficient simultaneously.
Description of drawings

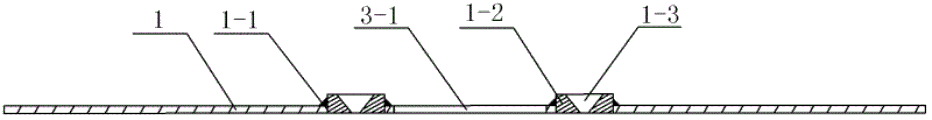

Fig. 1 is the structural representation of the utility model;
Fig. 2 is the another kind of structural representation of the utility model;
Fig. 3 the utility model user mode figure;
Fig. 4 is an A-A cutaway view among Fig. 3.
Among the figure: 1, template body; 1-1, through hole; 1-2, positioning sleeve; 1-3, through hole; 2, back of the body wallboard; 2-1, slotted hole; 3, positioning element; 3-1, slotted hole; 3-2, boss.
The specific embodiment
For further understanding summary of the invention, characteristics and the effect of the utility model, the following examples of giving an example now, and conjunction with figs. specifies as follows:
See also Fig. 1 to Fig. 4; A kind of wind power equipment speedup frame back of the body wallboard bore template; Comprise template body 1, said template body 1 is provided with and carries on the back the positioning element 3 of wallboard 2 slotted hole 2-1 location, and the bilateral symmetry of said positioning element 3 is provided with 6 through hole 1-1; Be installed with positioning sleeve 1-2 in each through hole; The lower surface of the lower surface of said positioning sleeve 1-2 and template body 1 is provided with conical through-hole 1-3 in the said positioning sleeve 1-2 on same plane, the small end of said taper hole is positioned at the below of template.Positioning element on the body of template described in the said structure is slotted hole 3-1, also can be boss 3-2, no matter be through hole or boss all with back of the body wallboard on the slotted hole size dimension consistent.
The utility model method for using: at first keep flat bore template on the back of the body wallboard, make the slotted hole of bore template or scheme platform to overlap, and the big end of positioning sleeve taper hole up with the slotted hole of back of the body wallboard; Secondly dash the ocean and put into taper hole along the big end of positioning sleeve taper hole, the small end outside diameter center of aligned cover taper hole firmly impacts the ocean with iron hammer and dashes, and stays a foreign dotting punch; Using such method is finished the foreign dotting punch at all centers, M8 silk hole; Take away bore template at last, according to the foreign dotting punch boring at the center of having made, hole.And then saved crossed process, and artificial factor when having avoided scoring tool and line, therefore the accuracy rate of boring improves greatly, has also greatly improved efficient simultaneously.

Claims (3)

1. a wind power equipment speedup frame is carried on the back the wallboard bore template; Comprise the template body, it is characterized in that: said template body is provided with and carries on the back the positioning element of wallboard slotted hole location, and the bilateral symmetry of said positioning element is provided with 6 through holes; Be installed with positioning sleeve in each through hole; The lower surface of the lower surface of said positioning sleeve and template body is provided with conical through-hole in the said positioning sleeve on same plane, the small end of said taper hole is positioned at the below of template.
2. wind power equipment speedup frame back of the body wallboard bore template according to claim 1, it is characterized in that: the positioning element on the said template body is a slotted hole, said this slotted hole is consistent with the slotted hole size dimension on the back of the body wallboard.
3. wind power equipment speedup frame back of the body wallboard bore template according to claim 1, it is characterized in that: the positioning element on the said template body is a boss, said boss is consistent with the slotted hole size dimension on the back of the body wallboard.
