一种可更换吊钩部分的挂钩，包括吊钩部分和固定部分，其特征是，固定部分一面设有双面胶，另一面设有一嵌板，吊钩部分一面设有一嵌板，另一面设有挂钩，固定部分的嵌板和吊钩部分的嵌板可相互咬合。固定部分的嵌板和吊钩部分的嵌板可相互咬合，从而使固定部分和吊钩部分连接使用，当挂钩的吊钩部分损坏后可更换新的吊钩部分继续使用而不用更换固定部分，节约了资源，同时免去了更换固定部分的麻烦过程。本实用新型结构简单，使用方便。
A hook with a replaceable hook part, comprising a hook part and a fixed part, characterized in that the fixed part is provided with double-sided tape on one side and a panel on the other side, and the hook part is provided with a panel on one side and the other side is provided with a There are hooks, and the panels of the fixed part and the panels of the hook part can be engaged with each other. The panel of the fixed part and the panel of the hook part can be engaged with each other, so that the fixed part and the hook part can be connected and used. When the hook part of the hook is damaged, a new part of the hook can be replaced to continue to use without replacing the fixed part. Resources are saved while eliminating the troublesome process of replacing fixed parts. The utility model has the advantages of simple structure and convenient use.
Description
技术领域 technical field
本实用新型涉及一种日常生活中的挂钩，尤其是一种可更换吊钩部分的挂钩。 The utility model relates to a hook in daily life, in particular to a hook with a replaceable hook part. the
背景技术 Background technique
挂钩的使用给人们挂放物品带来了很大方便，但目前的挂钩为一体结构，且吊钩部分容易损坏；当吊钩部分损坏后，挂钩整体便不能继续使用，一定程度上造成资源浪费。 The use of the hook has brought great convenience to people to hang and place items, but the current hook has an integrated structure, and the hook part is easily damaged; when the hook part is damaged, the whole hook cannot continue to be used, which causes waste of resources to a certain extent . the
发明内容 Contents of the invention
本实用新型的目的是提供一种可更换吊钩部分的挂钩，使吊钩部分损坏后可更换新的吊钩部分继续使用，而不用更换固定部分，从而节约资源。 The purpose of the utility model is to provide a hook with a replaceable hook part, so that after the hook part is damaged, a new hook part can be replaced to continue to use without replacing the fixed part, thereby saving resources. the
本实用新型解决其技术问题所采用的技术方案是： The technical scheme that the utility model solves its technical problem adopts is:
一种可更换吊钩部分的挂钩，包括吊钩部分和固定部分，其特征是，固定部分一面设有双面胶，另一面设有一嵌板，吊钩部分一面设有一嵌板，另一面设有挂钩，固定部分的嵌板和吊钩部分的嵌板可相互咬合。 A hook with a replaceable hook part, comprising a hook part and a fixed part, characterized in that the fixed part is provided with double-sided tape on one side and a panel on the other side, and the hook part is provided with a panel on one side and the other side is provided with There are hooks, and the panels of the fixed part and the panels of the hook part can be engaged with each other. the
本实用新型的有益效果是：固定部分的嵌板和吊钩部分的嵌板可相互咬合，从而使固定部分和吊钩部分连接使用，当挂钩的吊钩部分损坏后可更换新的吊钩部分继续使用而不用更换固定部分，节约了资源，同时免去了更换固定部分的麻烦过程。本实用新型结构简单，使用方便。 The beneficial effect of the utility model is that the panel of the fixed part and the panel of the hook part can be engaged with each other, so that the fixed part and the part of the hook can be used in connection, and when the part of the hook of the hook is damaged, a new part of the hook can be replaced Continuing to use without replacing the fixed part saves resources and at the same time eliminates the troublesome process of replacing the fixed part. The utility model has the advantages of simple structure and convenient use. the
附图说明 Description of drawings

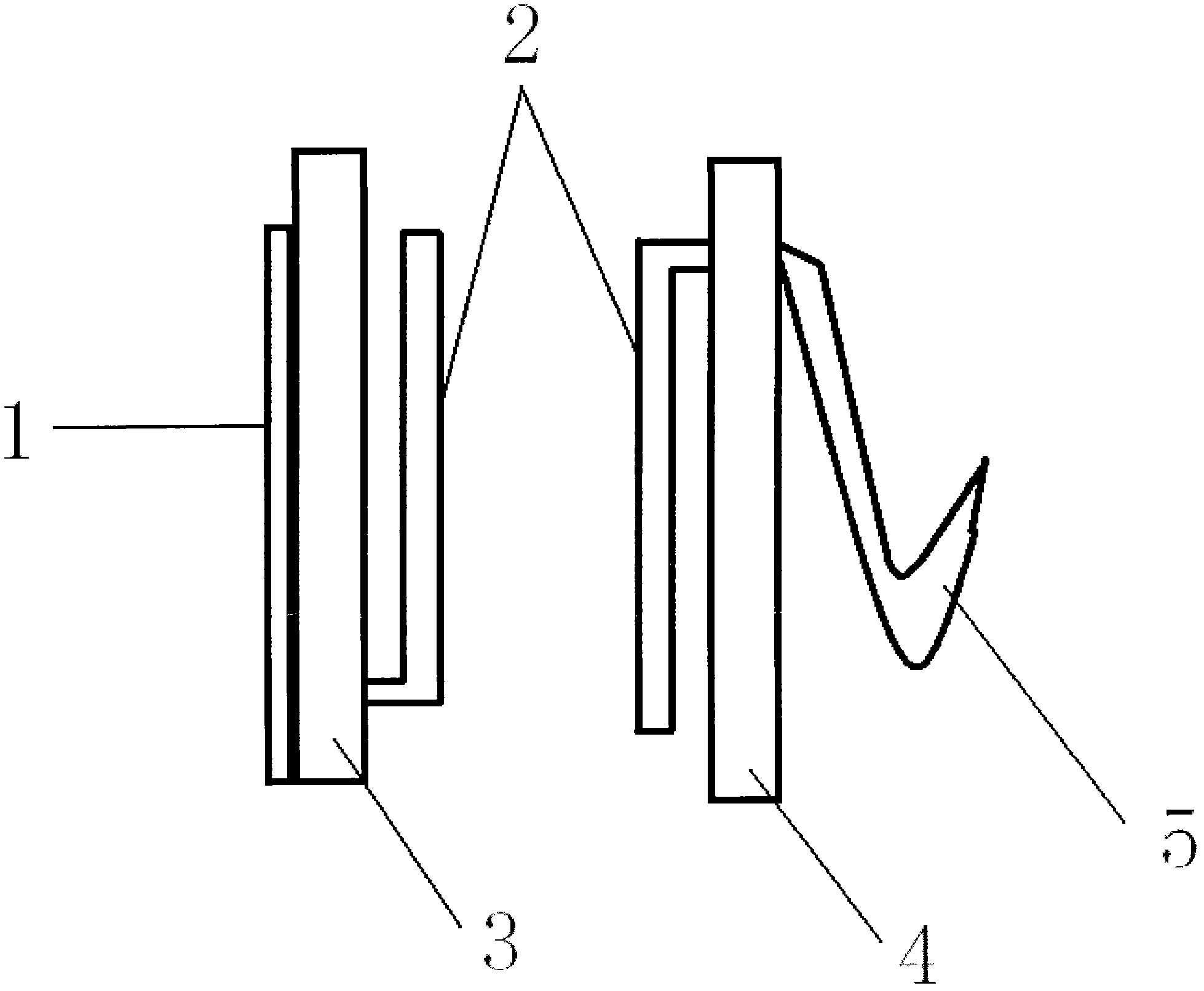

附图为本实用新型的结构示意图。 Accompanying drawing is the structural representation of the utility model. the
图面说明： Graphic description:
1.双面胶；2.嵌板；3.固定部分；4.吊钩部分；5.挂钩。 1. Double-sided tape; 2. Panel; 3. Fixed part; 4. Hook part; 5. Hook. the
具体实施方式 Detailed ways
以下结合附图对本实用新型作进一步的详细说明，但并不是限制本实用新型。 The utility model will be further described in detail below in conjunction with the accompanying drawings, but the utility model is not limited. the
参见附图，本实用新型一种可更换吊钩部分的挂钩，包括吊钩部分4和固定部分3，固定部分3一面设有双面胶1，另一面设有一嵌板2，吊钩部分4一面设有一嵌板2，另一面设有挂钩5，固定部分3的嵌板2和吊钩部分4的嵌板2可相互咬合，从而使固定部分3和吊钩部分4连接使用，当挂钩的吊钩部分4损坏后可更换新的吊钩部分4，而固定部分3由双面胶1固定于墙体，不用更换，可继续使用。
Referring to the accompanying drawings, the utility model is a hook with a replaceable hook part, which includes a hook part 4 and a
