Abstract

The utility model discloses a roller bed for maintenance of a slide, which comprises a platform and supporting legs. The platform is a framework, a plurality of pairs of grooves which are parallel and opposite are arranged on frames of two sides of the framework, a rolling shaft groove which is vertically communicated with the grooves is arranged on the inner side wall of the framework, a plurality of rolling shafts horizontally penetrate through the rolling shaft groove to extend into the grooves, the rolling shafts are parallelly fixed on a lifting device, and rolling wheels are disposed on the rolling shafts. The roller bed for maintenance of the slide has the advantages that the operation is simple, time and effort are saved, the slide can be easily pushed into the roller bed by a single person, the labor intensity of operators is decreased, and production efficiency is improved.

Description

A kind of roller bed that is used for the maintenance of skid dimension
Technical field
The utility model belongs to the maintenance of equipment field, particularly a kind of roller bed that is used for the maintenance of skid dimension.
Background technology
All can use skid as supporting transloading equipment, especially auto manufacturing when at present, a lot of products are produced on conveyor line.Skid is difficult to avoid being transported or tieing up service work in process of production so; The personnel that need repairing during the service work of skid dimension change skid over to dimension maintenance zone; What to the dimension upkeep operation of skid the time, use in the prior art is dull and stereotyped roller bed, owing to need proofread and correct the slide bar of skid by the plate level of roller bed, existing dull and stereotyped roller bed does not have roller; Skid is forced to promote skid by manpower fully and is passed in and out dull and stereotyped roller bed, and labour intensity is bigger.
Summary of the invention
The utility model provides a kind of roller bed that is used for skid dimension maintenance, have simple to operate, time saving and energy saving, can the single advantage that skid is written into the roller bed.
For achieving the above object; The technical scheme that the utility model adopted is: a kind of roller bed that is used for the maintenance of skid dimension, comprise platform and feet, and described platform is a framework; Two frames of described framework are provided with some to parallel and groove opposite; Be provided with roller in the described groove, a relative pair roller connects through roller bearing, and described roller bearing is fixed on the jacking apparatus.
Jacking apparatus can be controlled roller and in groove, rise or descend; In the time of need being written into skid; Jacking apparatus jacking roller stretches out from groove, and skid can be by the single platform that easily pushes under the rolling action of roller, fork hydraulic jacking apparatus after skid puts in place; Roller drops in the groove, and slide bar and other maintenance items of skid proofreaied and correct on flat-bed promptly capable of using plane.Jacking apparatus jacking roller after maintenance is accomplished, skid and platform plane break away from, and can skid be released the roller bed.
Described jacking apparatus comprises base, is arranged on the movable single tine support on the base, lifting board, the lifting board that is arranged on the movable single tine support is connected with hydraulic efficiency gear with base, and described roller bearing is fixed on the lifting board abreast.
Hydraulic efficiency gear promotes lifting board and rises, the expansion of single tine support simultaneously, and the height of may command lifting board, lifting board are connected with roller bearing controls the roller groove that stretches out or submerge.
Described hydraulic efficiency gear comprises fuel tank, Hydraulic Pump, hydraulic actuating cylinder, flow regulating valve, by pass valve, and described fuel tank is communicated with Hydraulic Pump, and Hydraulic Pump is communicated with hydraulic actuating cylinder through flow regulating valve, and by pass valve is arranged between fuel tank and the flow regulating valve, and by pass valve is communicated with fuel tank; Described hydraulic actuating cylinder comprise cylinder body be enclosed within the piston rod in the cylinder body, described cylinder body is connected with base, described piston rod is connected with lifting board.
Flow regulating valve can modulated pressure oil flow into the speed of hydraulic actuating cylinder; And then the piston rod of modulated pressure cylinder promotes the rising or falling speed of lifting board; Be arranged on the pressure that by pass valve on the hydraulic actuating cylinder can the modulated pressure cylinder, when surpassing set pressure, by pass valve is opened; Unnecessary hydraulic oil is back in the fuel tank, makes that the lift that receives in the skid pusher drum bed process is constant.
The quantity of described groove is preferably 4 pairs, and the quantity of so described roller is 4 pairs correspondingly, has taken into account whole roller bed economy when stability in the skid process is protected.
The utility model is simple to operate, time saving and energy saving, singlely can the light pusher drum bed of skid have been reduced labor intensity of operating personnel, has improved production efficiency.
Description of drawings

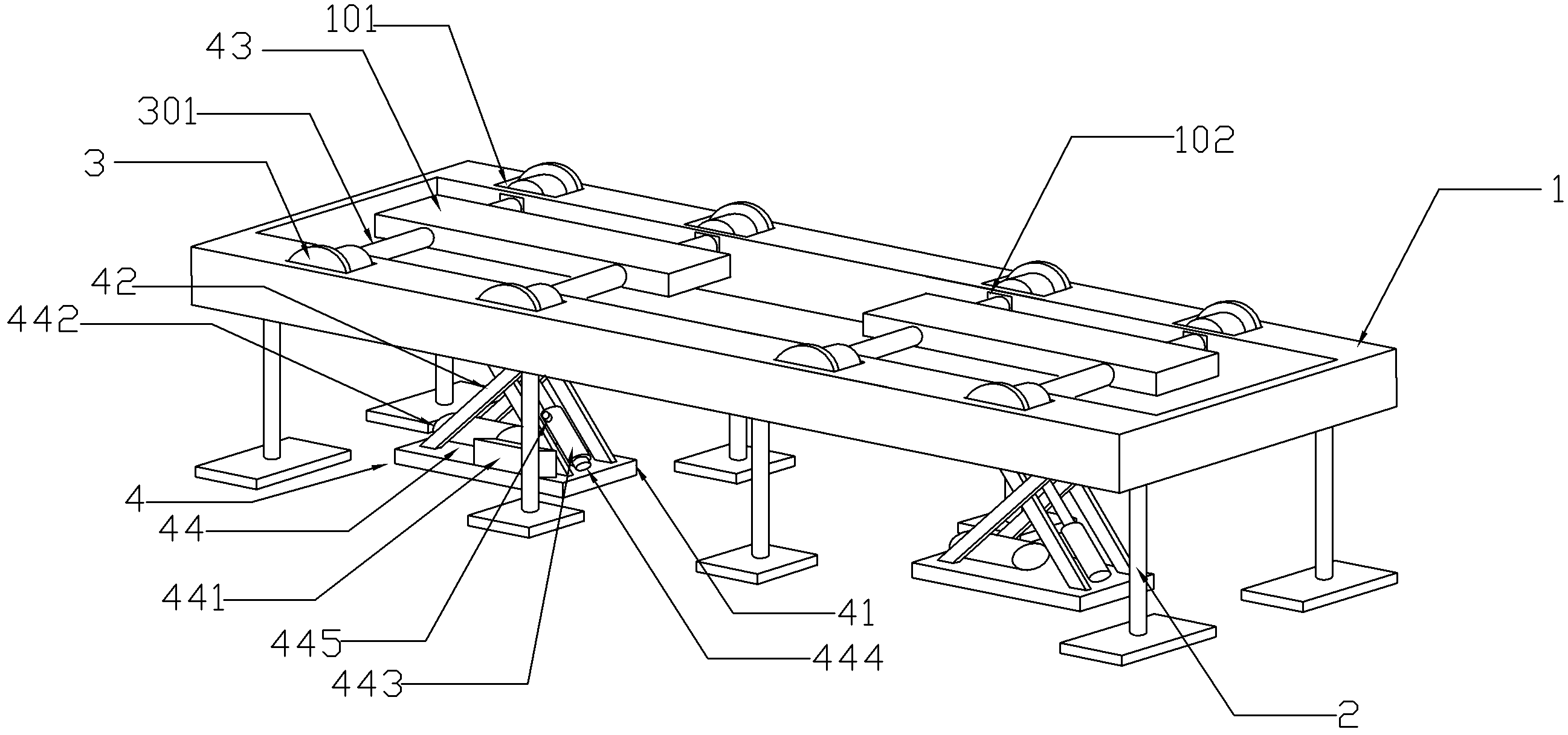

Fig. 1 ties up the structural representation that the roller bed roller of maintenance stretches out the groove state for the utility model is used for skid.
The submerge structural representation of groove state of the roller bed roller that Fig. 2 is used for skid dimension maintenance for the utility model.
The specific embodiment
Below in conjunction with Figure of description the utility model is made specific descriptions.
As depicted in figs. 1 and 2; The platform that is used for the roller bed of skid dimension maintenance is a frame-type platform 1; By eight feet 2 horizontal fixed, evenly be provided with parallel and relative four pairs of grooves 101 on two frames of frame-type platform 1, the inner webs of frame-type platform 1 is provided with the roller bearing groove 102 with groove 101 vertical connections; The two ends of roller bearing 31 are stretched into two relative grooves 101 from roller bearing groove 102 on even keels, and roller 3 is installed on the two ends of the roller bearing 31 in the groove 101.Roller bearing 31 is fixed on the lifting board 43 of the jacking system 4 that is arranged in frame-type platform 1; Lifting board 43 is fixed on the single tine support 42; Single tine support 42 bottoms are connected with base 41; Base 41 is provided with fuel tank 441, Hydraulic Pump 442, hydraulic actuating cylinder 443, flow regulating valve 444, by pass valve 445, and fuel tank 441 usefulness high pressure fuel pipes are communicated with Hydraulic Pump 442, and Hydraulic Pump 442 is communicated with hydraulic actuating cylinder 43 through flow regulating valve 444 usefulness high pressure fuel pipes; By pass valve 445 is arranged on the hydraulic actuating cylinder 443, and by pass valve 445 usefulness low pressure pipes are communicated with fuel tank 441.
The cylinder body of hydraulic actuating cylinder 443 is connected with base (41); Piston rod is connected the height of piston rod control lifting board 43 with lifting board (43), and then realizes roller 3 groove 101 that stretches out or submerge, in the time of need being written into skid; Roller bearing 31 on the lifting board 43 rises in roller bearing groove 102; Roller 3 stretches out from groove 101, and skid can be by the single frame-type platform 1 that easily pushes, after skid puts in place under the rolling action of roller 3; Roller 3 drops in the groove 101, and the plane of frame-type platform 1 promptly capable of using is proofreaied and correct the slide bar of skid and accomplished other maintenance items.
Flow regulating valve 444 can modulated pressure oil flow into the speed of hydraulic actuating cylinder 443; And then the rising or falling speed of control lifting board 43; Be arranged on the pressure that by pass valve 445 on the hydraulic actuating cylinder 443 can modulated pressure cylinder 443, when surpassing set pressure, by pass valve 445 is opened; Unnecessary hydraulic oil is back in the fuel tank 441, makes that the lift that receives in the skid pusher drum bed process is constant.

Claims (4)

1. one kind is used for the roller bed that the skid dimension is overhauled; Comprise frame-type platform (1) and feet (2); It is characterized in that two frames of described frame-type platform (1) are provided with some to parallel and groove opposite (101), are provided with roller (3) in the described groove (101); A relative pair roller (3) connects through roller bearing (31), and described roller bearing (31) is fixed on the jacking apparatus (4).
2. the roller bed that is used for the maintenance of skid dimension as claimed in claim 1; It is characterized in that; Described jacking apparatus (4) comprises base (41), is arranged on the movable single tine support (42) on the base (41), lifting board (43), the lifting board (43) that is arranged on the movable single tine support (42) is connected with hydraulic efficiency gear with base (41), and described roller bearing (31) is fixed on the lifting board (43) abreast.
3. the roller bed that is used for the maintenance of skid dimension as claimed in claim 2; It is characterized in that; Described hydraulic efficiency gear (44) comprises fuel tank (441), Hydraulic Pump (442), hydraulic actuating cylinder (443), flow regulating valve (444), by pass valve (445), and described fuel tank (441) is communicated with Hydraulic Pump (442), and Hydraulic Pump (442) is communicated with hydraulic actuating cylinder (443) through flow regulating valve (444); By pass valve is arranged between fuel tank and the flow regulating valve, and by pass valve (445) is communicated with fuel tank (441); Described hydraulic actuating cylinder (443) comprise cylinder body be enclosed within the piston rod in the cylinder body, described cylinder body is connected with base (41), described piston rod is connected with lifting board (43).
4. the roller bed that is used for the maintenance of skid dimension as claimed in claim 1 is characterized in that the quantity of described groove (101) is 4 pairs.
