Abstract

The utility model relates to an atomizing inhalation mask. The atomizing inhalation mask comprises an atomizer, wherein an air inlet tube is arranged below the atomizer; an atomized air spraying opening is formed at the upper part of the atomizer; the atomizer comprises a face mask connecting tube and a face mask; one end of the face mask connecting tube is sleeved on the external side of the atomized air spraying opening and fixed on the atomizer; the face mask is bowl-shaped; a one-way check valve communicated with the internal side of the face mask is arranged in the middle of the face mask; the other end of the face mask connecting tube is communicated with the one-way check valve; an air breathing hole is formed at the upper part of the face mask; an air stopping plate, which is made from soft material, covers the air exhalation hole; and the upper edge of the air stopping plate is fixed on the face mask. Through the technical scheme, medicine can be inhaled into the patient body to the greatest extent while when the atomizing inhalation mask is used by the patient; the patient can exhale air via the exhalation hole on the face mask; after exhalation, the air stopping plate can stop the external air from entering the face mask and can also stop partial medicine vapor from overflowing; and the atomizing inhalation mask provided by the utility model has the advantages of simple structure and convenience in use.

Description

Atomizing sucks mask
Technical field
This utility model relates to medical apparatus and instruments, particularly relates to the atomizing suction mask that a kind of medical care is used.
Background technology
When existing hospital treats oral cavity, throat or respiratory tract; Often adopt the method that sucks treatment, nebulizer is drawn into medicine steam in patient's mouth when the patient is air-breathing through atomizer; When the patient exhales; Medicine steam will permeate in the air, thereby the utilization rate of medicine is reduced greatly, and cause waste.
Summary of the invention
In view of this, the technical problem that this utility model will solve is to provide a kind of atomizing to suck mask, through the present technique scheme, can effectively reduce the waste of medicine, improves the suction volume of medicine steam.
For solving the problems of the technologies described above, the technical scheme of this utility model is achieved in that a kind of atomizing sucks mask, includes nebulizer; The below of said nebulizer is provided with air inlet pipe; The top of nebulizer is provided with the atomizing puff prot, includes face shield connection tube and face shield, and an end of said face shield connection tube is sleeved on the atomizing puff prot outside; And be fixed on the nebulizer; Said face shield is bowl-shape, is provided with the one way stop peturn valve that is connected with the face shield inboard at face shield middle part, and the other end of said face shield connection tube is connected with one way stop peturn valve.
Said face shield top is provided with exhaling hole, is coated with the chock flap of being processed by soft material on the said exhaling hole, and the upper edge of said chock flap is fixed on the face shield.
The technique effect that this utility model reaches is following: a kind of atomizing sucks mask, and through the present technique scheme, the patient in use; Medicine can be drawn in patient's body as much as possible, when the patient exhales, can breathe out through the exhaling hole on the face shield; After the expiration, chock flap can stop that not only outside gas enters in the face shield, can stop that also partly medicine steam overflows; This utility model is simple in structure, and is easy to use.
Description of drawings:

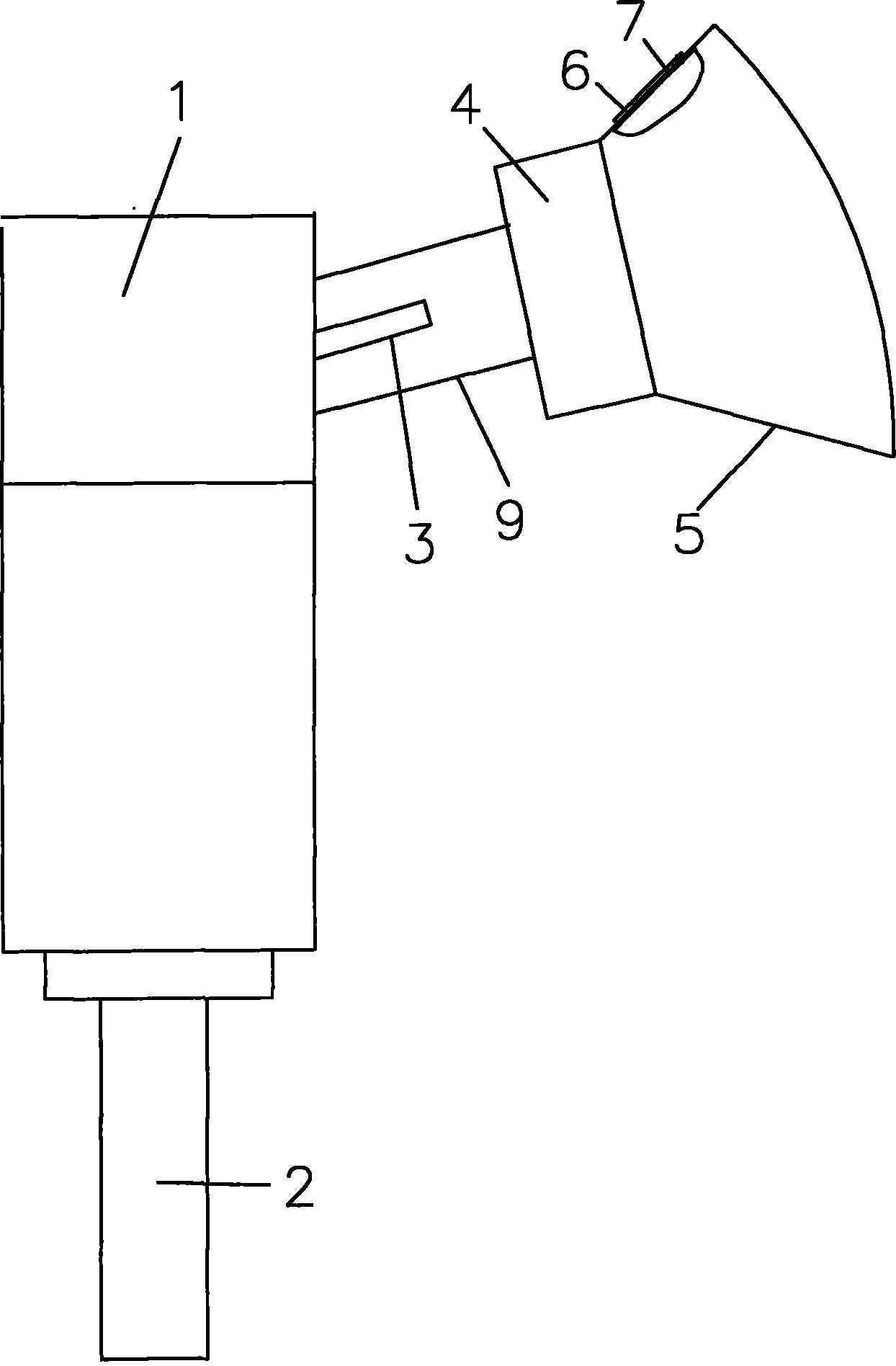

Fig. 1 is the structural representation of this utility model embodiment.
Among the figure, 1 nebulizer, 2 air inlet pipe, 3 atomizing puff prots, 4 non-return check valves, 5 face shields, 6 chock flaps, 7 exhaling holes, 8 face shield connection tubes.
The specific embodiment
Be described further below in conjunction with the embodiment and the technical scheme of accompanying drawing this utility model.
The atomizing that this utility model relates to sucks mask; Include nebulizer 1, the below of said nebulizer 1 is provided with air inlet pipe 2, and the top of nebulizer 1 is provided with atomizing puff prot 3; Include face shield connection tube 8 and face shield 5; One end of said face shield connection tube 8 is sleeved on atomizing puff prot 3 outsides, and is fixed on the nebulizer 1, and said face shield 5 is bowl-shape; Be provided with the one way stop peturn valve 4 that is connected with face shield 5 inboards at face shield 5 middle parts, the other end of said face shield connection tube 8 is connected with one way stop peturn valve 4.
Said face shield 5 tops are provided with exhaling hole 7, are coated with the chock flap of being processed by soft material 6 on the said exhaling hole 7, and the upper edge of said chock flap 6 is riveted on the face shield 5.
The above is merely the preferred embodiment of this utility model, is not the protection domain that is used to limit this utility model.

Claims (2)

1. an atomizing sucks mask, includes nebulizer, and the below of said nebulizer is provided with air inlet pipe; The top of nebulizer is provided with the atomizing puff prot, it is characterized in that, includes face shield connection tube and face shield; One end of said face shield connection tube is sleeved on the atomizing puff prot outside, and is fixed on the nebulizer, and said face shield is bowl-shape; Be provided with the one way stop peturn valve that is connected with the face shield inboard at face shield middle part, the other end of said face shield connection tube is connected with one way stop peturn valve.
2. atomizing according to claim 1 sucks mask, it is characterized in that said face shield top is provided with exhaling hole, is coated with the chock flap of being processed by soft material on the said exhaling hole, and the upper edge of said chock flap is fixed on the face shield.
