Abstract
本实用新型涉及一种带方便拆卸门窗附框的保温门窗，其包括保温门窗和门窗附框，门窗附框通过膨胀螺栓与需安装门窗的洞口的建筑结构连接，附框上带有可调整间距的T形件，保温门窗则通过窗框外侧已加工好的安装卡槽与带调整螺丝并可调整间距的T形件与附框卡接，附框外沿可加装密封条，用于保证门窗安装后和附框之间的密封。本实用新型的有益效果为：结构合理、材料加工方便；安装简便；可调整性强，门窗附框于门窗外侧采用弹性、耐候、成型、隔热的密封条安装方式，屏弃了原打胶的密封工艺，使安装更简单方便，提高了门窗的密封效果和使用年限，也提高了门窗节能保温效果；不需在窗框预打安装孔，提高了门窗的气密、水密性，同时节省了加工工序。
The utility model relates to a thermal insulation door and window with a door and window frame that can be easily disassembled. It includes a thermal insulation door and window and a door and window frame. The door and window frame is connected with the building structure of the opening where the door and window needs to be installed through expansion bolts. The frame has an adjustable distance The thermal insulation doors and windows are connected to the attached frame through the processed installation slot on the outside of the window frame and the T-shaped piece with adjusting screws and adjustable spacing. The outer edge of the attached frame can be equipped with a sealing strip to ensure The seal between the door and window after installation and the attached frame. The beneficial effects of the utility model are: reasonable structure, convenient material processing; easy installation; strong adjustability, the door and window frame is installed on the outside of the door and window with an elastic, weather-resistant, forming, and heat-insulating sealing strip installation method, which discards the original glue. The sealing process makes the installation easier and more convenient, improves the sealing effect and service life of doors and windows, and also improves the energy-saving and thermal insulation effect of doors and windows; it does not need to pre-drill installation holes in the window frame, which improves the air and water tightness of doors and windows, and saves Processing procedure.
Description
Technical field
The utility model relates to a kind of heat-preservation door and window that attaches frame with door and window for convenience detach.
Background technology
Though wooden door and window, alumium alloy door and window, plastic-steel window and various composite door and window frame opening ways be flat open, or plug-type; Their installation steps all are the progress requirements along with engineering; Earlier attaching frame to door and window in advance installs; After treating that the outer facade of engineering structures is accomplished, ability door and window installing frame, fan, glass etc.It between the door and window installation period period of multiplex's kind, multi-specialized crossed construction; And the construction period is longer; General about 2-3 month; Door and window is very easily broken, damages by other operating personnels during this time, or by material corrosion and pollutions such as the cement mortar in other working procedures, coating, glues, causes unnecessary loss and waste.In addition; Door and window is behind certain time limit that comes into operation, and the doorframe and window frame that has is chiseled the structure of the window that door and window is installed with regard to having to because human factor need keep in repair or change; Press former structure reparation well again after the replacing; Such one be time-consuming, take a lot of work, the 2nd, can not repair the samely with original structure, hinder attractive in appearance and firm.
Existing door and window is installed the general band that adopts and is attached the frame mounting means, and it has whole window design, characteristics such as more convenient are installed.Basically the square tube processing back with 20*40*1.5 is connected with structure of the window, is with the window frame of installing hole to be attached thereto through screw again, and the injection fluid sealant is done encapsulation process then, operation such as refill sash and glass, adjustment five metals at last, keep a public place clean.This type of installation, operation is loaded down with trivial details, complex process, can adjust after the installation and the property dismantled poor, sealing effectiveness is poor, the sealing ageing resistance poor, the finished product protection of door and window is poor.
The utility model content
The purpose of the utility model provides the heat-preservation door and window that a kind of type door and window attaches frame, and the scalability that exists in present existing door and window processing, the installation is poor, sealing is poor, it is loaded down with trivial details to install, technical deficiency that installation period is long to overcome.
The purpose of the utility model is to realize through following technical scheme:
A kind of heat-preservation door and window that attaches frame with door and window for convenience detach; Comprise that heat-preservation door and window and door and window attach frame; The inboard that said door and window attaches frame is fixed in the door and window hole building structure through expansion bolt, and door and window attaches frame and is connected with T shape part through the adjustment screw, and T shape part snaps in the installation draw-in groove in the heat-preservation door and window outside; Door and window attaches frame and heat-preservation door and window and is connected through adjustment adjustment screw, and door and window attaches between frame and the heat-preservation door and window and is plugged with weather strip; Said heat-preservation door and window comprises the frame wood section and fan wood section that is connected through the nylon buckle with corresponding aluminium extruded sections, installation elastic packing adhesive tape between frame wood section and fan wood section; Be provided with the dash adhesive tape between frame wood section and the frame aluminium extruded sections; To prevent that rainwater from bleeding; In the notch that forms between fan wood section and the fan aluminium extruded sections glass block and hollow glass are installed; Sealing adopts cavernous body adhesive tape and glazing compound to handle, and bleeds to prevent rainwater, is furnished with the glue of draping over one's shoulders bar between described frame aluminium extruded sections and fan aluminium extruded sections.Attach the corresponding side of frame with door and window on the said window frame wood section and have the installation draw-in groove, installing to block in the draw-in groove has T shape part, and T shape part attaches the distance between the frame through adjustment of adjustment screw and door and window, thereby carries out the adjustment of door and window turnover position; Said door and window attaches frame and comprises that door and window attaches circle body and two fixed heads; Said two fixed heads and door and window attach the closed shape that the circle body is formed through circle roller circle system by steel band; Wherein the inboard fixed head of window passes through fixedly T shape part of adjustment screw; The fixed head that side is long outside window is a door and window turnover position rib, and and heat-preservation door and window between can install weather strip additional and seal around the door and window.
The beneficial effect of the utility model is:
1, attaches aluminium or the steel that frame adopts metal material; Rational in infrastructure, materials processing convenience through different surface treatment method, have very high antiseptic power and decorative effect; And can and see the color unification outside window or satisfy other decorative effect, can satisfy different architectural styles and construction requirement;
2, simple installation, the former door and window of fundamental sum attach frame and install identical;
3, adjustable is strong, can realize the 3D adjustment of door and window through the adjustment screw;
4, attach frame and adopt elasticity, weather-proof, moulding, heat insulation weather strip mounting means in the door and window outside; Discarded the former sealing technology of playing glue; Make and install sealing effectiveness and service life simple and convenient and that improved door and window, also improved door and window energy-saving heat preserving effect simultaneously;
5, do not need to beat installing hole in advance, improved airtight, the watertightness of door and window, saved manufacturing procedure simultaneously at window frame;
6, the door and window installation period is short, and the utility model has saved the loaded down with trivial details repetition operation of the unnecessary partial installation when door and window is installed, and has saved installation period significantly.Can be embodied as the production of window batch production, the job site integral installation the most simply, the most convenient, timesaving mounting means.The maximized door and window of having avoided loses or pollution problem when mounted, for door and window industrialization, standardization, modernization are laid a good foundation.
Description of drawings
According to accompanying drawing the utility model is done further explain below.

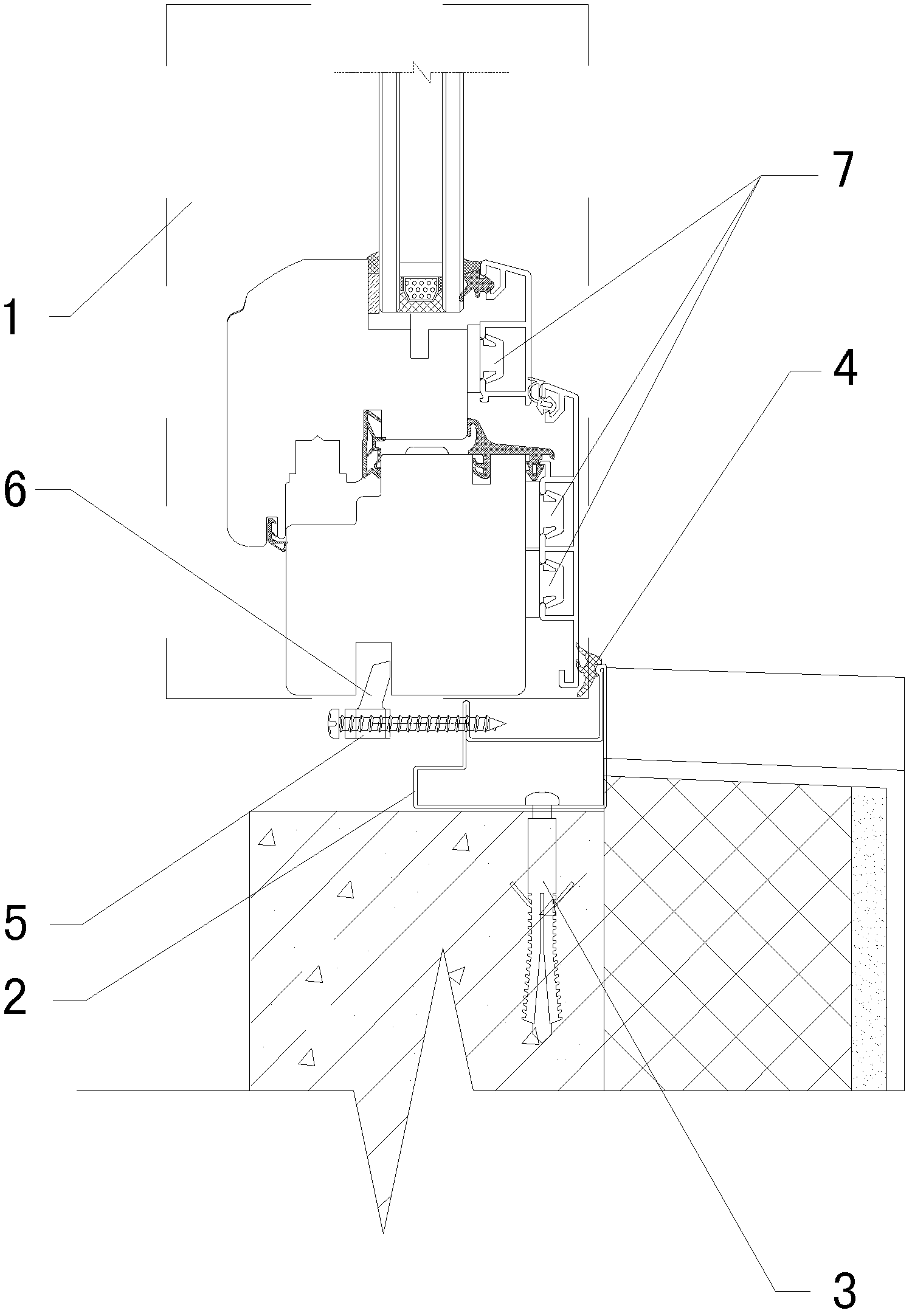

Fig. 1 is the described structural representation that attaches the heat-preservation door and window of frame with door and window for convenience detach of the utility model embodiment;
Fig. 2 is the structural representation of the heat-preservation door and window in the described heat-preservation door and window that attaches frame with door and window for convenience detach of the utility model embodiment;
Fig. 3 is that the door and window in the described heat-preservation door and window that attaches frame with door and window for convenience detach of the utility model embodiment attaches the mount structure sketch map.
Among the figure:
1, heat-preservation door and window; 2, door and window attaches frame; 3, expansion bolt; 4, nylon buckle; 5, adjustment screw; 6, T shape part; 7, weather strip; 8, attaches the circle body; 9, frame wood section; 10, fan wood section; 11, elastic packing adhesive tape; 12, criticize the glue bar; 13, dash adhesive tape; 14, glass block; 15, hollow glass; 16, glazing compound; 17, draw-in groove is installed; 18, the inboard fixed head of window; 19, the long fixed head of side outside window.
The specific embodiment
Shown in Fig. 1-3; The utility model embodiment is described to attach the heat-preservation door and window of frame with door and window for convenience detach, comprises that heat-preservation door and window 1 and door and window attach frame 2, and the inboard that said door and window attaches frame 2 is fixed in the door and window hole building structure through expansion bolt 3; Door and window attaches frame 2 and is connected with T shape part 6 through adjustment screw 5; T shape part 6 snaps in the installation draw-in groove 17 in heat-preservation door and window 1 outside, and door and window attaches frame 2 and heat-preservation door and window 1 and is connected through adjustment adjustment screw 5, and door and window attaches between frame 2 and the heat-preservation door and window 1 and is plugged with weather strip 7.
Said heat-preservation door and window 1 comprises the frame wood section 9 and fan wood section 10 that is connected through nylon buckle 4 with corresponding aluminium extruded sections, frame wood section 9 and 10 installation elastic packings of fan wood section adhesive tape 11; Be provided with dash adhesive tape 13 between frame wood section 9 and the frame aluminium extruded sections; To prevent that rainwater from bleeding; In the notch that forms between fan wood section 10 and the fan aluminium extruded sections glass block 14 and hollow glass 15 are installed; Sealing adopts cavernous body adhesive tape 14 and glazing compound 16 to handle, and bleeds to prevent rainwater, is furnished with the glue of draping over one's shoulders bar 12 between described frame aluminium extruded sections and fan aluminium extruded sections.
Attach frame 2 corresponding sides with door and window on the said window frame wood section 10 and have installation draw-in groove 17, installing to block in the draw-in groove 17 has T shape part 6, and T shape part 6 attaches the distance between the frame 2 through adjustment screw 5 adjustment and door and window, thereby carries out the adjustment that door and window passes in and out the position.
Said door and window attaches frame 2 and comprises that door and window attaches circle body 8 and two fixed heads; Said two fixed heads and door and window attach the closed shape that circle body 8 is formed through circle roller circle system by steel band; Wherein the inboard fixed head 18 of window passes through fixedly T shape part 6 of adjustment screw 5; The fixed head 19 that side is long outside window is a door and window turnover position rib, and and 1 of heat-preservation door and window can install 7 pairs of door and windows of weather strip additional and seal all around.
Assembling process:
1, with the door and window aluminium of machine-shaping or steel frame 2 after surface anticorrosion is handled, confirm that in size back processing is assembled into frame;
2, by generally attaching frame mounting process and construction requirement, the door and window that will be assembled into frame with expansion bolt 3 attaches frame 2 and is fixed in the door and window hole building structure
3, treat outer facade structures, decorate to accomplish after, manufactured heat-preservation door and window 1 is installed in door and window attaches in the frame 2, and rise with the bolt pad;
4, T shape part 6 is stuck in the installation notch 17 of the wood section in the frame section 9 through adjustment screw 5;
5, adjustment adjustment screw 5 is confirmed heat-preservation door and window 1 installation site and fixing;
6, door and window installing attaches frame 2 dedicated elas-tic, weather-proof, profiled weatherstrip 7;
7, filling-foam fluid sealant after the sclerosis of foaming fluid sealant, removes bolt, and repairs.After treating that the processing of plastering is accomplished in the indoor, injection sealing compound is carried out the window inner seal and is handled.
The above; It only is the preferred embodiment of the utility model; Be not that the utility model is made any pro forma restriction; Though the utility model discloses as above with preferred embodiment, yet be not that any professional and technical personnel of being familiar with is not in breaking away from the utility model technical scheme scope in order to qualification the utility model; When the technology contents of above-mentioned announcement capable of using is made a little change or is modified to the equivalent embodiment of equivalent variations; In every case be content, and the technical spirit of the utility model all still belong within the protection domain of the utility model any simple modification, equivalent variations and modification that above embodiment has done for disengaging the utility model technical scheme.
Claims (4)
1. heat-preservation door and window that attaches frame with door and window for convenience detach; Comprise that heat-preservation door and window (1) and door and window attach frame (2); It is characterized in that: the inboard that said door and window attaches frame (2) is fixed in the door and window hole building structure through expansion bolt (3); Door and window attaches frame (2) and is connected with T shape part (6) through adjustment screw (5); T shape part (6) snaps in the installation draw-in groove (17) in heat-preservation door and window (1) outside, and door and window attaches frame (2) and is connected through adjusting screw (5) with heat-preservation door and window (1), and door and window attaches between frame (2) and the heat-preservation door and window (1) and is plugged with weather strip (7).
2. the heat-preservation door and window that attaches frame with door and window for convenience detach according to claim 1; It is characterized in that: said heat-preservation door and window (1) comprises with corresponding aluminium extruded sections and is connected the frame wood section (9) that is combined into and fans wood section (10) through nylon buckle (4), between frame wood section (9) and fan wood section (10) elastic packing adhesive tape (11) is installed; Be provided with dash adhesive tape (13) between frame wood section (9) and the frame aluminium extruded sections; In the notch that forms between fan wood section (10) and the fan aluminium extruded sections glass block (14) and hollow glass (15) are installed; Sealing adopts cavernous body adhesive tape (14) and glazing compound (16) to handle, and is furnished with the glue of draping over one's shoulders bar (12) between described frame aluminium extruded sections and fan aluminium extruded sections.
3. the heat-preservation door and window that attaches frame with door and window for convenience detach according to claim 2; It is characterized in that: said window frame wood section (10) is gone up to be attached the corresponding side of frame (2) with door and window and has installation draw-in groove (17); Installing to block in the draw-in groove (17) has T shape part (6), and T shape part (6) attaches the distance between the frame (2) through adjustment screw (5) adjustment and door and window.
4. according to each described heat-preservation door and window that attaches frame with door and window for convenience detach of claim 1-3; It is characterized in that: said door and window attaches frame (2) and comprises that door and window attaches circle body (8) and two fixed heads; Said two fixed heads and door and window attach the closed shape that circle body (8) is formed through circle roller circle system by steel band; Wherein the inboard fixed head (18) of window passes through fixedly T shape part (6) of adjustment screw (5); The fixed head (19) that side is long outside window is a door and window turnover position rib, and and heat-preservation door and window (1) between can install weather strip (7) additional door and window is sealed all around.
