Abstract
本实用新型公开了一种房屋墙体保温体，尤其是农村社区等低多层建筑的墙体自保温使用的内填充式保温复合砖。所述的短条孔(6)设置在A砖体(1)中部两侧，长条孔(7)等距设置在A砖体(1)上下两端及中部，短条孔(6)和长条孔(7)填充碎秸秆原料(2)，内置配筋(3)。由于本实用新型在砖体中设计了三排孔洞，废弃的秸秆经过加工处理置于砖体孔洞中，提高了墙体热阻和保温效果；利用煤矸石和碎秸秆作为原料变废为宝，隔声和抗震性能好，体积大运输方便，缩短了施工工期，大大降低了造价。节省了成本。且节能效果显著，减少了秸秆焚烧造成的环境污染。
The utility model discloses a house wall thermal insulation body, in particular an inner-filling thermal insulation composite brick used for self-thermal insulation of the walls of low-storey buildings such as rural communities. The short holes (6) are arranged on both sides of the middle part of the A brick body (1), and the long holes (7) are equidistantly arranged on the upper and lower ends and the middle part of the A brick body (1), and the short holes (6) and The long holes (7) are filled with crushed straw raw materials (2) and have built-in reinforcement (3). Because the utility model designs three rows of holes in the brick body, the discarded straw is processed and placed in the hole of the brick body, which improves the thermal resistance and heat preservation effect of the wall; using coal gangue and crushed straw as raw materials turns waste into treasure, It has good sound insulation and anti-seismic performance, large volume and convenient transportation, which shortens the construction period and greatly reduces the cost. Cost savings. Moreover, the energy-saving effect is remarkable, and the environmental pollution caused by straw burning is reduced.
Description
Technical field: the utility model relates to the interior loosely filled insulation composite brick of the wall self-insulation use of low multistory buildings such as a kind of house wall insulation, especially rural community.
Background technology: along with fast development of society, building energy conservation is the most important thing of setting up conservation-minded society, has become the great strategic decision of China, and the skin thermal insulation occupies maximum ratio in all building energy conservation measures.Because China is a developing country, and is populous, land resources is poor; The per capita cultivated land has only world per capita cultivated land's 1/3; And the solid clay brick that annual new building uses destroys 120,000 mu in good farmland approximately, has been forbidden gradually producing and utilizing; Seek well behaved novel wall material substitute for clay brick, it is imperative, extremely urgent to carry out building energy conservation.
The utility model content: the utility model has overcome the drawback that former rustic home construction wall exists; Provide a kind of and gathered materials on the spot, turn waste into wealth; Utilize discarded stalk in gangue and rural area arable land or straw as raw material; Save cost, the interior loosely filled insulation composite brick that Remarkable Energy Saving building construction body of wall uses.The utility model for realizing the technical scheme that above-mentioned purpose adopted is: described billet hole 6 is arranged on both sides, A brick body 1 middle part, and strip hole 7 equidistance are arranged on A brick body two ends and middle part 1 about, billet hole 6 and strip hole 7 filling crushing straw raw materials 2, built-in arrangement of reinforcement 3.
The beneficial effect of the utility model is: 1. owing in the brick body, designed three round holes, add discarded crushing straw soft material, defening effect is good; 2, constructional column does not need template, and it is convenient to construct, and can save cost again; 3, volume is big, convenient transportation, quick construction; 4, seaming is built by laying bricks or stones.Anti-seismic performance is good; 5, interior filling crushing straw or straw, high insulating effect; 6, hole is the circular arc ribs for four jiaos, increases block strength.7, twice laid reduces to burn and pollutes.8, masonry thickness 120mm can conform to the loam brick modulus that building is used, and second-hand brick mixes use in a period of transition with new shaped brick when being convenient to the existing building transformation again.9, stalk can utilize self elasticity, closely is connected with wall.

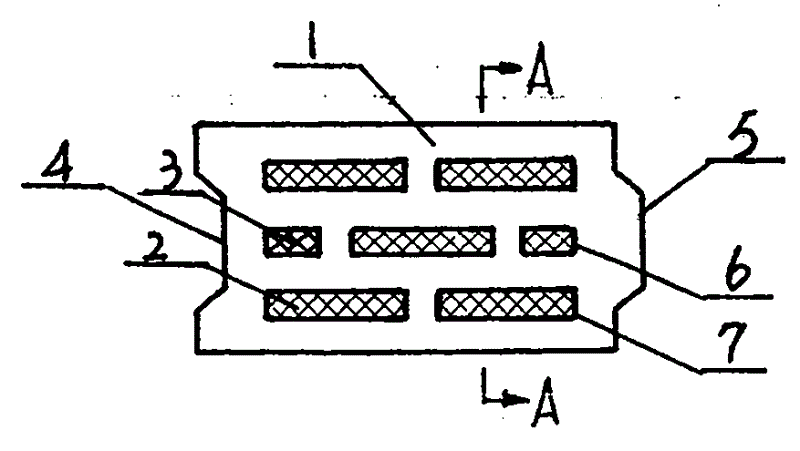

Description of drawings: Fig. 1 is the brick body structure figure of the utility model
Fig. 2 is that the A-A of Fig. 1 is to view
Fig. 3 is the B brick body structure figure of the utility model
Fig. 4 is that the B-B of Fig. 3 is to view
Fig. 5 is the C brick body structure figure of the utility model
Fig. 6 is that the C-C of Fig. 5 is to view
Fig. 7 is the D brick body structure figure of the utility model
Fig. 8 is that the D-D of Fig. 7 is to view
The specific embodiment: embodiment 1: like Fig. 1, shown in Figure 2; Described billet hole 6 is arranged on both sides, A brick body 1 middle part; Strip hole 7 equidistance are arranged on A brick body two ends and middle part about in the of 1, and crushing straw raw materials 2, built-in arrangement of reinforcement 3 are filled with strip hole 7 in billet hole 6; A brick body 1 right-hand member is provided with projection 5, and left end is provided with groove 4.Being used in the middle of the body of wall, is the most frequently used brick type of wall body.
Embodiment 2: like Fig. 3, shown in Figure 4; Described billet hole 6 is arranged on both sides, B brick body 8 right-hand members middle part; Strip hole 7 is arranged on B brick body 8 right-hand members two ends up and down, and square hole 11 equidistance are arranged on B brick body 8 left ends, and billet hole 6, strip hole 7 and square hole 11 are filled crushing straw raw material 2; Built-in arrangement of reinforcement 3, B brick body 8 right-hand members are provided with projection 5.Be used in the middle of the body of wall, make the modulus of the standard width of a room in an old-style house and wall body more flexible.
Embodiment 3: like Fig. 5, shown in Figure 6, described projection 5 is arranged on C brick body 9 right-hand members, and groove 4 is arranged on C brick body 9 left ends; Billet hole 6 is arranged on both sides, C brick body 9 middle part; Strip hole 7 is arranged on C brick body, and about in the of 9 two ends, and crushing straw raw material 2, built-in arrangement of reinforcement 3 are filled with strip hole 7 in billet hole 6; C brick body 9 right-hand members are provided with projection 5, and left end is provided with groove 4.Be used for the body of wall corner, every skin brick is staggered builds by laying bricks or stones, makes things convenient for A brick body to be connected with B brick body, strengthens the anti-seismic performance of body of wall.
Embodiment 4: like Fig. 7, shown in Figure 8, described billet hole 6 is arranged on both sides, D brick body 10 middle part, and strip hole 7 is arranged on D brick body, and about in the of 10 two ends, and crushing straw raw material 2 is filled with strip hole 7 in billet hole 6, built-in arrangement of reinforcement 3, and D brick body 10 two ends are provided with groove 4.Be used for the body of wall turning point, can change the direction of A brick body and B brick body at any time.
The utility model principle of work and power is: A brick body and B brick body are the building block in the middle of the wall body, and be just different on the size; B brick body can make the modulus of the standard width of a room in an old-style house and wall body more flexible; C brick body is the building block of body of wall corner; D brick body is used for the body of wall turning point, can change the direction of A brick body and B brick body at any time.In order to increase block strength, set up arrangement of reinforcement in four cavitys, arrangement of reinforcement can use bamboo product.For the ease of gathering materials on the spot, the crushing straw raw material of filling in many emptyings can be cornstalk, and rice bar etc. are applicable to China south, northern different regions.Block material is sintered coal gangue or sintering shale when the body of wall load-bearing, is used for brick mix structure.When body of wall is that foamed concrete is used for frame construction during for infilled wall, thickness of wall body changes 200mm into simultaneously.When being interior wall, many rounds then are cavity, do not fill stalk.
Claims (2)
1. loosely filled insulation composite brick in a kind; It is characterized in that described billet hole (6) is arranged on both sides, A brick body (1) middle part; Strip hole (7) equidistance is arranged on A brick body (1) two ends and middle part up and down, and billet hole (6) and strip hole (7) are filled crushing straw raw material (2), built-in arrangement of reinforcement (3).
2. loosely filled insulation composite brick in according to claim 1 is characterized in that described A brick body (1) right-hand member is provided with projection (5), and left end is provided with groove (4).
