Abstract
本实用新型涉及光伏行业硅片制造领域中一种切片机，具体是涉及切片机内的切片室中用到的一种硅片切片机过滤装置。技术方案：包括网片，所述网片为平面网片，网片周边设置挡边，挡边外侧设置提手。上述技术方案还可改进为；在所述网片的底部设置支撑板，支撑板的两端与网片周边的挡边连接。有益效果；本技术结构简单，有效防止过多杂物进入砂浆缸，提高砂浆的质量，同时也提高了硅片的切割质量，降低了生产消耗。
The utility model relates to a slicing machine in the field of silicon chip manufacturing in the photovoltaic industry, in particular to a silicon chip slicing machine filtering device used in a slicing chamber in the slicing machine. Technical solution: including a mesh, the mesh is a plane mesh, ribs are arranged around the mesh, and handles are arranged outside the ribs. The above technical solution can also be improved as follows: a support plate is provided at the bottom of the mesh, and both ends of the support plate are connected to the ribs around the mesh. Beneficial effects: the technology has a simple structure, effectively prevents too many sundries from entering the mortar tank, improves the quality of the mortar, improves the cutting quality of silicon wafers, and reduces production consumption.
Description
Technical field
The utility model relates to a kind of slicer in the photovoltaic industry silicon chip manufacturing field, specifically relates to a kind of silicon chip slicer filter of using in the biopsy chamber in the slicer.
Background technology
Screen pack in the biopsy chamber in the slicer is the wave wire side at present, and the no baffle plate of periphery, the screen pack of this structure cause too much foreign material to get into the mortar cylinder, have a strong impact on the chipping qualities of slicer.
Summary of the invention
The purpose of the utility model is exactly to existing situation, provides a kind of foreign material that can prevent to get into the mortar cylinder and make simple silicon chip slicer filter.
Technical scheme: comprise the net sheet, said net sheet is the plane net sheet, and net sheet periphery is provided with rib, rib arranged outside handle.
Technique scheme also can be improved to; Bottom at said net sheet is provided with gripper shoe, and the two ends of gripper shoe are connected with the rib of net sheet periphery.
Beneficial effect; Present technique is simple in structure, prevents that effectively too much foreign material from getting into the mortar cylinder, improves the quality of mortar, has also improved the cut quality of silicon chip simultaneously, has reduced to produce consuming.
Description of drawings

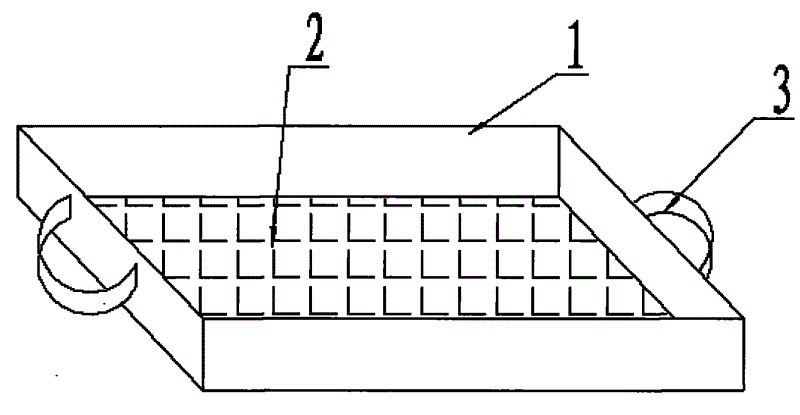

Accompanying drawing is the structural representation of present embodiment.
The specific embodiment
With reference to accompanying drawing, present embodiment comprises net sheet 2, and said net sheet 2 is the plane net sheet, and net sheet 2 peripheries are provided with rib 1, rib 1 arranged outside handle 3.
Size according to the caliber size design grid sheet of backflow cylinder in the cutting chamber is provided with gripper shoe in the bottom of said net sheet, and the two ends of gripper shoe are connected with the rib of net sheet periphery.
Claims (2)
