本实用新型公开了一种水冷式园林太阳能LED景观灯，属于LED灯技术领域，其技术要点包括圆盘形的铝合金灯罩，在铝合金灯罩下方设有支架，支架与铝合金灯罩外边缘连接，在支架下部设有与灯杆相适应的定位环，其中所述的铝合金灯罩内底部设有LED光源模组，在铝合金灯罩背部设有支座，在支座上设有太阳能电池板，太阳能电池板与LED光源模组电路连接，在支座内的铝合金灯罩背面分布有铝合金散热柱,在铝合金散热柱上方的支座上分布有出水嘴；本实用新型旨在提供一种结构紧凑、散热效果好且外形美观的水冷式园林太阳能LED景观灯；用于园林、庭院照明、观赏。
The utility model discloses a water-cooled garden solar LED landscape lamp, which belongs to the technical field of LED lamps, and its technical points include a disc-shaped aluminum alloy lampshade, a bracket is arranged under the aluminum alloy lampshade, and the bracket is connected with the outer edge of the aluminum alloy lampshade , a positioning ring adapted to the light pole is provided at the lower part of the bracket, wherein the inner bottom of the aluminum alloy lampshade is provided with an LED light source module, a support is provided on the back of the aluminum alloy lampshade, and a solar panel is provided on the support , the solar panel is connected to the LED light source module circuit, an aluminum alloy heat dissipation column is distributed on the back of the aluminum alloy lampshade in the support, and a water outlet is distributed on the support above the aluminum alloy heat dissipation column; the utility model aims to provide a A water-cooled garden solar LED landscape light with compact structure, good heat dissipation effect and beautiful appearance; it is used for garden and courtyard lighting and viewing.
Description
技术领域 technical field
本实用新型涉及一种灯具，更具体地说，尤其涉及一种水冷式园林太阳能LED景观灯。 The utility model relates to a lamp, in particular to a water-cooled garden solar LED landscape lamp.
背景技术 Background technique
太阳能LED灯，目前只小量运用于道路，在园林庭院内比较少见。并且现有的太阳能LED路灯，一般都是分离式的，即太阳能电池板装在灯杆的上部，灯体安装在太阳能电池板下方的灯杆上，而控制器一般放置在灯杆内，具有光控、时控制、过充过放保护及反接保护，更高级的控制器更具备四季调整亮灯时间功能、半功率功能、智能充放电功能等；蓄电池一般放置于地下或则会有专门的蓄电池保温箱，可采用阀控式铅酸蓄电池、胶体蓄电池、铁铝蓄电池或者锂电池等；这种结构的路灯，在安装时需要单独分别地安装各个部件，存在安装复杂，安装时间长的不足。 Solar LED lights are currently only used in small quantities on roads, and are relatively rare in gardens. Moreover, the existing solar LED street lights are generally separated, that is, the solar panel is installed on the upper part of the light pole, the lamp body is installed on the light pole below the solar panel, and the controller is generally placed in the light pole. Light control, time control, overcharge and overdischarge protection, and reverse connection protection. More advanced controllers also have the function of adjusting the lighting time in four seasons, half power function, intelligent charge and discharge function, etc.; the battery is usually placed underground or there will be a special The battery incubator box can use valve-regulated lead-acid batteries, colloidal batteries, iron-aluminum batteries or lithium batteries, etc.; for street lights with this structure, each component needs to be installed separately during installation, which has the disadvantages of complicated installation and long installation time. insufficient.
发明内容 Contents of the invention
本实用新型的目的在于针对上述现有技术的不足，提供一种结构紧凑、散热效果好且外形美观的水冷式园林太阳能LED景观灯。 The purpose of this utility model is to provide a water-cooled garden solar LED landscape light with compact structure, good heat dissipation effect and beautiful appearance in order to solve the above-mentioned shortcomings of the prior art.
本实用新型的技术方案是这样实现的：一种水冷式园林太阳能LED景观灯，包括圆盘形的铝合金灯罩，在铝合金灯罩下方设有支架，支架与铝合金灯罩外边缘连接，在支架下部设有与灯杆相适应的定位环，其中所述的铝合金灯罩内底部设有LED光源模组，在铝合金灯罩背部设有支座，在支座上设有太阳能电池板，太阳能电池板与LED光源模组电路连接，在支座内的铝合金灯罩背面分布有铝合金散热柱,在铝合金散热柱上方的支座上分布有出水嘴。 The technical scheme of the utility model is achieved in the following way: a water-cooled garden solar LED landscape light, comprising a disc-shaped aluminum alloy lampshade, a bracket is arranged under the aluminum alloy lampshade, the bracket is connected with the outer edge of the aluminum alloy lampshade, and the The lower part is provided with a positioning ring adapted to the light pole, wherein the inner bottom of the aluminum alloy lampshade is provided with an LED light source module, and a support is provided on the back of the aluminum alloy lampshade, and a solar panel is provided on the support. The board is connected with the LED light source module circuit, and the aluminum alloy heat dissipation column is distributed on the back of the aluminum alloy lampshade in the support, and the water outlet is distributed on the support above the aluminum alloy heat dissipation column.
上述的水冷式园林太阳能LED景观灯中，所述的支座上部设有球形支撑板，所述的太阳能电池板分布在球形支撑板上表面。 In the above water-cooled garden solar LED landscape light, the upper part of the support is provided with a spherical support plate, and the solar cell panels are distributed on the upper surface of the spherical support plate.
上述的水冷式园林太阳能LED景观灯中，所述的LED光源模组外围的铝合金灯罩上设有二次光学匀光罩。 In the above-mentioned water-cooled garden solar LED landscape light, the aluminum alloy lampshade on the periphery of the LED light source module is provided with a secondary optical uniform light shield.
本实用新型采用上述结构后，通过出水嘴与散热柱配合对灯具进行散热，同时，通过散热柱对出水嘴流出的水流进行分流，使得水流沿着铝合金灯罩朝下流形成水瀑；同时具有散热和景观两重功能；同时，通过太阳能电池板给LED光源模组供电，使园林灯具的结构变得简单、安装更加方便，不需要增加外部连接线；同时，太阳能电池板直接安装在铝合金灯罩背面，使得灯具的安装更加简单方便。 After adopting the above-mentioned structure, the utility model can dissipate heat from the lamp through the cooperation of the water nozzle and the heat dissipation column, and at the same time, divide the water flow flowing out of the water nozzle through the heat dissipation column, so that the water flow flows down along the aluminum alloy lampshade to form a water waterfall; at the same time, it has the function of heat dissipation and landscape; at the same time, the LED light source module is powered by the solar panel, which makes the structure of the garden lamp simpler and more convenient to install, without adding external connecting wires; at the same time, the solar panel is directly installed on the aluminum alloy lampshade The back makes the installation of the lamp easier and more convenient.
附图说明 Description of drawings
下面结合附图中的实施例对本实用新型作进一步的详细说明，但并不构成对本实用新型的任何限制。 The utility model will be further described in detail below in conjunction with the embodiments in the accompanying drawings, but it does not constitute any limitation to the utility model.

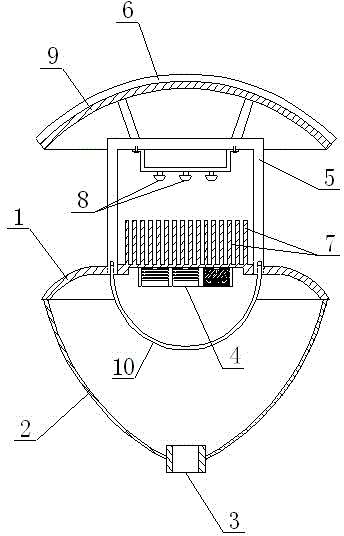

图1是本实用新型的结构示意图。 Fig. 1 is the structural representation of the utility model.
图中：铝合金灯罩1、支架2、定位环3、有LED光源模组4、支座5、太阳能电池板6、铝合金散热柱7、出水嘴8、球形支撑板9、二次光学匀光罩10。
In the figure: aluminum alloy lampshade 1,
具体实施方式 Detailed ways
参阅图1所示，本实用新型的一种水冷式园林太阳能LED景观灯，包括圆盘形的铝合金灯罩1，在铝合金灯罩1下方设有支架2，支架2与铝合金灯罩1外边缘连接，在支架2下部设有与灯杆相适应的定位环3，其特征在于，所述的铝合金灯罩1内底部设有LED光源模组4，在铝合金灯罩1背部设有支座5，支座5上部设有球形支撑板9，在球形支撑板9上表面分布有太阳能电池板6，太阳能电池板6依序连接有太阳能智能控制器和蓄电池，太阳能智能控制器与LED光源模组4电路连接，在支座5内的铝合金灯罩1背面分布有铝合金散热柱7,在铝合金散热柱7上方的支座5上分布有出水嘴8；在LED光源模组4外围的铝合金灯罩1上设有二次光学匀光罩10。
As shown in Figure 1, a water-cooled garden solar LED landscape light of the present invention includes a disc-shaped aluminum alloy lampshade 1, and a
