本实用新型公开了一种USB加热奶瓶，包括奶嘴、瓶体、底座、加热器，加热器位于底座上或瓶体的周边，电源线一端连接加热器，另一端设有USB接头。本实用新型的有益效果：省去了将奶水瓶放在其他加热容器里加热的麻烦，也避免了倒掉的浪费；使用方便、操作简单、实用性强、采用USB接口电源，具有一定的应用价值。
The utility model discloses a USB heating feeding bottle, which comprises a nipple, a bottle body, a base and a heater. The heater is located on the base or around the bottle body. One end of a power cord is connected to the heater, and the other end is provided with a USB connector. The beneficial effect of the utility model: it saves the trouble of putting the milk bottle in other heating containers for heating, and also avoids the waste of being dumped; it is convenient to use, easy to operate, strong in practicability, and uses a USB interface power supply, which has certain applications value.
Description
Technical field
This utility model relates to feeding bottle, relates in particular to a kind of feeding bottle that uses the USB interface power supply.
Background technology
Traditional feeding bottle, under the lower environment of temperature, during infant feeding, milk is not often also eaten up just cold, and for remaining milk is heated, people need try every possible means by other heating containers; If go out, simply milk is outwelled, cause very big waste.
The utility model content
The difficulty that this utility model runs into when suckling water bottle to using more than the pin provides a kind of heating feeding bottle that uses the USB interface power supply.
To achieve these goals, this utility model solution technical scheme that its technical problem adopted is:
A kind of USB heating feeding bottle comprises nipple, bottle, base, heater, and heater is positioned on the base or the periphery of bottle, and power line one end connects heater, and the other end is provided with the USB joint.
Furtherly, nipple is with bottle cap outward.
The beneficial effect of this utility model: saved the water bottle of to suckle and be placed on the trouble that heats in other heating containers, also avoided the waste of outwelling; Easy to use, simple to operate, practical, employing USB interface power supply have certain application value.
Description of drawings

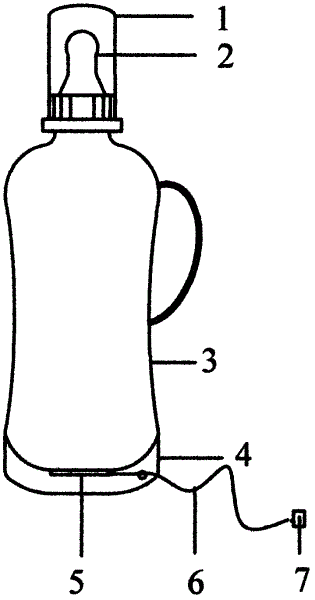

Fig. 1 is the perspective view of this utility model.
Among the figure, 1. bottle cap, 2. nipple, 3. bottle, 4. base, 5. heater, 6. power line, 7.USB joint.
The specific embodiment
As shown in Figure 1, a kind of USB heating feeding bottle comprises nipple 2, bottle 3, base 4, heater 5, and heater 5 is positioned on the base 4 or is located at the periphery of bottle 3, and power line 6 one ends connect heater 5, and the other end is provided with USB joint 7.The nipple 2 outer bottle caps 1 that are with.Open bottle cap 1 and nipple 2 during use, the milk that need are heated injects feeding bottle or keeps remaining milk, unloads nipple 2, capped 1, and USB joint 7 connects power supplys and heats, if preheat temperature has reached or be too high, directly pulls out USB joint 7.When temperature is fit to, unload lower bottle cap 1, load onto nipple 2 and get final product.The beneficial effect of this utility model: saved the water bottle of to suckle and be placed on the trouble that heats in other heating containers, also avoided the waste of outwelling; Easy to use, simple to operate, practical, employing USB interface power supply have certain application value.
