CN202284174U - Suspension photocatalytic biological treatment equipment - Google Patents

Abstract

The utility model discloses a suspended photocatalytic biological treatment device, which includes: a housing, a light treatment system and a biological system arranged in the housing; the housing includes a light treatment area on the inner side and a biological area on the outer side , a light treatment system is provided in the light treatment area, and a biological system is provided in the biological area; the biological system is arranged outside the light treatment system and separated by a partition layer; the biological area is filled with fillers, and the bottom of the biological area It is connected with a water inlet and equipped with an aeration device; the upper and lower sides of the light treatment area are respectively equipped with electromagnetic plates, the interior is filled with optical magnetic fillers, and the outer wall of the light treatment area is equipped with ultraviolet lamps; the bottom of the light treatment area is provided with a water outlet. Under the suspended photocatalytic biological treatment equipment, the utility model can realize the synergistic effect of photocatalytic oxidation and biological treatment, and improve the treatment effect of water.

Description

A suspended photocatalytic biological treatment equipment

technical field

The utility model belongs to the technical field of environmental protection and energy saving, and relates to biological treatment equipment, in particular to a suspended photocatalytic biological treatment equipment.

Background technique

As the types of trace pollutants that can be measured in water sources and drinking water continue to increase, the research on slightly polluted water sources is also on the agenda. Now the treatment of slightly polluted water sources is mostly a combination of biotechnology and advanced treatment technology. The essence of water source water biological treatment technology is to remove biodegradable organic substances including humic acid in source water through microbial degradation, and to remove refractory biodegradable substances in water through advanced treatment. The development of various combined technologies is very effective for the removal of some refractory organic substances. Through efficient oxidation, most of the organic substances in water are removed, and the mutagenic activity of drinking water is effectively reduced. However, these methods and equipment are relatively complicated, and the requirements for operation and operating conditions are relatively high, especially the cost problem seriously restricts their popularization and use.

Photocatalytic technology has the characteristics of non-selective degradation, and is widely used to degrade refractory organics, but the treatment cost is high. Biological treatment of sewage is the most common sewage treatment technology at present. It has the characteristics of low cost. However, due to the selective degradation of microorganisms, some refractory biodegradable substances are not treated and discharged into the environment, which affects human health and well-being. Survival environment. Combining the two methods can achieve better results for the treatment of slightly polluted water source wastewater.

Utility model content

The technical problem to be solved by the utility model is: to provide a suspended photocatalytic biological treatment equipment, which can solve the technical problems existing in the existing micro-polluted water source water treatment method, can improve the water treatment effect, and improve the treatment of refractory organic wastewater Efficiency, less land occupation, lower processing costs.

In order to solve the above technical problems, the utility model adopts the following technical solutions:

A suspended photocatalytic biological treatment device, the treatment device includes: a housing, a light treatment system and a biological system arranged in the housing;

The housing includes an inner light treatment area and an outer biological area, the light treatment area is provided with a light treatment system, and the biological area is provided with a biological system;

The biological system is arranged outside the light processing system and separated by a partition layer;

The biological area is filled with filler, the bottom of the biological area is connected with a water inlet, and an aeration device is provided;

Electromagnetic plates are installed on the upper and lower sides of the light treatment area, and the interior is filled with optical magnetic fillers. Ultraviolet lamp tubes are installed on the outer wall of the light treatment area; a water outlet is provided at the bottom of the light treatment area.

As a preferred solution of the utility model, the partition layer includes several stainless steel partitions or plastic partitions with reflective performance.

As a preferred solution of the present invention, the photomagnetic filler is a photocatalytic magnetic filler.

As a preferred solution of the utility model, the exterior of the processing equipment is a photocatalytic zone, and photocatalytic magnetic fillers are used. The photocatalytic magnetic filler is a magnetic filler loaded with titanium dioxide, and a magnetic substance is added before the carrier is formed, and then the titanium dioxide is loaded on the surface of the magnetic filler.

As a preferred solution of the present utility model, the exterior of the treatment equipment is a biodegradation area, and biological fillers are used. The biological filler is a fixed filler or a suspended filler. The fixed filler is soft fiber filler, vertical elastic filler or composite filler; the suspended filler is suspended ball filler or porous foam square filler.

Compared with the prior art, the beneficial effect of the suspended photocatalytic biological treatment equipment proposed by the utility model lies in:

1. Under the suspended photocatalytic biological treatment equipment, the utility model can realize the synergistic effect of photocatalytic oxidation and biological treatment, and improve the treatment effect of water.

2. The sewage treatment process of the utility model is suitable to be combined with other water treatment processes to achieve a good treatment effect.

3. The treatment process of the utility model has stable treatment effect and reliable operation, and the effluent water quality can meet the requirements of higher standards.

Description of drawings

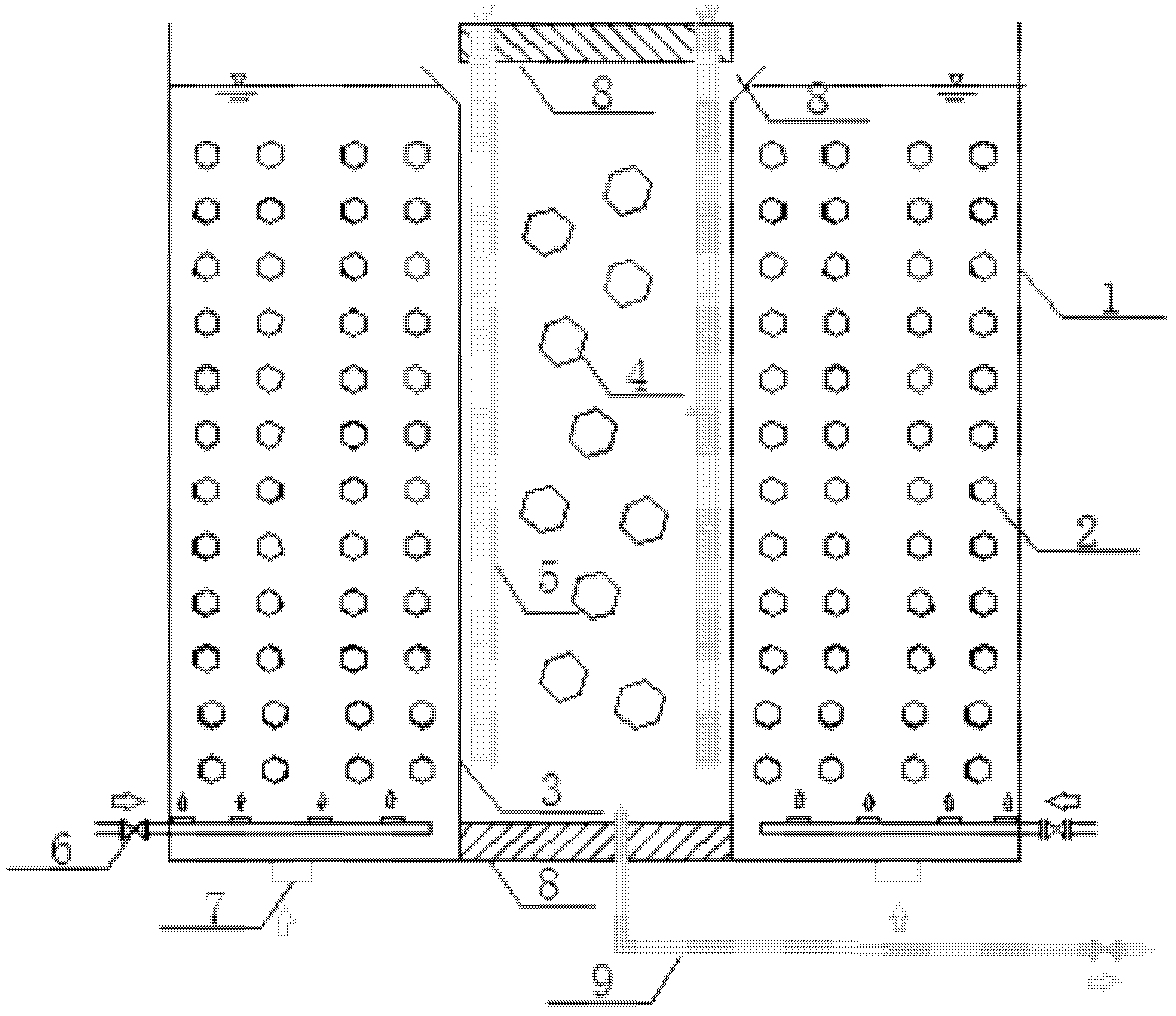

Fig. 1 is the sectional schematic diagram of the suspended photocatalytic biological treatment equipment of the utility model;

Fig. 2 is a plane view of the suspended photocatalytic biological treatment equipment of the utility model.

Detailed ways

Preferred embodiments of the present utility model will be described in detail below in conjunction with the accompanying drawings.

Embodiment one

Referring to Figures 1 and 2, the utility model discloses a suspended photocatalytic biological treatment device. As shown in the figure, the processing equipment includes a shell 1, and the shell 1 is a stainless steel or reinforced concrete structure. The whole device is mainly composed of two processing systems: the external biological system and the internal photocatalytic system.

The housing 1 includes a light treatment area inside and a biological area outside. The light treatment area is provided with a light treatment system, and the biological area is provided with a biological system. The biological area is filled with filler 2, the bottom is equipped with an aeration device 6, the water flow enters from the bottom water inlet pipe 7, the upper and lower parts of the light treatment area are respectively installed with electromagnetic plates 8, the interior is filled with optical magnetic filler 4, and the outer wall of the light treatment area is equipped with ultraviolet lamps 5. A partition 3 is installed between the light processing system and the biological system; the partition 3 is made of stainless steel or plastic with reflective properties.

The outside of the processing equipment is a photocatalytic zone, using photocatalytic magnetic fillers 4 . In this embodiment, the photocatalytic magnetic filler is a magnetic filler loaded with titanium dioxide, and the magnetic substance is added before the carrier is formed, and then the titanium dioxide is loaded on the surface of the magnetic filler.

The outside of the processing equipment is a biodegradation zone, using biological fillers 5 . In this embodiment, the biological filler is a fixed filler or a suspended filler. The fixed filler is soft fiber filler, vertical elastic filler or composite filler; the suspended filler is suspended ball filler or porous foam square filler.

The sewage first flows into the biological zone, and the pollutants are removed to a large extent, then flows into the photocatalytic zone for advanced treatment, and then flows out through the water outlet pipe 9 at the bottom of the photocatalytic zone.

In summary, the suspended photocatalytic biological treatment equipment proposed by the utility model ensures that the photocatalytic and biological effects are carried out simultaneously, and at the same time, the ultraviolet light region can also play a bactericidal effect, which solves the problem that the existing water treatment technology can only remove some Pollutants with high treatment costs and poor treatment effects have improved treatment efficiency and reduced treatment costs.

The description and application of the present invention here are illustrative, and are not intended to limit the scope of the present invention to the above-mentioned embodiments. Variations and changes to the embodiments disclosed herein are possible, and substitutions and equivalents for various components of the embodiments are known to those of ordinary skill in the art. It should be clear to those skilled in the art that, without departing from the spirit or essential characteristics of the present invention, the present invention can be realized in other forms, structures, arrangements, proportions, and with other components, materials and components. Other modifications and changes may be made to the embodiments disclosed herein without departing from the scope and spirit of the invention.

Claims (3)

1. a suspension photocatalytic biological treating equipment is characterized in that, said treatment facility comprises: housing and be arranged at the intravital optical processing system of shell, biosystem;

Said housing comprises inboard optical processing district, the biotic district in the outside, and optical processing is provided with optical processing system in the district, is provided with biosystem in the biotic district;

Said biosystem is arranged at the outside of optical processing system, separates through carrier ring;

Said biotic district is filled with filler, and biotic bottom is connected with water inlet, and is provided with aerating apparatus;

Magnetic board is installed in said optical processing district up and down respectively, the inner photomagnetism filler of filling, and optical processing district outer wall is equipped with ultraviolet lamp tube; Bottom, optical processing district is provided with water outlet.

2. suspension photocatalytic biological treating equipment according to claim 1 is characterized in that: said carrier ring comprises some stainless steel separators or has the plastic septum of reflective function.

3. suspension photocatalytic biological treating equipment according to claim 1 is characterized in that: said photomagnetism filler is the photocatalyzing magnetic filler.
