Abstract
本实用新型公开了一种多用活动扳手，包括活动扳体、固定扳体和调节螺母，所述活动扳体的活动扳头和固定扳体的固定扳头为大小相等且左右对称的“V”形体结构，该“V”形体内角为120度，外角为240度。本实用新型的有益效果是：由于活动扳头和固定扳头采用大小相等且左右对称的“V”形体结构，该“V”形体内角为120度，外角为240度，使得本实用新型能够拧卡不同规格的内六角螺栓、外六角螺栓和外六角螺母，且四面接触，有效防止打滑。
The utility model discloses a multi-purpose movable wrench, which comprises a movable wrench body, a fixed wrench body and an adjusting nut. Shape structure, the inner angle of the "V" shape is 120 degrees, and the outer angle is 240 degrees. The beneficial effects of the utility model are: since the movable wrench and the fixed wrench adopt a "V" shape structure with equal size and left and right symmetry, the inner angle of the "V" shape is 120 degrees, and the outer angle is 240 degrees, so that the utility model can be screwed. Card different specifications of hexagon socket bolts, external hexagon bolts and external hexagon nuts, and four-sided contact, effectively prevent slipping.
Description
Technical field
The utility model relates to monkey wrench, especially a kind of monkey wrench of using that is used for inside and outside hex nut more.
Background technology
Existing monkey wrench, the fastening and pine that can only be used for the outer-hexagonal nut is unloaded, and has only two relative faces to contact with the outer-hexagonal nut, skids easily.
The utility model content
The purpose of the utility model is: provide a kind of and can be used in the fastening of inside and outside hex nut and bolt and the loose monkey wrenches of using that unload more, and can effectively prevent to skid.
For realizing above-mentioned purpose, the utility model can be taked following technical proposals:
A kind of monkey wrenches of using of the utility model more; Comprise the Flexible spanner body, fixedly pull body and adjusting nut; The movable jaw of said Flexible spanner body is equal and opposite in direction and symmetrical " V " physique structure with the fixedly spanner of fixedly pulling body, should " V " body interior angle be 120 degree, and the exterior angle is 240 degree.
Be provided with the rhombus guide plate in the fixing end of spanner.
The beneficial effect of the utility model is: because movable jaw and fixedly spanner adopt equal and opposite in direction and symmetrical " V " physique structure; Should " V " body interior angle be 120 degree; The exterior angle is 240 degree; Make the utility model can twist the hexagon socket head cap screw of card different size, outer-hexagonal bolt and outer-hexagonal nut, and the four sides contact, effectively prevent to skid.
Description of drawings

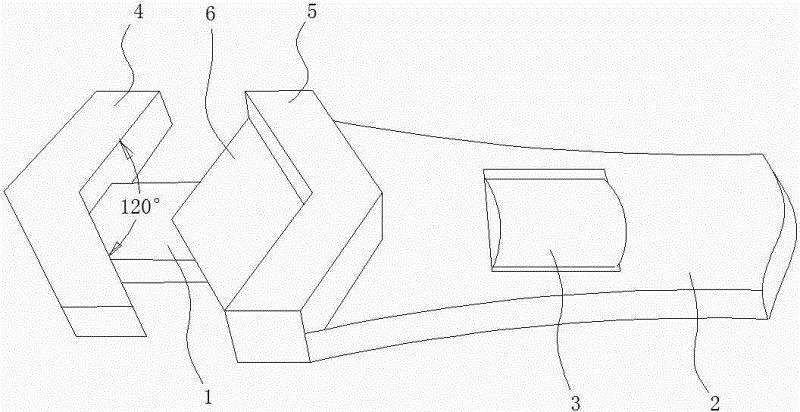

Fig. 1 is the structural representation of the utility model.
The specific embodiment
As shown in Figure 1; A kind of monkey wrenches of using of the utility model more; Comprise Flexible spanner body 1, fixedly pull body 2 and being used to and regulate the flexible adjusting nut 3 of Flexible spanner body 1; The movable jaw 4 of said Flexible spanner body 1 is equal and opposite in direction and symmetrical " V " physique structure with the fixedly spanner of fixedly pulling body 25, should " V " body interior angle be 120 degree, and the exterior angle is 240 degree.Preferably be provided with rhombus guide plate 6, help the flexible guiding and the location of Flexible spanner body 1 in the fixing end of spanner 5.
Claims (2)
1. use monkey wrench one kind more; Comprise Flexible spanner body (1), fixedly pull body (2) and adjusting nut (3); It is characterized in that: the movable jaw (4) of said Flexible spanner body (1) and the fixedly spanner (5) of fixedly pulling body (2) are equal and opposite in direction and symmetrical " V " physique structure; Should " V " body interior angle be 120 degree, the exterior angle be 240 degree.
2. according to claim 1 use monkey wrench more, it is characterized in that: be provided with rhombus guide plate (6) in the fixing end of spanner (5).
