Abstract

The utility model discloses a table, which comprises a table top and table legs. At least one position on the table top corresponding to the table legs is provided with a concave cavity extending to the table legs. The inside of the concave cavity is provided with a suitable lighting lamp post. A sliding connection is formed between the lighting post and the concave cavity, and the upper surface of the lighting post is flush with the upper surface of the desktop. The utility model has the advantages that: the table has its own lighting equipment. When not in use, the lighting equipment is hidden under the desktop, does not occupy the space of the desktop, and does not affect the storage and movement of the table. It is convenient and quick to pull out the lighting equipment when in use. Each lighting lamp post illuminates the desktop from different directions, and the height of the lamp post can be adjusted, and can also be rotated horizontally, so that different lighting effects can be produced to meet the needs of different users. The utility model is suitable for use in work, study and the like.

Description

a table

technical field

The utility model relates to a table, more specifically, the utility model relates to a table with its own lighting equipment.

Background technique

At present, the desks that are usually used do not have their own lighting equipment. When using at night or in dark places, lighting equipment such as desk lamps need to be equipped in addition, which is not very convenient to use. Furthermore, the height of the additional desk lamp is generally fixed and cannot be adjusted, so its illumination range cannot be adjusted, which cannot meet the lighting needs of some workers and brings inconvenience to work.

For example, the Chinese patent authorization announcement number is CN 201664036 U, and the patent application date of the authorization announcement date is 2010-12-08, which discloses a table, including a table top and four table legs arranged at the bottom of the table top, and the four table legs They are all fixed to the desktop, but the disadvantage is that when used at night or in dark places, there is also the inconvenience of needing additional lighting equipment, and the additional lighting equipment may not be able to meet the lighting needs of some workers.

Contents of the invention

The purpose of the utility model is to overcome the inconvenience of using additional lighting equipment when the desk is used at night or in dark places in the prior art, and provide a self-contained lighting equipment, which is hidden under the desktop and can be pulled out when in use. A handy table that stands out from the table and is adjustable in height and light angle.

In order to solve the above-mentioned technical problems, the utility model adopts the following solutions to achieve: provide a table, including a table top and table legs, at least one position on the table top corresponding to the table legs is provided with a concave cavity extending to the table legs, the A suitable lighting post is provided inside the concave cavity, and a sliding connection is formed between the lighting post and the concave cavity, and the upper surface of the lighting post is flush with the upper surface of the desktop. In the table of this design scheme, the desktop and the table legs are fixedly connected, wherein at least one of the table legs is provided with a cavity from the upper end of the table leg to the upper surface of the table top, and a lighting lamp post is arranged in the cavity, and the lighting lamp post is closely matched with the cavity wall, and the lighting The upper surface of the lamp post is flush with the table top. When the lighting equipment is not in use, the lighting lamp post is hidden in the legs of the table under the table top, which does not affect the storage and movement of the table. At this time, the table of the utility model is just like an ordinary table , when using the lighting equipment, the lighting lamp column can be used by pulling out along the cavity wall, which avoids the trouble of additionally equipped with a desk lamp.

As a preferred solution of the above solution, a pull ring is provided on the upper surface of the lighting lamp post. The lighting column can be easily pulled out to the desktop through the pull ring, or pressed back under the desktop.

As a preferred solution of the above solution, the lighting column is divided into two sections that are coaxial up and down, the upper section is a cuboid light-emitting part, the lower section is a cylindrical base, and the light-emitting part and the base are rotating. connect. In this way, the lighting pole can be rotated horizontally to adjust the angle of illumination. The upper section is designed as a cuboid, which is convenient for slotting on the upper part to place the light source.

As a preferred solution of the above solution, the upper side of the lighting lamp post is provided with a groove for arranging the light source. The light source is arranged in the groove, which is convenient for concentrating light and is conducive to concentrating the light on the desktop.

As a preferred solution of the above solution, a damping layer is provided on the outer surface of the base. In this way, the frictional resistance between the lamp post and the wall of the cavity can be increased, and when the lamp post slides along the wall of the cavity to a certain height, the lamp post will not easily slip off after letting go.

The beneficial effects of the utility model are:

1. The table has its own lighting equipment. When not in use, the lighting equipment is hidden under the desktop, which does not take up space on the desktop and does not affect the storage and movement of the table. It is convenient and quick to pull out the lighting equipment when in use.

2. A plurality of lighting lampposts illuminate the desktop from different directions, and the height of the lampposts can be adjusted, and can also be rotated horizontally, so that different lighting effects can be produced to meet the needs of different users.

Description of drawings

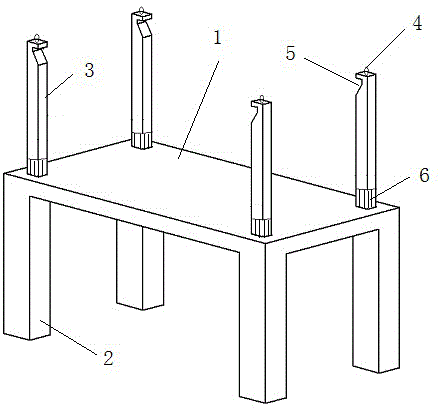

Fig. 1 is a kind of structural representation of the utility model;

Fig. 2 is a front view of the utility model.

In the picture: desktop 1 table leg 2 lighting post 3 pull ring 4

Groove 5 Damping layer 6.

Detailed ways

Below in conjunction with accompanying drawing and specific embodiment, the utility model is described in further detail: as shown in Fig. 1 and Fig. 2, a kind of table of present embodiment comprises desktop 1, four table legs 2, corresponding table leg 2 on desktop 1 The position is provided with a concave cavity extending to the table legs, and the interior of the concave cavity is provided with a suitable lighting lamp post 3, and a sliding connection is formed between the lighting lamp post 3 and the concave cavity, and the upper surface of the lighting lamp post 3 and the desktop 1 the upper surface is even. The table in this embodiment is provided with four lighting posts 3 corresponding to the four table legs, and the upper surface of the lighting posts 3 is provided with a pull ring 4 . The lighting column 3 is divided into two coaxial sections up and down, the upper section is a cuboid light-emitting part, and the lower section is a short cylindrical base, and the light-emitting part and the base are connected by rotation. The upper and lower coaxial sections of the lighting lamp post 3 can also be cylinders. A groove 5 for placing a light source is provided on one side of the upper part of the lighting pole 3 . A damping layer 6 is provided on the outer surface of the base.

During use, if lighting is required, the lighting post 3 is pulled out through the pull ring 4, the lighting device switch is turned on, and the lighting post 3 is adjusted to a suitable height, and the lighting post 3 is rotated to a suitable angle; otherwise, Then turn off the lighting equipment switch, and press the lighting lamp post 3 back in the table leg 2, which is simple to operate and easy to use.

It should be noted that the above embodiments are only used to illustrate the technical solution of the utility model without limitation, and any modification or equivalent replacement of the technical solution of the utility model should be done without departing from the spirit and scope of the technical solution of the utility model. It falls within the scope of the claims of the present utility model.

Claims (5)

1. desk; Comprise desktop, table leg; It is characterized in that the position of the corresponding table leg at least one on the table place is provided with the cavity that extends to table leg, said cavity inside is provided with adaptive lighting standard; Formation is slidingly connected between lighting standard and the cavity, and the upper surface of lighting standard is concordant with the upper surface of desktop.

2. a kind of desk according to claim 1 is characterized in that the upper surface of said lighting standard is provided with draw ring.

3. a kind of desk according to claim 1 and 2 is characterized in that, said lighting standard is divided into coaxial up and down two sections, and epimere is a rectangular-shaped luminous component, and hypomere is the pedestal of a short cylindrical shape, between luminous component and the pedestal for being rotationally connected.

4. a kind of desk according to claim 3 is characterized in that, one side, top of said lighting standard is provided with in order to settle the groove of light source.

5. a kind of desk according to claim 4 is characterized in that the lateral surface of said pedestal is provided with damping layer.
