Abstract
本实用新型公开了一种外连接板，包括上、下平板，上、下平板之间圆弧连接，上板的前端为弧形边缘，上、下平板上分别设有均匀排列的若干圆孔。本实用新型具有结构简单，成型容易，生产效率高，刚性好等特点，提高了使用寿命，圆弧过渡区减少了应力，提高产品的工艺性能。
The utility model discloses an external connection plate, comprising an upper plate and a lower plate, the upper plate and the lower plate are connected by an arc, the front end of the upper plate is an arc edge, and the upper plate and the lower plate are respectively provided with a plurality of evenly arranged circular holes. The utility model has the characteristics of simple structure, easy molding, high production efficiency, good rigidity, etc., and the service life is increased. The arc transition zone reduces stress and improves the process performance of the product.
Description
Technical field
The utility model relates to a kind of outside link plate.
Background technique
At present, the connecting plate that all trades and professions are used to connect has a variety of, and is similar, and structural similarity generally is provided with some mounting holes and gets final product on plate body, but damages mostly easily, and the life-span is short.
The model utility content
The purpose of the utility model is to provide a kind of outside link plate.
The utility model adopts following technological scheme:
Outside link plate comprises upper and lower flat board, and circular arc connects between the upper and lower flat board, and it is characterized in that: the front end of said upper plate is a curved edge, is respectively equipped with evenly distributed some circular holes on the described upper and lower flat board.
Described outside link plate is characterized in that: described upper and lower flat board is obliquely installed.
The advantage of the utility model:
The utlity model has simple in structurely, moulding is easy, and manufacturing efficiency is high, and characteristics such as good rigidly have improved working life, and the arc transition district has reduced stress, improves the technology capability of product.
Description of drawings

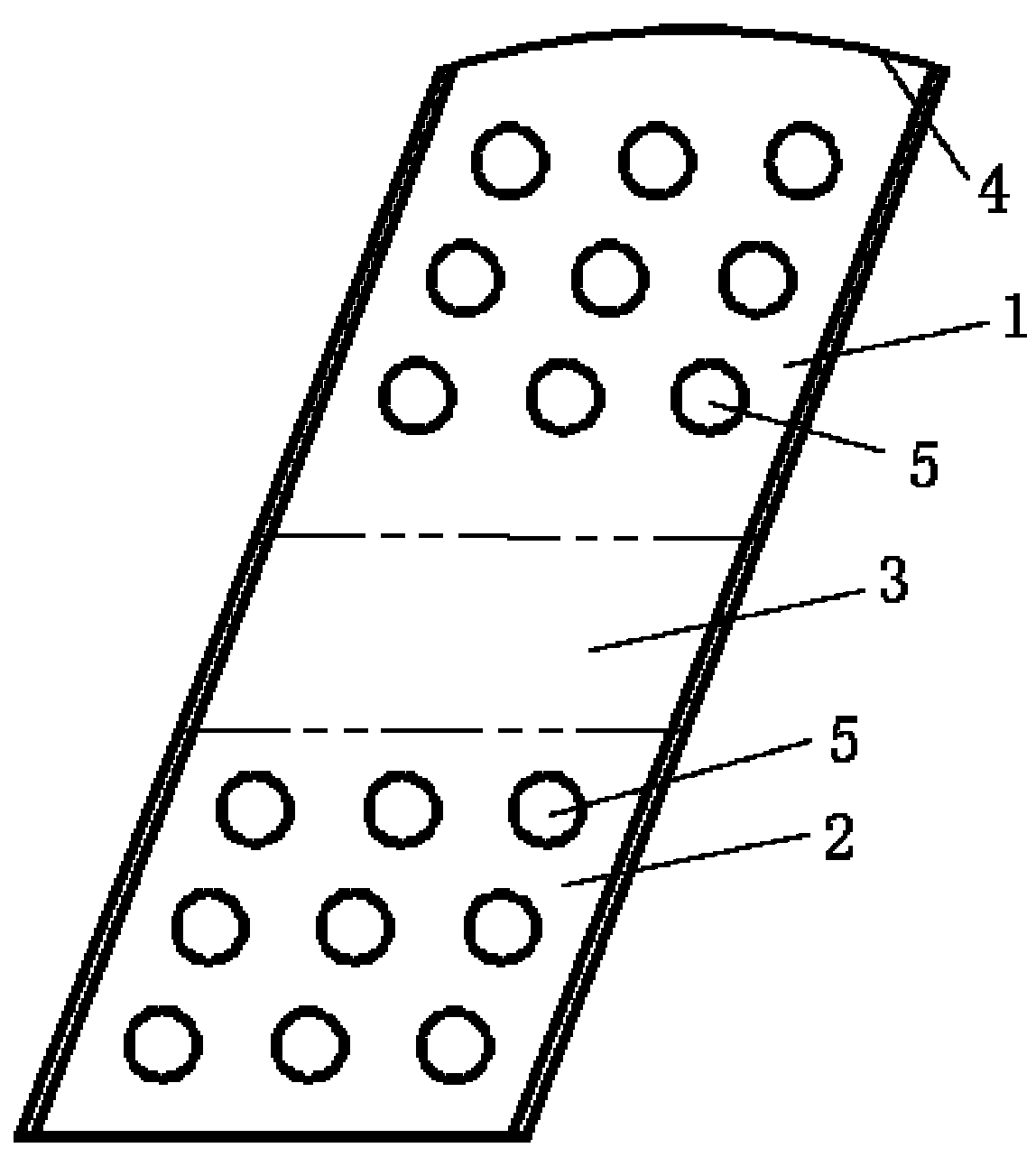

The plan view of Fig. 1 the utility model.
The side view of Fig. 2 the utility model.
Embodiment
Embodiment: as shown in Figure 1, outside link plate, comprise upper and lower dull and stereotyped 1,2, upper and lower dull and stereotyped 1, circular arc 3 connects between 2, the front end of upper plate 1 is a curved edge 4, is respectively equipped with evenly distributed some circular holes 5 on upper and lower dull and stereotyped 1,2.
Claims (2)
1. an outside link plate comprises upper and lower flat board, and circular arc connects between the upper and lower flat board, and it is characterized in that: the front end of said upper plate is a curved edge, is respectively equipped with evenly distributed some circular holes on the described upper and lower flat board.
2. outside link plate according to claim 1 is characterized in that: described upper and lower flat board is obliquely installed.
