Abstract
本实用新型公开了一种壁挂式智能蔬菜水果花卉种植装置，包括有储水箱、种植篮、顶盖和种植钵，所述储水箱、种植篮和顶盖为扁平状开口箱体，且从下至上叠放；所述种植篮的侧面向外凸起形成锥形槽，所述种植钵设在锥形槽中；所述种植钵底部带有便于液体流出的缝隙；所述储水箱设有水泵，所述顶盖上设有与水泵出水口管道连通的出口，该出口位于种植钵的上方；所述种植篮中设有返回至储水箱的溢流管。本实用新型整个种植装置为多层种植篮叠放而成，方便悬挂在墙壁上，结构紧凑，占据很少的空间，能实现多种蔬菜水果花卉的种植。
The utility model discloses a wall-mounted intelligent vegetable, fruit and flower planting device, which comprises a water storage tank, a planting basket, a top cover and a planting pot. The water storage tank, the planting basket and the top cover are flat open boxes, and the Stacked on top; the side of the planting basket protrudes outward to form a tapered groove, and the planting bowl is set in the tapered groove; the bottom of the planting bowl has a gap for the liquid to flow out; the water storage tank is provided with a water pump , the top cover is provided with an outlet communicating with the water pump outlet pipe, and the outlet is located above the planting bowl; the planting basket is provided with an overflow pipe returning to the water storage tank. The whole planting device of the utility model is formed by stacking multi-layer planting baskets, which is convenient to hang on the wall, has a compact structure, occupies little space, and can realize the planting of various vegetables, fruits and flowers.
Description
Technical field
The utility model relates to the planting technology field, relates in particular to a kind of wall-hanging intelligent vegetable and fruit flower planting device.
Background technology
The raising of life of urban resident level, environmental consciousness is more and more stronger, and the green environmental protection of self edible vegetable and fruit is also had requirement strictly; In normalized city management, the city dweller can't oneself remove planting vegetable fruit.For can own planting vegetable fruit, simply plant at home potted plant of some citizen, and some flowers just mostly, improve indoor living environment, adopt flowerpot to plant in the localities like balcony, windowsill etc.Above-mentioned planting site aspect is long-pending little, can't plant out more vegetable and fruit.
The utility model content
The utility model provides a kind of wall-hanging intelligent vegetable and fruit flower planting device to the deficiency of above-mentioned prior art, can hang over and carry out planting vegetable fruit and flowers on the indoor wall position, and compact conformation can be planted more kind on narrow and small area.
For solving the problems of the technologies described above; The utility model adopts following technical scheme: a kind of wall-hanging intelligent vegetable and fruit flower planting device; Include storage tank, plantation basket, top cover and culture pan, said storage tank, plantation basket and top cover are flat opening casing, and stack from bottom to up; The side of said plantation basket outwards convexes to form cone tank, and said culture pan is located in the cone tank; Said culture pan bottom has is convenient to the slit that liquid flows out; Said storage tank is provided with water pump, and said top cover is provided with the outlet that is communicated with the pump outlet pipeline, and this outlet is positioned at the top of culture pan; Be provided with the overflow pipe that is back to storage tank in the said plantation basket.
Preferably, said plantation basket is provided with several, and overlapping placement.
Preferably, the cone tank in the said plantation basket is provided with several on the same side.
Preferably, be provided with heating rod and temperature measurer in the said storage tank, and the liquid level appearance.
Compared with prior art; The advantage that the utlity model has: storage tank, plantation basket and top cover are made as flat; Conveniently hang on the wall, nutrient solution is delivered to a plurality of outlets on the top cover by water pump from storage tank, irrigates vegetables, fruit and the flowers of the culture pan on the plantation basket; Be convenient to the penetrating slit of nutrient solution because the culture pan bottom has, too much nutrient solution can flow to the culture pan in the next plantation basket, until finally being back in the storage tank.
Whole planting unit is that multilayer plantation basket stacks together, and conveniently is suspended on the wall, and compact conformation occupies little space, can realize the plantation of plurality of vegetables and fruit flowers.
Description of drawings

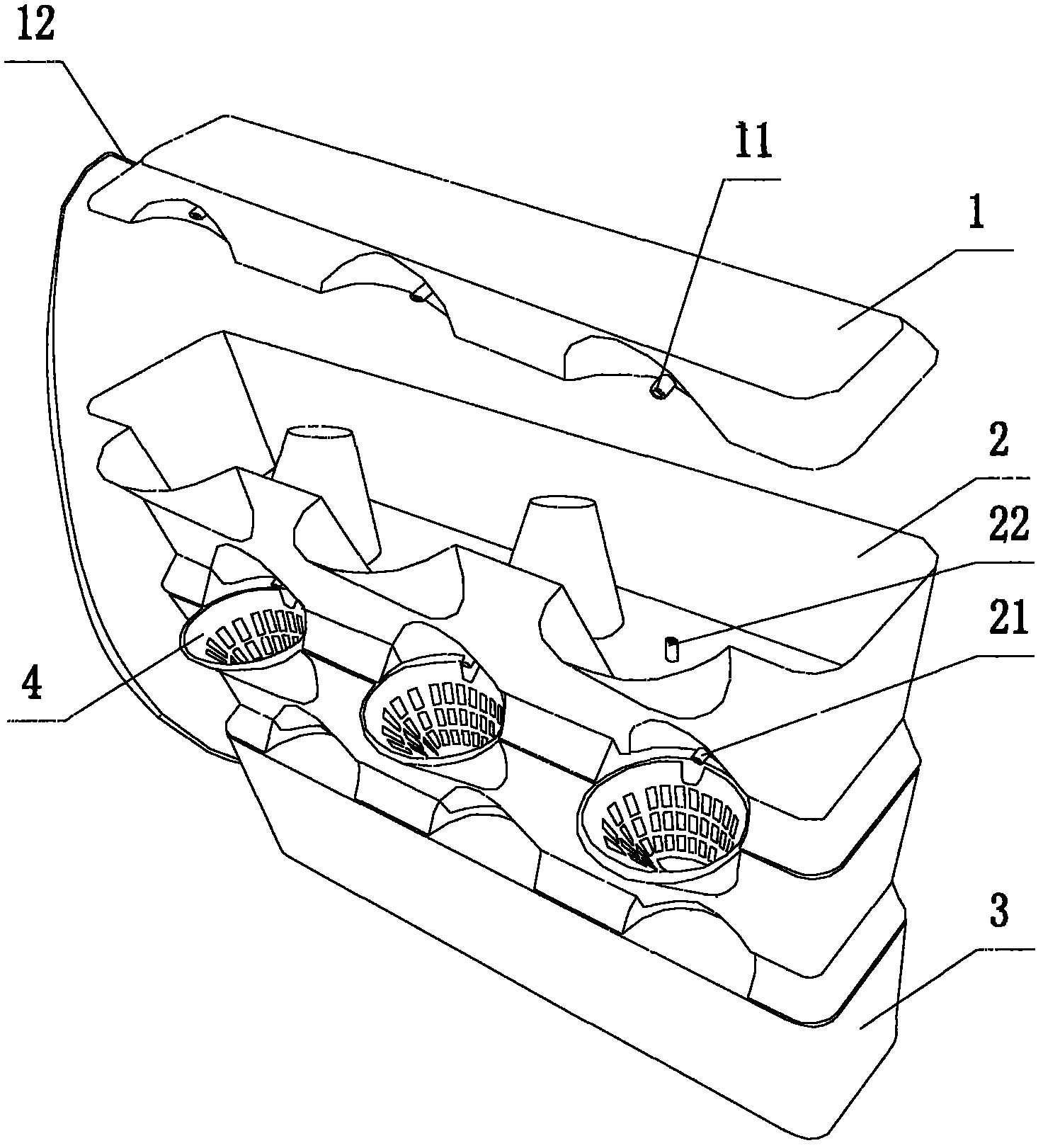

Fig. 1 is the structural representation of the utility model;
Description of reference numerals:
The 1-top cover; The 11-delivery port; The 12-pipeline;
The 2-kind is planted basket; The outlet of 21-overflow pipe; The 22-overflow pipe;
The 3-storage tank;
The 4-culture pan.
Embodiment
Below in conjunction with accompanying drawing and embodiment the utility model is further described.
A kind of wall-hanging intelligent vegetable and fruit flower planting device as shown in Figure 1; Include storage tank 3, plantation basket 2, top cover 1 and culture pan 4; Storage tank 3, plantation basket 2 and top cover 1 are made as flat opening casing; And stack from bottom to up, wherein the opening of storage tank 3 and plantation basket 2 up, the opening of top cover 1 is down; Outwards convex to form cone tank on the positive side of plantation basket 2, place culture pan 4, section's planting vegetable fruit flowers in culture pan 4.
The bottom of culture pan 4 has is convenient to the slit that liquid flows out; Be provided with water pump in the storage tank 3; On top cover 1, be provided with the delivery port 11 that is communicated with the pump outlet pipeline; This delivery port 11 is positioned at the top of culture pan 4; Like this nutrient solution in the storage tank 3 is delivered to top cover 1 through pipeline 12, inject each culture pan 4, the vegetable and fruit flowers in the culture pan 4 are irrigated by delivery port 11; Be provided with the overflow pipe 22 that is back to storage tank 3 in the plantation basket 2.
In practical application; Plantation basket 2 can be a plurality of overlapping settings up and down, and the cone tank on each plantation basket 2 also be a plurality of, thereby but on this planting unit multilayer and plant with layer many places; On narrow and small area, enlarge cultivated area, can realize a certain amount of family planting.
In storage tank 3, can add heating rod and temperature measurer, be convenient to the temperature of nutrient solution in the storage tank 3; The liquid level appearance of the volume of measuring nutrient solution also can be set.
The above only is the preferred implementation of the utility model; Should be pointed out that for those skilled in the art, under the prerequisite that does not break away from the utility model principle; Can also make some improvement and retouching, these improvement and retouching also should be regarded as the protection domain of the utility model.
Claims (4)
1. wall-hanging intelligent vegetable and fruit flower planting device is characterized in that: include storage tank, plantation basket, top cover and culture pan, said storage tank, plantation basket and top cover are flat opening casing, and stack from bottom to up; The side of said plantation basket outwards convexes to form cone tank, and said culture pan is located in the cone tank; Said culture pan bottom has is convenient to the slit that liquid flows out; Said storage tank is provided with water pump, and said top cover is provided with the outlet that is communicated with the pump outlet pipeline, and this outlet is positioned at the top of culture pan; Be provided with the overflow pipe that is back to storage tank in the said plantation basket.
2. wall-hanging intelligent vegetable and fruit flower planting device as claimed in claim 1, it is characterized in that: said plantation basket is provided with several, and overlapping placement.
3. wall-hanging intelligent vegetable and fruit flower planting device as claimed in claim 1, it is characterized in that: the cone tank in the said plantation basket is provided with several on the same side.
4. wall-hanging intelligent vegetable and fruit flower planting device as claimed in claim 1 is characterized in that: be provided with heating rod and temperature measurer in the said storage tank, and the liquid level appearance.
