Abstract

An anorectal operating bed, the bed frame is provided with an operating table, one side of the operating table is provided with a leg support frame, one end of the operating table is provided with a foot column, and at least one dirt bucket is movably connected with the column of the bed frame . The anorectal operating bed provided by the utility model is provided with an operating table with a "J"-shaped operating opening, which is convenient for doctors to operate in a sitting or standing position, and the two movable dirt buckets can be located just in the operating Below the opening, it is convenient for medical waste to be sorted and placed in time. The set leg support frame can prop up the patient's legs. When the side lying position is adopted, one leg of the patient is placed under the leg support frame, and the other leg is placed on the upper surface of the leg support frame, with height adjustment The device can achieve the effect of opening the patient's hip muscles. When not in use, the leg support frame can be turned over along the pin shaft and hung on the fixed hook under the operating table.

Description

Anorectal operating table

technical field

The utility model relates to a medical operating bed, in particular to an anorectal operating bed.

Background technique

Anorectal surgery is a relatively common operation in medical surgery, and the total amount of surgery is relatively large. Although there are various operating beds on the market, there is no special operating bed for anorectal surgery. Doctors in anorectal surgery are doing During the operation, only other operating tables can be used. Since these operating beds are not special-purpose anorectal operating beds, they cannot meet the special needs of anorectal operations. Moreover, a special assistant is needed during anorectal surgery, who is specially responsible for opening the patient's buttocks, which is not only laborious and wastes manpower, but also affects the effect of the operation. Doctors in the department of anorectal hope to have a kind of multifunctional bed which can be convenient for the surgeon to operate and use independently, and can relieve the pain of the patient as much as possible.

Contents of the invention

The technical problem to be solved by the utility model is to provide an anorectal operating bed, which can provide a relatively comfortable body position for the patient and facilitate the operation of the surgeon.

In order to solve the above technical problems, the technical solution adopted by the utility model is: an anorectal operating bed, the bed frame is provided with an operating table, one side of the operating table is provided with a leg support frame, and one end of the operating table is provided with Stepping on the foot column, at least one dirt bucket is movably connected with the column of the bed frame.

An operating opening is provided on the operating table.

The operation opening is in a "J" shape, the two ends of the operation opening have different lengths, and the end where the leg support frame is installed is longer.

The dirt bucket can be rotated with the column of the bed frame as the center of a circle, and part of the movement track of the dirt bucket is located below the operation opening.

There is also a multi-directional operating light on one side of the operating table.

A height adjustment device is provided on the leg support frame.

The leg support frame is movably connected with the bed frame through pin shafts.

According to the special needs of anorectal surgery, the anorectal operating bed should meet the following requirements:

1. The patient's position is very important. During the operation, patients can be placed in supine, side or prone positions, while patients in the prone position often feel chest and abdomen compression, neck twisting and other discomfort. Commonly used supine and lateral positions. In the supine position, the surgical site is not fully exposed, so the lateral position is more suitable.

2. To facilitate the operation of the surgeon, the patient can be operated on in a sitting, standing or squatting position. Use sitting and standing positions more.

3. The operating bed should have the function of assisting the chief surgeon to open the patient's buttock muscles.

4. The operating bed must have an auxiliary lighting device. The placement of the illuminating lamp can be adjusted freely according to different positions of the patient, or different positions of the same position.

5. The operating bed should be equipped with a medical waste bucket. The waste bucket should be placed at a low position, and the medical waste generated during the operation should be sorted and placed in time to ensure the standardized treatment of medical waste.

The anorectal operating bed provided by the utility model is provided with an operating table with a "J"-shaped operating opening, which is convenient for doctors to operate in a sitting or standing position, and the two movable dirt buckets can be located just in the operating Below the opening, it is convenient for medical waste to be sorted and placed in time. The set leg support frame can prop up the patient's legs. When the side lying position is adopted, one leg of the patient is placed under the leg support frame, and the other leg is placed on the upper surface of the leg support frame, with height adjustment The device can achieve the effect of opening the patient's hip muscles. When not in use, the leg support frame can be turned over along the pin shaft and hung on the fixed hook under the operating table. The multi-directional operating light can meet the different positions of the patient, or the light illumination of different positions in the same position, and can be adjusted at will.

The utility model aims at the characteristics of the anorectal operation, solves the discomfort caused by taking the prone position, improves the operation efficiency of the anorectal operation, and relieves the pain of the patient.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the utility model is further described.

Fig. 1 is the front view of the utility model.

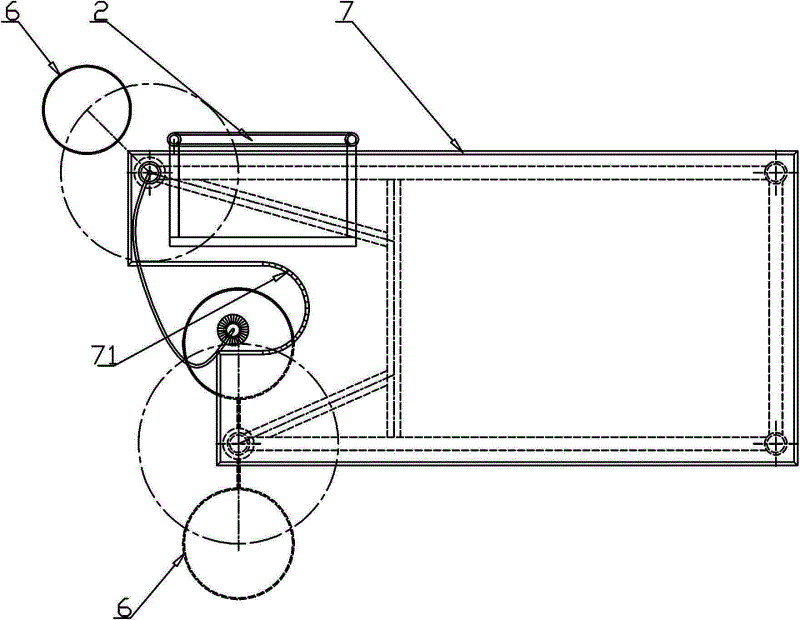

Fig. 2 is a top view of the utility model.

Fig. 3 is a left view of the utility model.

Detailed ways

As shown in Fig. 1-Fig. 3, an anorectal operating bed is provided with an operating table 7 on the bed frame 5, a leg support frame 2 is provided on one side of the operating table 7, and a foot column is provided on one end of the operating table 7 3. At least one dirt bucket 6 is movably connected with the column of the bed frame 5 . The set foot column 3 is convenient for the patient to lean against the foot column 3 with both feet during operation to fix the patient's operation position. When adopting the side lying position, the patient places the lower leg under the leg support frame 2, and the upper leg is placed on the upper surface of the leg support frame 2, thereby realizing the effect of opening the buttocks muscles during the operation.

As shown in FIG. 2 , the operating table 7 is provided with an operation opening 71 . The provided operation opening 71 is convenient for doctors to perform operation.

As shown in FIG. 2 , the operation opening 71 is in a "J" shape, the two ends of the operation opening 71 have different lengths, and the end where the leg support frame 2 is installed is longer. The length of the other end is shorter, so that when the patient is lying on his side, the shorter end of the operation opening 71 will not interfere with the operation of the doctor, thereby improving the efficiency of the operation.

As shown in FIG. 2 , the dirt bucket 6 can be rotated with the column of the bed frame as the center of circle, and part of the movement track of the dirt bucket 6 is located below the operation opening 71 . It is convenient to separately store cotton swabs, gauze, cotton balls, needles, blades and other sharps produced during the operation.

As shown in FIG. 1 and FIG. 3 , a multi-directional operating light 1 is also provided on one side of the operating table 7 . The multi-directional operating light is a light with a metal hose, and the direction of the light can be adjusted at will, which is convenient for lighting in different positions of the patient, or in different positions of the same position.

As shown in Fig. 1 and Fig. 3 , the leg support frame 2 is provided with a height adjusting device 21 . The height adjusting device 21 here is to adopt the cooperation of the nut and the screw rod to adjust the height of the upper surface of the leg support frame 2, or to adjust by using the nut to lock the open sleeve, or to adjust by using the movable sleeve to tighten the screw, or It is adjusted by tightening the tension hoop. The function of the height adjusting device 21 is to adapt to the body shapes of different patients.

As shown in FIG. 3 , the leg support frame 2 is movably connected with the bed frame 5 through the pin shaft 4 . When the leg support frame 2 is not in use, the leg support frame 2 can be turned over to the bottom of the operating table 7 along the pin shaft 4, and fixed with a fixed hook.

Claims (7)

1. anal-surgery bed; It is characterized in that: bedstead (5) is provided with operation platen (7); One side of operation platen (7) is provided with leg support (2), and an end of operation platen (7) is provided with pedals socle (3), and at least one waste pail (6) flexibly connects with the column of bedstead (5).

2. a kind of anal-surgery bed according to claim 1 is characterized in that: described operation platen (7) is provided with operation aperture (71).

3. a kind of anal-surgery bed according to claim 2 is characterized in that: described operation aperture (71) becomes " J " shape, and the two ends length of operation aperture (71) is different, and the end length that leg support (2) is installed is longer.

4. a kind of anal-surgery bed according to claim 3 is characterized in that: the column that described waste pail (6) can bedstead is center of circle rotation, and the part of waste pail (6) movement locus is positioned at the below of operation aperture (71).

5. a kind of anal-surgery bed according to claim 1 is characterized in that: the side at operation platen (7) also is provided with multi-direction operating lamp (1).

6. a kind of anal-surgery bed according to claim 1 is characterized in that: described leg support (2) is provided with arrangement for adjusting height (21).

7. a kind of anal-surgery bed according to claim 6 is characterized in that: described leg support (2) flexibly connects through bearing pin (4) and bedstead (5).
