Abstract
The utility model discloses a paper cutting ruler, which comprises a ruler body and is characterized in that a graduated scale is arranged on one side of the ruler body, and a paper cutting blade is arranged on the other side of the ruler body. Two sides of the graduated scale are respectively provided with a casing hinged to the ruler body through hinges. Because the graduated scale is arranged on one side of the ruler body and the paper cutting blade is arranged on the other side of the ruler body, when two casings are turned to the side where the paper cutting blade is located, the paper cutting ruler can serve as the graduated scale to measure size in use. Similarly, when the two casings are turned to the side where the graduated scale is located, the paper cutting ruler can serve as the paper blade to cut paper. The casings can prevent cutting edge of the paper cutting blade from hurting users. The paper cutting ruler has simple structure and effectively combines the graduated scale and the paper cutting blade together.
Description
Technical field
The utility model relates to a kind of ruler, particularly a kind of chi of cutting a sheet of paper.
Background technology
Our paper that when doing craft or tearing paper open, all will cut with a paper cutter; Sometimes because of leaving behind too hastily; Sometimes because of the irregular paper of having wasted of cutting a sheet of paper; Particularly meticulous makes by hand, and when both having needed the rule measurement to have the paper knife of needs to cut a sheet of paper, rule or the paper knife of changing function singleness repeatedly bring a lot of inconvenience to people.
The utility model content
To above-mentioned deficiency of the prior art, the utility model provides a kind of chi of cutting a sheet of paper with rule and paper knife dual-use function.
The utility model solves the technical scheme that its technical matters adopted: a kind of chi of cutting a sheet of paper; Comprise the ruler body; It is characterized in that, one side said ruler body be provided with rule, another side is provided with the blade of cutting a sheet of paper; The both sides of said rule are respectively arranged with shell, and said shell is hinged through folding and ruler body.
The beneficial effect of the utility model is: in use; Because one side of ruler body is scale mark; Another side is the blade of cutting a sheet of paper, and promptly can be used as rule and carries out measurement size Yi Bian two shells are translated into paper knife, and is same; Two shells are translated into rule promptly can be used as on one side the paper knife operation of cutting a sheet of paper, shell can prevent that the blade of paper knife from hurting the user.The utility model is simple in structure, combines rule and paper knife effectively.
Description of drawings

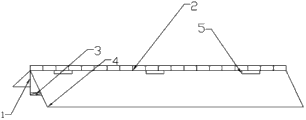

Accompanying drawing 1 is the structural representation of the utility model;
Among the figure: 1 ruler body, 2 rules, 3 cut a sheet of paper blade, 4 shells, 5 foldings.
Embodiment
As shown in Figure 1, a kind of chi of cutting a sheet of paper comprises ruler body 1, one side said ruler body 1 be provided with rule 2, another side is provided with the blade 3 of cutting a sheet of paper, the both sides of said rule 2 are respectively arranged with shell 4, said shell is hinged through folding 5 and ruler body 1.
In use; Because one side of ruler body is scale mark; Another side is the blade of cutting a sheet of paper, and promptly can be used as rule and carries out measurement size Yi Bian two shells are translated into paper knife, and is same; Two shells are translated into rule promptly can be used as on one side the paper knife operation of cutting a sheet of paper, shell can prevent that the blade of paper knife from hurting the user.
Claims (1)
1. the chi of cutting a sheet of paper comprises the ruler body, it is characterized in that, one side said ruler body be provided with rule, another side is provided with the blade of cutting a sheet of paper, the both sides of said rule are respectively arranged with shell, said shell is hinged through folding and ruler body.
