CN202197971U - Multifunctional hanging umbrella - Google Patents
Multifunctional hanging umbrella Download PDFInfo
- Publication number
- CN202197971U CN202197971U CN2011202476550U CN201120247655U CN202197971U CN 202197971 U CN202197971 U CN 202197971U CN 2011202476550 U CN2011202476550 U CN 2011202476550U CN 201120247655 U CN201120247655 U CN 201120247655U CN 202197971 U CN202197971 U CN 202197971U
- Authority
- CN
- China
- Prior art keywords
- umbrella
- rotating base
- multifunctional crane
- vertical rod
- umbrella according
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000012856 packing Methods 0.000 claims description 3
- 125000000391 vinyl group Chemical group [H]C([*])=C([H])[H] 0.000 claims description 3
- 229920002554 vinyl polymer Polymers 0.000 claims description 3
- 238000005516 engineering process Methods 0.000 description 1
- 238000003780 insertion Methods 0.000 description 1
- 230000037431 insertion Effects 0.000 description 1
Images
Landscapes
- Walking Sticks, Umbrellas, And Fans (AREA)
Abstract
The utility model provides a multi-functional hanging umbrella, belongs to the sun umbrella field, including handrail mechanism, crank mechanism, pole setting, pull rod, down tube, its characterized in that handrail mechanism inside set up the locating pin, set up the locating hole in the pole setting, both cooperate control umbrella face gradient, set up steering mechanism between pole setting and the base, the utility model discloses can easily make the handrail slide from top to bottom and lock in order to control umbrella face gradient, also can make 360 degrees rotations of umbrella face, simple structure, convenient to use.
Description
Technical field
The utility model relates to a kind of multifunctional crane umbrella, belongs to the parasol field.
Background technology
People often will use parasol in daily life, and present parasol is of a great variety, and difference as required also is not quite similar to the requirement of parasol, and along with the difference of sun irradiation angle, the umbrella cover of parasol also need be adjusted different angles.
The utility model content
To the problem that exists in the prior art, the purpose of the utility model is to provide a kind of technical scheme of multifunctional crane umbrella.
Described a kind of multifunctional crane umbrella; Comprise armrest mechanism, handle mechanism, vertical rod, pull bar, brace, it is characterized in that described armrest mechanism set inside alignment pin, locating hole is set in the vertical rod; Both cooperate control umbrella cover gradient, between vertical rod and the base steering mechanism are set.
Described a kind of multifunctional crane umbrella is characterized in that described armrest mechanism set inside pulley.
Described a kind of multifunctional crane umbrella is characterized in that described pulley can be more than 4 or 4.
Described a kind of multifunctional crane umbrella; It is characterized in that described armrest mechanism set inside grip switches; Grip switches is connected with the handrail shell through the handle alignment pin, and the grip switches rear portion is equipped with handle spring and spring holder, and grip switches top is provided with alignment pin.
Described a kind of multifunctional crane umbrella is characterized in that described handle mechanism comprises turning cylinder, reel, shakes the hand, and is equipped with torsion spring, packing ring, pad in the inner chamber of turning cylinder top.
Described a kind of multifunctional crane umbrella; It is characterized in that described steering mechanism comprises rotating base, rotating disk, vinyl cover, the rotating base upper end is fixedly connected with rotating disk through screw, and the lower end is fixed on the base through screw; Vertical rod is socketed on the rotating disk, fixes through knob.
Described a kind of multifunctional crane umbrella; It is characterized in that described rotating base by on the rotating base dish and the rotating base lower wall form, ball is set therebetween, the lower end is provided with bearing; And block bearing with bearing catch and elastic card; On the rotating base lower wall pole changer is set, foot pad is set on the pole changer, be equipped with spring and threaded between rotating base lower wall and the pole changer.
Above-mentioned a kind of multifunctional crane umbrella can easily make handrail slide up and down and locks with control umbrella cover gradient, also can make umbrella cover 360 degree rotations, and is simple in structure, easy to use.
Description of drawings
Fig. 1 is the utility model structural representation;
Fig. 2 is the structural representation of armrest mechanism in the utility model;
Fig. 3 is the structural representation of handle mechanism in the utility model;
Fig. 4 is for turning to the structural representation of mechanism in the utility model;

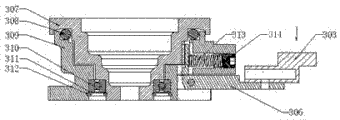

Fig. 5 is the cutaway view of rotating base in the utility model.
The specific embodiment
Below in conjunction with Figure of description the utility model is described further:
As shown in the figure, a kind of multifunctional crane umbrella comprises armrest mechanism 1, handle mechanism 2, vertical rod 4, pull bar 5, brace 6; It is characterized in that described armrest mechanism 1 set inside alignment pin 104, locating hole 401 is set in the vertical rod 4, both cooperate control umbrella cover gradient; Steering mechanism 3 is set, armrest mechanism 1 set inside pulley 102, the power of can reducing friction between vertical rod 4 and the base; Armrest mechanism 1 set inside grip switches 103, grip switches 103 is connected with handrail shell 101 through handle alignment pin 107, and grip switches 103 rear portions are equipped with handle spring 105 and spring holder 106; Grip switches 103 tops are provided with alignment pin 104, and during grip hand switch 103, alignment pin 104 ejects locating hole 401; Armrest mechanism 1 can freely slide up and down, if armrest mechanism 1 slides into the appropriate location, unclamps grip switches 103; Alignment pin 104 inserts locating hole 401, makes armrest mechanism 1 fixing, thus the angle of inclination of scalable umbrella cover.
Handle mechanism 2 comprises turning cylinder 201, reel 202, shakes the hand 206; Be equipped with torsion spring 203, packing ring 204, pad 205 in the turning cylinder 201 top inner chambers, play anti-skidding effect, the 206 insertion turning cylinders 201 of will shaking the hand; Turning cylinder 201 is rotated; Rotate thereby drive reel 202, shrink the umbrella rope, the opening and closing of control umbrella cover.
Steering mechanism 3 comprises rotating base 301, rotating disk 302, vinyl cover 304, and rotating base 301 upper ends are fixedly connected with rotating disk 302 through screw, and the lower end is fixed on the base through screw; Vertical rod 4 is socketed on the rotating disk 302, and is fixing through knob 305, and rotating base 301 is made up of with rotating base lower wall 309 dish 307 on the rotating base; Ball 308 is set therebetween, and the lower end is provided with bearing 310, and blocks bearing 310 with bearing catch 311 and elastic card 312; Dish 307 and rotating base lower wall 309 are free to slide relatively, pole changer 306 is set on the rotating base lower wall 309, foot pad 303 is set on the pole changer 306; Be equipped with spring 313 and threaded 314 between rotating base lower wall 309 and the pole changer 306, under nature, influenced by spring 313 elastic force; The teeth groove of dish 307 inner chambers is stuck on pole changer 306 and the rotating base, and dish 307 can not rotate on the rotating base, when tramping with one's feet down foot pad 303; The teeth groove of dish 307 inner chambers separates on pole changer 306 and the rotating base; Dish 307 can rotate on the rotating base, thereby drives rotating disk 302, vertical rod 4 rotations, makes the whole umbrella that hangs can do 360 degree rotations.
Claims (7)
1. multifunctional crane umbrella; Comprise armrest mechanism (1), handle mechanism (2), vertical rod (4), pull bar (5), brace (6); It is characterized in that described armrest mechanism (1) set inside alignment pin (104); Locating hole (401) is set in the vertical rod (4), and both cooperate control umbrella cover gradient, and steering mechanism (3) is set between vertical rod (4) and the base.
2. a kind of multifunctional crane umbrella according to claim 1 is characterized in that described armrest mechanism (1) set inside pulley (102).
3. a kind of multifunctional crane umbrella according to claim 2 is characterized in that described pulley (102) can be more than 4 or 4.
4. a kind of multifunctional crane umbrella according to claim 1; It is characterized in that described armrest mechanism (1) set inside grip switches (103); Grip switches (103) is connected with handrail shell (101) through handle alignment pin (107); Grip switches (103) rear portion is equipped with handle spring (105) and spring holder (106), and grip switches (103) top is provided with alignment pin (104).
5. a kind of multifunctional crane umbrella according to claim 1; It is characterized in that described handle mechanism (2) comprises turning cylinder (201), reel (202), shake the hand (206), be equipped with torsion spring (203), packing ring (204), pad (205) in the inner chamber of turning cylinder (201) top.
6. a kind of multifunctional crane umbrella according to claim 1; It is characterized in that described steering mechanism (3) comprises rotating base (301), rotating disk (302), vinyl cover (304); Rotating base (301) upper end is fixedly connected with rotating disk (302) through screw; The lower end is fixed on the base through screw, and vertical rod (4) is socketed on the rotating disk (302), and is fixing through knob (305).
7. a kind of multifunctional crane umbrella according to claim 1; It is characterized in that described rotating base (301) is made up of dish (307) and rotating base lower wall (309) on the rotating base; Ball (308) is set therebetween; The lower end is provided with bearing (310), and blocks bearing (310) with bearing catch (311) and elastic card (312), and pole changer (306) is set on the rotating base lower wall (309); Foot pad (303) is set on the pole changer (306), is equipped with spring (313) and threaded (314) between rotating base lower wall (309) and the pole changer (306).
