本实用新型涉及一种纸巾盒，包括盒体及与盒体连接的盒盖，盒盖上设置取纸口，其特征在于，该盒体内设有托纸板，托纸板与盒体底部之间设置有弹性支撑件，托纸板设有多个凹口；该盒体内壁壁面设有多列纵向滑轨。在盒内的纸巾量越来越少时，弹簧可以将托纸板上的纸巾承托在取纸口的部位，盒体内壁上的滑轨与托纸板凹口卡合，能使托纸板平行移动不易倾斜，保持处于水平部位，便于抽取纸巾。本实用新型环保实用、结构设计合理、使用方便。
The utility model relates to a tissue box, comprising a box body and a box cover connected to the box body, a paper taking-out opening is arranged on the box cover, and the box body is provided with a paper support board, an elastic support member is arranged between the paper support board and the bottom of the box body, and the paper support board is provided with a plurality of notches; the inner wall of the box body is provided with a plurality of rows of longitudinal slide rails. When the amount of tissue paper in the box is getting less and less, the spring can support the tissue paper on the paper support board at the position of the paper taking-out opening, and the slide rail on the inner wall of the box body is engaged with the notch of the paper support board, so that the paper support board can move in parallel and is not easy to tilt, and is kept in a horizontal position, so as to facilitate the extraction of tissue paper. The utility model is environmentally friendly and practical, has a reasonable structural design, and is easy to use.
Description
Technical field
The utility model relates to a kind of daily living article, is specifically related to a kind of paper towel box.
Background technology
Place the paper towel box of drawing-type facial tissue as the routine work life and be made up of box body and lid usually, lid top is provided with opening paper supply towel and extracts out.But these paper towel box in use, and when accumulating in the bottom of paper towel box, the space in the box body constantly increases when the paper handkerchief amount is fewer and feweri, just is difficult to be drawn into paper handkerchief from the paper taking port on surface.
Summary of the invention
The purpose of the utility model is to provide a kind of environmental protection practicality, reasonable in design, paper towel box easy to use, though this paper towel box paper handkerchief amount what, can realize extracting easily.
The utility model is realized through following technical scheme: a kind of paper towel box, comprise box body and the lid that is connected with box body, and paper taking port is set on the lid; It is characterized in that; Be provided with paper platform in this box body, be provided with elastic supporting member for supporting optical member between paper platform and the box body bottom, paper platform is provided with a plurality of recesses; This inboard wall of cartridge wall is provided with the vertical slide rail of multiple row.
Above-described elastic supporting member for supporting optical member is a spring.
Above-described elastic supporting member for supporting optical member is arranged at the paper platform bottom.
Above-described a plurality of recess places edge, paper platform four limit respectively.
The corresponding engaging of a plurality of recesses at the vertical slide rail of above-described multiple row and paper platform edge.
Adopt the utility model of above structure; When the paper handkerchief amount in box is fewer and feweri; Spring can be with the paper handkerchief support on the paper platform at the position of paper taking port, and the slide rail on the inboard wall of cartridge engages with recess on the paper platform, can make parallel the moving of paper platform be difficult for tilting; Keep being in horizontal position, be convenient to extract paper handkerchief.Paper towel box can be opened easily, closure, make add paper, to get paper all easy to operate, paper towel box is reusable.The utility model environmental protection practicality, reasonable in design, easy to use.
Description of drawings

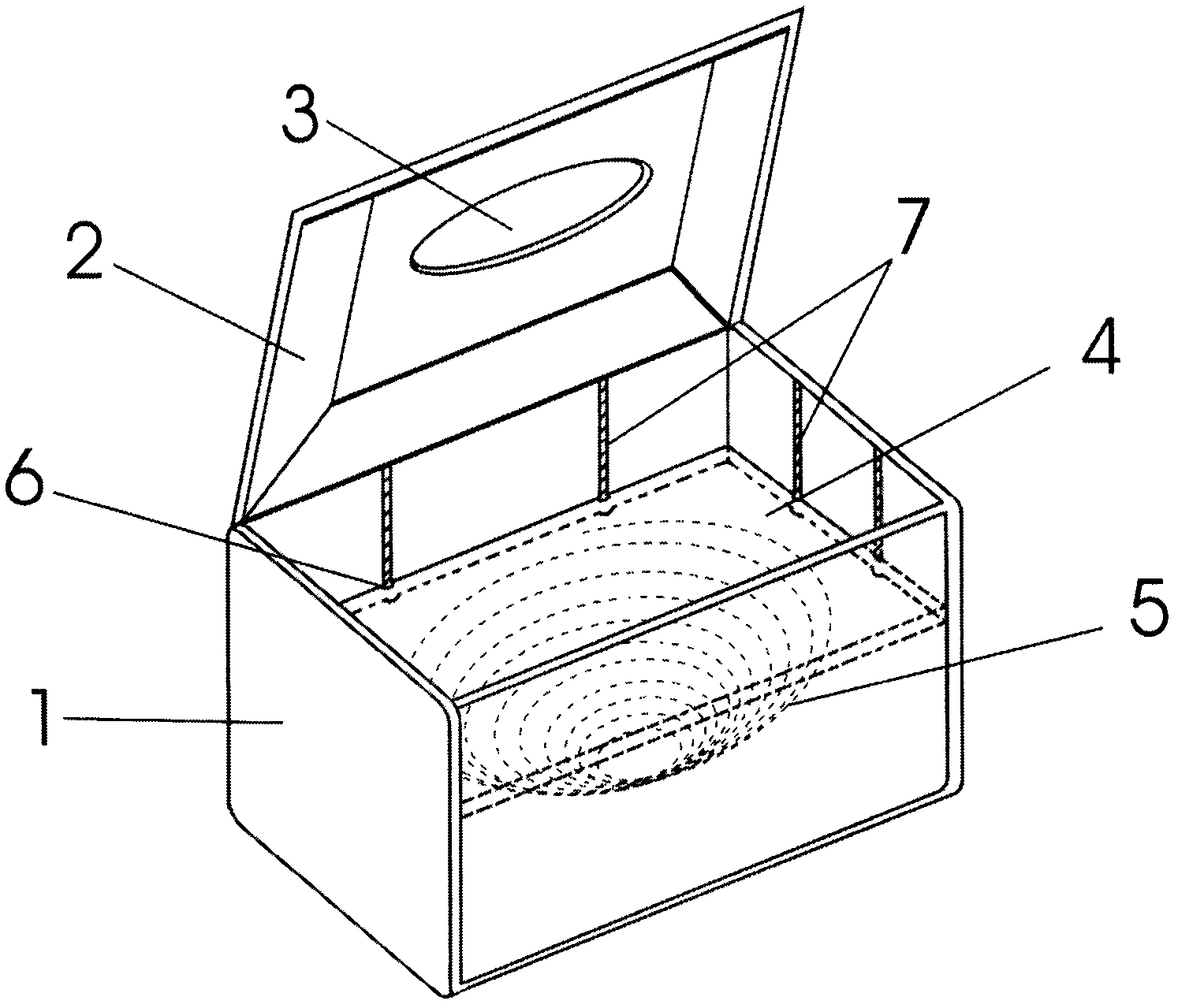

Fig. 1 is the structural representation of the utility model.
Fig. 2 is the profile of the utility model.
The specific embodiment
See also illustrated in figures 1 and 2; A kind of paper towel box of the utility model comprises box body 1 and the lid 2 that is connected with box body, and paper taking port 3 is set on the lid; Be provided with paper platform 4 in this box body; Be provided with elastic supporting member for supporting optical member 5 between paper platform and the box body bottom, this elastic supporting member for supporting optical member is embodiment with the spring in the utility model, and this spring is arranged at the bottom of paper platform 4.Paper platform is provided with a plurality of recesses 6, places edge, paper platform four limit respectively.This box body 1 inwall wall is provided with the vertical slide rail 7 of multiple row, with a plurality of recesses 6 corresponding engagings at paper platform 4 edges.
During use, paper handkerchief is placed on the paper platform 4, spring can be with the position of the paper handkerchief support on the paper platform 4 at paper taking port 3; Multiple row slide rail 7 on the inboard wall of cartridge engages with a plurality of recesses 6 on the paper platform; Can make parallel the moving of paper platform be difficult for tilting, keep being in horizontal position, be convenient to extract paper handkerchief.The utility model is reusable, environmental protection practicality, reasonable in design, easy to use.
