Abstract
本实用新型公开了一种箱式变电站的散热装置，包括箱体、设于箱体内的变压器室顶部的引风机、设于箱体上部的排气窗、低压室电容器柜，其特征在于在变压器室的底部还设有一个或一个以上的送风机。本实用新型具有散热效果好的优点，避免发热元件温升过高，可保证设备长时间的正常运行。
The utility model discloses a heat dissipation device for a box-type transformer substation, comprising a box body, an induced draft fan arranged at the top of a transformer room in the box body, an exhaust window arranged at the upper part of the box body, and a capacitor cabinet in a low-voltage room, characterized in that one or more blowers are arranged at the bottom of the transformer room. The utility model has the advantages of good heat dissipation effect, avoids excessive temperature rise of heating elements, and can ensure long-term normal operation of the equipment.
Description
Technical field
The utility model relates to a kind of heat abstractor of box-type substation.
Background technology
Box-type substation is widely used in the urban construction; It comprises casing, hyperbaric chamber, transformer room, transformer, low-pressure chamber, the exhausting window of being located at casing top, the high voltage switch circuit of being located at the transformer front and back ends and low voltage switching circuit, in low-pressure chamber, is provided with capacitor panel, is provided with several capacitors in the cabinet; Be provided with several induced draft fans at the top, transformer room; The operating caloric value of transformer is discharged through exhausting window, but the radiating effect of this structure is unsatisfactory, in case the too high equipment that will cause of transformer Yin Wendu is stopped transport; The temperature rise of capacitor is too high also can to cause equipment fault, the normal for a long time operation of the equipment that can't guarantee.
The utility model content
The purpose of the utility model is the above-mentioned deficiency that exists to prior art, and a kind of heat abstractor of box-type substation is provided, and it has the advantage of good heat dissipation effect, avoids the heater element temperature rise too high, the normal for a long time operation of the equipment that can guarantee.
For achieving the above object; The heat abstractor of the box-type substation of the utility model; Comprise casing, be located at induced draft fan, the exhausting window of being located at casing top, the low-pressure chamber capacitor panel at the top, transformer room in the casing, it is characterized in that also being provided with one or more forced draft fan in the bottom of transformer room.
Forced draft fan and induced draft fan cooperate, and can improve the gaseous exchange situation in the transformer room, realize better radiating effect, avoid the transformer temperature rise too high, can guarantee the normal for a long time operation of transformer.
As the further improvement of the utility model, also be provided with one or more induced draft fan on the sidewall of the low-pressure chamber capacitor panel in casing; Can the heat in the low-pressure chamber be discharged, avoid the capacitor temperature rise too high, can guarantee the normal for a long time operation of capacitor.
In sum, the utlity model has the advantage of good heat dissipation effect, avoid the heater element temperature rise too high, the normal for a long time operation of the equipment that can guarantee.
Description of drawings

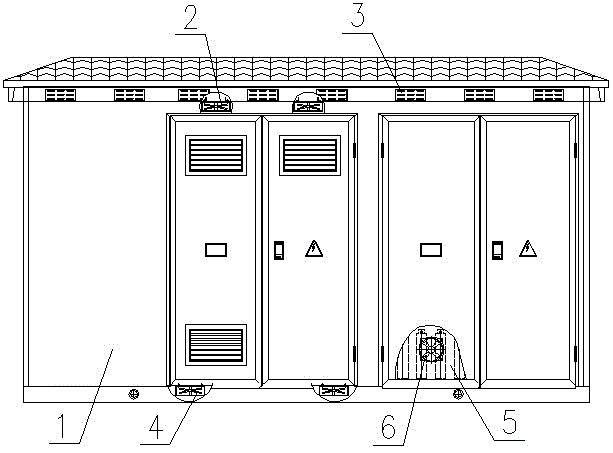

Fig. 1 is the front view of the utility model embodiment.
Fig. 2 is the vertical view of tank floor among Fig. 1.
Embodiment
Below in conjunction with accompanying drawing the utility model is done further detailed explanation.
Like Fig. 1, shown in Figure 2; The heat abstractor of this box-type substation; Comprise casing 1, be located at the top, transformer room in the casing 1 four induced draft fans 2, be located at several exhausting windows 3, the low-pressure chamber capacitor panel 5 on casing 1 top; Also be provided with four forced draft fans 4 in the bottom of transformer room, also be provided with two induced draft fans 6 on the sidewall of the low-pressure chamber capacitor panel 5 in casing 1;
The utility model cooperates through forced draft fan 4 and induced draft fan 2 and induced draft fan 6 and induced draft fan 2; Can improve the gaseous exchange situation in the transformer room; Heat is discharged from exhausting window 3; Realize better radiating effect, avoid the temperature rise of transformer and capacitor too high, the normal for a long time operation of the equipment that can guarantee.
Claims (2)
1. the heat abstractor of a box-type substation; Comprise casing, be located at induced draft fan, the exhausting window of being located at casing top, the low-pressure chamber capacitor panel at the top, transformer room in the casing, it is characterized in that also being provided with one or more forced draft fan in the bottom of transformer room.
2. the heat abstractor of box-type substation as claimed in claim 1 is characterized in that also being provided with one or more induced draft fan on the sidewall of the low-pressure chamber capacitor panel in casing.
