Abstract
The utility model discloses a solar high-power LED (light emitting diode) lawn lamp, comprising a solar panel, an aluminum alloy cover board, a lamp holder, a toughened glass lamp cover, a lamp ground column, a storage battery, a base and a high-power energy-saving LED bulb lamp, wherein the toughened glass lamp cover is mounted at the upper end of the lamp ground column, the aluminum alloy cover board is arranged above the toughened glass lamp cover, the solar panel is arranged above the aluminum alloy cover board, the lamp holder is arranged above the lamp ground post, the storage battery is installed in the lamp ground column, the base is arranged at the lower end of the lamp ground post, and the high-power energy-saving LED bulb lamp is mounted on the lamp holder. The solar high-power LED lawn lamp is simple in structure, is energy-saving and environmentally-friendly, and is safe to use and easy to install.
Description
Technical field
The utility model relates to field of light fittings, more specifically to a kind of large power LED solar energy Lawn lamp.
Background technology
Street lamp is as an important component part of town and country public lighting system; Though illumination is provided can for people at night, each street lamp all will consume a large amount of electric energy when work, consumes resources very; But street lamp is again a kind of requisite communal facility; Now also do not have a kind of street lamp that can utilize solar energy on the market, let street lamp focused energy on daytime, the energy that utilizes night assemble uses when supplying street lamp to work night on daytime.
The utility model content
For addressing the above problem, the utility model aims to provide a kind of simple in structure, energy-conserving and environment-protective, large power LED solar energy Lawn lamp safe in utilization.
The utility model large power LED solar energy Lawn lamp comprises solar panels, aluminium alloy cover plate, lamp socket, lamp safety glass cover, lamp ground post, battery, base, the energy-conservation bulb lamp of great power LED, and said lamp safety glass cover is contained in the upper end of said lamp ground post; Dress aluminium alloy cover plate above said lamp safety glass cover; Above said aluminium alloy cover plate, adorn said solar panels, said lamp socket is contained in post top, said lamp ground, and said battery is contained in the said lamp ground post; The dress base in post lower end, said lamp ground; The energy-conservation bulb lamp of said great power LED is contained on the said lamp socket, and the energy-conservation bulb lamp of said great power LED becomes lamp group plate by the energy-conservation light emitting diode series of high-power LED, said lamp group plate is contained in aluminium presses in the heat sink lamp box; By constant-current driving power supply and energy-saving electric element built-up circuit plate; Circuit board is contained in lamp group plate back and with the lead connection, on the face of aluminium pressure heat sink lamp box, adorns the safety glass outer cover, press the lower end dress lamp holder of heat sink lamp box at aluminium.
The beneficial effect of a kind of large power LED solar energy Lawn lamp of the utility model is: simple in structure, energy-conserving and environment-protective, safe in utilization, install simple.
Description of drawings

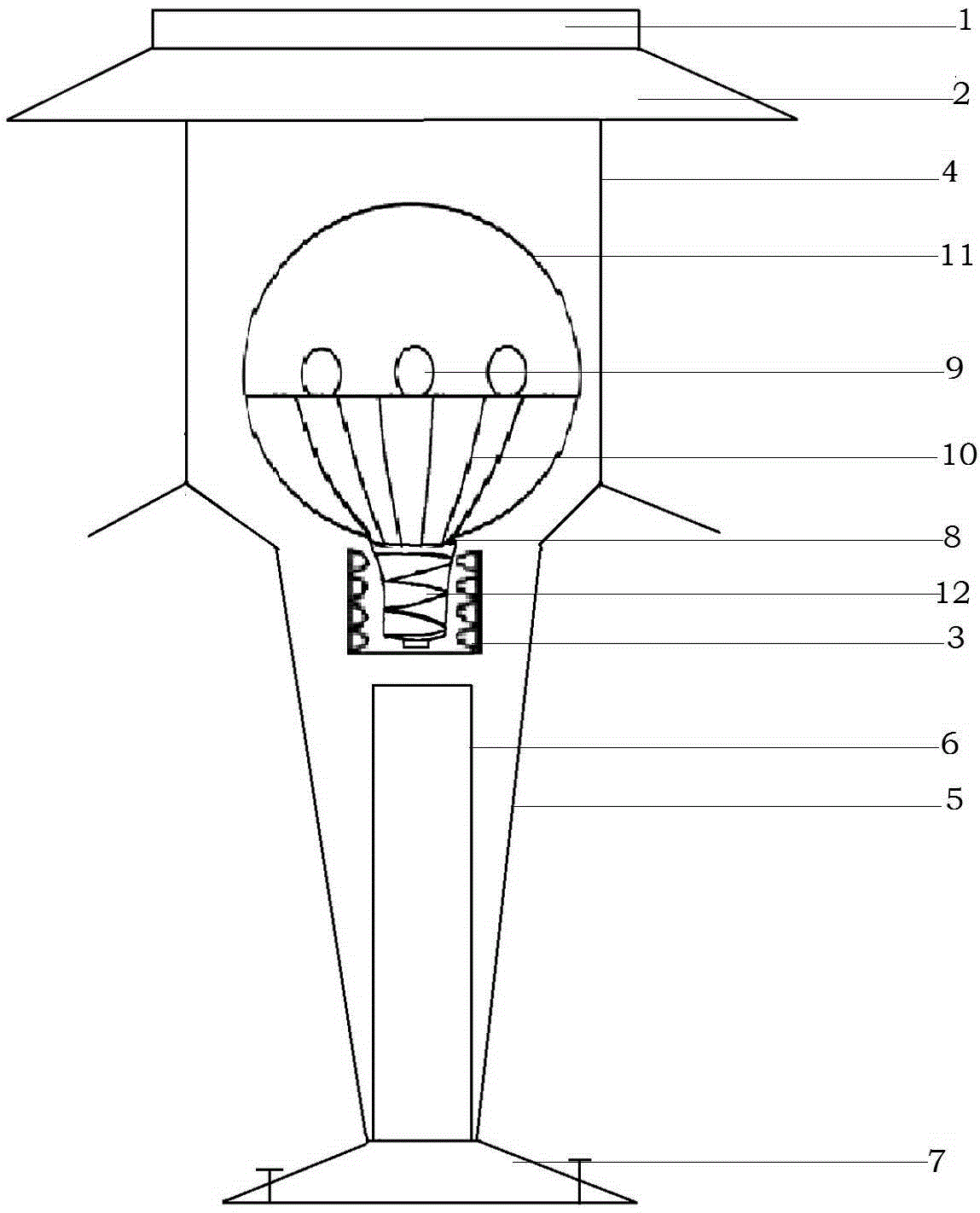

Fig. 1 is the structural representation of the utility model large power LED solar energy Lawn lamp.
The specific embodiment
Below in conjunction with Figure of description the utility model large power LED solar energy Lawn lamp is further described.
In Fig. 1, the utility model large power LED solar energy Lawn lamp comprises solar panels 1, aluminium alloy cover plate 2, lamp socket 3, lamp safety glass cover 4, lamp ground post 5, battery 6, base 7, the energy-conservation bulb lamp 8 of great power LED; Said lamp safety glass cover 4 is contained in the upper end of said lamp ground post 5; Dress aluminium alloy cover plate 2 is adorned said solar panels 1 above said aluminium alloy cover plate 2 above said lamp safety glass cover 4, and said lamp socket 3 is contained in post 5 tops, said lamp ground; Said battery 6 is contained in the said lamp ground post 5; The dress base 7 in post 5 lower ends, said lamp ground, said high-power LED energy-saving lamp 8 is contained on the said lamp socket 3, and said solar panels 1 supply the energy-conservation bulb lamp 8 of said great power LED to use in said battery 6 electrical power storage; The energy-conservation bulb lamp 8 of said great power LED becomes lamp group plate 9 by the energy-conservation light emitting diode series of high-power LED; Said lamp group plate 9 is contained in aluminium presses in the heat sink lamp box 10,, circuit board is contained in lamp group plate 9 connects at the back and with lead by constant-current driving power supply and energy-saving electric element built-up circuit plate; Dress safety glass outer cover 11 on the face of aluminium pressure heat sink lamp box 10 presses the lower end of heat sink lamp box 10 to adorn lamp holder 12 at aluminium.Need only during installation base 7 is fixed on the ground.
Claims (2)
1. large power LED solar energy Lawn lamp; Comprise solar panels, aluminium alloy cover plate, lamp socket, lamp safety glass cover, lamp ground post, battery, base, the energy-conservation bulb lamp of great power LED; It is characterized in that: said lamp safety glass cover is contained in the upper end of said lamp ground post, and dress aluminium alloy cover plate is adorned said solar panels above said aluminium alloy cover plate above said lamp safety glass cover; Said lamp socket is contained in post top, said lamp ground; Said battery is contained in the said lamp ground post, the dress base in post lower end, said lamp ground, and the energy-conservation bulb lamp of said great power LED is contained on the said lamp socket.
2. a kind of large power LED solar energy Lawn lamp according to claim 1; It is characterized in that: the energy-conservation bulb lamp of said great power LED becomes lamp group plate by the energy-conservation light emitting diode series of high-power LED; Said lamp group plate is contained in aluminium presses in the heat sink lamp box,, circuit board is contained in lamp group plate connects at the back and with lead by constant-current driving power supply and energy-saving electric element built-up circuit plate; Dress safety glass outer cover on the face of aluminium pressure heat sink lamp box presses the lower end of heat sink lamp box to adorn lamp holder at aluminium.
