Abstract

The present utility model relates to an outdoor floor type equipment comprehensive cabinet which is composed of a cabinet body, a cabinet door, and a rain shelter arranged on the upper end of the cabinet body. The cabinet body is a cavity body with an open end face, the cabinet door is movably connected with the open end, lock catches are arranged correspondingly on the cabinet body and the cabinet door, and a temperature controller is fixed on the rear wallof the cabinet body. Two openings are arranged on the upper end face of the cabinet body, an exhaust fan and an air suction fan are arranged respectively inside the two openings, and the temperature controller is connected with the exhaust fan and the air suction fan in parallel. The circumference of the upper end face of the cabinet body is extended outside to form an outer edge, ventilation holes are distributed on the outer edge, and screw holes are arranged on four angles. A dustproof net is covered on the outer edge, the rain shelter is pressed on the dustproof net, the rain shelter is a cavity body with an open lower end, an inner edge is arranged inside the lower end opening, a sealing strip is arranged on the lower end face of the inner edge, screw holes are arranged on four angles of the inner edge, and the rain shelter is fixedly connected with the outer edge through bolts. The cabinet is waterproof, the heat exchange between the inside of the cabinet and the outside can be maintained, the dry and mild working environment of electronic equipment inside the cabinet body is provided, and the service life of the electronic equipment can be prolonged.

Description

Outdoor console mode equipment complex cabinet
One, technical field: the utility model relates to a kind of outdoor cabinet, relates in particular to a kind of outdoor console mode equipment complex cabinet.
Two, background technology: along with the quickening of urban informationization, electronization, networking process, electronic equipment has all obtained widely using at indoor and outdoors, the electronic eyes of traffic intersection for example, traffic guidance screen, traffic lights, WiFi etc.For protecting these equipment, prolong its useful life, need be in electronic equipment being placed on the protection cabinet.Because outdoor environment complicated and changeable, the invasion of being exposed to the sun of the burn into sun of rainwater, travel fatigue so the waterproof of outdoor cabinet, heat dispersion are whether the decision cabinet is durable in use, is played the important performance of protecting internal unit.Usually the employing of cabinet chamber door is embedded, and still embedded chamber door must stay enough big space in the left and right side for guaranteeing the smooth switch of chamber door, and inflow is inside easily to cause rainwater, is to strengthen water resistance, just requires to improve the quality and the waterproof effect of waterproof bar.If it is bad that the waterproof of casing is done, can cause equipment in the casing because of making moist or immersion components and parts easy ageing, getting rusty, serious meeting makes line short burn out equipment.Waterproof and heat radiation are a pair of contradictory relations, for guaranteeing the waterproof effect of casing, on casing, do not leave the space as far as possible; But make the atmosphere draught-free in the casing like this; And outdoor casing directly shined upon, and equipment the temperature inside the box can be very high under hot weather conditions, adds the heat that electronic equipment itself sends; So electronic unit is worked under hot environment easily for a long time, be very easy to break down and damage.
Three, summary of the invention: the purpose of the utility model is to propose a kind of with waterproof and effectively combination of heat radiation, the outdoor console mode equipment complex cabinet that is independent of each other.
The purpose of the utility model is achieved in that outdoor console mode equipment complex cabinet, is to be made up of casing, chamber door and the rain-proof shelter that is placed on casing upper end.Casing is the uncovered cavity body of an end face, at the active chamber door that is connected with of its opening end, is equiped with snap close at casing and chamber door corresponding position, and the rear wall place is fixed with thermostat in casing.Have two mouthfuls in the casing upper surface, install scavenger fan and drawing fan respectively in two mouthfuls, thermostat is connected with scavenger fan and drawing fan.The upper surface periphery of casing stretches out, and forms the outer, on the outer, spreads all over ventilation hole, and four jiaos have screw.On the outer, be coated with Air Filter, the Air Filter upper press cover has rain-proof shelter, and rain-proof shelter is the uncovered cavity body in lower end, in the lower end is uncovered, is provided with interior edge, interiorly is provided with sealing strip along the lower surface, and interior edge has screw for four jiaos, and rain-proof shelter is fixedly connected with the outer through bolt.
Owing to implement technique scheme, the utility model can keep heat exchange good with the external world in the case in waterproof, provide electronic equipment at casing inner drying, euthermic operational environment, has prolonged the useful life of electronic equipment.
Four, description of drawings: the concrete structure of the utility model is provided by following accompanying drawing and embodiment:

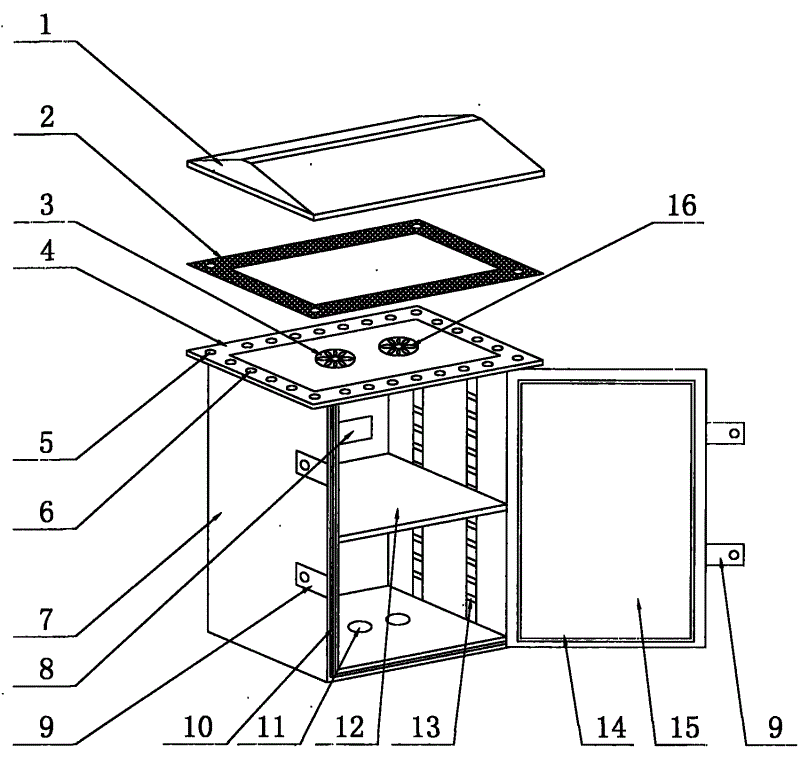

Fig. 1 is outdoor console mode equipment complex casing structure sketch map.
Legend: 1, rain-proof shelter, 2, Air Filter, 3, scavenger fan, 4, the outer, 5, screw, 6, ventilation hole; 7, casing, 8, thermostat, 9, snap close, 10, protruding circle, 11, through wires hole; 12, installing rack, 13, chute, 14, groove, 15, chamber door, 16, drawing fan.
Five, embodiment:
The utility model does not receive the restriction of following embodiment, can confirm concrete execution mode according to the technical scheme and the actual conditions of the utility model.
Embodiment: as shown in Figure 1, outdoor console mode equipment complex cabinet is to be made up of casing 7, chamber door 15 and the rain-proof shelter 1 that is placed on casing 7 upper ends.Casing 7 is the uncovered cavity body of an end face, at the active chamber door 15 that is connected with of its opening end, is equiped with snap close 9 in casing 7 and chamber door 15 corresponding positions, and snap close 9 adopts hales the formula Machine case lock.The place, two side is provided with vertical chute 13 in casing 7, is overlapped with installing rack 12 13 of chutes.The rear wall place is fixed with thermostat 8 in casing 7.Have two mouthfuls in casing 7 upper surfaces, install scavenger fan 3 and drawing fan 16 in two mouthfuls respectively, thermostat 8 is connected with scavenger fan 3 and drawing fan 16, controls the start and stop of two fans.Have two through wires holes 11 in casing 7 lower surfaces, be respectively applied for inlet wire and outlet.For preventing that mouse and water from getting in the casing 7 through through wires hole 11, is plugged with bowl-shape rubber blanket in the through wires hole 11.Under through wires hole 11 untapped situation, not perforate of rubber blanket only when threading, is done the hole threading again, and does the shutoff processing with cured with veil.The upper surface periphery of casing 7 stretches out, and forms outer 4, on outer 4, spreads all over ventilation hole and has screw 5 for 6, four jiaos.On outer 4, be coated with Air Filter 2, Air Filter 2 upper press covers have rain-proof shelter 1, and rain-proof shelter 1 is the uncovered cavity body in lower end; In the lower end is uncovered, be provided with interior edge; In be provided with sealing strip along the lower surface, interior edge has screw for four jiaos, rain-proof shelter 1 is fixedly connected with outer 4 through bolt.Uncovered shape, length and casing 7 upper surfaces etc., rain-proof shelter 1 lower end are big, and ventilation hole 6, scavenger fan 3 and drawing fan 16 are covered in its cavity scope.
Be provided with the protruding circle 10 to outer process in casing 7 uncovered ends, on protruding circle 10, be with waterproof gland cover, 15 medial surface places have corresponding groove 14 at chamber door.When chamber door 15 was closed, the protruding circle 10 that has waterproof gland cover inserted in the groove 14, but this kind structure enhanced leaktightness effect is stopped rainwater and got into casing.
In use, electronic equipment is fixed on the installing rack 12, regulates the height of installing rack 12 through chute 13.Thermostat 8 when temperature is too high in the casing 7, starts scavenger fan 3 and drawing fan 16 according to the temperature in the casing 7.Scavenger fan 3 enters rain-proof shelter 1 with high-temperature gas, is discharged by ventilation hole 6 again.Drawing fan 16 sucks rain-proof shelter 1 with extraneous Cryogenic air by ventilation hole 6 simultaneously, sucks cooling in the casing 7 again.
Above technical characterictic has constituted the most preferred embodiment of the utility model, and it has stronger adaptability and best implementation result, can increase and decrease inessential technical characterictic according to actual needs, satisfies the needs of different situations.

Claims (5)

1. outdoor console mode equipment complex cabinet; Be by casing, chamber door; Forming casing with the rain-proof shelter that is placed on the casing upper end is the uncovered cavity body of an end face; At the active chamber door that is connected with of its opening end; Be equiped with snap close at casing and chamber door corresponding position; It is characterized in that: the rear wall place is fixed with thermostat and has two mouthfuls in the casing upper surface in casing; Install scavenger fan and drawing fan in two mouthfuls respectively; Connect with scavenger fan and the drawing fan upper surface periphery of casing of thermostat stretches out; Form the outer; On the outer, spread all over ventilation hole; Four jiaos have screw and on the outer, are coated with Air Filter, and the Air Filter upper press cover has rain-proof shelter, and rain-proof shelter is the uncovered cavity body in lower end; In the lower end is uncovered, be provided with interior edge; In be provided with sealing strip along the lower surface, interior edge has screw for four jiaos, rain-proof shelter is fixedly connected with the outer through bolt.
2. outdoor console mode equipment complex cabinet as claimed in claim 1 is characterized in that: the place, two side is provided with vertical chute in casing, between chute, is overlapped with installing rack.
3. outdoor console mode equipment complex cabinet as claimed in claim 1 is characterized in that: have two through wires holes in the casing lower surface, be plugged with bowl-shape rubber blanket in the through wires hole.
4. outdoor console mode equipment complex cabinet as claimed in claim 1 is characterized in that: uncovered shape, length and casing upper surface etc., rain-proof shelter lower end are big, and ventilation hole, scavenger fan and drawing fan are covered in its cavity scope.
5. outdoor console mode equipment complex cabinet as claimed in claim 1, it is characterized in that: be provided with the protruding circle to outer process in the uncovered end of casing, on protruding circle, be with waterproof gland cover, the place has corresponding groove at the chamber door medial surface.
