Abstract

An improved structure of a support frame for a portable electronic device is used for placing a portable electronic device; the support frame includes a bearing seat and an arm, and the bearing seat is provided with a supporting portion for the lower edge of the portable electronic device to support, and the arm is pivotally connected to the bearing seat, and when the arm and the bearing seat are arranged at an angle, the back side of the portable electronic device can be supported; wherein, the supporting portion of the bearing seat is provided with an expansion structure that allows the supporting portion to vacate a plug-in space; in this way, the above-mentioned portable electronic device can be connected to an external device through the plug-in space.

Description

Improved structure of support frame of portable electronic device

technical field

The utility model relates to a peripheral device of a portable electronic device, in particular to an improved structure of a supporting frame of a portable electronic device.

Background technique

Due to the rapid development of the 3C industry, and in order to provide people with the use when they go out, many portable electronic devices have been developed, such as PDA, MP3, mobile phones, game consoles, and even handheld and tablet computers, so that people can go out can be used anytime, anywhere.

However, when there is an occasion for indoor use, in order to facilitate the use of portable electronic devices on places such as desktops in a sitting position, there are products such as support frames for portable electronic devices to come out. The traditional support frame used for portable electronic devices is nothing more than using the triangular principle to place the portable electronic device at different inclination angles. On the other hand, if the lower edge is designed with sockets for external connection, the support frame blocks the external connection space of these sockets in order to provide a load for the portable electronic device, and the user cannot use the support at the same time. rack to carry out operations such as power or data transmission.

In view of this, the designer of this utility model is to improve and solve the above-mentioned deficiencies. Naite devoted himself to research and combined with the application of theories, and finally proposed a utility model with a reasonable design and effectively improved the above-mentioned deficiencies.

Contents of the invention

The main purpose of the present utility model is to provide an improved structure of a support frame of a portable electronic device. The support frame can not only be used for placing the portable electronic device, but also can In this case, the user can simultaneously connect to the jack located at the lower edge of the portable electronic device through external connection or other means.

For realizing above-mentioned object, the technical scheme that the utility model adopts is:

An improved structure of a support frame of a portable electronic device, which is used for placing a portable electronic device; it is characterized in that the support frame includes:

A bearing seat, on which is provided with abutting portion, for the lower edge of the above-mentioned portable electronic device to rest on; and

An arm is pivotally connected to the bearing base, and is disposed at an angle with the bearing base for the back side of the portable electronic device to lean against;

Wherein, an unfolding structure is provided on the abutting portion of the bearing base to allow the abutting portion to leave an insertion space; thus, the above-mentioned portable electronic device can be connected with external equipment through the insertion space.

Wherein: the unfolding structure means that the abutting portion includes two opposite sliders, and the two sliders are in sliding fit with the bearing seat, so that the two sliders are relatively far apart to slide and unfold, so that The insertion space is formed between the two sliders.

Wherein: the abutting portion is located at the front end of the bearing seat.

Wherein: the bearing seat is provided with an auxiliary foot seat, the auxiliary foot seat includes a stretching part and a foot, the leg is located at the rear end of the bearing seat, and the stretching part extends from the rear end of the bearing seat into its inside for a sliding fit.

Wherein: an elastic element is arranged between the two sliders.

Wherein: each of the sliders has a downwardly recessed abutment surface, and a resisting edge protrudes from the front end of the abutment surface.

Wherein: the abutting surface is further provided with anti-slip lines.

Wherein: the carrying seat includes a base and an upper cover set on the base.

Wherein: an auxiliary foot seat is provided in the bearing seat, the auxiliary foot seat includes a stretching part and a foot, and a chute is provided in the base, and the stretching part is slidably matched with the chute, the chute The groove extends to the rear end of the bearing seat to form an opening, and the supporting leg is exposed outside the opening.

Wherein: the front end of the base is provided with a slide rail which is horizontally arranged, and each slide block is provided with a slide buckle at the rear end, and the slide rail is recessed for the slide buckle of each slide block to snap into for sliding fit.

Wherein: the rear end of the base and the upper cover jointly form a pivot groove, and the support arm is provided with a pivot hole, the pivot hole is pivotally connected with a hinge device, and the hinge device is arranged in the hinge groove.

Wherein: the support arm is in the shape of a "door", and the pivot holes are respectively provided on both sides of the bottom end of the "door".

Wherein: the top of the support arm in the shape of a "door" has a top.

Wherein: the space enclosed by the support arm in the shape of a "door" conforms to the shape of the bearing seat.

Wherein: the unfolded structure means that the abutting portion is composed of two sliders, and the two sliders are respectively slidably fitted on both sides of the front end of the bearing seat, so that the two sliders slide toward the front end of the bearing seat and Expand to form the insertion space between the two sliders.

Wherein: the bearing seat is provided with an auxiliary foot seat, the auxiliary foot seat includes a stretching part and a foot, the leg is located at the rear end of the bearing seat, and the stretching part extends from the rear end of the bearing seat into its inside for a sliding fit.

Wherein: each of the sliders has a downwardly recessed abutment surface, and a resisting edge protrudes from the front end of the abutment surface.

Wherein: the abutting surface is further provided with anti-slip lines.

Wherein: the bearing seat includes a base and an upper cover set on the base.

Wherein: an auxiliary foot seat is provided in the bearing seat, the auxiliary foot seat includes a stretching part and a foot, and a chute is provided in the base, and the stretching part is slidably matched with the chute, the chute The groove extends to the rear end of the bearing seat to form an opening, and the supporting leg is exposed outside the opening.

Wherein: the two sides of the front end of the base are respectively provided with a slide rail arranged vertically, and each slide block is provided with a slide buckle, and the slide rail is concave for the slide buckle of each slide block to snap into for sliding fit .

Wherein: the rear end of the base and the upper cover jointly form a pivot groove, and the support arm is provided with a pivot hole, the pivot hole is pivotally connected with a hinge device, and the hinge device is arranged in the hinge groove.

Wherein: the support arm is in the shape of a "door", and the pivot holes are respectively provided on both sides of the bottom end of the "door".

Wherein: the top of the support arm in the shape of a "door" has a top.

Wherein: the space enclosed by the support arm in the shape of a "door" conforms to the shape of the bearing seat.

Wherein: the unfolded structure means that the bearing seat includes two supporting plates with parallel spacing, and the abutment parts are respectively located on the two supporting plates, and the support arm is pivotally arranged between the two supporting plates, so that The support arm turns over and leaves between the two supporting plates, so as to form the insertion space between the abutting parts of the two supporting plates.

Wherein: the abutting portion is respectively located at the front ends of the two bearing plates.

Wherein: the rear ends of the two bearing plates are respectively provided with a pivot joint, and the rear end of the support arm is also provided with the same pivot joint as the two bearing plates, and a pivot is inserted into the pivot joints The parts are pivotally connected.

Among them: the two supporting plates are in the shape of a downward concave arc

Wherein: the support arm is in the same downward concave arc shape as the two support plates.

Wherein: the abutting portions of the two bearing plates have abutting surfaces, and a resisting edge protrudes from the front ends of the abutting surfaces.

Wherein: the abutting surface is further provided with anti-slip lines.

Wherein: the front end of the support arm has a top.

Wherein: one side of the top is provided with anti-slip lines.

Compared with the prior art, the utility model adopting the above-mentioned technical solution has the advantage that: the above-mentioned portable electronic device can be connected with external equipment through the plug-in space.

Description of drawings

Fig. 1 is a three-dimensional exploded view of the first embodiment of the utility model;

Fig. 2 is a three-dimensional combined view of the first embodiment of the utility model;

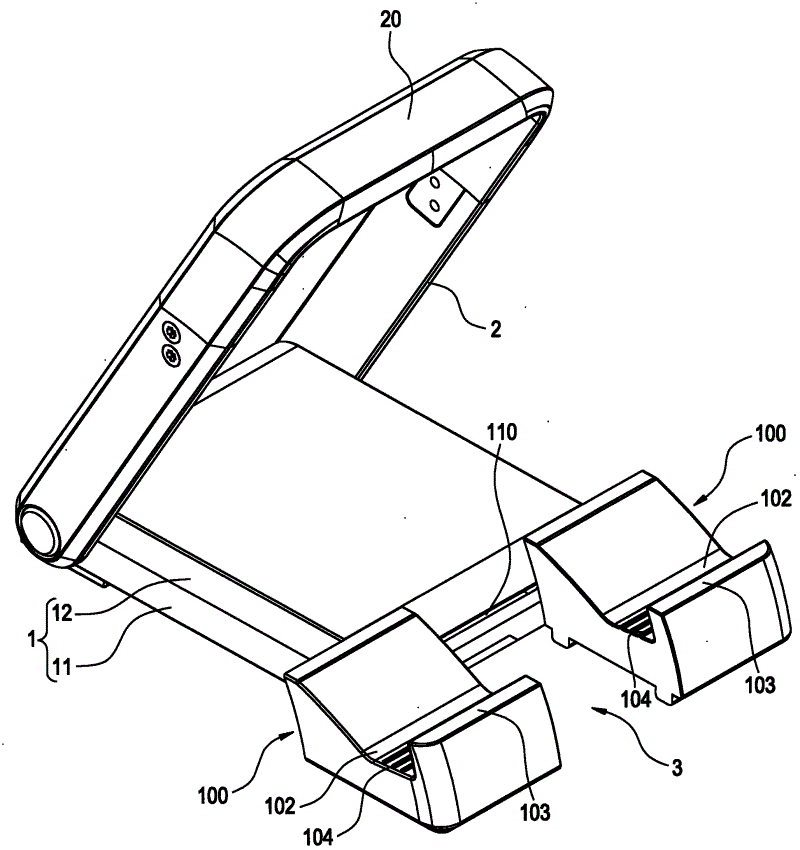

Fig. 3 is a perspective view of the first embodiment of the utility model in an unfolded state;

Fig. 4 is a schematic side view of a portable electronic device according to the first embodiment of the present invention;

Fig. 5 is a schematic front view of a portable electronic device according to the first embodiment of the present invention;

Fig. 6 is a schematic side view of another included angle for placing the portable electronic device according to the first embodiment of the present invention;

Fig. 7 is a perspective view of the second embodiment of the utility model in a folded state;

Fig. 8 is a perspective view of the second embodiment of the utility model in an unfolded state.

Explanation of reference numerals: bearing seat 1; abutting part 10; slider 100; sliding buckle 101; ; Opening 113; Upper cover 12; Auxiliary foot 13; Stretching part 130; Foot 131; Bearing plate 14; Pivot joint 140; Support arm 2; ; Pivot portion 23 ; pivot 24 ; plugging space 3 ; portable electronic device 4 ; jack 40 ;

Detailed ways

In order to enable your examiner to further understand the features and technical content of the utility model, please refer to the following detailed description and drawings of the utility model, but the attached drawings are only for reference and illustration, and are not used to explain the utility model be restricted.

Please refer to Figure 1 to Figure 4. The utility model provides an improved structure of a support frame of a portable electronic device, which is used for carrying a portable electronic device 4 (as shown in Figure 4 ) and is tilted upright for viewing or placing, and can be stored Folding and easy to carry (as shown in Figure 2); The expansion structure, and the insertion space 3 is just opposite to the lower edge of the portable electronic device 4. When the portable electronic device 4 is placed on the support frame, it can still be connected through the insertion space 3. The portable electronic device 4 can be connected with external devices (not shown).

Based on the above, the supporting base 1 is used to carry the above-mentioned portable electronic device 4 , and is provided with a resting portion 10 for the lower edge of the portable electronic device 4 to rest on it. In this embodiment, the bearing seat 1 includes a base 11 and an upper cover 12 covering the base 11, and the front end of the base 11 is provided with a slide rail 110 which is horizontally arranged, and the rear end of the base 11 is connected to the The upper cover 12 is jointly formed with a hinge groove 111; in addition, the abutting portion 10 is located at the front end of the bearing seat 1, and the slide rail 110 is used to slide and fit with the abutting portion 10, and in this embodiment, the abutting portion The back portion 10 is composed of two opposite sliders 100, each slider 100 is provided with a slider 101 at the rear end, and the slide rail 110 is concave for the slider 101 of each slider 100 to snap into. As a sliding fit. In addition, each sliding block 100 can also have a downwardly inclined and concave abutment surface 102, and a stop edge 103 is protruded from the front end of the abutment surface 102, and an anti-slip can be further provided on the abutment surface 102. 104 tattoos.

The support arm 2 is pivotally connected to the above-mentioned bearing base 1, and through the structural design of the pivot connection, the support arm and the bearing base 1 can be arranged at an angle within a certain range, so that the portable electronic device 4 can be carried on the bearing base 1. When the supporting base 1 is on, the support arm 2 can abut against the back side of the portable electronic device 4, so that the portable electronic device 4 can be tilted and erected. In this embodiment, the support arm 2 is in the shape of a "ㄇ" (or "door"), and has a top 20 at the top of the "ㄇ" shape, which is in the shape of a "ㄇ". A pivot hole 21 is respectively provided on both sides of the bottom end of the type, and each pivot hole 21 is pivotally connected with a pivot device 22, and the pivot device 22 is arranged in the pivot groove 111 of the bearing seat 1, so that the support arm 2 and the bearing seat 1 become a mutual pivoted assembly type, and at the same time, the space enclosed by the support arm 2 in the shape of "ㄇ" just matches the shape of the bearing seat 1, so when the support arm 2 and the bearing seat 1 are stacked, the The support arm 2 can just surround the outer side of the bearing base 1, so that the supporting frame forms a folded shape (ie, as shown in FIG. 2 ).

Please refer to Figure 3, if you want to use the support frame, in addition to turning the above-mentioned support arm 2 to form a certain angle with the bearing seat 1, and further pass the two sliders 100 of the above-mentioned abutting portion 10 It can slide on the slide rail 110 of the bearing seat 1, so that the two slide blocks 100 slide relatively away from each other to expand, so that a support can be formed between the two slide blocks 100 (also the abutting portion 10). An insertion space 3, which is a specific embodiment of the aforementioned unfolded structure. Furthermore, an elastic element (not shown) can also be arranged between the two sliders 100. When the support frame is in a folded configuration (as shown in FIG. 2 ), the two sliders 100 are the arms 2 The outer sides of the enclosed area move closer to each other to exert force on the elastic element; once the support arm 2 is overturned, the two sliders 100 slide relatively far away due to the release of the elastic force of the elastic element, so as to automatically form the insertion space 3 And the person who completes the unfolding.

Of course, the slide rails 110 are not necessarily arranged horizontally, but can also be arranged vertically and separately on both sides of the front end of the bearing seat 1 (or the base 11) (figure omitted). When the rail 110 is deployed by sliding forward, the insertion space 3 can also be formed between the two sliding blocks 100 .

In this way, the improved structure of the supporting frame of the portable electronic device of the present invention can be obtained by virtue of the above-mentioned structural composition.

Accordingly, as shown in FIG. 4 and FIG. 5 , since the abutting portion 10 of the bearing base 1 can form a plug-in space 3 , and when the portable electronic device 4 is placed on the support frame, the plug-in space 3 The connection space 3 can be just opposite to the lower edge of the portable electronic device 4, so that the jack 40 located at the lower edge of the portable electronic device 4 can not be blocked by any part of the support frame, and can be connected through the insertion space 3. A connection line 41 is provided to connect the jack 40 of the portable electronic device 4, so that the portable electronic device 4 can perform power supply, data transmission operations, or external data transmission operations.

In addition, please refer to FIG. 1 and FIG. 6 together. An auxiliary foot 13 is provided inside the bearing seat 1. The auxiliary foot 13 includes a stretching portion 130 and a leg 131. The leg 131 is located on the bearing seat. 1 rear end, and the stretching part 130 extends into it from the rear end of the bearing seat 1 for sliding fit; in more detail, a sliding groove 112 is provided in the base 11 of the bearing seat 1, and the pulling of the auxiliary foot seat 13 The extension portion 130 is slidably matched with the sliding groove 112 , and the sliding groove 112 extends to the rear end of the bearing base 1 to form an opening 113 for the leg 131 to be exposed outside the opening 113 . In this way, when the above-mentioned supporting arm 2 and the bearing seat 1 form a large angle, the supporting leg 131 of the auxiliary leg seat 13 can be pulled out to an appropriate length through the sliding fit of the stretching part 130 and the sliding groove 112, so as to increase The support stability of the support frame to the portable electronic device 4 at a relatively large angle, etc.

Furthermore, please refer to FIG. 7 and FIG. 8 , which are respectively a perspective view of the second embodiment of the utility model in a folded state and a perspective view in an expanded state of the second embodiment of the present invention. In this embodiment, the bearing seat 1 includes two supporting plates 14 arranged side by side at intervals. The two supporting plates 14 may be in the shape of a downwardly concave curved arc, and the front end of the bearing seat 1 is also provided with the aforesaid abutting portion. 10, that is, located at the front ends of the two bearing plates 14, the abutment portion 10 may also have an abutment surface 102, and a abutment edge 103 is protruded from the front end of the abutment surface 102, and the abutment surface 102 may also be Anti-slip lines 104 are further provided. In addition, the rear ends of the two bearing plates 14 of the bearing seat 1 are respectively provided with a pivot joint 140; The support plate 14 is in the same downward concave arc shape, the front end of the support arm 2 also has the aforementioned abutment top 20, and the side of the abutment top 20 is provided with anti-slip lines 200, and the rear end of the support arm 2 is also provided with a The two bearing plates 14 have the same pivot joint 23 . Accordingly, a pivot 24 penetrates through the pivot joints 140, 23 of the two support plates 14 and the support arm 2 to be pivotally connected, so that the two support plates 14 can be pivotally arranged with the support arm 2, and when the support When the abutting portion 20 of the arm 2 is located between the abutting portions 10 of the two bearing plates 14, the support frame is in a collapsed state (as shown in FIG. 7 ); When it is deployed at a certain angle (that is, the support arm 2 leaves the space between the two support plates 14), an insertion space 3 can be formed between the abutting parts 10 of the two support plates 14, which is Another specific embodiment of the aforementioned unfolded structure.

The above description is only illustrative, rather than restrictive, of the present utility model. Those of ordinary skill in the art understand that many modifications, changes or equivalents can be made without departing from the spirit and scope defined in the claims. But all will fall within the protection scope of the present utility model.

Claims (34)

1. the improvement structure of the supporting frame of a portable electronic devices is used for supplying a portable electronic devices to put; It is characterized in that this supporting frame comprises:

One load bearing seat which is provided with the butting section, for the breasting of above-mentioned portable electronic devices lower edge; And

One support arm is articulated with this load bearing seat, supply to be angle configuration with this load bearing seat above-mentioned portable electronic devices dorsal part against;

Wherein, on the butting section of this load bearing seat, be provided with the deployed configuration that makes this butting section can vacate a grafting space; So, above-mentioned portable electronic devices can be pegged graft the space and connects with external equipment through this.

2. the improvement structure of the supporting frame of portable electronic devices according to claim 1; It is characterized in that: said deployed configuration refers to that this butting section comprises two relative slide blocks; And these two slide blocks and this load bearing seat are for being slidingly matched; Make these two slide blocks be relatively away from slip and launch, between these two slide blocks, to form said grafting space.

3. the improvement structure of the supporting frame of portable electronic devices according to claim 1 and 2, it is characterized in that: this butting section is positioned at this load bearing seat front end.

4. the improvement structure of the supporting frame of portable electronic devices according to claim 1 and 2; It is characterized in that: be provided with an auxiliary runners in this load bearing seat; Said auxiliary runners comprises an extension section and a leg; This leg is positioned at this load bearing seat rear end, and this extension section is inserted into the inner to be slidingly matched by this load bearing seat rear end.

5. the improvement structure of the supporting frame of portable electronic devices according to claim 2 is characterized in that: be provided with elastic element between these two slide blocks.

6. according to the improvement structure of the supporting frame of claim 2 or 5 described portable electronic devices, it is characterized in that: respectively have recessed abutment facing on this slide block downwards, and be equipped with one at said abutment facing front end and keep out edge.

7. the improvement structure of the supporting frame of portable electronic devices according to claim 6 is characterized in that: further be provided with the on-slip line on this abutment facing.

8. the improvement structure of the supporting frame of portable electronic devices according to claim 2, it is characterized in that: this load bearing seat comprises a base portion and and is covered on the loam cake on this base portion.

9. the improvement structure of the supporting frame of portable electronic devices according to claim 8; It is characterized in that: be provided with an auxiliary runners in this load bearing seat; Said auxiliary runners comprises an extension section and a leg, and is provided with a chute in this base portion, and this extension section and this chute are slidingly matched; This chute extends to this load bearing seat rear end and is formed with an opening, and this leg is exposed to outside this opening.

10. the improvement structure of the supporting frame of portable electronic devices according to claim 8; It is characterized in that: this base portion front end be provided with one be cross setting slide rail; And respectively this slide block rear end is provided with a slide fastener, and said slide rail is invaginated type and snaps in for the slide fastener of this slide block respectively and be slidingly matched.

11. the improvement structure of the supporting frame of portable electronic devices according to claim 10; It is characterized in that: this base portion rear end and this loam cake are formed with the hinge groove jointly; Then be provided with the pivot hole on this support arm, said pivot hole is articulated with a pivot device, and said pivot device is located in this hinge groove.

12. the improvement structure of the supporting frame of portable electronic devices according to claim 11 is characterized in that: this support arm is " door " font, and on the both sides, bottom of this " door " font, is respectively equipped with said pivot hole.

13. the improvement structure of the supporting frame of portable electronic devices according to claim 12 is characterized in that: the top that is " door " font of this support arm has a clamping part.

14. according to the improvement structure of the supporting frame of claim 12 or 13 described portable electronic devices, it is characterized in that: this support arm is " door " space that font surrounded and conforms to this load bearing seat profile.

15. the improvement structure of the supporting frame of portable electronic devices according to claim 1; It is characterized in that: said deployed configuration refers to that this butting section comprises two slide blocks and constitutes; And these two slide blocks are snug fit at this place, load bearing seat front end both sides respectively; Make these two slide blocks slide and launch, between these two slide blocks, to form said grafting space towards this load bearing seat front end.

16. the improvement structure of the supporting frame of portable electronic devices according to claim 15; It is characterized in that: be provided with an auxiliary runners in this load bearing seat; Said auxiliary runners comprises an extension section and a leg; This leg is positioned at this load bearing seat rear end, and this extension section is inserted into the inner to be slidingly matched by this load bearing seat rear end.

17. the improvement structure of the supporting frame of portable electronic devices according to claim 15 is characterized in that: respectively have recessed downwards abutment facing on this slide block, and be equipped with one at said abutment facing front end and keep out edge.

18. the improvement structure of the supporting frame of portable electronic devices according to claim 17 is characterized in that: further be provided with the on-slip line on this abutment facing.

19. the improvement structure of the supporting frame of portable electronic devices according to claim 18 is characterized in that: this load bearing seat comprises a base portion and and is covered on the loam cake on this base portion.

20. the improvement structure of the supporting frame of portable electronic devices according to claim 19; It is characterized in that: be provided with an auxiliary runners in this load bearing seat; Said auxiliary runners comprises an extension section and a leg, and is provided with a chute in this base portion, and this extension section and this chute are slidingly matched; This chute extends to this load bearing seat rear end and is formed with an opening, and this leg is exposed to outside this opening.

21. the improvement structure of the supporting frame of portable electronic devices according to claim 20; It is characterized in that: this place, base portion front end both sides is provided with a vertical slide rail that is provided with respectively; Respectively this slide block then is provided with a slide fastener, and said slide rail is invaginated type and snaps in for the slide fastener of this slide block respectively and be slidingly matched.

22. the improvement structure of the supporting frame of portable electronic devices according to claim 21; It is characterized in that: this base portion rear end and this loam cake are formed with the hinge groove jointly; Then be provided with the pivot hole on this support arm, said pivot hole is articulated with a pivot device, and said pivot device is located in this hinge groove.

23. the improvement structure of the supporting frame of portable electronic devices according to claim 22 is characterized in that: this support arm is one " door " font, and on the both sides, bottom of this " door " font, is respectively equipped with said pivot hole.

24. the improvement structure of the supporting frame of portable electronic devices according to claim 23 is characterized in that: the top that is " door " font of this support arm has a clamping part.

25. according to the improvement structure of the supporting frame of claim 23 or 24 described portable electronic devices, it is characterized in that: this support arm is " door " space that font surrounded and conforms to this load bearing seat profile.

26. the improvement structure of the supporting frame of portable electronic devices according to claim 1; It is characterized in that: said deployed configuration refers to that this load bearing seat comprises two boards that spacing is arranged side by side; And said butting section is positioned at respectively on these two boards; This support arm then is hubbed between these two boards, makes the upset of this support arm and leaves between these two boards, between the butting section of these two boards, to form said grafting space.

27. the improvement structure of the supporting frame of portable electronic devices according to claim 26 is characterized in that: this butting section is positioned at this two board front ends respectively.

28. improvement structure according to the supporting frame of claim 26 or 27 described portable electronic devices; It is characterized in that: these two board rear ends are respectively equipped with a pin-joint part; And this support arm rear end also is provided with and these two pin-joint parts that board is identical, and penetrates described these pin-joint parts and be articulated with a pivot.

29. the improvement structure of the supporting frame of portable electronic devices according to claim 26 is characterized in that: these two boards are recessed curved arc shape downwards

30. the improvement structure of the supporting frame of portable electronic devices according to claim 29 is characterized in that: this support arm is the downwards recessed curved arc shape identical with these two boards.

31. the improvement structure of the supporting frame of portable electronic devices according to claim 26 is characterized in that: all have abutment facing on the butting section of these two boards, and be equipped with one at said abutment facing front end and keep out edge.

32. the improvement structure of the supporting frame of portable electronic devices according to claim 31 is characterized in that: further be provided with the on-slip line on this abutment facing.

33. the improvement structure of the supporting frame of portable electronic devices according to claim 26 is characterized in that: this supporting arm front end has a clamping part.

34. the improvement structure of the supporting frame of portable electronic devices according to claim 33 is characterized in that: this clamping part one side is provided with the on-slip line.
