Abstract
The utility model discloses a flexibility compensation device for a bender. The utility model aims to provide the flexibility compensation device which has the following advantages: high compensation precision, capability of full-automatically compensating flexibility, and capability of manually compensating flexibility. The flexibility compensation device comprises an upper cover plate and a base. The base is provided with rectangular tanks in a length direction. The rectangular tanks are internally provided with an odd number of inclined wedge mechanisms separately through equal distances from each other in a longitudinal direction. Each inclined wedge mechanism is composed of an inclined wedge and an arc cushion plate. The flexibility compensation device for the bender according to the utility model has the following advantages: high compensation precision, capability of full-automatically compensating flexibility, capability of manually compensating flexibility, reasonable structure and simple operation.
Description
Technical field
The utility model relates to the metal forming machinery in the mechanical engineering, more particularly, is to be used for the flexibility compensating device that the large-tonnage bending forming machine is used a kind of bender that obtains accurate deflection compensation on the workbench total length when bending.
Background technology
Effective configuration of bender work top is depended in the comprehensive utilization of bending machine die, and bender is through the bending function is implemented and accomplished to the setting in advance of mold shape, size and the motion process of bender oil cylinder up and down.
Because the raising of automaticity, can satisfy under the situation of task in rigidity and the intensity of metal forming machinery body, it is brief more good more that mechanical weight always designs.Often inevitably there are two defectives in bender in the bending process: the one, and the stressed slide block that causes of framework own produces the elasticity small deformation; The 2nd, the wearing and tearing of shaping dies.The former makes work piece produce deflection deformation, can't guarantee the total length uniformity of angle; The latter then influences the linearity of work piece.
For traditional be for the bender in application of force source with hydraulic pressure because the application of force of oil cylinder is inhomogeneous, in the bending process; Can make workpiece produce an amount of deflection in the longitudinal direction; And the overlength Bending Mould also through being usually used in the short workpiece of bending, can cause the only application of force in the middle part of counterdie of patrix like this, after long-term the use; Cause the workbench middle part recessed easily, also had a strong impact on the linearity of workpiece.
Thereby if address this problem that adopting gains in weight and strengthen the requirement that machine rigidity and intensity obviously can not meet modernized processing manufacturing industry, selection deflection compensation workbench is a kind of both economical way.At present, bender both domestic and external generally has two kinds of deflection compensation modes: a kind of is to be embedded in the hydraulic pressure deflection compensation in the workbench riser to many hydraulic cylinders; Another kind of then add the mechanical bending deflection compensation that protruding voussoir forms by many groups.It is few that the former adds salient point, and it is not high to add protruding precision, and leakage of oil easily, and manufacturing cost is high.The latter adds the convex curve ideal, but strict to part processing precision.
For this reason, the utility model adopts finite element analysis software oppositely to find the solution, and accurately calculates the sag curve of workbench; The array voussoir group that even distribution angle does not wait in the groove of workbench; Through moving voussoir, make middle protruding the sticking out of workbench, form corresponding sag curve; Reach the purpose of counter-bonification, thereby guarantee the linearity of workpiece.This deflection compensation mode has obtained general approval at present panel beating industry field.
The utility model content
The technical problem that solves
The utility model is to the deficiency of prior art, provides a kind of compensation precision high, not only automatically deflection compensation but also the manually flexibility compensating device used of the bender of deflection compensation.
Technical scheme
The flexibility compensating device that a kind of bender of the utility model is used comprises upper cover plate and base, and upper cover plate is installed on the base and can moves up and down, and Bending Mould is installed on the upper cover plate.Offer rectangular channel on the said base along its length, longitudinal separation is uniformly distributed with the odd number group Wedge mechanism is installed in this rectangular channel, and each Wedge mechanism is by the wedge of closed assembly and circular arc backing plate are formed formation local modulation Wedge mechanism successively from bottom to top.
Superposed circular arc backing plate all is vertical setting with the wedge that is positioned at the bottom, and each forms integrally-regulated wedge device to wedge and circular arc backing plate, and the upper surface of said circular arc backing plate is an arc surface; Lower surface is a horizontal plane, and the upper surface of wedge is the inclined-plane, and is positioned at the gradient maximum of the wedge in the middle of the base rectangular channel; And the gradient that is positioned at each wedge of the base rectangular channel left and right sides is progressively successively decreased successively; The lower surface of circular arc backing plate and the upper surface of wedge fit, and equidistant along its length when mobile when each wedge, middle to rise square big; Form one and can regulate the curve of amount of deflection size, realize whole deflection compensation according to voussoir displacement.
Be symmetrical set minor axis on the front and back sidewall of said each circular arc backing plate; Vertical break slot is offered corresponding to the position of minor axis in the top of side channel wall and in the front and back of base rectangular channel; Minor axis on each circular arc backing plate is slidingly mounted in each break slot; Each circular arc backing plate can only be done move up and down, and can not do left and right displacement, to guarantee the jacking effect of circular arc backing plate; About offering on the wedge of right-hand member to screw; All offer on all the other wedges the concentricity line of screw therewith about to through hole, hollow spacer pipe is installed respectively between each adjacent in twos wedge, in each wedge and hollow spacer pipe, install pull bar; The spinning nut is with fixing on the left end section of pull bar; The right-hand member section of pull bar is screwed into for thread segment in the wedge of right-hand member, regulates screw mandrel in the right part spinning of the screw of the wedge of right-hand member, and this adjusting screw mandrel and screw are installed on the right-hand member of base with bearing block, bearing; On the overhanging end section of regulating screw mandrel, reducing motor is installed; Start reducing motor, regulate the left and right displacement that screw mandrel drives each wedge, realize full-automatic whole deflection compensation.About pull bar also can be processed two sections, middle cover involvement with TBE (threaded both ends) connects.
Beneficial effect
The beneficial effect of the utility model is following:
(1) flexibility compensating device used of a kind of bender of the utility model through driven by motor, has been realized full-automatic deflection compensation, also can realize manual deflection compensation simultaneously;
(2) flexibility compensating device used of a kind of bender of the utility model; Many to circular arc backing plate and voussoir formation adjusting amount of deflection device; And the gradient of middle wedge is maximum; And the gradient that is positioned at each wedge of the base rectangular channel left and right sides is progressively successively decreased successively, and this collocation structure helps forming smooth sag curve, has improved the deflection compensation precision;
(3) flexibility compensating device used of a kind of bender of the utility model is rational in infrastructure, simple to operate.
Description of drawings
Fig. 1 is the main cross-sectional schematic of the utility model;

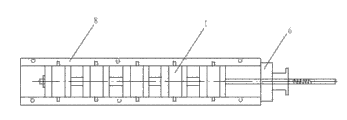

Fig. 2 is the schematic top plan view after upper cover plate being removed among Fig. 1;
Fig. 3 is the A-A cutaway view of Fig. 1.
Among the figure: 1 circular arc backing plate, 2 voussoirs, 3 hollow pipes overlap 4 pull bars 5 and regulate screw mandrel 6 bearing blocks 7 bearings 8 bases
9 upper cover plates
Below in conjunction with accompanying drawing the utility model is further specified.
The specific embodiment
Like Fig. 1, Fig. 2, Fig. 3; The flexibility compensating device that a kind of bender of the utility model is used; Comprise upper cover plate 9 and base 8; Offer rectangular channel along its length on the said base 8, longitudinal separation is uniformly distributed with the odd number group Wedge mechanism is installed in this rectangular channel, and each Wedge mechanism is by the wedge 2 of closed assembly and circular arc backing plate 1 are formed successively from bottom to top.
Superposed circular arc backing plate 1 all is vertical setting with the wedge 2 that is positioned at the bottom; Said circular arc backing plate 1 is formed integrally-regulated wedge device with wedge 2; The upper surface of said circular arc backing plate 1 is an arc surface, and lower surface is a horizontal plane, and the upper surface of wedge 2 is the inclined-plane; And the gradient that is positioned at the wedge 2 in the middle of base 8 rectangular channels is maximum; And the gradient that is positioned at each wedge 2 of the base rectangular channel left and right sides is progressively successively decreased successively, be symmetrical set minor axis on the front and back sidewall of each circular arc backing plate 1, and vertical break slot is offered corresponding to the position of minor axis in the top of side channel wall in the front and back of base 8 rectangular channels.
Minor axis on said each circular arc backing plate 1 is slidingly mounted in each break slot; About offering on the wedge 2 of right-hand member to screw; All offer on all the other wedges 2 the concentricity line of screw therewith about to through hole; Hollow spacer pipe is installed respectively between each adjacent in twos wedge 2, in each wedge 2 and hollow spacer pipe, is installed pull bar 4, the spinning nut is with fixing on the left end section of pull bar 4; The right-hand member section of pull bar 4 is screwed in the wedge 2 of right-hand member for thread segment; Right part spinning at the screw of the wedge 2 of right-hand member is regulated screw mandrel 5, and this adjustings screw mandrel 5 and screw are installed on the right-hand member of base 8 with bearing block 6, bearing 7, on the overhanging end section of adjusting screw mandrel 5, reducing motor are installed.
Embodiment one
The flexibility compensating device that a kind of bender of the utility model is used; Comprise upper cover plate 9 and base 8; Offer rectangular channel along its length on the said base 8; Longitudinal separation is uniformly distributed with 5 groups of Wedge mechanisms is installed in this rectangular channel, and each Wedge mechanism is by the wedge 2 of closed assembly and circular arc backing plate 1 are formed successively from bottom to top.
Superposed circular arc backing plate 1 all is vertical setting with the wedge 2 that is positioned at the bottom; Said circular arc backing plate 1 is formed integrally-regulated wedge device with wedge 2, and the upper surface of said circular arc backing plate 1 is an arc surface, and lower surface is a horizontal plane; The upper surface of wedge 2 is the inclined-plane; And the gradient that is positioned at the wedge 2 in the middle of base 8 rectangular channels is maximum, and the gradient that is positioned at each wedge 2 of the base rectangular channel left and right sides is progressively successively decreased successively, is symmetrical set minor axis on the front and back sidewall of each circular arc backing plate 1; And vertical break slot is offered corresponding to the position of minor axis in the top of side channel wall in the front and back of base 8 rectangular channels, and the minor axis on each circular arc backing plate 1 is slidingly mounted in each break slot; About offering on the wedge 2 of right-hand member to screw; All offer on all the other wedges 2 the concentricity line of screw therewith about to through hole; Hollow spacer pipe is installed respectively between each adjacent in twos wedge 2, in each wedge 2 and hollow spacer pipe, is installed pull bar 4, the spinning nut is with fixing on the left end section of pull bar 4; The right-hand member section of pull bar 4 is screwed in the wedge 2 of right-hand member for thread segment; Right part spinning at the screw of the wedge 2 of right-hand member is regulated screw mandrel 5, and this adjustings screw mandrel 5 and screw are installed on the right-hand member of base 8 with bearing block 6, bearing 7, on the overhanging end section of adjusting screw mandrel 5, reducing motor are installed.
Embodiment two
The flexibility compensating device that a kind of bender of the utility model is used; Comprise upper cover plate 9 and base 8; Offer rectangular channel along its length on the said base 8; Longitudinal separation is uniformly distributed with 11 groups of group Wedge mechanisms is installed in this rectangular channel, and each Wedge mechanism is by the wedge 2 of closed assembly and circular arc backing plate 1 are formed successively from bottom to top.
Superposed circular arc backing plate 1 all is vertical setting with the wedge 2 that is positioned at the bottom; Said circular arc backing plate 1 is formed integrally-regulated wedge device with wedge 2, and the upper surface of said circular arc backing plate 1 is an arc surface, and lower surface is a horizontal plane; The upper surface of wedge 2 is the inclined-plane; And the gradient that is positioned at the wedge 2 in the middle of base 8 rectangular channels is maximum, and the gradient that is positioned at each wedge 2 of the base rectangular channel left and right sides is progressively successively decreased successively, is symmetrical set minor axis on the front and back sidewall of each circular arc backing plate 1; And vertical break slot is offered corresponding to the position of minor axis in the top of side channel wall in the front and back of base 8 rectangular channels, and the minor axis on each circular arc backing plate 1 is slidingly mounted in each break slot; About offering on the wedge 2 of right-hand member to screw; All offer on all the other wedges 2 the concentricity line of screw therewith about to through hole; Hollow spacer pipe is installed respectively between each adjacent in twos wedge 2, in each wedge 2 and hollow spacer pipe, is installed pull bar 4, the spinning nut is with fixing on the left end section of pull bar 4; The right-hand member section of pull bar 4 is screwed in the wedge 2 of right-hand member for thread segment; Right part spinning at the screw of the wedge 2 of right-hand member is regulated screw mandrel 5, and this adjustings screw mandrel 5 and screw are installed on the right-hand member of base 8 with bearing block 6, bearing 7, on the overhanging end section of adjusting screw mandrel 5, reducing motor are installed.
Embodiment three
The flexibility compensating device that a kind of bender of the utility model is used; Comprise upper cover plate 9 and base 8; Offer rectangular channel along its length on the said base 8; Longitudinal separation is uniformly distributed with 13 groups of Wedge mechanisms is installed in this rectangular channel, and each Wedge mechanism is by two of closed assembly wedges successively from bottom to top, and promptly wedge 2 is formed with circular arc backing plate 1.
Superposed circular arc backing plate 1 all is vertical setting with the wedge 2 that is positioned at the bottom; Said circular arc backing plate 1 is formed integrally-regulated wedge device with wedge 2, and the upper surface of said circular arc backing plate 1 is an arc surface, and lower surface is a horizontal plane; The upper surface of wedge 2 is the inclined-plane; And the gradient that is positioned at the wedge 2 in the middle of base 8 rectangular channels is maximum, and the gradient that is positioned at each wedge 2 of the base rectangular channel left and right sides is progressively successively decreased successively, is symmetrical set minor axis on the front and back sidewall of each circular arc backing plate 1; And vertical break slot is offered corresponding to the position of minor axis in the top of side channel wall in the front and back of base 8 rectangular channels, and the minor axis on each circular arc backing plate 1 is slidingly mounted in each break slot; About offering on the wedge 2 of right-hand member to screw; All offer on all the other wedges 2 the concentricity line of screw therewith about to through hole; Hollow spacer pipe is installed respectively between each adjacent in twos wedge 2, in each wedge 2 and hollow spacer pipe, is installed pull bar 4, the spinning nut is with fixing on the left end section of pull bar 4; The right-hand member section of pull bar 4 is screwed in the wedge 2 of right-hand member for thread segment; Right part spinning at the screw of the wedge 2 of right-hand member is regulated screw mandrel 5, and this adjustings screw mandrel 5 and screw are installed on the right-hand member of base 8 with bearing block 6, bearing 7, on the overhanging end section of adjusting screw mandrel 5, reducing motor are installed.
The flexibility compensating device that a kind of bender of use the utility model is used; On the overhanging end section of regulating screw mandrel 5, reducing motor is installed; Start reducing motor, regulate the left and right displacement that screw mandrel 5 drives each wedge, realize full-automatic whole deflection compensation through wedge 2 jacking circular arc backing plates 1; Pull bar 4 also can support right ends, and middle cover involvement with TBE (threaded both ends) connects.
Below schematically the present invention and embodiment thereof are described, this description does not have restricted, and shown in the accompanying drawing also is one of embodiment of the present invention, and practical structure is not limited thereto.So,, under the situation that does not break away from the invention aim,, all should belong to protection scope of the present invention without creationary frame mode similar and the embodiment of designing with this technical scheme if those of ordinary skill in the art is enlightened by it.
Claims (3)
1. flexibility compensating device that bender is used; Comprise upper cover plate (9) and base (8); It is characterized in that; Said base is offered rectangular channel on (8) along its length, and longitudinal separation is uniformly distributed with the odd number group Wedge mechanism is installed in this rectangular channel, and each Wedge mechanism is by wedge of closed assembly (2) and circular arc backing plate (1) are formed successively from bottom to top.
2. the flexibility compensating device that a kind of bender according to claim 1 is used; It is characterized in that superposed circular arc backing plate (1) and the wedge (2) that is positioned at the bottom all are vertical setting, said circular arc backing plate (1) and wedge (2) are formed integrally-regulated wedge device; The upper surface of said circular arc backing plate (1) is an arc surface; Lower surface is a horizontal plane, and the upper surface of wedge (2) is the inclined-plane, and is positioned at the gradient maximum of the wedge (2) in the middle of base (8) rectangular channel; And the gradient that is positioned at each wedge (2) of the base rectangular channel left and right sides is progressively successively decreased successively, and the upper surface of the lower surface of circular arc backing plate (1) and wedge (2) fits.
3. the flexibility compensating device that a kind of bender according to claim 1 and 2 is used; It is characterized in that; Be symmetrical set minor axis on the front and back sidewall of said each circular arc backing plate (1); And offer vertical break slot corresponding to the position of minor axis on the top of the front and back side channel wall of base (8) rectangular channel, the minor axis on each circular arc backing plate (1) is slidingly mounted in each break slot; About offering on the wedge (2) of right-hand member to screw; All offer on all the other wedges (2) the concentricity line of screw therewith about to through hole; Between each adjacent in twos wedge (2), hollow spacer pipe (3) is installed respectively; In each wedge (2) and hollow spacer pipe (3), install pull bar (4); The spinning nut is with fixing on the left end section of pull bar (4), and the right-hand member section of pull bar (4) is screwed into for thread segment in the wedge (2) of right-hand member, regulates screw mandrel (5) in the right part spinning of the screw of the wedge (2) of right-hand member; This adjusting screw mandrel (5) and screw are installed on the right-hand member of base (8) with bearing block (6), bearing (7), on the overhanging end section of regulating screw mandrel (5), reducing motor are installed.
