Abstract

The utility model relates to an anti-skewing water cup, which comprises a cup body. A suction pad is arranged at the bottom of the cup body. The suction pad includes an upper suction cup and a lower suction cup. The top of the lower suction cup is docked, and a metal disc is arranged at the bottom of the suction pad. In the utility model, the setting of the suction pad can prevent the cup body from falling easily due to bumps or careless touches, which brings convenience to people's daily life, and the metal plate can further play the role of shock absorption. The utility model has the advantages of simple structure, low cost, economy and practicality, small articles, great effect and easy popularization.

Description

Anti crooked water cup

technical field

The utility model relates to a water cup, in particular to a water cup capable of preventing tilting.

Background technique

At present, the functions of traditional water cups are relatively complete. But for those who travel by car, the traditional water cup is easy to tilt and fall, causing the water to overflow. Even if the water cup is well sealed, it will also hinder the appearance due to falling and touching the porcelain; loss situation.

Utility model content

In order to solve the above-mentioned technical problems, the utility model provides a crooked-proof water cup.

Its technical solutions are:

An anti-skewing water cup, comprising a cup body, a suction pad is arranged at the bottom of the cup body, the suction pad includes an upper suction cup and a lower suction cup, the upper suction cup and the lower suction cup are arranged oppositely, and the top of the upper suction cup is connected to the top of the lower suction cup butt.

A metal disc is provided at the bottom of the suction pad.

The beneficial technical effect of the utility model is:

In the utility model, the setting of the suction pad can prevent the cup body from falling easily due to bumps or careless touches, which brings convenience to people's daily life, and the metal plate can further play a role of shock absorption. The utility model has the advantages of simple structure, low cost, economy and practicality, small articles, great effect and easy popularization.

Description of drawings

Below in conjunction with accompanying drawing and specific embodiment the utility model is further described:

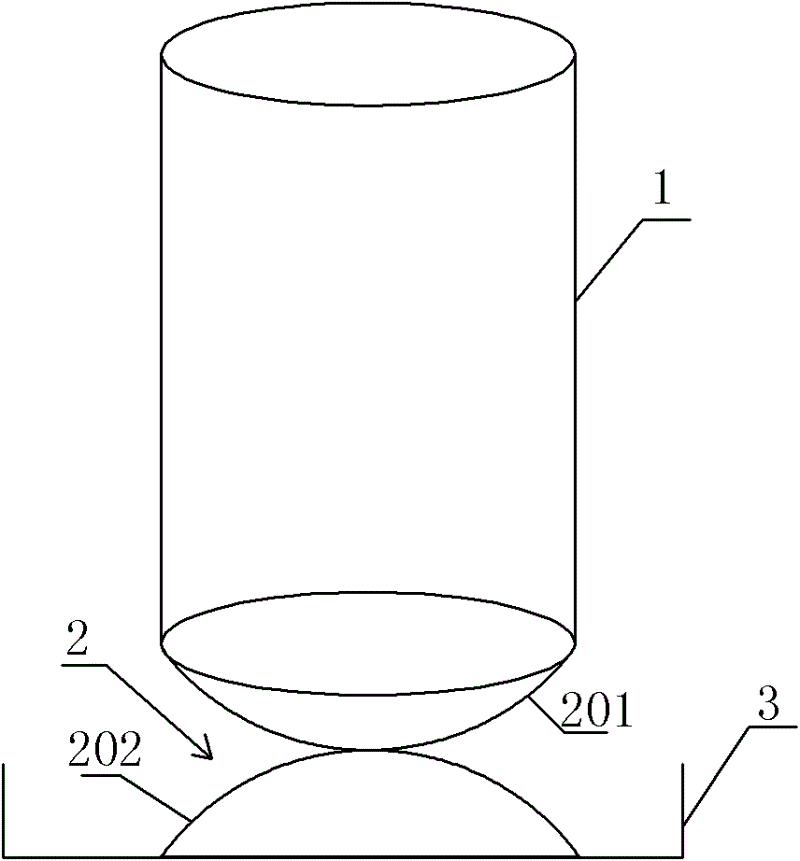

Figure 1 is a schematic diagram of the overall structure of the utility model.

Detailed ways

In conjunction with the accompanying drawings, a crooked water cup includes a cup body 1, and a suction pad 2 is provided at the bottom of the cup body 1. The suction pad 2 includes an upper suction cup 201 and a lower suction cup 202. The upper suction cup 201 and the lower suction cup 202 have the same shape. To set, and the top of the upper suction cup 201 is docked with the top of the lower suction cup 202. When in use, the upper suction cup 201 is used for absorbing on the cup bottom with a smooth surface, and the lower suction cup 202 is used for absorbing on the surface of a smooth desktop or other furniture. Further, the lower suction cup 202 can also be adsorbed on the metal disc 3, the metal disc 3 can play a role of shock absorption, and also play a certain role in preventing the cup body 1 from tilting.

It should be noted that under the teaching of this specification, any equivalent replacement or obvious modification made by those skilled in the art shall fall within the protection scope of the present utility model.

Claims (2)

1. prevent askew water tumbler for one kind, comprise cup, it is characterized in that: be provided with in the bottom of cup and inhale pad, said suction pad comprises sucker and following sucker, and last sucker oppositely is provided with following sucker, and upward dock with the top of following sucker at the top of sucker.

2. a kind of anti-askew water tumbler according to claim 1, it is characterized in that: the bottom inhaling pad is provided with metal dish.
