CN202157434U - Cross beam of exposed framing glass curtain wall - Google Patents
Cross beam of exposed framing glass curtain wall Download PDFInfo
- Publication number
- CN202157434U CN202157434U CN 201120225978 CN201120225978U CN202157434U CN 202157434 U CN202157434 U CN 202157434U CN 201120225978 CN201120225978 CN 201120225978 CN 201120225978 U CN201120225978 U CN 201120225978U CN 202157434 U CN202157434 U CN 202157434U
- Authority
- CN
- China
- Prior art keywords
- wall
- glass curtain
- right wall
- curtain wall
- cross beam
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Load-Bearing And Curtain Walls (AREA)
Abstract
A cross beam of an exposed framing glass curtain wall relates to the technical filed of glass curtain walls, comprises an upper wall, a left wall and a right wall, and is characterized in that the upper wall, the left wall and the right wall form a rectangle with an opening at the bottom. A connecting rod is arranged between the left wall and the right wall, rectangular protrusions are arranged under the connecting rod and located on the left wall and the right wall, clamping grooves are arranged at the top end and the bottom end of the right wall, a cavity is arrange on the outer side of the right wall, and a clamping opening is arranged on the side wall of the cavity. The cross beam of the exposed framing glass curtain wall has the advantages of being simple and reasonable in structure, quick and convenient to install, strong in practical applicability, low in cost, attractive in appearance and the like, and in addition, connection can be carried out through the clamping grooves, the clamping opening and other parts.
Description
Technical field
The utility model relates to the curtain wall technical field, is specifically related to a kind of bright frame glass curtain wall crossbeam.
Background technology
Curtain wall by structural framing with inlay sheet material and form, do not bear the architectural exterior-protecting construction of agent structure load and effect.Common glass curtain wall structure form: latent frame, half latent frame, bright frame, point type, full glass etc.Frame concealed curtain wall is that glass is bonded and fixed on the column with structure glue and aluminium frame, and the aluminium frame is all hidden in the glass back, forms the full glass-mirror of large tracts of land.The embedding glass of bright frame glass curtain wall becomes the curtain wall member that there is the aluminium frame on four limits in the aluminium frame, the curtain wall member is embedded on the crossbeam, forms cross beam and upright post and exposes the tangible facade of aluminium frame lattice.Bright frame glass curtain wall is comparatively traditional installation form, but its application is the most extensive, and reliable working performance with respect to concealed frame glass curtain wall, more is prone to satisfy the requirement of construction technology level.
The utility model content
The utility model technical problem to be solved is to provide the upward-sliding piece on the sliding door a kind of rational in infrastructure, easy to connect.
The utility model technical problem to be solved adopts following technical scheme to realize,
A kind of bright frame glass curtain wall crossbeam; Comprise upper wall, Zuo Bi and You Bi, it is characterized in that: described upper wall, Zuo Bi and right wall constitute the rectangle of a bottom opening, are provided with connecting rod between said Zuo Bi and the right wall; Said connecting rod below is positioned at Zuo Bi and right wall is provided with rectangular preiection; Said You Bi top and bottom are provided with draw-in groove, and the said right wall outside is provided with the abdominal cavity, establishes bayonet socket on the said abdominal cavity sidewall.
Said bayonet socket is " C " type bayonet socket.
The opening direction of said draw-in groove to the right.
The beneficial effect of the utility model is: the utility model is simple and reasonable, is connected with other parts with bayonet socket through draw-in groove, and its installation is quick and convenient, has practically, and cost is low, advantages such as good looking appearance.
Description of drawings

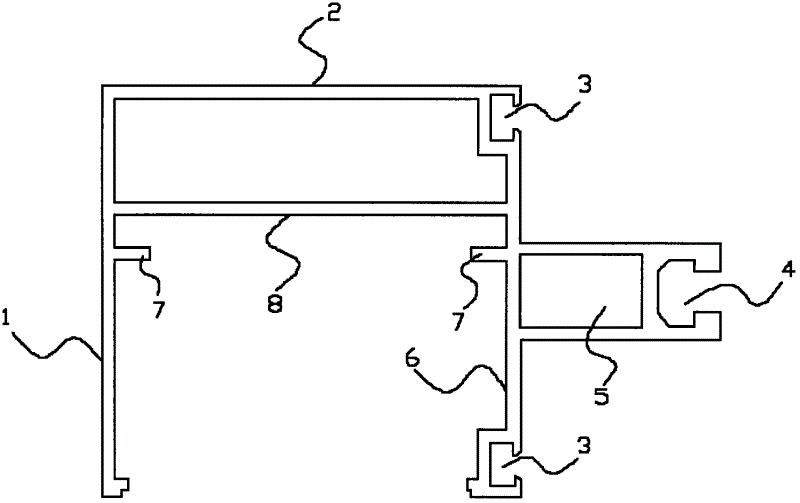

Fig. 1 is the utility model structural representation.
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and be easy to understand understanding with effect, below in conjunction with concrete diagram, further set forth the utility model.
As shown in Figure 1, a kind of bright frame glass curtain wall crossbeam comprises upper wall 2, left wall 1 and right wall 6; Upper wall 2, left wall 1 and right wall 6 constitute the rectangle of a bottom opening, are provided with connecting rod 8 between left wall 1 and the right wall 6, and connecting rod 8 belows are positioned at left wall 1 and are provided with rectangular preiection 7 with right wall 6; Right wall 6 tops and bottom are provided with draw-in groove 3, and right wall 6 outsides are provided with abdominal cavity 5, establish bayonet socket 4 on abdominal cavity 5 sidewalls; Bayonet socket 4 is " C " type bayonet socket, and the opening direction of draw-in groove 3 to the right.
More than show and described basic principle of the utility model and the advantage of principal character and the utility model.The technician of the industry should understand; The utility model is not restricted to the described embodiments; The principle of describing in the foregoing description and the manual that the utility model just is described; Under the prerequisite that does not break away from the utility model spirit and scope, the utility model also has various changes and modifications, and these variations and improvement all fall in the utility model scope that requires protection.The utility model requires protection domain to be defined by appending claims and equivalent thereof.
Claims (3)
1. bright frame glass curtain wall crossbeam; Comprise upper wall, Zuo Bi and You Bi, it is characterized in that: described upper wall, Zuo Bi and right wall constitute the rectangle of a bottom opening, are provided with connecting rod between said Zuo Bi and the right wall; Said connecting rod below is positioned at Zuo Bi and right wall is provided with rectangular preiection; Said You Bi top and bottom are provided with draw-in groove, and the said right wall outside is provided with the abdominal cavity, establishes bayonet socket on the said abdominal cavity sidewall.
2. a kind of bright frame glass curtain wall crossbeam according to claim 1, it is characterized in that: said bayonet socket is " C " type bayonet socket.
3. a kind of bright frame glass curtain wall crossbeam according to claim 1, it is characterized in that: the opening direction of said draw-in groove to the right.
