Abstract
本实用新型公开了一种回形针，包括一针体；所述针体为低碳钢经过折弯变形后一次成型而成，所述针体分为夹取部和标记部，所述标记部为三角形，所述夹取部由复数个三角形形状的低碳钢结构组合而成。本实用新型结构简单，使用方便。
The utility model discloses a paper clip, which comprises a needle body; the needle body is formed by bending and deforming low-carbon steel at one time, and the needle body is divided into a clamping part and a marking part, and the marking part is Triangular, the clamping part is composed of a plurality of triangular-shaped low-carbon steel structures. The utility model has the advantages of simple structure and convenient use.
Description
Technical field
The utility model relates to a kind of office appliance, relates in particular to a kind of clip with gripping and mark function.
Background technology
Clip is a paper clip, is with the wire apparatus of the holding paper sheet made of bending back and forth.The most a kind of in clip all inventions seemingly, it only is the bent wire of a bit of holding paper.But clip had passed through repetitious design in the past processing our nowadays employed shape.
Existing clip only has the effect of gripping, and does not have the function of mark, and when clip needed some surface portions of seeing of gripping to arrive the classified papers of content, when using these classified papers next time, just being difficult to distinguish which part was classified papers.
The utility model content
For solving the problems of the technologies described above, the purpose of the utility model is the clip that provides a kind of gripping and mark function to combine.
For achieving the above object, the technical scheme of the utility model is following:
A kind of clip comprises a needle body; It is characterized in that: to be mild steel form through bending distortion back one-shot forming said needle body, and said needle body is divided into gripping portion and labeling section, and said labeling section is a triangle, and said gripping portion is formed by a plurality of triangular shaped mild steel textural associations.
Preferably, an end of said labeling section is provided with a breach.
Through technique scheme, the beneficial effect of the utility model is:
The utility model is provided with gripping portion and labeling section, the utlity model has gripping and two kinds of functions of mark thereby make, and it is in order to make clip have stronger elastic recovery capability that the utility model gripping portion adopts triangular shaped, thereby has stronger chucking power.It is the wooden unit that is used for mark for the ease of installation and removal that one end of labeling section is provided with a breach.
Description of drawings
In order to be illustrated more clearly in the utility model embodiment or technical scheme of the prior art; To do to introduce simply to the accompanying drawing of required use in embodiment or the description of the Prior Art below; Obviously, the accompanying drawing in describing below only is some embodiment of the utility model, for those of ordinary skills; Under the prerequisite of not paying creative work, can also obtain other accompanying drawing according to these accompanying drawings.

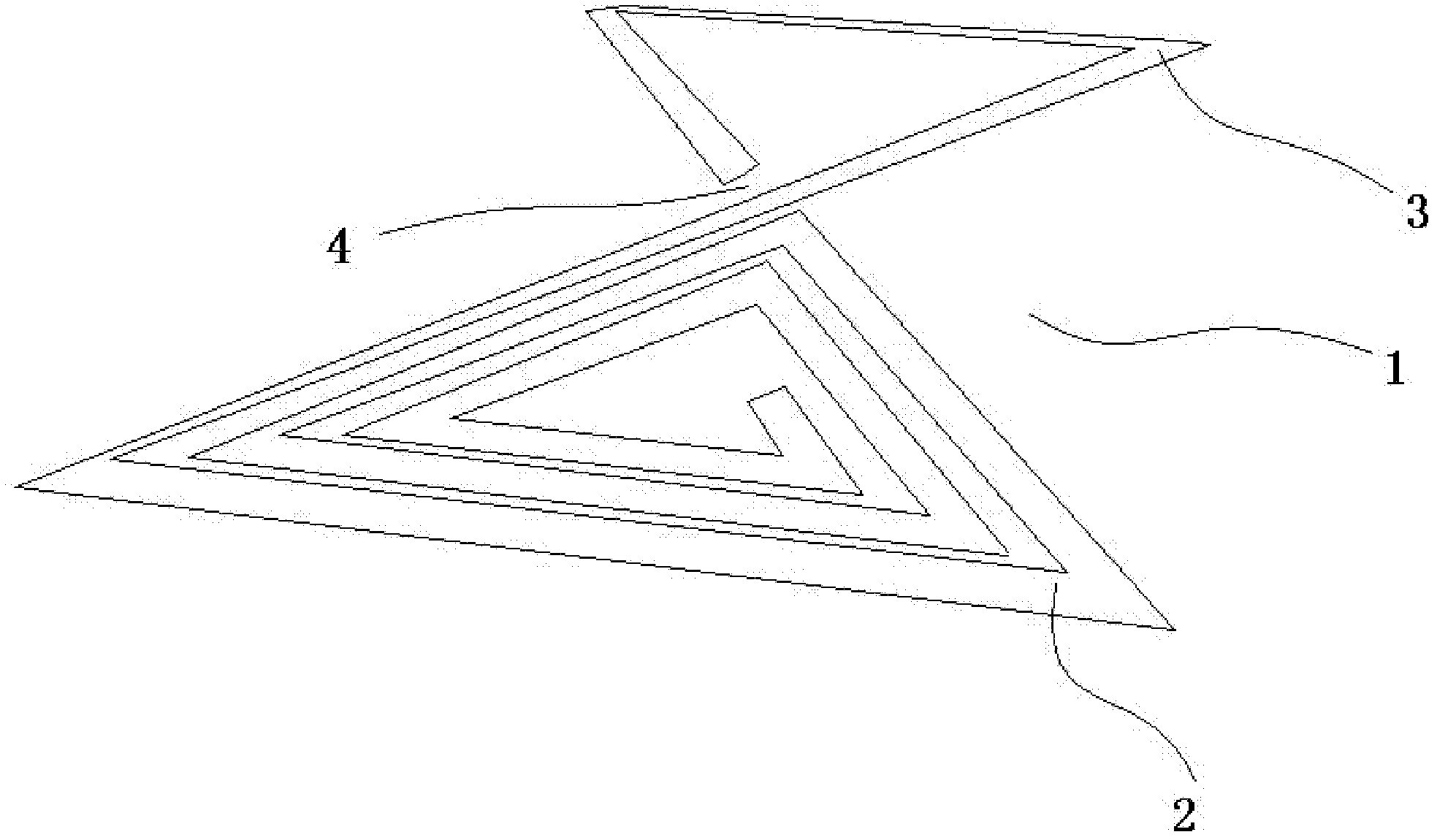

Fig. 1 is the utility model structural representation.
The numeral corresponding component title represented among the figure with letter:
1. needle body 2. gripping portions 3. labeling section, 4. breach.
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and be easy to understand understanding with effect, below in conjunction with concrete diagram, further set forth the utility model.
Referring to shown in Figure 1, a kind of clip of the utility model comprises a needle body 1; Said needle body 1 forms through bending distortion back one-shot forming for mild steel; Said needle body 1 is divided into gripping portion 2 and labeling section 3; Said labeling section 3 is a triangle, and said gripping portion 2 is formed by a plurality of triangular shaped mild steel textural associations, because leg-of-mutton stability is very strong; So the utility model structure is set to triangle, it is not easy distortion when the gripping object.
Be provided with in the labeling section 3 one be used for mark wooden unit, an end of labeling section 3 is provided with a breach 4, the effect of breach 4 is the installation and removal for the ease of wooden units in the labeling section 3.
Needle body 1 adopts mild steel to form through bending distortion back one-shot forming, and the plasticity and the toughness of mild steel are better, and the elastic performance that it has improved needle body has increased the gripping ability of the utility model.
The utility model clip adopts one-shot forming, and processing technology that it is less has been practiced thrift production cost.
The utility model is at first settled a tag block (not marking among the figure) in use in labeling section 3, said mark is used for the title of the object of mark institute gripping soon.Its gripping portion is used for the gripping object.
The utility model is simple in structure, and is easy to use, has the function of gripping and mark.
More than show and described basic principle of the utility model and the advantage of principal character and the utility model.The technical staff of the industry should understand; The utility model is not restricted to the described embodiments; The principle of describing in the foregoing description and the specification that the utility model just is described; Under the prerequisite that does not break away from the utility model spirit and scope, the utility model also has various changes and modifications, and these variations and improvement all fall in the utility model scope that requires protection.The utility model requires protection domain to be defined by appending claims and equivalent thereof.
