Abstract
本实用新型涉及一种可伸缩碗盆扣柄，包括手持握柄和设置在手持握柄一端部的碗盆托叉，其特征在于：所述碗盆托叉由一具有豁口的圆环构成，所述圆环的内径小于被托持碗盆的最大外径，所述豁口的宽度大于碗盆的最小直径且小于圆环的直径，所述手持握柄为至少两节的可伸缩套管组成。该可伸缩碗盆扣柄不仅结构简单，制造成本低廉，经济实用，而且具有可伸缩套管可以深入微波炉或蒸锅里取出碗盆，使用方便。
The utility model relates to a retractable bowl handle, which comprises a hand-held handle and a bowl support fork arranged at one end of the hand-held handle, and is characterized in that the bowl support fork is composed of a circular ring with a gap, The inner diameter of the ring is smaller than the maximum outer diameter of the bowl being held, the width of the gap is larger than the minimum diameter of the bowl and smaller than the diameter of the ring, and the handle is composed of at least two stretchable sleeves . The retractable bowl handle is not only simple in structure, low in manufacturing cost, economical and practical, but also has a telescopic sleeve that can go deep into a microwave oven or a steamer to take out the bowl, and is convenient to use.
Description
技术领域 technical field
本实用新型涉及一种日常生活中厨房中用来托持碗盆的可伸缩碗盆扣柄。 The utility model relates to a retractable bowl handle used for supporting bowls in kitchens in daily life.
背景技术 Background technique
在日常家庭、酒店、食堂等厨房中用来盛装食品的碗盆由于没有手持握柄，因此，须用手托起盛装食物的碗盆，手指尖容易浸在碗里的食物中，很不卫生。如果碗盆中的食物过热容易失手摔破汤伤手或溅脏衣物。 The bowls used to hold food in kitchens such as homes, hotels, and canteens do not have handles, so you must hold the bowls with your hands, and your fingertips are easily immersed in the food in the bowls, which is very unhygienic. . If the food in the bowl is overheated, it is easy to accidentally drop the soup and injure your hands or splash dirty clothes.
发明内容 Contents of the invention
本实用新型的目的在于提供一种可伸缩碗盆扣柄，该可伸缩碗盆扣柄不仅结构简单，制造成本低廉，经济实用，而且具有可伸缩套管可以深入微波炉或蒸锅里取出碗盆，使用方便。 The purpose of this utility model is to provide a retractable bowl handle, which is not only simple in structure, low in manufacturing cost, economical and practical, but also has a retractable sleeve that can go deep into a microwave oven or steamer to take out the bowl , easy to use.
本实用新型的技术特征在于：一种可伸缩碗盆扣柄，包括手持握柄和设置在手持握柄一端部的碗盆托叉，其特征在于：所述碗盆托叉由一具有豁口的圆环构成，所述圆环的内径小于被托持碗盆的最大外径，所述豁口的宽度大于碗盆的最小直径且小于圆环的直径，所述手持握柄为至少两节的可伸缩套管组成。 The technical feature of the utility model lies in: a retractable bowl handle, including a hand-held handle and a bowl support fork arranged at one end of the hand-held handle, characterized in that: the bowl support fork consists of a The inner diameter of the ring is smaller than the maximum outer diameter of the supported bowl, the width of the gap is larger than the smallest diameter of the bowl and smaller than the diameter of the ring, and the handle is at least two segments Telescopic sleeve composition.
为了避免烫手，所述可伸缩套管为木套管，以隔除碗盆的热量。 In order to avoid scalding hands, the telescopic sleeve is a wooden sleeve to isolate the heat of the bowl.
本实用新型的有益效果是：一是采用专门的工具来取代传统的餐饮服务或家庭中直接用手端碗盆即不卫生，又不易烫手的饮食习惯；二是具有可伸缩套管可以深入微波炉或蒸锅里取出碗盆，使用方便。 The beneficial effects of the utility model are as follows: one is to use special tools to replace the traditional catering service or the eating habit of directly holding bowls and bowls with hands in the family, which is unhygienic and not easy to burn hands; Or remove the bowl from the steamer, which is easy to use.
附图说明 Description of drawings

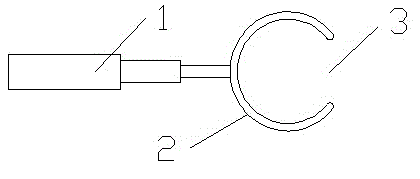

图1为可伸缩碗盆扣柄俯视结构示意图。 Fig. 1 is a top view structural diagram of the retractable bowl handle.
图中：1为手持握柄，2为碗盆托叉，3为豁口。 Among the figures: 1 is a hand grip, 2 is a bowl support fork, and 3 is a gap.
具体实施方式 Detailed ways
为让本实用新型的上述特征和优点能更明显易懂，下文特举实施例，并配合附图，作详细说明如下。 In order to make the above-mentioned features and advantages of the present invention more comprehensible, the following specific examples are given together with the accompanying drawings and described in detail as follows.
本实用新型的可伸缩碗盆扣柄，包括手持握柄1和设置在手持握柄1一端部的碗盆托叉2，其特征在于：所述碗盆托叉2由一具有豁口3的圆环构成，所述圆环的内径小于被托持碗盆的最大外径，所述豁口3的宽度大于碗盆的最小直径且小于圆环的直径，所述手持握柄1为至少两节的可伸缩套管组成。
The retractable bowl handle of the utility model includes a hand-held
为了避免烫手，所述可伸缩套管为木套管，以隔除碗盆的热量。 In order to avoid scalding hands, the telescopic sleeve is a wooden sleeve to isolate the heat of the bowl.
本实用新型不局限上述最佳实施方式，任何人在本实用新型的启示下都可以得出其他各种形式的可伸缩碗盆扣柄。凡依本实用新型申请专利范围所做的均等变化与修饰，皆应属本实用新型的涵盖范围。 The utility model is not limited to the above-mentioned best implementation mode, and anyone can draw other various forms of retractable bowl handles under the inspiration of the utility model. All equivalent changes and modifications made according to the patent scope of the utility model should belong to the scope of the utility model. the
