Abstract
分类垃圾桶是属于垃圾桶结构的改进。本实用新型提供一种结构简单、使用方便的分类垃圾桶。本实用新型包括垃圾桶主体，其结构要点垃圾桶主体底部设置有齿轮箱，齿轮箱上部固定有支撑杆，垃圾桶主体底部外侧面设置有与齿轮箱相连的踏板；支撑杆顶部设置有横梁，横梁端部悬挂有分类垃圾袋，垃圾桶主体上部设置有带有开孔的盖子，开孔与分类垃圾袋的开口相应。
The sorting trash can is an improvement belonging to the structure of the trash can. The utility model provides a sorting trash can with simple structure and convenient use. The utility model comprises a trash can main body. The bottom of the trash can main body is provided with a gear box, the upper part of the gear box is fixed with a support bar, and the outer side of the bottom of the trash can main body is provided with a pedal connected to the gear box; the top of the support bar is provided with a beam. A sorting garbage bag is hung on the end of the beam, and the upper part of the main body of the garbage bin is provided with a cover with an opening, and the opening corresponds to the opening of the sorting garbage bag.
Description
技术领域 technical field
本实用新型是属于作业；运输必需部分，输送；包装；贮存；搬运薄的或细丝状材料大类，小类，垃圾贮器组技术领域，更具体地说是涉及一种能够分类垃圾桶。The utility model belongs to the technical field of operations; necessary parts of transportation, conveying; packing; .
背景技术 Background technique
垃圾桶，又名废物箱或垃圾箱，就是装放垃圾的地方。垃圾桶多数以金属或塑胶制，用时放入塑料袋，当垃圾一多便可扎起袋丢掉。Sewage disposer, has another name called litter box or dustbin, is exactly the place of putting rubbish. Most of the garbage cans are made of metal or plastic, and they are put into plastic bags when used. When there is too much garbage, the bags can be tied up and thrown away.
由于现代社会的垃圾种类较多，为了环保和方便再利用，垃圾被通常会被分类处理，人们常常要摆放多个垃圾桶在一起来放置不同种类的垃圾；这种处理的方法比较占用空间，而且也不适合在家里面使用，影响了在居民家中就开始分类处理垃圾。Since there are many types of garbage in modern society, in order to protect the environment and facilitate reuse, garbage is usually sorted, and people often have to put multiple garbage cans together to store different types of garbage; this method takes up more space. , and it is not suitable for use at home, which affects the classification and disposal of garbage in residents' homes.
发明内容 Contents of the invention
本实用新型就是针对上述问题，提供一种结构简单、使用方便的分类垃圾桶。The utility model aims at the problems mentioned above and provides a sorting trash can with simple structure and convenient use.
为了实现本实用新型的上述目的，本实用新型采用如下技术方案，本实用新型包括垃圾桶主体，其结构要点垃圾桶主体底部设置有齿轮箱，齿轮箱上部固定有支撑杆，垃圾桶主体底部外侧面设置有与齿轮箱相连的踏板；支撑杆顶部设置有横梁，横梁端部悬挂有分类垃圾袋，垃圾桶主体上部设置有带有开口的盖子，开口与分类垃圾袋的开口相应。In order to achieve the above-mentioned purpose of the utility model, the utility model adopts the following technical scheme, the utility model includes the main body of the garbage can, the bottom of the main body of the main structural points of the utility model is provided with a gear box, the upper part of the gear box is fixed with a support rod, and the outside of the bottom of the main body of the garbage can A pedal connected to the gear box is arranged on the side; a crossbeam is arranged on the top of the support bar, and sorting garbage bags are hung on the end of the crossbeam.
横梁至少为两根。There are at least two beams.
分类垃圾袋具有多种颜色。Sorting trash bags come in a variety of colors.
本实用新型的有益效果：The beneficial effects of the utility model:
(1)构件少、结构简单(1) Less components and simple structure
本实用新型由垃圾桶主体、设置于垃圾桶主体内部的齿轮箱、具有横梁的支撑杆和踏板组成，结构简单，易于制作和推广。The utility model is composed of a trash can main body, a gear box arranged inside the trash can main body, a support rod with a beam and a pedal, and has a simple structure and is easy to manufacture and popularize.
(2)使用方便(2) Easy to use
使用时，可以从盖子上的开口观察目前对应着开口的分类垃圾袋是否是应该盛装所要扔的垃圾的分类垃圾袋，如果是直接扔入即可；如果不是，可以踩动踏板，踏板的上下运动经过齿轮箱内齿轮组的转换变为带动支撑杆旋转的力，直到需要的分类垃圾袋被转到开口下方；因此，本实用新型能够方便的处理分类垃圾，且非常方便。When in use, you can observe from the opening on the cover whether the sorting garbage bag corresponding to the opening is the sorting garbage bag that should hold the garbage to be thrown away, if it is directly thrown into it; if not, you can step on the pedal, the up and down of the pedal The movement is converted into the force driving the support rod to rotate through the conversion of the gear set in the gear box until the required sorting garbage bag is transferred to the bottom of the opening; therefore, the utility model can handle sorting garbage conveniently and is very convenient.
(3)占用空间少(3) Take up less space
本实用新型将多个分类垃圾袋悬挂于横梁上，对比以前并排放置多个垃圾桶时占用空间大为减少。The utility model hangs a plurality of sorting garbage bags on the crossbeam, which greatly reduces the space occupied by placing a plurality of garbage bins side by side in the past.
附图说明 Description of drawings

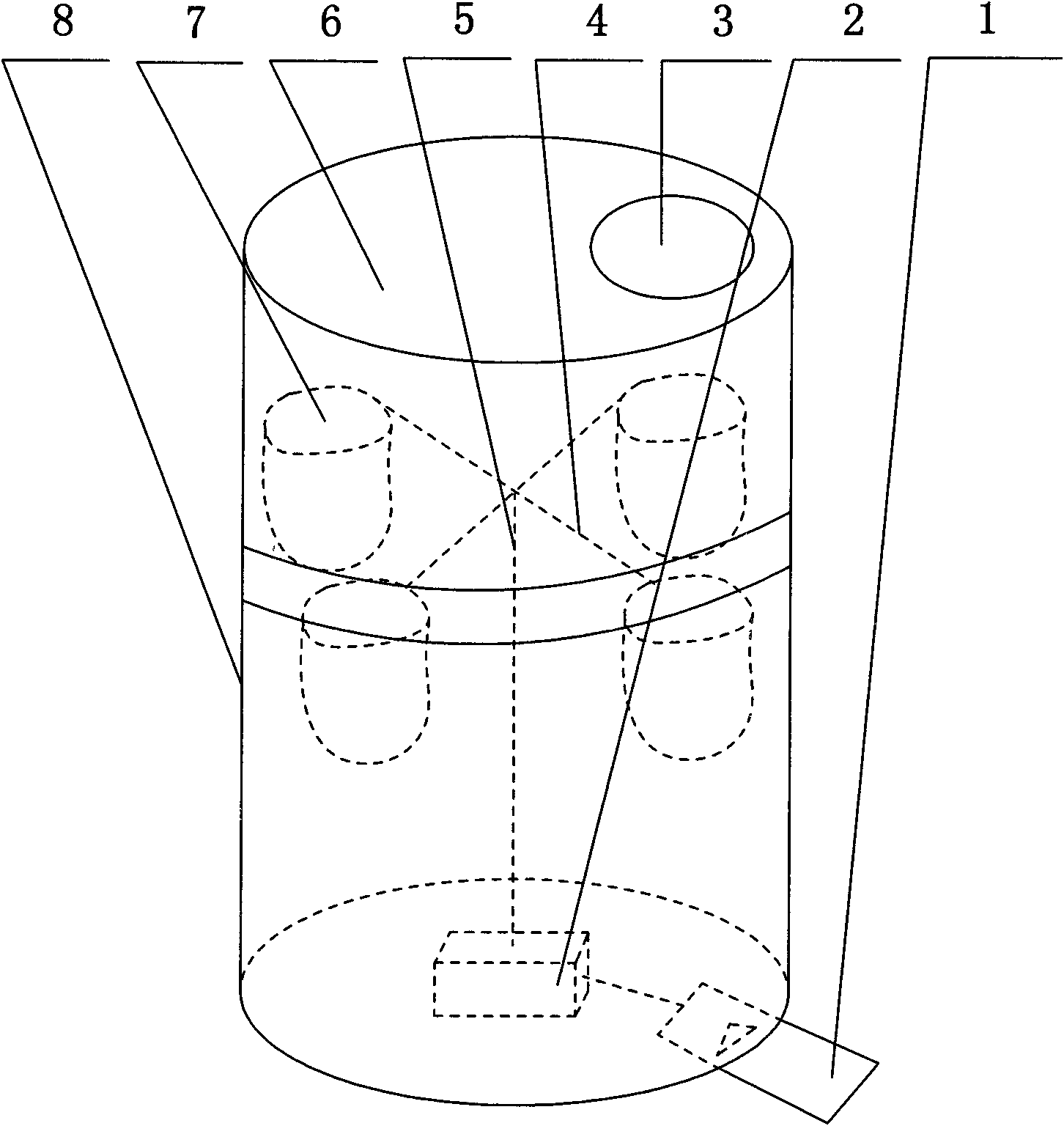

图1是本实用新型结构示意图。Fig. 1 is the structural representation of the utility model.
附图中，1为踏板，2为齿轮箱，3为开口，4为横梁，5为支撑杆，6为盖子，7为分类垃圾袋，8为垃圾桶主体。In the accompanying drawings, 1 is a pedal, 2 is a gear box, 3 is an opening, 4 is a crossbeam, 5 is a support rod, 6 is a cover, 7 is a sorting garbage bag, and 8 is a garbage can main body.
具体实施方式 Detailed ways
为了使本实用新型所解决的技术问题、技术方案及有益效果更加清楚明白，以下结合附图及实施例，对本发明进行进一步详细说明。应当理解，此处所描述的具体实施例仅仅用以解释本发明，并不用于限定本发明。In order to make the technical problems, technical solutions and beneficial effects solved by the present invention clearer, the present invention will be further described in detail below in conjunction with the accompanying drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain the present invention, not to limit the present invention.
本实用新型包括垃圾桶主体8，垃圾桶主体8底部设置有齿轮箱2，齿轮箱2上部固定有支撑杆5，垃圾桶主体8底部外侧面设置有与齿轮箱2相连的踏板1；支撑杆5顶部设置有横梁4，横梁4端部悬挂有分类垃圾袋7，垃圾桶主体8上部设置有带有开口3的盖子6，开口3与分类垃圾袋7的袋口相应。The utility model comprises a garbage can main body 8, the bottom of the garbage can main body 8 is provided with a gear box 2, the upper part of the gear box 2 is fixed with a support rod 5, and the outer surface of the bottom of the garbage can main body 8 is provided with a pedal 1 connected with the gear box 2; 5 tops are provided with crossbeam 4, and crossbeam 4 ends are hung with classification garbage bag 7, and dustbin main body 8 tops are provided with lid 6 with opening 3, and opening 3 is corresponding with the sack of classification garbage bag 7.
横梁4至少为两根。There are at least two beams 4 .
为了便于识别分类垃圾袋7中所装垃圾的种类，分类垃圾袋7具有多种颜色，并使的同时悬挂的分类垃圾袋7中，任何一个分类垃圾袋7颜色均不与其它悬挂着的分类垃圾袋7颜色相同。In order to facilitate the identification of the type of garbage contained in the sorting garbage bag 7, the sorting garbage bag 7 has a variety of colors, and in the hanging sorting garbage bags 7, any one of the sorting garbage bags 7 colors is not different from that of other hanging classification garbage bags. Garbage bags 7 have the same color.
垃圾桶主体8上部的盖子6可以打开，来取出悬挂着的分类垃圾袋7。The lid 6 on the top of the trash can main body 8 can be opened to take out the hanging sorting garbage bag 7.
使用时，可以从盖子6上的开口3观察目前对应着开口3的分类垃圾袋7是否是应该盛装所要扔的垃圾的分类垃圾袋7，如果是直接扔入即可；如果不是，可以踩动踏板1，踏板1的上下运动经过齿轮箱2内齿轮组的转换变为带动支撑杆5旋转的力，直到需要的分类垃圾袋7被转到开口下方。During use, you can observe from the opening 3 on the cover 6 whether the sorting garbage bag 7 corresponding to the opening 3 is the sorting garbage bag 7 that should contain the garbage to be thrown away, if it is directly thrown into it; if not, you can step on it Pedal 1, the up-and-down movement of pedal 1 becomes the force that drives support rod 5 to rotate through the conversion of gear box 2 internal gear sets, until the sorting garbage bag 7 that needs is forwarded to the opening below.
可以理解地是，以上关于本实用新型的具体描述，仅用于说明本实用新型而并非受限于本实用新型实施例所描述的技术方案，本领域的普通技术人员应当理解，仍然可以对本实用新型进行修改或等同替换，以达到相同的技术效果；只要满足使用需要，都在本实用新型的保护范围之内。It can be understood that the above specific description of the utility model is only used to illustrate the utility model and is not limited to the technical solutions described in the embodiments of the utility model. Those of ordinary skill in the art should understand that they can still understand the utility model Modifications or equivalent replacements are carried out to achieve the same technical effect; as long as the needs of use are met, they are all within the protection scope of the present utility model.
