一种腿部健身架，属于运动训练器材领域。支架(2)固定在底座(1)上，扶手杆(4)焊接在支架(2)一侧的上方，支架(2)内侧焊接短横柱(3)，末端安装转轴(5)和连接杆(6)组成一体，底端焊接踏板(7)，矮支架(9)固定在底座(1)上，把手(8)安装在横柱(10)上端，由横柱转轴(11)连成一体，下面连接活动杆(12)，由下转轴(13)连接固定脚踏板(14)。使用时，双手扶住扶手，双脚分别踩在踏板上，双腿前后用力让踏板运动起来。本实用新型结构简单，体积小、不受场地和时间限制搬运方便，容易操作，适用范围广泛，是学校及家庭必备的健身器械。
A leg fitness rack belongs to the field of sports training equipment. The bracket (2) is fixed on the base (1), the armrest bar (4) is welded above one side of the bracket (2), the short horizontal column (3) is welded on the inside of the bracket (2), and the rotating shaft (5) and the connecting rod are installed at the end (6) In one piece, the pedal (7) is welded at the bottom, the short bracket (9) is fixed on the base (1), the handle (8) is installed on the upper end of the cross column (10), and is connected into one body by the shaft of the cross column (11) , connect movable rod (12) below, connect fixed pedal (14) by following rotating shaft (13). When in use, hold the handrail with both hands, step on the pedals with both feet, and force the pedals forward and backward with both legs. The utility model has the advantages of simple structure, small volume, convenient transportation without limitation of place and time, easy operation and wide application range, and is a necessary fitness equipment for schools and families.
Description
Technical field
The utility model relates to a kind of shank physical-therapy rack, belongs to the Excercise training apparatus field.
Technical background
Along with carrying out of nationwide fitness programs; Having many people to utilize has sports sooner or later; Satisfied not this hope owing to receive the restriction in time and place, the appearance of various body-building apparatus has brought many facilities for hope obtains healthy people through exercise; Though many body-building apparatus are arranged at present, also fewer for leg exercises.This utility model is a kind ofly to utilize the short time of having a rest to carry out leg exercises, both can save time, and can play the body-building apparatus of taking exercises again, to satisfy people's life requirement.
Physical training has many sportsmen that injured phenomenon often takes place in training owing to receive the restriction of place apparatus, weight person's paralysis, and the lighter's soreness of waist and ache in legs brings many inconvenience to sports career.This shank physical-therapy rack is created the back and in training, is brought auxiliary practice effect for the sportsman.Also can use with the office public place of entertainment in family, be the indispensable health and fitness facilities of school and family.
The utility model content
According to above deficiency of the prior art, the technical problem that the utility model will solve is: provide a kind of simple in structure, operation is practical, does not receive the shank physical-therapy rack of place and time restriction.
The utility model solves the technical scheme that its technical problem adopted: this shank physical-therapy rack is characterized in that: comprise base, support, hyphen post, bar, rotating shaft, connecting rod, pedal, handle, short support, spreader, spreader rotating shaft, motion bar, lower rotary shaft, pedal, support is fixed on the base; Bar is welded on the top of support one side, the inboard welding of support hyphen post, terminal rotating shaft and the connecting rod composition one of installing; Bottom welding pedal; Short support is fixed on the base, and handle is installed in the spreader upper end, is fused by the spreader rotating shaft; Connect motion bar below, connect the fixing feet pedal by lower rotary shaft.
During use, both hands buttress handrail, and both feet step down in respectively on the pedal, firmly let pedal travel before and after the both legs, through coming and going alternating movement to strengthen the purpose of leg muscle strength.
Compared with prior art, the beneficial effect that the utility model had is: people's both hands buttress handrail, and both feet step down in respectively on the pedal, and safety coefficient is bigger, are difficult for taking place injury accident.This shank physical-therapy rack makes full pin produce pressure; Strengthen foot muscles crowd's the strength of landing, accelerate shank and each position blood circulation of sole, waist, foot and leg muscle are strengthened; Improve the function of taking exercises, arthralgia, the patient that has a pain in the leg are recovered to have the supplemental treatment effect.Lower limb muscles efforts of everyone amount can be tempered effectively, the lower limb symptom of aching can be alleviated.The utility model is simple in structure, and volume is little, do not receive place and time restriction, convenient in carrying, and operation easily is applicable to that relatively teenager, person in middle and old age, vast physical training and professional sports sportsman use and the supplemental treatment of diseases related.
Description of drawings

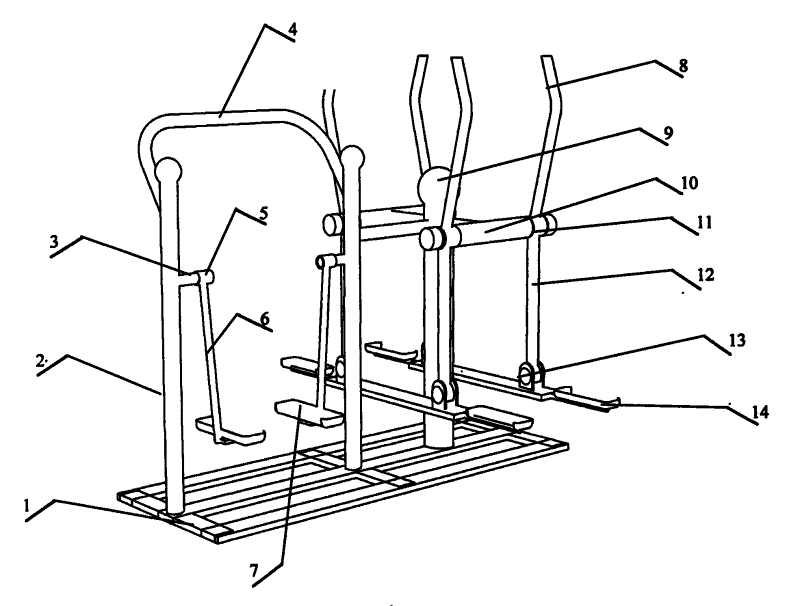

Fig. 1 is the preferred example of the utility model shank physical-therapy rack, wherein: the short support of (1) base (2) support (3) hyphen post (4) bar (5) rotating shaft (6) connecting rod (7) pedal (8) handle (9) (10) spreader (11) spreader rotating shaft (12) motion bar (13) lower rotary shaft (14) pedal
The specific embodiment
Below in conjunction with accompanying drawing the utility model shank physical-therapy rack is described further:
As shown in the figure: shank physical-therapy rack, support 2 are fixed on the base 1, and bar 4 is welded on the top of support 2 one sides; Support 2 inboard welding hyphen posts 3, terminal installation rotating shaft 5 is formed one with connecting rod 6, bottom welding pedal 7; Short support 9 is fixed on the base 1, and handle 8 is installed in spreader 10 upper ends, is fused by spreader rotating shaft 11; Connect motion bar 12 below, connect fixing feet pedal 14 by lower rotary shaft 13.
During use, both hands buttress handrail, and both feet step down in respectively on the pedal, firmly let pedal travel before and after the both legs, through coming and going alternating movement to strengthen the purpose of leg muscle strength.
Claims (2)
1. shank physical-therapy rack, it is characterized in that: support (2) is fixed on the base (1), and bar (4) is welded on the top of support (2) one sides, and the inboard welding of support (2) hyphen post (3) is terminally installed rotating shaft (5) and is formed one with connecting rod (6), and pedal (7) is welded in the bottom.
2. shank physical-therapy rack according to claim 1; It is characterized in that: short support (9) is fixed on the base (1), and handle (8) is installed in spreader (10) upper end, is fused by spreader rotating shaft (11); Connect motion bar (12) below, connect fixing feet pedal (14) by lower rotary shaft (13).
