Abstract

本实用新型公开了一种大功率LED太阳能路灯,包括路灯支架杆、路灯壳、太阳能板、蓄电池、反光镜、灯座、灯壳玻璃罩、大功率LED节能球泡灯,所述路灯壳固定在路灯支架杆的顶端,所述太阳能板固定在路灯支架杆的上部,所述蓄电池装在路灯支架杆的下端,所述反光镜装在路灯壳的内壁,在路灯壳内设有灯座,所述大功率LED节能球泡灯装在所述灯座上,在所述路灯壳的装灯口安装灯壳玻璃罩,所述太阳能板将电能储存在所述蓄电池内供所述大功率LED节能球泡灯使用。本实用新型结构简单、节能环保、寿命长、亮度好。

Figure 201120174845

The utility model discloses a high-power LED solar street lamp, which comprises a street lamp support rod, a street lamp shell, a solar panel, a storage battery, a reflector, a lamp holder, a lamp shell glass cover, and a high-power LED energy-saving bulb lamp. The street lamp shell is fixed At the top of the street lamp support rod, the solar panel is fixed on the upper part of the street lamp support rod, the battery is installed at the lower end of the street lamp support rod, the reflector is mounted on the inner wall of the street lamp housing, and a lamp holder is arranged inside the street lamp housing. The high-power LED energy-saving bulb lamp is installed on the lamp holder, and the lamp shell glass cover is installed on the lamp opening of the street lamp shell, and the solar panel stores electric energy in the battery for the high-power LED Energy-saving bulb lamps are used. The utility model has the advantages of simple structure, energy saving and environmental protection, long service life and good brightness.

Figure 201120174845

Description

一种大功率LED太阳能路灯A high-power LED solar street light

技术领域 technical field

本实用新型涉及灯具领域,更具体地说涉及一种大功率LED太阳能路灯。 The utility model relates to the field of lamps, in particular to a high-power LED solar street lamp.

背景技术Background technique

路灯作为城乡公共照明系统的一个重要组成部分,虽然可以给人们在夜间提供照明,但每个路灯在工作时都要消耗大量的电能,十分的耗费资源,但路灯又是一种必不可少的公共设施,现在市面上还没有一种可以利用太阳能的路灯,让路灯白天聚集能量,夜晚利用白天聚集的能量供路灯夜晚工作时使用。 As an important part of urban and rural public lighting systems, street lamps can provide people with lighting at night, but each street lamp consumes a lot of power when it is working, which consumes a lot of resources, but street lamps are an indispensable For public facilities, there is no street lamp on the market that can use solar energy, so that the street lamp can gather energy during the day, and use the energy gathered during the day to be used by the street lamp at night.

实用新型内容 Utility model content

为解决上述问题,本实用新型提供一种结构简单、节能环保、使用方便的大功率LED太阳能路灯。 In order to solve the above problems, the utility model provides a high-power LED solar street lamp with simple structure, energy saving, environmental protection and convenient use.

本实用新型大功率LED太阳能路灯,包括路灯支架杆、路灯壳、太阳能板、蓄电池、反光镜、灯座、灯壳玻璃罩、大功率LED节能球泡灯,所述路灯壳固定在路灯支架杆的顶端,所述太阳能板固定在路灯支架杆的上部,所述蓄电池装在路灯支架杆的下端,所述反光镜装在路灯壳的内壁,在路灯壳内设有灯座,所述大功率LED节能球泡灯装在所述灯座上,在所述路灯壳的装灯口安装灯壳玻璃罩,所述太阳能板将电能储存在所述蓄电池内供所述大功率LED节能球泡灯使用,所述大功率LED节能球泡灯由大功率的LED节能发光二极管串联组成灯组板,将所述灯组板装在铝压灯盒中,由恒流驱动电源和节能电子元件组成电路板,将电路板装在灯组板后面并用导线连接,在铝压灯盒的面上装钢化玻璃外罩,在铝压灯盒的下端装灯头。 The utility model high-power LED solar street lamp comprises a street lamp bracket pole, a street lamp shell, a solar panel, a storage battery, a reflector, a lamp holder, a lamp shell glass cover, and a high-power LED energy-saving bulb lamp, and the street lamp shell is fixed on the street lamp bracket pole. The top of the street lamp, the solar panel is fixed on the upper part of the street lamp support rod, the battery is installed on the lower end of the street lamp support rod, the reflector is mounted on the inner wall of the street lamp housing, and a lamp holder is arranged inside the street lamp housing. The high-power The LED energy-saving bulb lamp is installed on the lamp holder, and the lamp housing glass cover is installed on the lamp opening of the street lamp housing, and the solar panel stores electric energy in the battery for the high-power LED energy-saving bulb lamp In use, the high-power LED energy-saving bulb lamp is composed of high-power LED energy-saving light-emitting diodes in series to form a lamp group board, the lamp group board is installed in an aluminum pressure lamp box, and a circuit is composed of a constant current drive power supply and energy-saving electronic components Install the circuit board behind the lamp group board and connect it with wires, install a toughened glass cover on the surface of the aluminum pressed light box, and install a lamp cap at the lower end of the aluminum pressed light box.

本实用新型大功率LED太阳能路灯的有益效果为:本实用新型结构简单、节能环保、寿命长、亮度好。 The beneficial effects of the high-power LED solar street lamp of the utility model are as follows: the utility model has the advantages of simple structure, energy saving and environmental protection, long service life and good brightness.

附图说明 Description of drawings

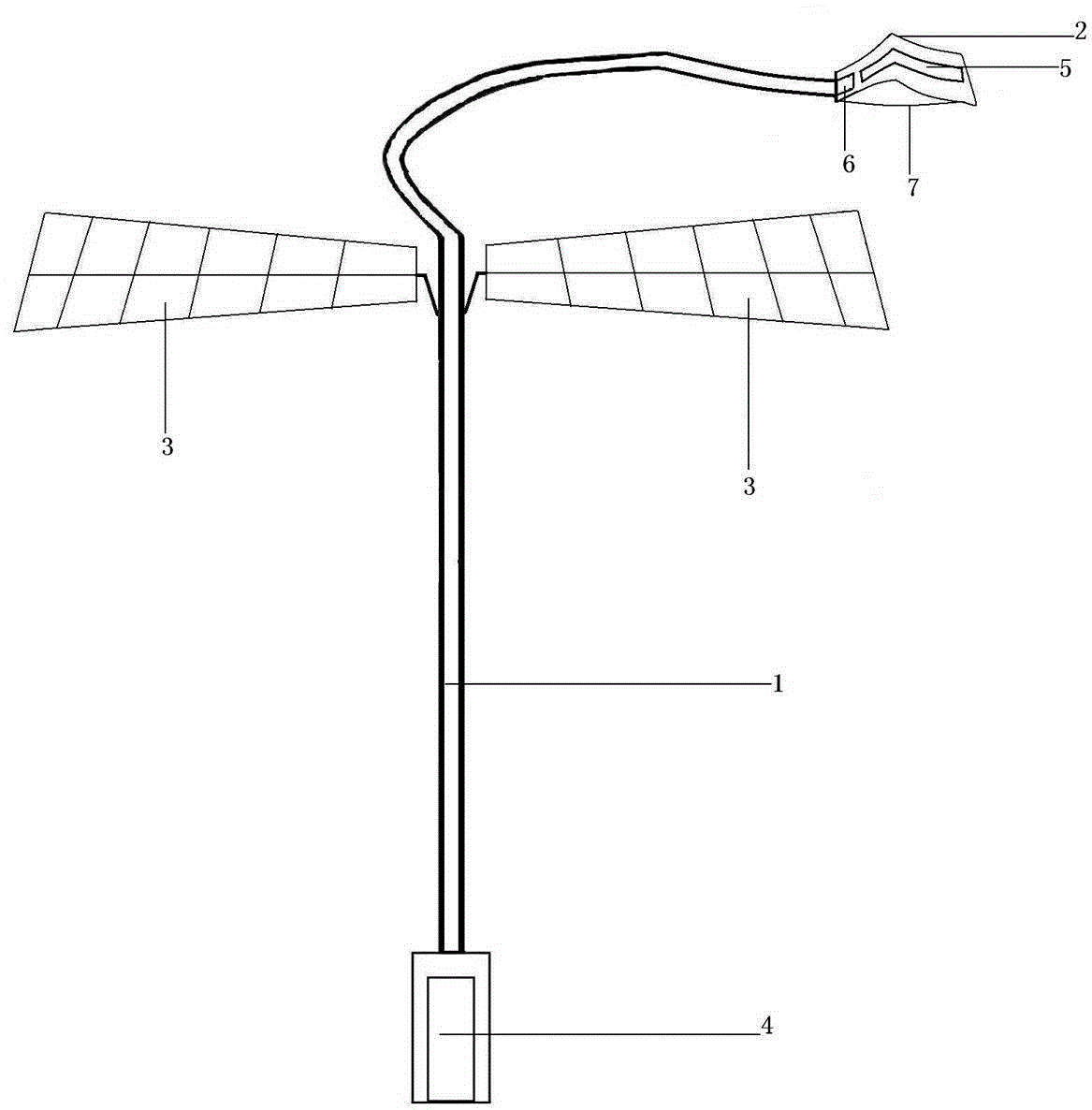

图1是本实用新型大功率LED太阳能路灯的结构示意图; Fig. 1 is a structural schematic diagram of the utility model high-power LED solar street lamp;

图2是本实用新型大功率LED太阳能路灯的大功率LED节能球泡灯的结构示意图。 Fig. 2 is a structural schematic diagram of a high-power LED energy-saving bulb lamp of the utility model high-power LED solar street lamp.

具体实施方式 Detailed ways

下面结合说明书附图对本实用新型大功率LED太阳能路灯作进一步说明。 The utility model high-power LED solar street light will be further described below in conjunction with the accompanying drawings of the description.

在图1、图2中,本实用新型大功率LED太阳能路灯,包括路灯支架杆1、路灯壳2、太阳能板3、蓄电池4、反光镜5、灯座6、灯壳玻璃罩7、大功率LED节能球泡灯8,所述路灯壳2固定在路灯支架杆1的顶端,所述太阳能板3固定在路灯支架杆1的上部,所述蓄电池4装在路灯支架杆1的下端,所述反光镜5装在路灯壳2的内壁,在路灯壳2内设有灯座6,所述大功率LED节能球泡灯8装在所述灯座6上,在所述路灯壳2的装灯口安装灯壳玻璃罩7,所述太阳能板3将电能储存在所述蓄电池4内供所述大功率LED节能球泡灯8使用,所述大功率LED节能球泡灯8由大功率的LED节能发光二极管串联组成灯组板9,将所述灯组板9装在铝压灯盒10中,由恒流驱动电源和节能电子元件组成电路板,将电路板装在灯组板9后面并用导线连接,在铝压灯盒10的面上装钢化玻璃外罩11,在铝压灯盒10的下端装灯头12。 In Fig. 1 and Fig. 2, the high-power LED solar street lamp of the present invention includes a street lamp support pole 1, a street lamp shell 2, a solar panel 3, a battery 4, a reflector 5, a lamp holder 6, a lamp shell glass cover 7, a high-power LED energy-saving bulb lamp 8, the street lamp shell 2 is fixed on the top of the street lamp support rod 1, the solar panel 3 is fixed on the upper part of the street lamp support rod 1, the battery 4 is installed on the lower end of the street lamp support rod 1, and the The reflective mirror 5 is installed on the inner wall of the street lamp housing 2, and a lamp holder 6 is arranged in the street lamp housing 2. The lamp housing glass cover 7 is installed at the mouth, and the solar panel 3 stores electric energy in the battery 4 for the use of the high-power LED energy-saving bulb lamp 8, and the high-power LED energy-saving bulb lamp 8 is composed of a high-power LED Energy-saving light-emitting diodes are connected in series to form a lamp group board 9, the lamp group board 9 is installed in an aluminum pressure lamp box 10, a circuit board is composed of a constant current drive power supply and energy-saving electronic components, and the circuit board is installed behind the lamp group board 9 and used Wire connection, adorn toughened glass outer cover 11 on the face of aluminum pressure lamp box 10, adorn lamp cap 12 at the lower end of aluminum pressure lamp box 10.

Claims (2)

1.一种大功率LED太阳能路灯,包括路灯支架杆、路灯壳、太阳能板、蓄电池、反光镜、灯座、灯壳玻璃罩、大功率LED节能球泡灯,其特征是:所述路灯壳固定在路灯支架杆的顶端,所述太阳能板固定在路灯支架杆的上部,所述蓄电池装在路灯支架杆的下端,所述反光镜装在路灯壳的内壁,在路灯壳内设有灯座,所述大功率LED节能球泡灯装在所述灯座上,在所述路灯壳的装灯口安装灯壳玻璃罩。 1. A high-power LED solar street lamp, comprising a street lamp support rod, a street lamp housing, a solar panel, a storage battery, a reflector, a lamp holder, a lamp housing glass cover, and a high-power LED energy-saving bulb lamp, is characterized in that: the street lamp housing The solar panel is fixed on the top of the street lamp support rod, the solar panel is fixed on the upper part of the street lamp support rod, the battery is installed at the lower end of the street lamp support rod, the reflector is mounted on the inner wall of the street lamp housing, and a lamp holder is arranged in the street lamp housing , the high-power LED energy-saving bulb lamp is installed on the lamp holder, and the glass cover of the lamp housing is installed on the lamp opening of the street lamp housing. 2.根据权利要求1所述的一种大功率LED太阳能路灯,其特征是:所述大功率LED节能球泡灯由大功率的LED节能发光二极管串联组成灯组板,将所述灯组板装在铝压灯盒中,由恒流驱动电源和节能电子元件组成电路板,将电路板装在灯组板后面并用导线连接,在铝压灯盒的面上装钢化玻璃外罩,在铝压灯盒的下端装灯头。 2. A high-power LED solar street lamp according to claim 1, characterized in that: the high-power LED energy-saving bulb lamp is composed of high-power LED energy-saving light-emitting diodes in series to form a lamp group board, and the lamp group board Installed in an aluminum pressed lamp box, the circuit board is composed of a constant current drive power supply and energy-saving electronic components. The circuit board is installed behind the lamp group board and connected with wires. The lower end of the box is equipped with a lamp holder.
