Abstract

The utility model relates to a solar energy induction lamp which comprises a lamp shade, a probe circuit board, a cover plate, a lens, an LED lamp, a reflection board, a housing, and a rechargeable battery, wherein the lens, the probe circuit board, and the cover plate are fixed on the lamp shade, and the lamp shade is assembled on the housing. The solar energy induction lamp further comprises a solar battery fixed on the housing, and a locking mechanism is connected with the housing. The locking mechanism is arranged on the housing of the induction lamp to further guarantee double fixation after the induction lamp is mounted; and the solar battery serves as the energy source for supply, so that energy is saved.

Description

A kind of solar energy sense light
Technical field
The utility model relates to a kind of solar energy sense light.
Background technology
Sense light all is directly to realize fixing through hanging usually in the market, and the structure in order to fix specially is not set, and this just makes that sense light in use maybe be because remote or outside atrocious weather of time influence its normal service life.Comparatively general sense light is to use direct current as the energy illumination to be provided at present in addition, and this does not realize the target of green living for the contemporary society of being becoming tight energy day, therefore needs a kind of sense light that uses the novel environment friendly energy of exploitation.
Therefore provide that a kind of under bad weather, normally to use the while to adopt the sense light of novel energy again be vital with the life requirement that satisfies people.
The utility model content
The purpose of the utility model is to provide a kind of effectively fixing and adopts the sense light of solar energy as the energy.
For realizing above-mentioned purpose; The utility model adopts following technical scheme: a kind of solar energy sense light; It comprises lampshade, probe line plate, cover plate, eyeglass, LED lamp, reflector, rechargeable battery, housing, and said eyeglass, probe line plate and cover plate are fixed on the lampshade, and said lampshade is assembled on the housing; It further comprises the solar cell that is fixed on the housing, and a retaining mechanism is connected with housing.
Compared with prior art, the utlity model has following beneficial effect: the utility model is through having guaranteed the double fixed after sense light is installed in that retaining mechanism is set on the housing of sense light, and it adopts solar cell to practice thrift the energy as energy resource supply simultaneously.
Description of drawings

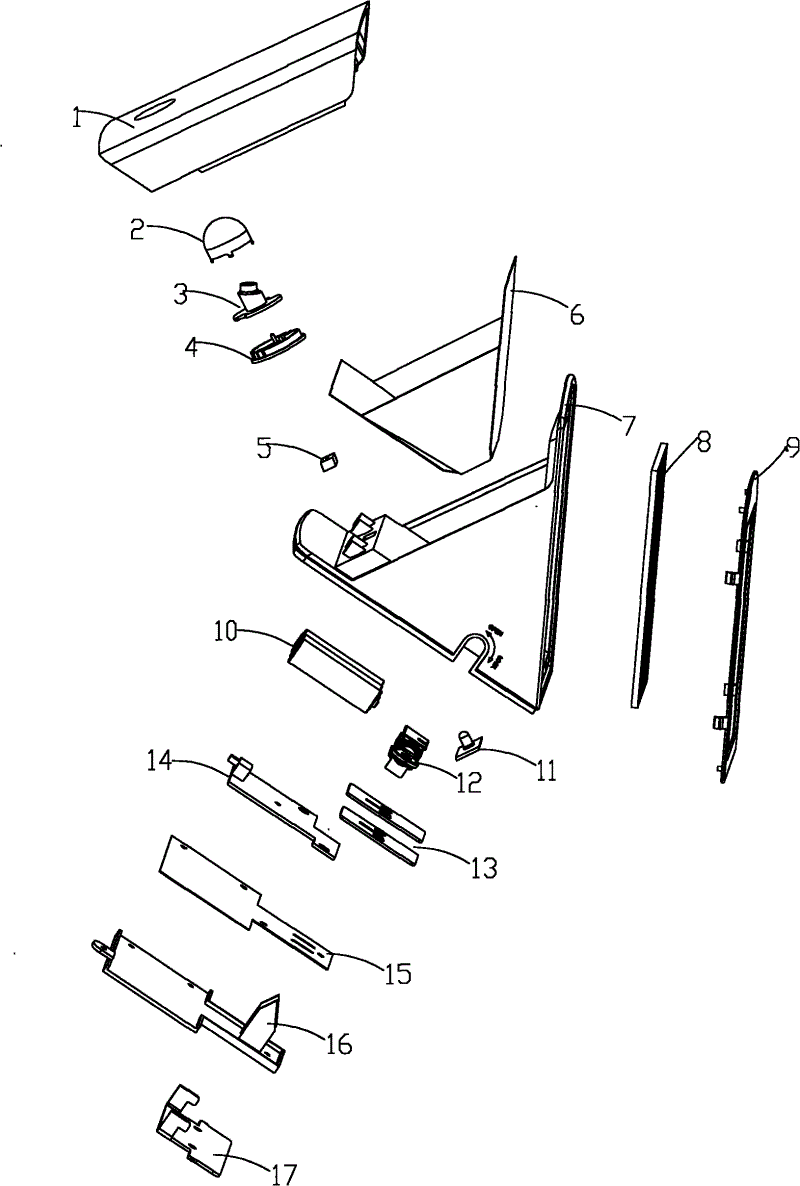

Fig. 1 is the three-dimensional exploded view of the utility model.
Fig. 2 is the assembly drawing of the utility model.
Fig. 3 is the assembly drawing of another angle of the utility model.
The specific embodiment
Below in conjunction with accompanying drawing and specific embodiment the utility model is described further.
See also Fig. 1 and shown in Figure 2; A kind of solar energy sense light; It comprises lampshade 1, eyeglass 2, probe line plate 3, transparent cover plate 4, LED lamp 11, reflector 6, housing 7, rechargeable battery 10, and said eyeglass 2, probe line plate 3 and cover plate 4 are fixed on the lampshade 1, and said lampshade 1 is assembled on the housing 7; It comprises that further solar cell 8, one retaining mechanisms 12 that are fixed on the housing 7 are connected with housing 7.Said reflector and housing assembling place are equipped with rubber seal 5.
Said rechargeable battery 10, LED lamp 11, master control wiring board 14, foam 15 are connected with shell through the screw on the plastic cover plate 16, and said solar cell 8 is connected with housing 7 through the buckle on the fixed head 9.
Said retaining mechanism 12 is connected with housing 7 through the Luo silk on the metal cover board 13; Metal fixed mount 17 passes through metal cover board 13 fixed product on the installation site.
Solar time is arranged daytime; Solar panel transfers solar energy to electric energy; Solar recharging control is circuit partly; Adopt MPPT (MPPT maximum power point tracking method) technology that battery is charged with maximal efficiency, be charged to cell voltage always and arrive the highest blanking voltage, charging control section part circuit is closed MPPT and is changed trickle charge over to.
This product is used in the inductive lightning in evening, closes partly circuit of induction daytime, and with the conserve batteries finite energy, overcast and rainy day after day when special also has enough electric energy, keeps normal illumination.To time induction in evening circuit working partly, product is in the induction region scope, and when detecting human body and moving with 0.30~3 meter per second, induction partly circuit detects induced signal and after inner processing and amplifying, delivers to MCU (single-chip microcomputer) and handle.Come the driving LED lamp by MCU output PWM (pulse width modulation).
When day after day overcast and rainy cell voltage was lower than the minimum blanking voltage of battery, product was closed LED output automatically, was not damaged with the protection battery.Circuit working with the work of microampere order lowest power consumption, points out product electricity not enough with low pressure alarming lamp of flicker in 3 seconds at sleep state at this moment, cannot respond to.This mode can continuous operation 10 days.

Claims (4)

1. solar energy sense light; It comprises lampshade, probe line plate, cover plate, eyeglass, LED lamp, reflector, housing, rechargeable battery; Said eyeglass, probe line plate and cover plate are fixed on the lampshade; Said lampshade is assembled on the housing, it is characterized in that: it further comprises the solar cell that is fixed on the housing, and a retaining mechanism is connected with housing.
2. solar energy sense light as claimed in claim 1 is characterized in that: said rechargeable battery, LED lamp are connected with shell through a plastic cover plate.
3. solar energy sense light as claimed in claim 2 is characterized in that: said solar cell is connected with housing through the buckle on the fixed head.
4. solar energy sense light as claimed in claim 3 is characterized in that: said retaining mechanism is connected with housing with the Luo silk through metal cover board.
