CN202127736U - Cabinet type fly trap - Google Patents

Abstract

The utility model relates to the field of insect traps, in particular to a cabinet type fly trap. The utility model discloses a cabinet-type fly trap, which comprises a cabinet body, a partition board is arranged in the cabinet body, and ventilation holes are opened on the partition board, and the cabinet body is divided into a trapping area and an insect collection area by the partition board. Two parts of the area; one side of the trapping area is an opening, the top of one side of the opening is movably connected with a safety fence that can cover the opening, and a number of insect trap lamps are fixed on the other side corresponding to the opening side; A fan is fixed on the side directly above the ventilation hole of the partition, and a ventilation pipe is fixed on the side directly below the ventilation hole of the partition, and an anti-escape device is provided in the ventilation pipe; the bottom of the insect collecting area An air outlet corresponding to the ventilation pipe is provided, and a metal mesh is provided on the air outlet to prevent flies from escaping; the insect collecting area is provided with a cabinet door on the same side as the opening of the trapping area. The utility model sucks flies, moths, beetles and other flying insects into the insect-collecting chamber of the trap by changing the direction of the airflow through the fan, and kills the flies and insects by air-drying and dehydrating, which not only solves the pollution and short-term problems of chemical drugs, It also avoids the defects of using high-voltage power grids and insect sticky boards, and achieves the purpose of efficient, safe and environmentally friendly prevention and control of indoor and outdoor flies and flying insects.

Description

A cabinet type fly trap

technical field

The utility model relates to the field of insect traps, in particular to a cabinet type fly trap.

Background technique

Flies, moths, beetles, etc. are common indoor and outdoor flying insects that affect people's lives. At present, in addition to spraying drugs for chemical control, people also use electric shock traps and sticky traps to control their populations. However, chemical drug prevention and control not only pollutes the environment, but also has certain damage to human health, and the timeliness is only effective in a short period of time. Electric insect traps have a single source of attraction. Not only is the control effect unsatisfactory, but also the corpses of flies and other flying insects killed by electric shocks are broken and easily scattered around the insect trap lamps, causing secondary pollution and affecting food safety. The sticky insect trap requires frequent replacement of the sticky insect plate, which not only has a high cost of use, but also requires special maintenance.

Contents of the invention

In order to solve the defects of the above-mentioned insect trap, the utility model provides a cabinet-type fly trap which has multiple attracting sources and sucks flies by changing the air flow direction.

The specific technical solution is: a cabinet-type fly trap, including a cabinet body, a partition board is provided in the cabinet body, and ventilation holes are provided on the partition board, and the cabinet body is divided into a trapping area and a collection area by the partition board. Two parts of the insect area; one side of the trapping area is an opening, the top of one side of the opening is movably connected with a safety fence that can cover the opening, and a number of insect trap lamps are fixed on the other side corresponding to the opening side A fan is fixed on the side directly above the ventilation hole of the partition, and a ventilation pipe is fixed on the side directly below the ventilation hole of the partition, and an anti-escape device is provided in the ventilation pipe; The bottom is provided with an air outlet corresponding to the ventilation pipe, and the air outlet is provided with a metal net to prevent flies from escaping; the insect collecting area is provided with a cabinet door on the same side as the opening of the trapping area.

Preferably, the partition is provided with a bait box on the same side as the opening of the trapping area.

Preferably, the escape prevention device is an inverted truncated conical metal mesh.

Preferably, the cabinet door is provided with a window with a metal mesh.

This trap is provided with some lamp tubes for attracting insects and bait boxes, and utilizes multiple attracting sources such as light, color and food to lure flying insects such as flies, moths and beetles. The trap adopts a fan, which changes the air flow direction to suck flies, moths, beetles and other flying insects into the trap's insect collection chamber, and kills the flies and insects by air drying and dehydration, which not only solves the pollution of chemical drugs and The short-term problem avoids the defects of using high-voltage power grid and sticky insect board, and achieves the purpose of efficient, safe, and environmental protection against indoor and outdoor flies and flying insects. At the same time, an anti-escape device is adopted so that the sucked flies cannot escape in reverse. The use of ventilation pipes is mainly to enhance the suction of the fan and form a wind canyon effect. The metal mesh window is set on the cabinet door, which utilizes the phototaxis of flies, so that the sucked flies do not block the air outlet in large quantities.

Description of drawings

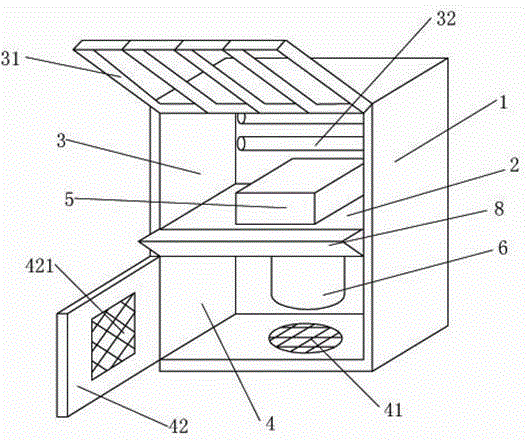

Fig. 1 is the structural representation of the utility model.

Fig. 2 is a sectional view of the utility model.

Detailed ways

Example

The embodiment of the utility model will be further described in detail below in conjunction with FIG. 1 and FIG. 2 .

A cabinet type fly trap, comprising a cabinet body 1, the cabinet body 1 is provided with a partition 2, and the partition board is provided with ventilation holes 21, and the cabinet body 1 is divided into trapping areas 3 by the partition board 2 One side of the trapping area 3 is an opening, the top of one side of the opening is movably connected with a safety fence 31 that can cover the opening, and the other side corresponding to the opening side is fixed with a Some insect trap lamp tubes 32; fan 5 is fixed on the side directly above the ventilation hole 21 of the dividing plate 2, and a ventilation pipe 6 is fixed on the side directly below the ventilation hole 21 of the dividing plate 2, and the ventilation pipe 6 An anti-escape device 7 is provided inside; the bottom of the insect collecting area 4 is provided with an air outlet 41 corresponding to the ventilation pipe 6, and the air outlet 41 is provided with a metal mesh to prevent flies from escaping; the insect collecting area 4 A cabinet door 42 is provided on the same side as the trapping area 3 openings.

Preferably, the partition is provided with a bait box 8 on the same side as the opening of the trapping area 3 .

Preferably, the escape prevention device is an inverted truncated conical metal mesh.

Preferably, the cabinet door is provided with a window 421 with a metal mesh.

The material of the anti-escape device can also be plastic or other materials, and the shape can also be barrel-shaped or the like.

When the flies are attracted by the food in the trap lamp tube and the bait box, the flies are sucked into the insect collection area by the suction of the fan. Due to the existence of the anti-escape device and the suction of the fan, the flies cannot escape from the collection area. district. The present invention has multiple attracting sources: spectrum, attracting food. Trapped flies and insects are dried to death by the wind and collected in the insect collection room. The treatment of insects does not affect the environment; there is no need to replace accessories like the sticky board during use, and it can be used for a long time without special maintenance and low cost of use . And one device has multiple effects, not only can catch flies, but also catch moths, beetles and other flying insects.

Claims (4)

1. A cabinet type fly trap, comprising a cabinet, a partition is provided in the cabinet, and a vent is provided on the partition, and the cabinet is divided into two parts, a trapping area and an insect collection area, by the partition One side of the trapping area is an opening, the top of one side of the opening is movably connected with a safety fence that can cover the opening, and the other side corresponding to one side of the opening is fixed with a number of insect trap lamp tubes; A fan is fixed on the side directly above the ventilation hole of the panel, and a ventilation pipe is fixed on the side directly below the ventilation hole of the clapboard. The ventilation pipe is provided with an escape device; the bottom of the insect collecting area is provided with a The air outlet corresponding to the ventilation pipe is provided with a metal mesh to prevent flies from escaping; the insect collecting area is provided with a cabinet door on the same side as the opening of the trapping area. 2. The cabinet-type fly trap as claimed in claim 1, characterized in that, said partition is provided with a bait box on the same side as the opening of the trapping area. 3. The cabinet type fly trap as claimed in claim 1, wherein the escape prevention device is an inverted truncated conical metal net. 4. The cabinet-type fly trap as claimed in claim 1, wherein a window with a metal mesh is provided on the cabinet door.
