CN202120539U - Display device with four reversible surfaces - Google Patents
Display device with four reversible surfaces Download PDFInfo
- Publication number
- CN202120539U CN202120539U CN2011201357304U CN201120135730U CN202120539U CN 202120539 U CN202120539 U CN 202120539U CN 2011201357304 U CN2011201357304 U CN 2011201357304U CN 201120135730 U CN201120135730 U CN 201120135730U CN 202120539 U CN202120539 U CN 202120539U
- Authority
- CN
- China
- Prior art keywords
- main body
- bracing frame
- advertisement main
- cage
- display device
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 230000002441 reversible effect Effects 0.000 title abstract 4
- 229910003460 diamond Inorganic materials 0.000 claims description 22
- 239000010432 diamond Substances 0.000 claims description 22
- 230000000694 effects Effects 0.000 abstract description 7
- 238000006243 chemical reaction Methods 0.000 description 10
- 238000005516 engineering process Methods 0.000 description 3
- 230000005540 biological transmission Effects 0.000 description 1
- 230000003068 static effect Effects 0.000 description 1
Images
Landscapes
- Illuminated Signs And Luminous Advertising (AREA)
Abstract
The utility model relates to a display device with four reversible surfaces, for the purpose of displaying plane advertisements. The display device comprises at least one group of reversible display units which are arranged in a rack housing; a first driving belt which connects a first driving wheel equipped on two ends of a first drive motor and an external drive gear; a second driving belt which connects a second driving wheel equipped on two ends of a second drive motor and an internal drive gear; and a motor control module which is connected with the first drive motor and the second drive motor via circuits. A light source is located in an advertising body-driving bracket. Each reversible display unit comprises a changeable rhombus advertising body and the advertising body-driving bracket. The display device of the utility model has the advantages that the limit advertisement space is used to a greater extent, and information is dynamically changed so as to attract attention from the public in an easier manner, thereby achieving the wide publicizing effect.
Description
Technical field
The utility model relates to a kind of turning display device in four sides that billboard shows that is used for.
Background technology
Be accompanied by the development of social informatization, the broadcasting system of information is flourishing day by day, and the propagation of incident print media is extensive all the more, so just produced the advertisement display that is used for propagation plane information.Along with the continuous development of science and technology, new product also constantly occurs thereupon at present, and is also more and more to the demand of advertisement position, but limited fixation of advertisement position can not satisfy the want advertisement of the new product that occurs day by day.In the disclosed technology; Had that the characteristics that can not have influence on when utilizing the rotation of identical and adjacent equilateral triangle each other make three turning display device, in practical application, on same display device; If the flat file that can represent is many more, just can reduce advertising cost more.
So to this situation; The utility model has designed a kind of four sides and has turned over display device, and its advantage is on an advertisement position, to do four different advertisement simultaneously, and can take turns stream translation; Realize dynamic effect; Thereby improve people's notice, strengthen the effect of publicity, and show double-edged advertisement simultaneously.
The utility model content
The purpose of the utility model just is to design and a kind ofly can covers the more advertisement display of multi-advertisement information simultaneously, thereby realizes dynamic effect, causes people's attention.
The utility model includes the turning display device that is installed at least one group of the interior quantity of rack shell; First driving-belt that first power wheel of installing on the first drive motor two ends and outer driven wheel are linked together; Second driving-belt that second power wheel of installing on the second drive motor two ends and interior driven wheel are linked together; The motor control module that links to each other with second drive motor through the circuit and first drive motor; Light source is in the advertisement main body and drives bracing frame inside, and turning display device includes variable diamond advertisement main body and the advertisement main body drives bracing frame, and variable diamond advertisement main body covers the advertisement main body and drives the bracing frame surface; Interior driven wheel is assemblied in the two ends up and down that the advertisement main body drives bracing frame, in the outer fix of interior driven wheel along the axis above-below direction.
Driven wheel outside advertisement main body driving bracing frame upper end is equipped with in the utility model; The variable diamond advertisement main body of the turning display device in four sides comprises that the left side that linked together by hinge successively, following, the right side, top and advertisement main body drive bracing frame; The advertisement main body drives bracing frame and comprises that the first horizontal advertisement main body drives bracing frame, the second horizontal advertisement main body drives bracing frame, first vertical advertisement main body driving bracing frame, second vertical advertisement main body driving bracing frame; First cage and second cage; The first horizontal advertisement main body drives a be connected through the hinge end and the left side of bracing frame and links together; The other end and first cage link together, and the second horizontal advertisement main body drives a be connected through the hinge end and the right side of bracing frame and links together, and the other end and first cage link together; The first vertical advertisement main body drive bracing frame be connected through the hinge an end with above link together; The other end and second cage link together, the second vertical advertisement main body drive bracing frame be connected through the hinge an end with below link together, the other end and second cage link together.The first horizontal advertisement main body drives bracing frame, the second horizontal advertisement main body drives bracing frame, first vertical advertisement main body driving bracing frame and second vertical advertisement main body and drives bracing frame; These four groups of bracing frames all are for every group to be combined by three connecting links, and first bar and the 3rd bar are symmetrical with the center line of second bar.Light source, first cage, second cage, interior driven wheel and outer driven wheel central axis coincide.Second cage links to each other with interior driven wheel, and said first cage links to each other with outer driven wheel.
The advantage of the utility model is and can utilizes advertising space at limited advertisement position to a greater extent that dynamic information conversion is noted by masses more easily, thereby reached the effect of publicizing widely.
Description of drawings
Below in conjunction with accompanying drawing the utility model is done explanation further:

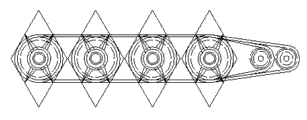

Fig. 1 is the vertical view of the structure of the stationary state among the utility model embodiment 2;
Fig. 2 is the front view of the structure behind the rack shell above removing under the stationary state among the utility model embodiment 2;
Fig. 3 is the left view of the structure of the stationary state among the utility model embodiment 2;
Fig. 4 for remove under duty one state among the utility model embodiment 2 behind the rack shell the vertical view of structure;
Fig. 5 for remove under the duty two-state among the utility model embodiment 2 behind the rack shell the vertical view of structure;
Fig. 6 for remove under the duty three condition among the utility model embodiment 2 behind the rack shell the vertical view of structure;
Fig. 7 is the vertical view of the structure of the stationary state among the utility model embodiment 1;
Fig. 8 is the front view of the structure behind the rack shell above removing under the stationary state among the utility model embodiment 1.
In the accompanying drawing: 1. rack shell; 2. interior driven wheel; 3. outer driven wheel; 4. variable diamond advertisement main body; 5. advertisement main body drives bracing frame; 6. first driving-belt; 7. second driving-belt; 8. second drive motor; 9. first drive motor; 10. the first horizontal advertisement main body drives bracing frame; 11. first vertical advertisement main body drives bracing frame; 12. second cage; 13. first cage; 14. second vertical advertisement main body drives bracing frame; 15. the second horizontal advertisement main body drives bracing frame; 16. light source; 17. convex lens; 18. motor control module; 19. the left side; 20. above; 21. below; 22. the right side; 23. first bar; 24. second bar; 25. the 3rd bar; 26. second power wheel; 27. first power wheel.
Embodiment
It is one group turning display device that the utility model includes the quantity that is installed in the rack shell 1; First driving-belt 6 that first power wheel of installing on first drive motor, 9 two ends 27 and outer driven wheel 3 are linked together; Second driving-belt 7 that second power wheel of installing on second drive motor, 8 two ends 26 and interior driven wheel 2 are linked together; The motor control module 18 that links to each other with second drive motor 8 through the circuit and first drive motor 9; Light source 16 is in advertisement main body driving bracing frame 5 inner turning display device and includes variable diamond advertisement main body 4 and advertisement main body driving bracing frame 5; Variable diamond advertisement main body 4 covers the advertisement main body and drives bracing frame 5 surfaces, and interior driven wheel 2 is assemblied in the two ends up and down that the advertisement main body drives bracing frame 5, in the outer fix of interior driven wheel 2 along the axis above-below direction.
The turning display device number of the utility model is 4 groups; The utility model includes the turning display device that is installed in the rack shell 1; First driving-belt 6 that first power wheel of installing on first drive motor, 9 two ends 27 and outer driven wheel 3 are linked together; Second driving-belt 7 that second power wheel of installing on second drive motor, 8 two ends 26 and interior driven wheel 2 are linked together; The motor control module 18 that links to each other with second drive motor 8 through the circuit and first drive motor 9; Light source 16 is in advertisement main body driving bracing frame 5 inner turning display device and includes variable diamond advertisement main body 4 and advertisement main body driving bracing frame 5; Variable diamond advertisement main body 4 covers the advertisement main body and drives bracing frame 5 surfaces, and interior driven wheel 2 is assemblied in the two ends up and down that the advertisement main body drives bracing frame 5, in the outer fix of interior driven wheel 2 along the axis above-below direction.
At first under static state can show top and following two sides advertisement.
During work; At first drive first vertical advertisement main body driving bracing frame 11, second vertical advertisement main body driving bracing frame 14 for second drive motor 8 and be rotated counterclockwise 30 degree by motor control module 18 energisings; And first horizontal advertisement main body driving bracing frame 10, the second horizontal advertisement main body driving bracing frame 15 is motionless; Thereby cause the inclination on the left side 19 and the right side 22; Make the variable diamond main body become a positive rhombus that is tilted to the left by square; And then switch on simultaneously by motor control module 18 and to give first drive motor 9, second drive motor 8; Make first drive motor 9, second drive motor 8 120 degree that turn clockwise simultaneously; Then the first horizontal advertisement main body drives bracing frame 10, the second horizontal advertisement main body and drives bracing frame 15, first vertical advertisement main body and drive bracing frame 11, second vertical advertisement main body and drive bracing frame 14 120 degree that turn clockwise simultaneously, drives first vertical advertisement main body driving bracing frame 11, second vertical advertisement main body driving bracing frame 14 for first drive motor 9 by motor control module 18 energisings more at last and is rotated counterclockwise 30 and spends, and at this moment the left side 19 of variable diamond advertisement main body has become present top 20 originally; The face that variable diamond advertiser physical efficiency is originally seen has become the present left side 19 and the right side 22; Accomplish the conversion of advertising plane for the first time, carried out the conversion second time behind the stationary interval, turned over advertisement with regard to forming a dynamic constantly four sides of conversion like this.And be simultaneously displayed on and just carry on the back two different faces.
Light source is under the prerequisite of electric light source, below every group of light source 16, places corresponding convex lens 17, makes light source 16 light beams distribute better effects if.If light source 16 is a line source, light source 16 is positioned at the center of advertisement main body bracing frame 5, plays the good effect of dispersing equally.
The kind of drive among embodiment 1 and the embodiment 2 can be the band transmission, also can be chain sprocket drive.
Claims (5)
1. the display device that can overturn on four sides; It is characterized in that: this four sides display device includes at least one group the turning display device that is installed in the rack shell (1); First driving-belt (6) that first power wheel of installing on first drive motor (9) two ends (27) and outer driven wheel (3) are linked together; Second driving-belt (7) that second power wheel of installing on second drive motor (8) two ends (26) and interior driven wheel (2) are linked together; The motor control module (18) that links to each other with second drive motor (8) through circuit and first drive motor (9); Light source (16) is in the advertisement main body and drives bracing frame (5) inside; Turning display device includes variable diamond advertisement main body (4) and the advertisement main body drives bracing frame (5); Variable diamond advertisement main body (4) covers the advertisement main body and drives bracing frame (5) surface, and interior driven wheel (2) is assemblied in the two ends up and down that the advertisement main body drives bracing frame (5), in the outer fix of interior driven wheel (2) along the axis above-below direction.
2. a kind of display device that can overturn on four sides as claimed in claim 1; It is characterized in that: said advertisement main body drives bracing frame (5) upper end and is equipped with outer driven wheel (3); The variable diamond advertisement main body (4) of the turning display device in four sides comprises that the left side (19) that is linked together by hinge successively, following (21), the right side (22), top (20) and advertisement main body drive bracing frame (5); The advertisement main body drives bracing frame (5) and comprises that the first horizontal advertisement main body drives bracing frame (10), the second horizontal advertisement main body drives bracing frame (15), first vertical advertisement main body driving bracing frame (11), the second vertical driving of advertisement main body bracing frame (14), first cage (13) and second cage (12); The first horizontal advertisement main body drives a be connected through the hinge end and the left side (19) of bracing frame (10) and links together; The other end and first cage (13) link together; The second horizontal advertisement main body drives a be connected through the hinge end and the right side (22) of bracing frame (15) and links together; The other end and first cage (13) link together; The first vertical advertisement main body drives a be connected through the hinge end and top (20) of bracing frame (11) and links together; The other end and second cage (12) link together, and the second vertical advertisement main body drives a be connected through the hinge end and following (21) of bracing frame (14) and links together, and the other end and second cage (12) link together.
3. a kind of display device that can overturn on four sides as claimed in claim 1 is characterized in that: described light source (16), first cage (13), second cage (12), interior driven wheel (2) and outer driven wheel (3) central axis coincide.
4. a kind of display device that can overturn on four sides as claimed in claim 2; It is characterized in that: the described first horizontal advertisement main body drives bracing frame (10), the second horizontal advertisement main body drives bracing frame (15), first vertical advertisement main body driving bracing frame (11) and second vertical advertisement main body and drives bracing frame (14); These four groups of bracing frames all are for every group to be combined by three connecting links, first bar (23) and the center line symmetry of the 3rd bar (25) with second bar (24).
5. a kind of display device that can overturn on four sides as claimed in claim 2 is characterized in that: said second cage (12) links to each other with interior driven wheel (2), and said first cage (13) links to each other with outer driven wheel (3).
